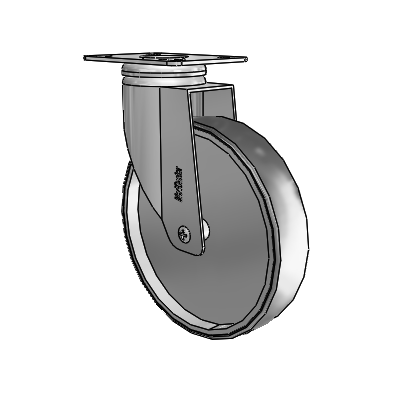

The MedCaster CX-06TPP-125-SW-TP13 swivel caster features a 6" x 1.25" wide wheel and a 96mm x 70mm Top Plate, capable of a 300 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The CX Series chrome medical casters feature easy-to-activate and deactivate dual brake pedals on total lock and direction lock models, making it ideal for many medical carts and equipment that have an open area around the base for higher pedal access. If you require lower access due to bumpers or frame/base constraints, please see our CH Series models. Available in swivel, total lock (locks both swivel section and wheel), and direction lock (locks swivel only to allow for easier steering) models to solve a variety of mobility requirements for your OEM products or replacement medical caster needs.
• Short swivel radius
• Durable chrome-plated finish
• Double pedal brake design for easy on/off function for both total lock and direction lock casters
• Dual ball heat-treated raceways for added strength and performance
• Total Lock Brake models lock both swivel and wheel
• Directional lock models lock swivel only (helps with steering)
• Precision ball bearings in wheels for easier, quiet, and smooth rollability
• Wheels have full thread guards for added protection
SKU
|
CX-06TPP-125-SW-TP13
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball heat-treated raceways for added strength and performance
|
Brake
|
None
|
Load Capacity
|
300 lb
|
Wheel Tread Width
|
1.25 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Precision Ball
|
Wheel Thread Guards
|
Full
|
Fastening
|
96mm x 70mm Top Plate
|
Bolt Hole Pattern
|
74mm x 45mm
|
Bolt Size Recommended
|
8mm
|
Mounting Height
|
7.44 in
|
Swivel Radius
|
4.63 in
|
Warranty
|
1 year
|
Manufacturing Number
|
CX-06TPP-125-SW-TP13
|
