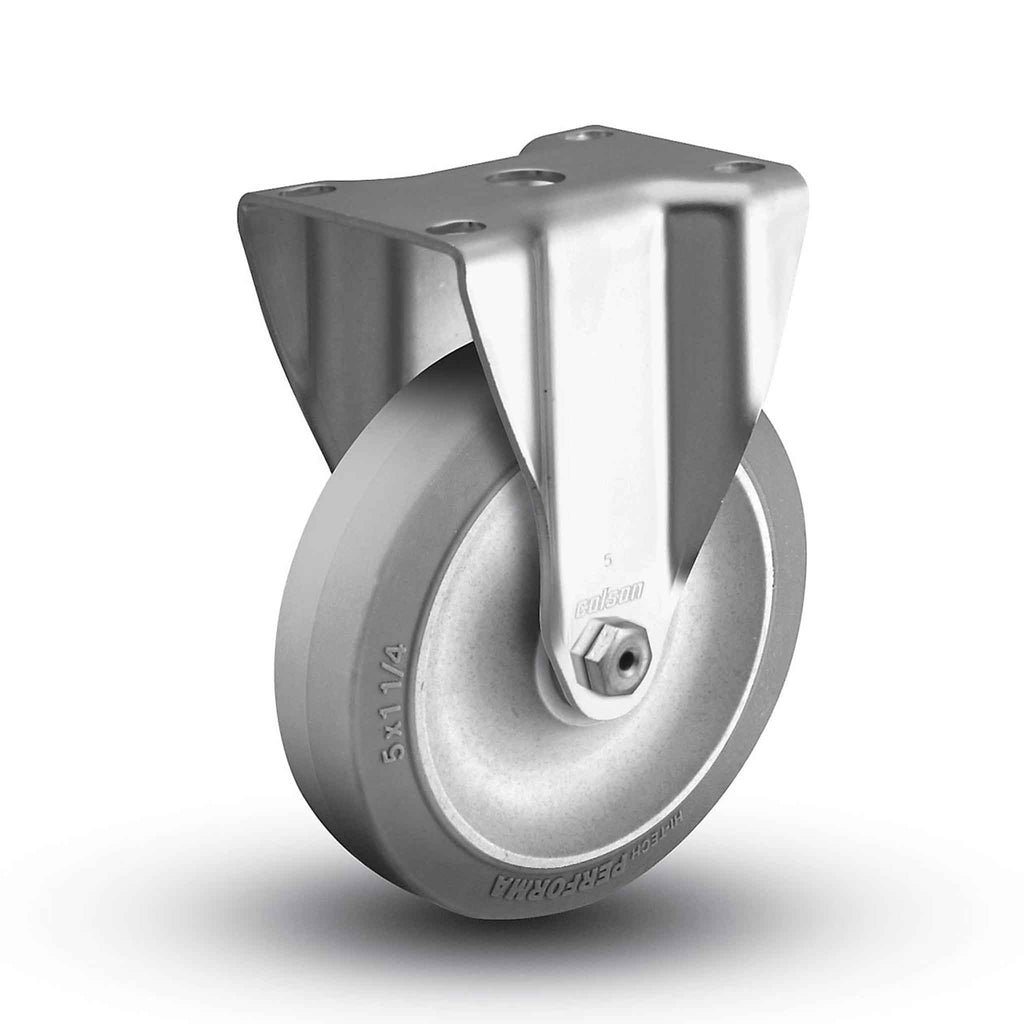

This 5" x 1-1/4" flat tread thermoplastic rubber premium standard duty institional rigid plate caster is quiet and smooth rolling. Thermoplastic rubber wheels are floor protective and easy to start. The flat tread increases capacity.The 34 Series premium plate casters feature high quality, durable and quiet wheels and optional brakes. Total lock brakes provide positive braking of both the wheel and the swivel section.
Series: 22 Series (to 325 lb/ea)
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 325 lb
Wheel Diameter: 5 in

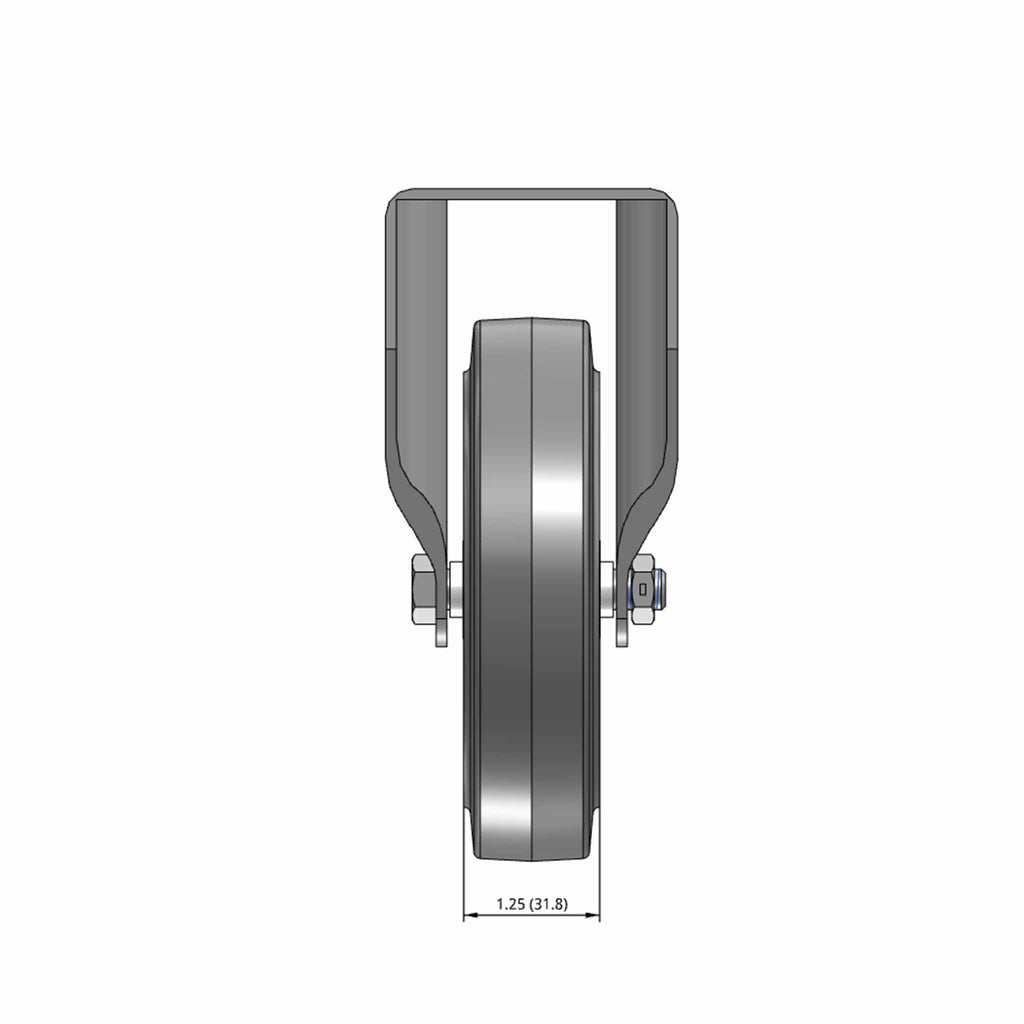

Wheel Tread Width: 1.25 in
Wheel Description: Performa
Wheel Color: Grey on Grey
Wheel Bearing: Precision Ball
Wheel Profile: Flat Tread
Wheel Hardness: 65(+/-5) Shore A
Wheel Thread Guards: None

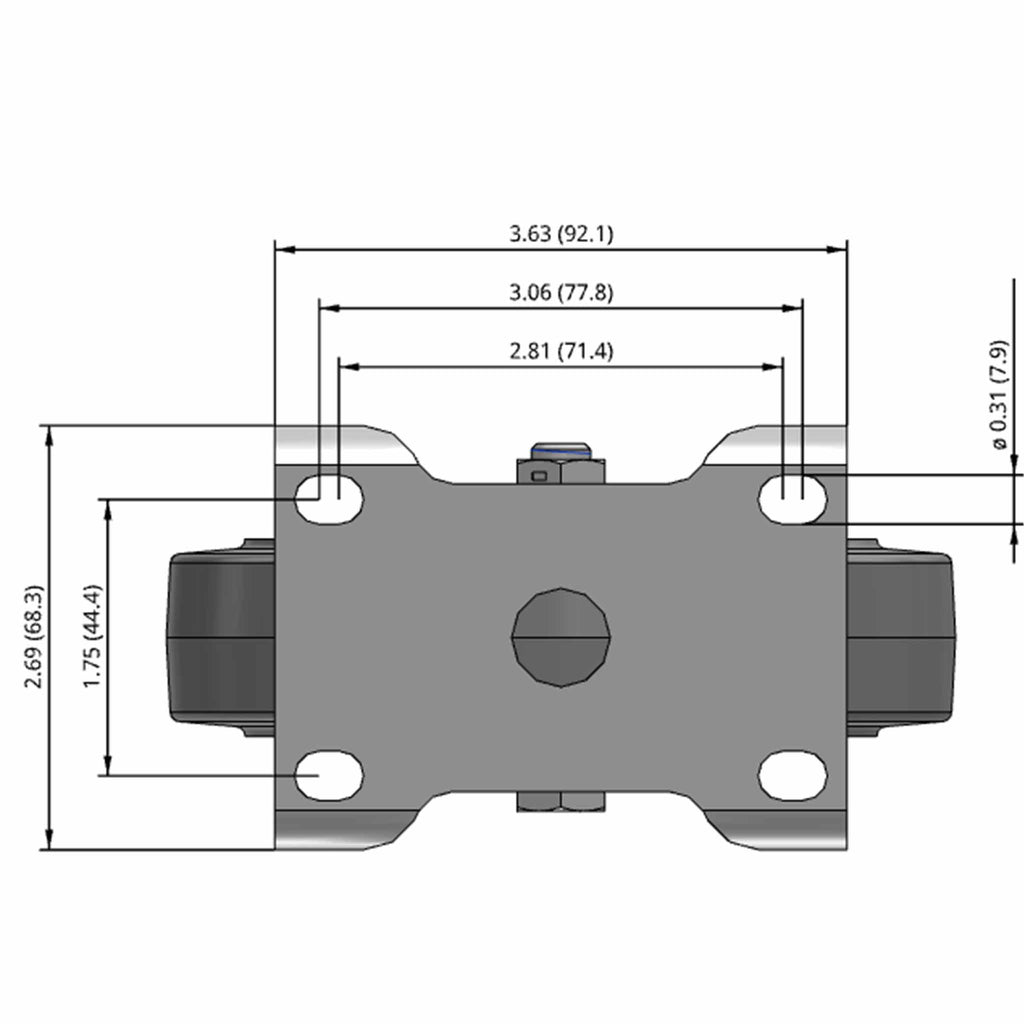

Fastening: 2-11/16" x 3-5/8" top plate
Bolt Hole Pattern: 1-3/4" x 2-13/16" to 3-1/16"
Bolt Size Recommended: 5/16"

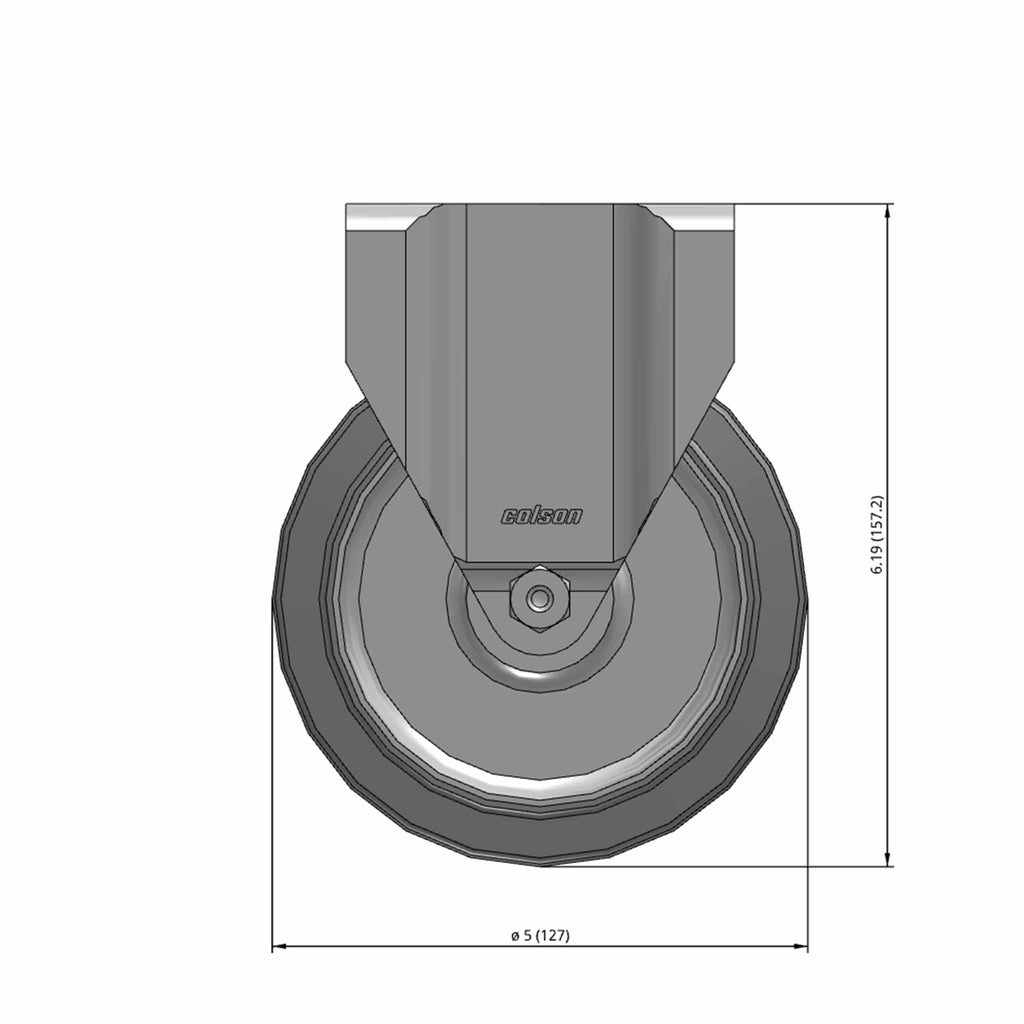

Mounting Height: 6.19 in
Operating Temperature Range: -45F° to +180F°
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
