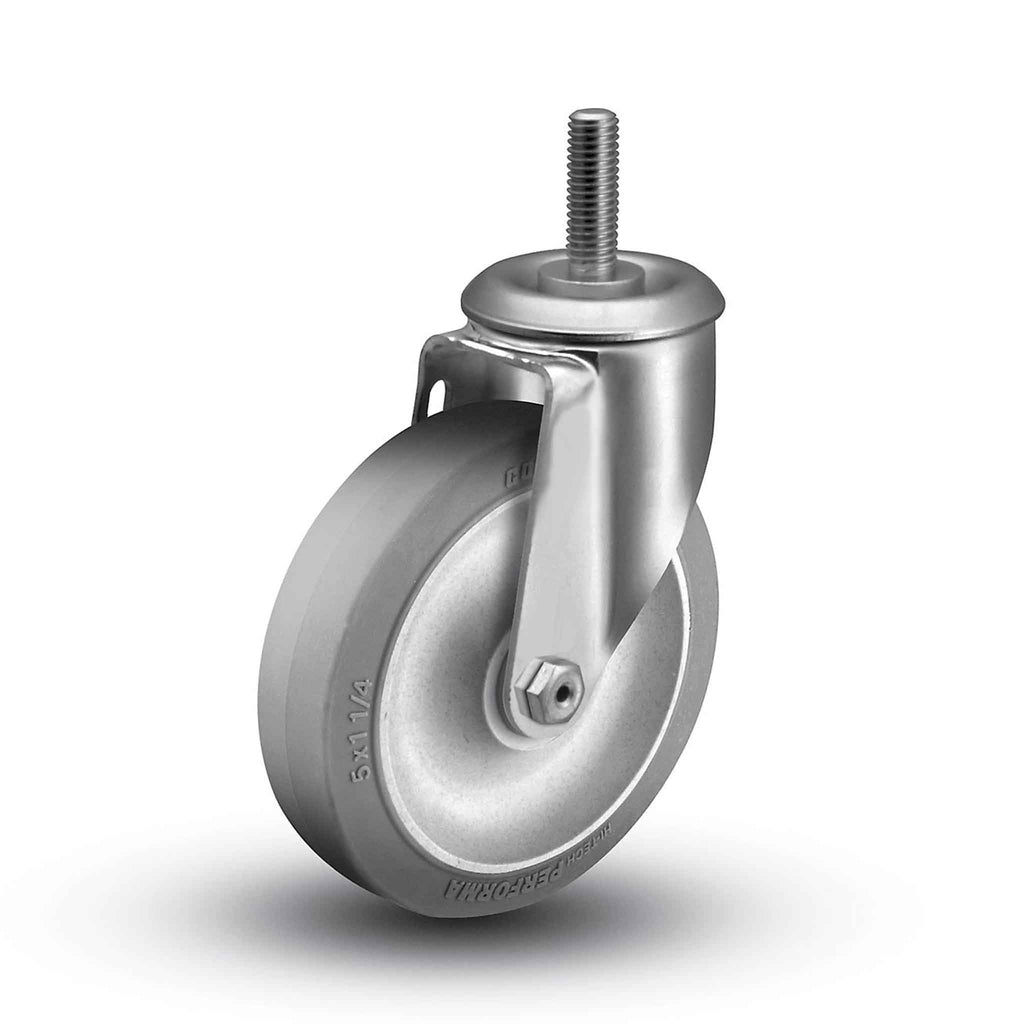

Main view of a Colson Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Performa wheel and 300 lb. capacity part

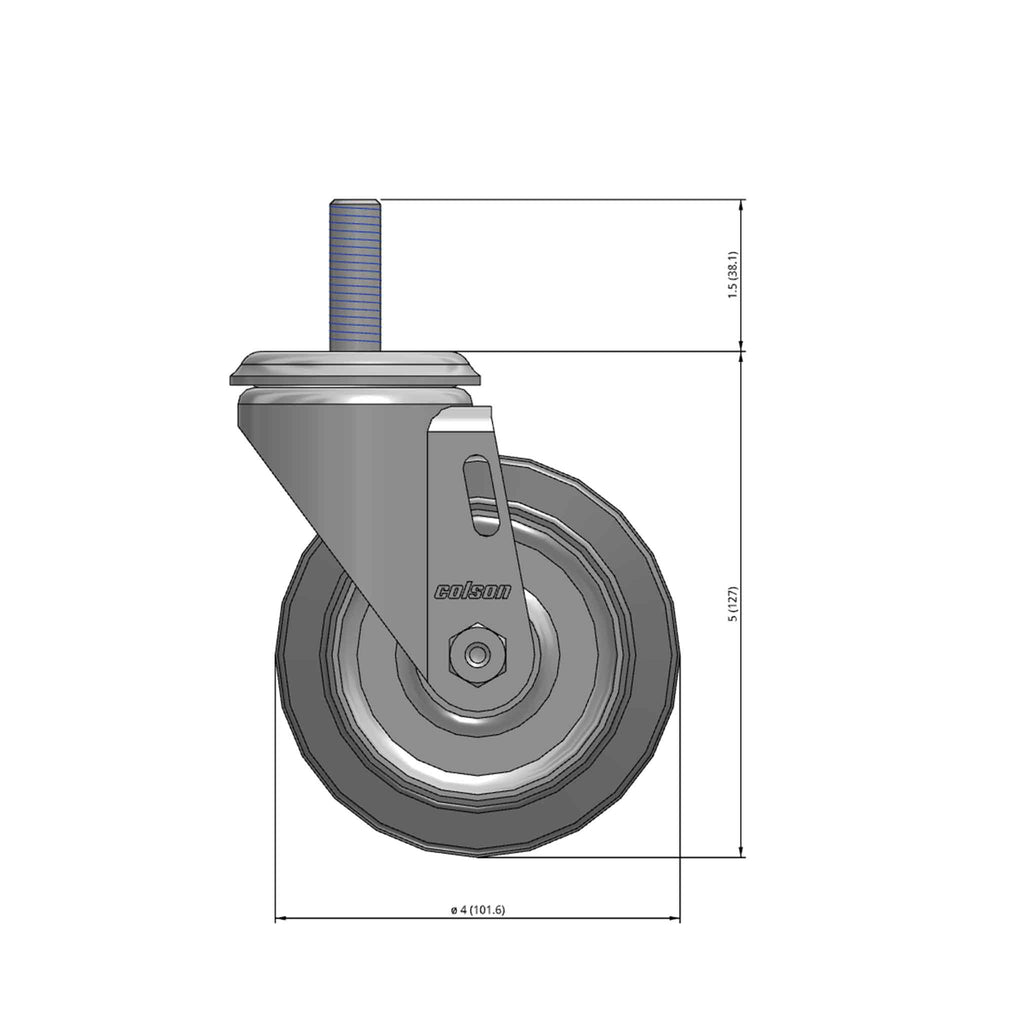

Front dimensioned CAD view of a Colson Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Performa wheel and 300 lb. capacity part

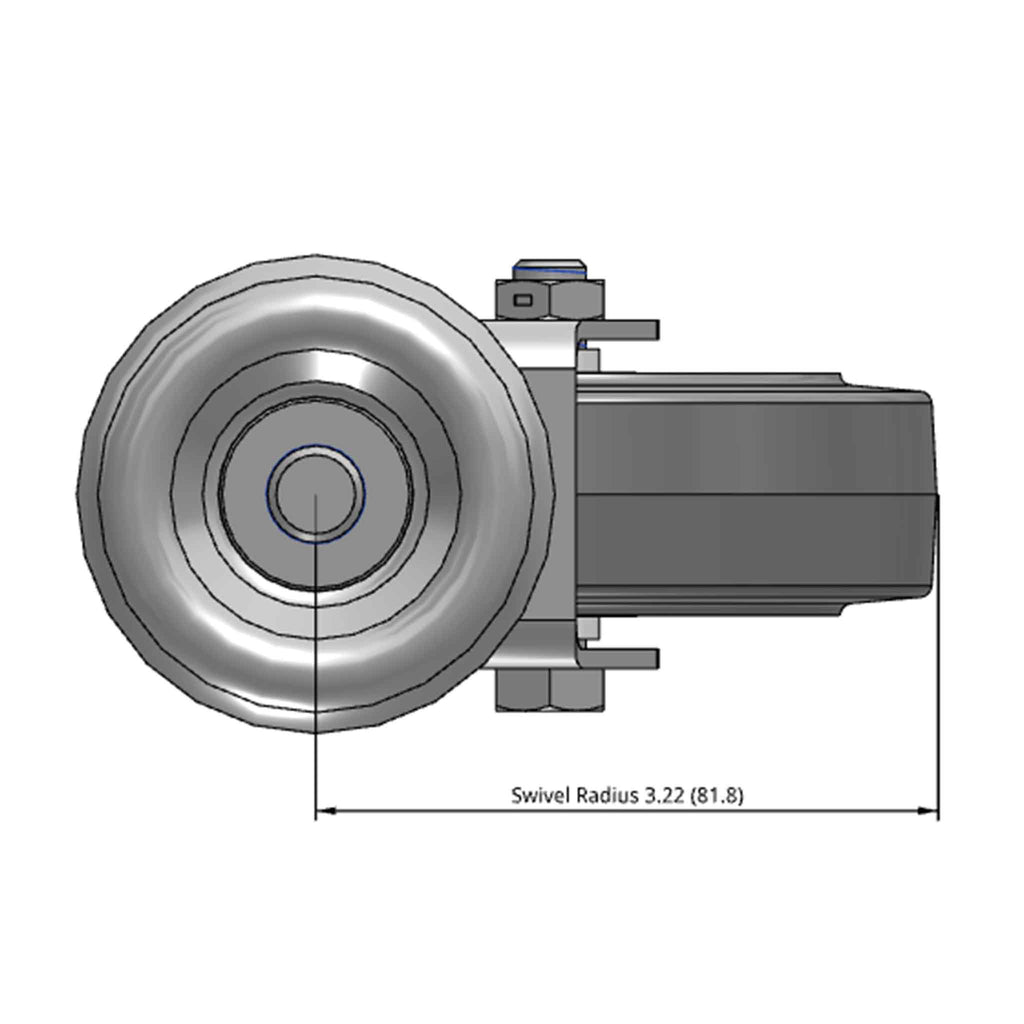

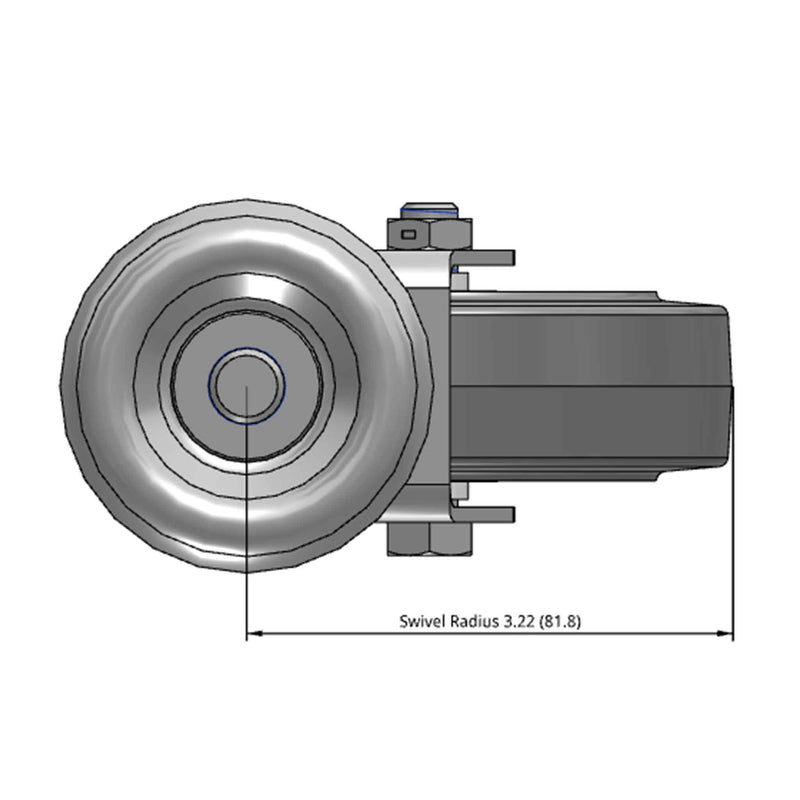

Top dimensioned CAD view of a Colson Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Performa wheel and 300 lb. capacity part

Side dimensioned CAD view of a Colson Casters 4" x 1.25" wide wheel Swivel caster with 1/2"-13 x 1-1/2" stud, without a brake, Performa wheel and 300 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x1.25" Swivel Caster with 1/2" Thread and Performa Rubber BB Wheel

Name: 4"x1.25" Swivel Caster with 1/2" Thread and Performa Rubber BB Wheel
Brand: Colson Casters
SKU: 2.04254.445 MTG53
Price: 27.09 USD
Availability: InStock

Industry's Best Soft Wheel

Colson Casters SKU: 2.04254.445 MTG53
Fastening: 1/2"-13 x 1-1/2" stud | Load Capacity: 300 lb
Mount Height: 5 in | Swivel Radius: 3.22 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$27.09 $31.87

Quantity:

Share this product

This 4" x 1-1/4" flat tread thermoplastic rubber premium standard duty threaded stem caster is quiet and smooth rolling. Thermoplastic rubber wheels are floor protective and easy to start. The caster is retained with a 1/2-13UNC x 1-1/2" threaded stem. Our 22 Series premium standard duty threaded stem casters feature high quality, durable and quiet wheels and optional total lock brakes. A variety of mounting options are available as well. High quality wheels feature precision ball bearings and optional delrin bearings, making these casters versatile and universale.

Part Number:	22TRB40S-T824
SKU	2.04254.445 MTG53
Series:	22 Series (to 325 lb/ea)
Raceway Type:	Full Double Ball Hardened Raceways
Brake:	None
Load Capacity:	300 lb
Mounting Height:	5 in
Wheel Diameter:	4 in
Wheel Tread Width:	1.25 in
Wheel Description:	Performa
Wheel Color:	Grey on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Flat Tread
Wheel Hardness:	65(+/-5) Shore A
Wheel Thread Guards:	None
Fastening:	1/2"-13 x 1-1/2" stud
Swivel Radius:	3.22 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-45F° to +180F°
Mfg:	2.04254.445 MTG53
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x1.25" Swivel Caster with 1/2" Thread and Performa Rubber BB Wheel

Description

Product Details

Part Number:

22TRB40S-T824

SKU

2.04254.445 MTG53

Series:

22 Series (to 325 lb/ea)

Raceway Type:

Full Double Ball Hardened Raceways

Brake:

None

Load Capacity:

300 lb

Mounting Height:

5 in

Wheel Diameter:

4 in

Wheel Tread Width:

1.25 in

Wheel Description:

Performa

Wheel Color:

Grey on Grey

Wheel Bearing:

Precision Ball

Wheel Profile:

Flat Tread

Wheel Hardness:

65(+/-5) Shore A

Wheel Thread Guards:

None

Fastening:

1/2"-13 x 1-1/2" stud

Swivel Radius:

3.22 in

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-45F° to +180F°

Mfg:

2.04254.445 MTG53

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
