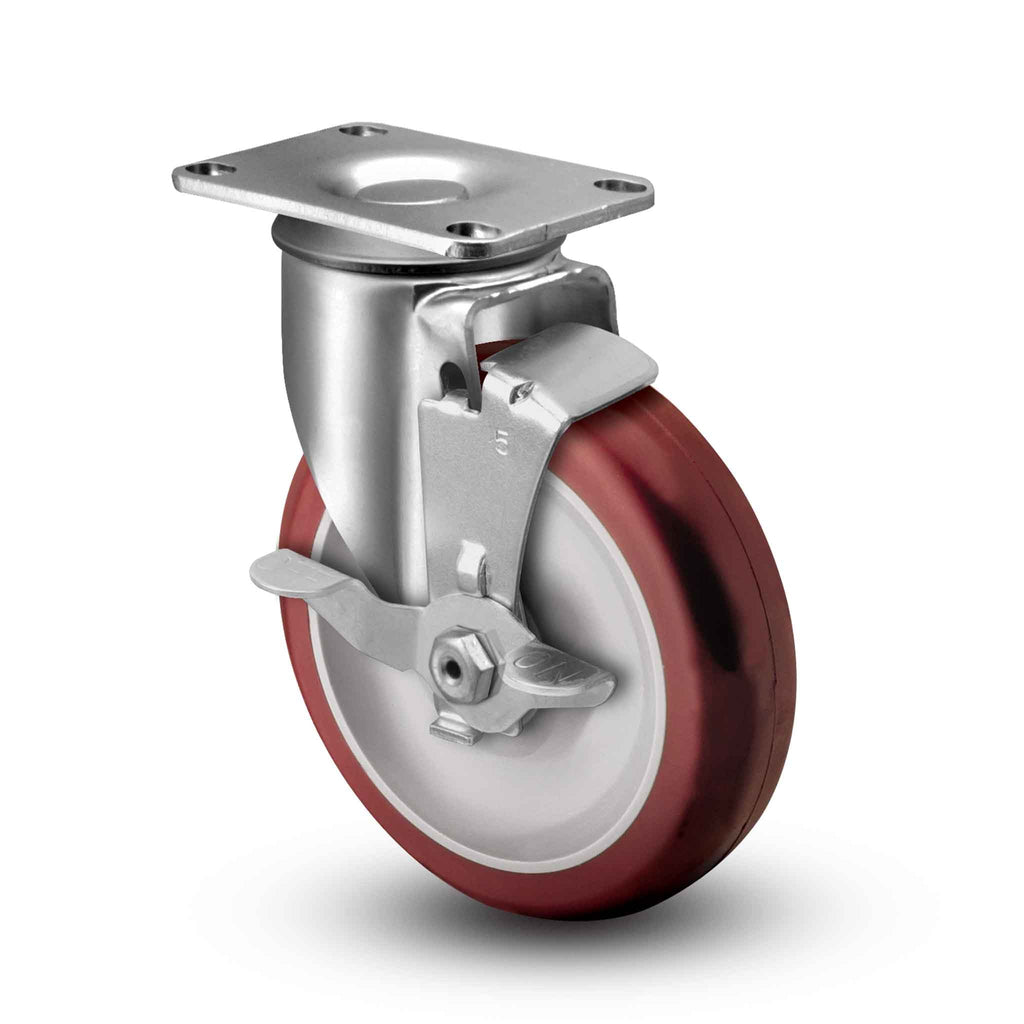

Main view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, with a side locking brake, HI-TECH Polyurethane wheel and 250 lb. capacity part

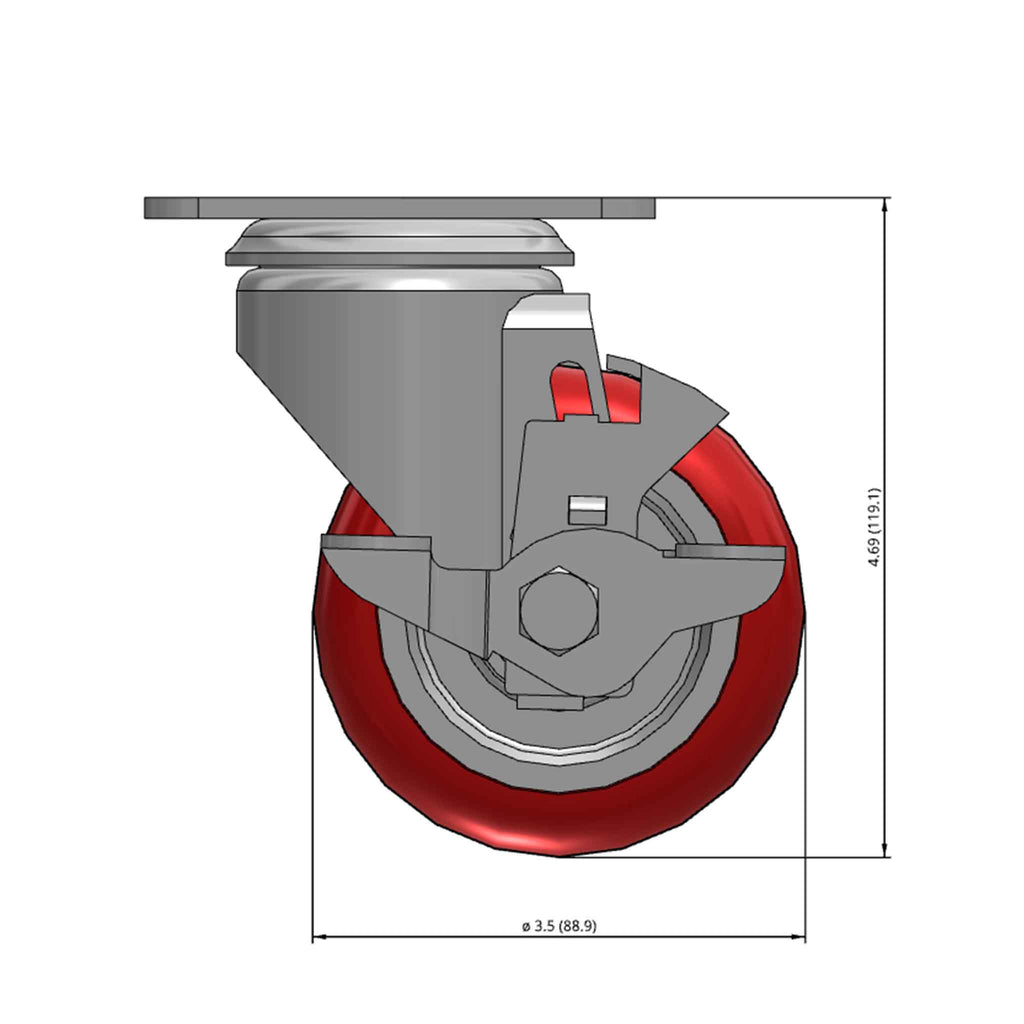

Front dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, with a side locking brake, HI-TECH Polyurethane wheel and 250 lb. capacity part

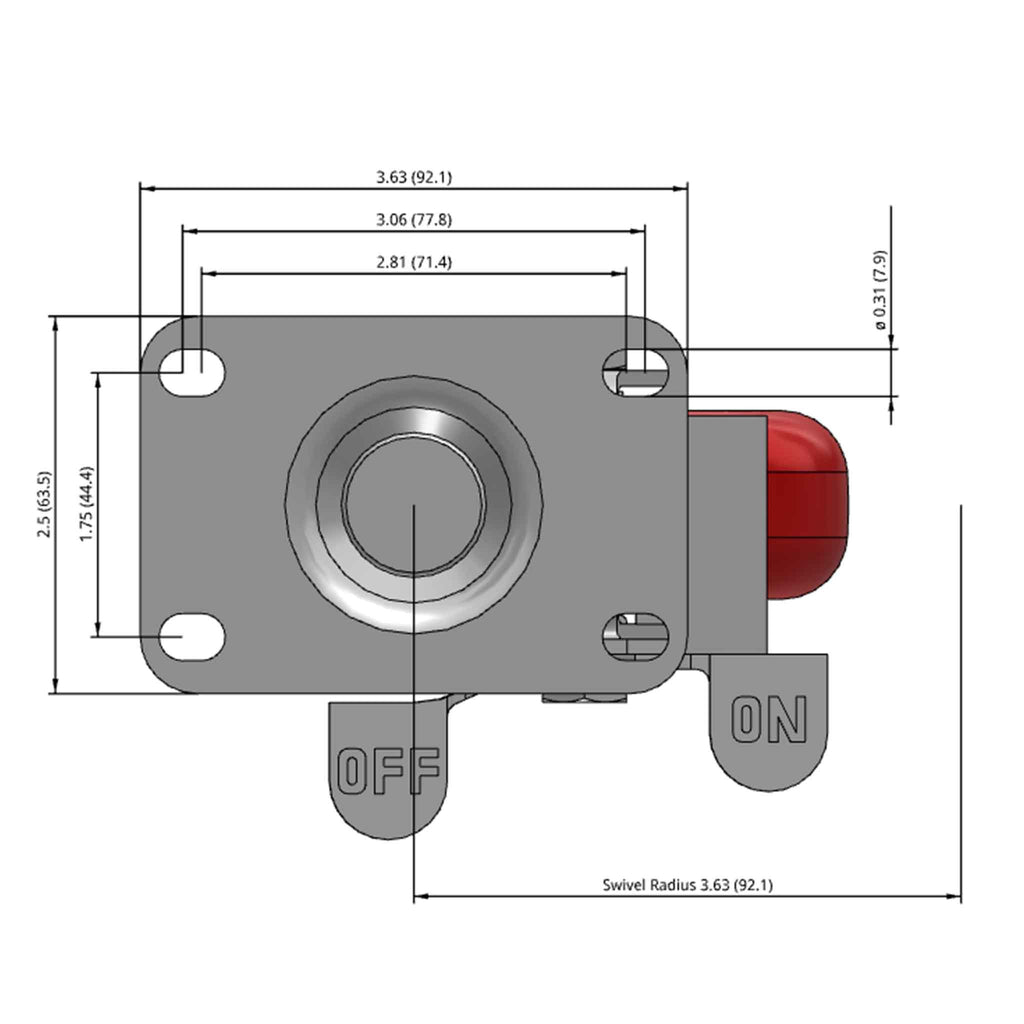

Top dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, with a side locking brake, HI-TECH Polyurethane wheel and 250 lb. capacity part

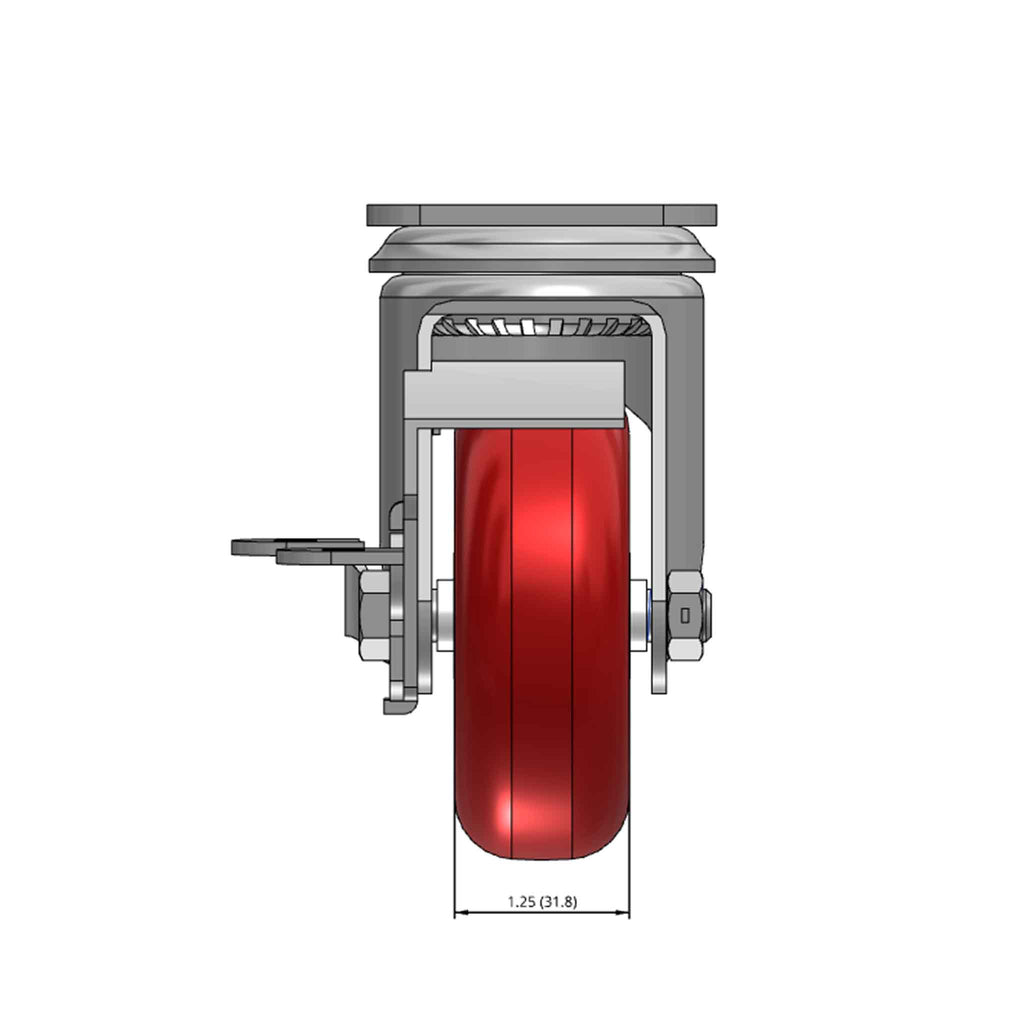

Side dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Swivel caster with 2-1/2" x 3-5/8" top plate, with a side locking brake, HI-TECH Polyurethane wheel and 250 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

3.5"x1.25" Side Lock Plate Caster with Polyurethane HI-TECH BB Wheel

Name: 3.5"x1.25" Side Lock Plate Caster with Polyurethane HI-TECH BB Wheel
Brand: Colson Casters
SKU: 2.03256.95 BRK1
Price: 27.35 USD
Availability: InStock

HI-TECH Poly

Colson Casters SKU: 2.03256.95 BRK1
Fastening: 2-1/2" x 3-5/8" top plate | Load Capacity: 250 lb
Mount Height: 4.69 in | Swivel Radius: 3.63 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-3 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:

$27.35

Quantity:

Share this product

This 3-1/2" x 1-1/4" polyurethane on plastic premium standard duty swivel plate caster with tread brake is durable and easy to roll. Polyurethane wheels are excellent for indoor or outdoor applications.The 34 Series premium plate casters feature high quality, durable and quiet wheels and optional brakes. Total lock brakes provide positive braking of both the wheel and the swivel section.

Part Number:	34PPB35S-TB
SKU	2.03256.95 BRK1
Series:	34 Series (to 325 lb/ea)
Raceway Type:	Full Double Ball Hardened Raceways
Brake:	Top Lock
Load Capacity:	250 lb
Mounting Height:	4.69 in
Wheel Diameter:	3.5 in
Wheel Tread Width:	1.25 in
Wheel Description:	HI-TECH Polyurethane
Wheel Color:	Maroon on Grey
Wheel Bearing:	Precision Ball
Wheel Profile:	Round Tread
Wheel Hardness:	45(+/-5) Shore D
Wheel Thread Guards:	None
Fastening:	2-1/2" x 3-5/8" top plate
Bolt Hole Pattern:	1-3/4" x 2-13/16" to 3-1/16"
Plate Bolt Size Recommended:	5/16"
Swivel Radius:	3.63 in
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-45F° to +180F°
Mfg:	2.03256.95 BRK1
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

3.5"x1.25" Side Lock Plate Caster with Polyurethane HI-TECH BB Wheel

Description

Product Details

Part Number:

34PPB35S-TB

SKU

2.03256.95 BRK1

Series:

34 Series (to 325 lb/ea)

Raceway Type:

Full Double Ball Hardened Raceways

Brake:

Top Lock

Load Capacity:

250 lb

Mounting Height:

4.69 in

Wheel Diameter:

3.5 in

Wheel Tread Width:

1.25 in

Wheel Description:

HI-TECH Polyurethane

Wheel Color:

Maroon on Grey

Wheel Bearing:

Precision Ball

Wheel Profile:

Round Tread

Wheel Hardness:

45(+/-5) Shore D

Wheel Thread Guards:

None

Fastening:

2-1/2" x 3-5/8" top plate

Bolt Hole Pattern:

1-3/4" x 2-13/16" to 3-1/16"

Plate Bolt Size Recommended:

5/16"

Swivel Radius:

3.63 in

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-45F° to +180F°

Mfg:

2.03256.95 BRK1

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
