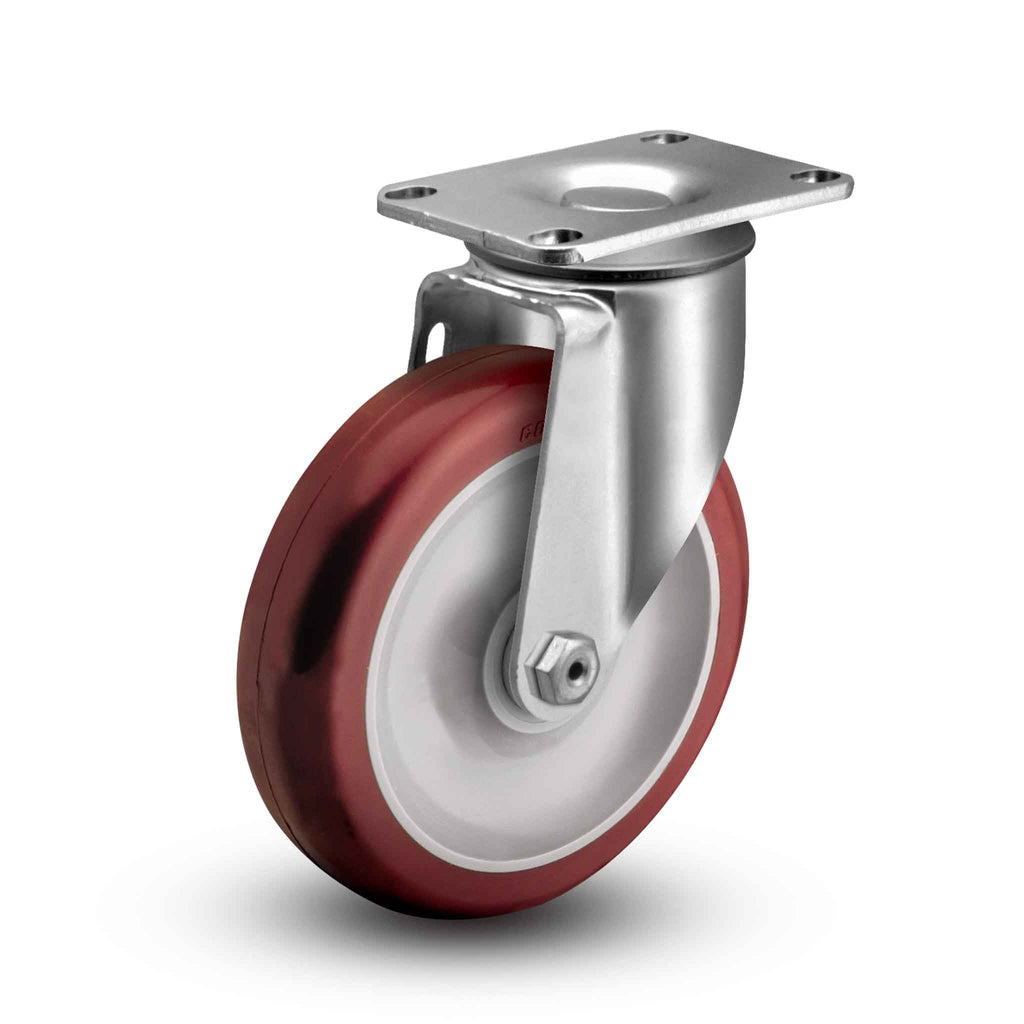

This 3-1/2" x 1-1/4" polyurethane on plastic premium standard duty swivel plate caster is durable and easy to roll. Polyurethane wheels are excellent for indoor or outdoor applications.The 34 Series premium plate casters feature high quality, durable and quiet wheels and optional brakes. Total lock brakes provide positive braking of both the wheel and the swivel section.
Series: 22 Series (to 325 lb/ea)
Mfg. SKU: 2.03256.95
Caster Type: Swivel
Raceway Type: Full Double Ball Hardened Raceways
Load Capacity: 250 lb
Wheel Diameter: 3.5 in

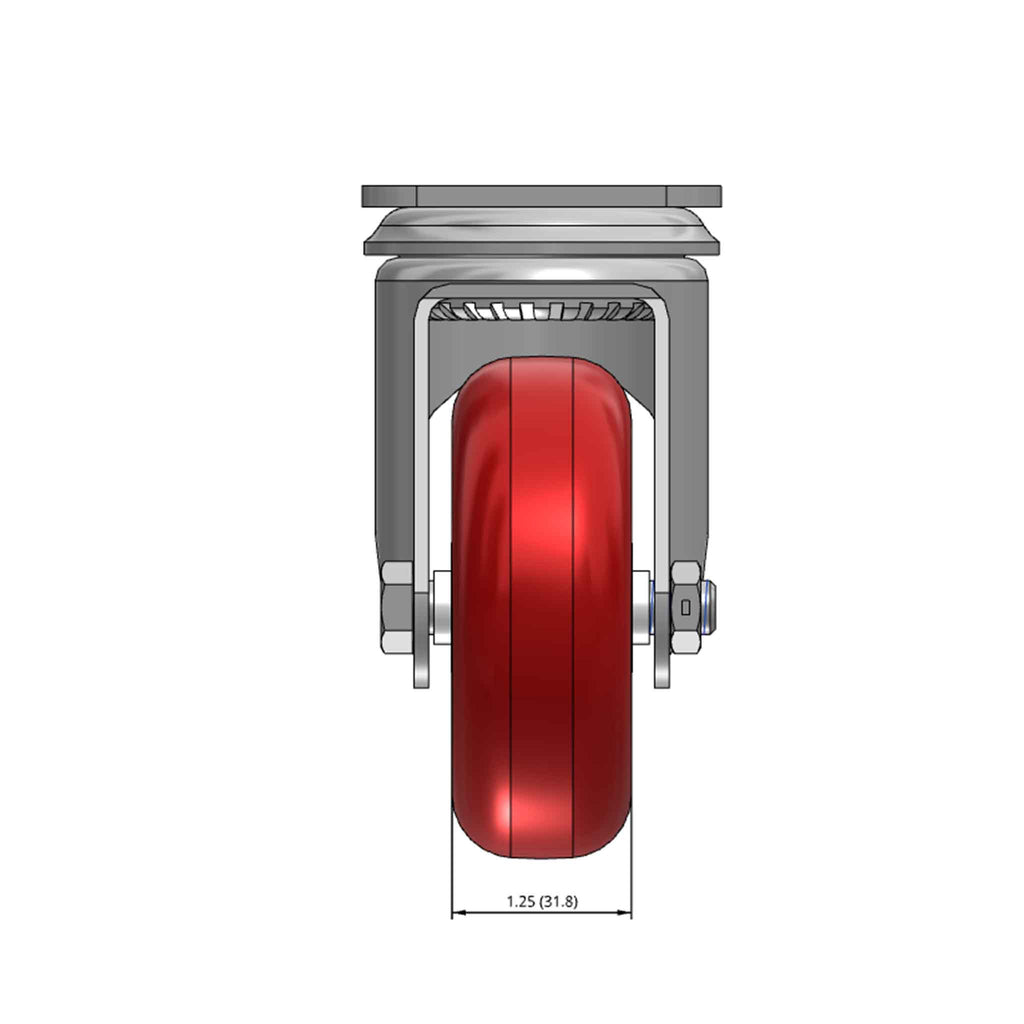

Wheel Tread Width: 1.25 in
Wheel Description: HI-TECH Polyurethane
Wheel Color: Maroon on Grey
Wheel Bearing: Precision Ball
Wheel Profile: Round Tread
Wheel Hardness: 45(+/-5) Shore D
Wheel Thread Guards: None

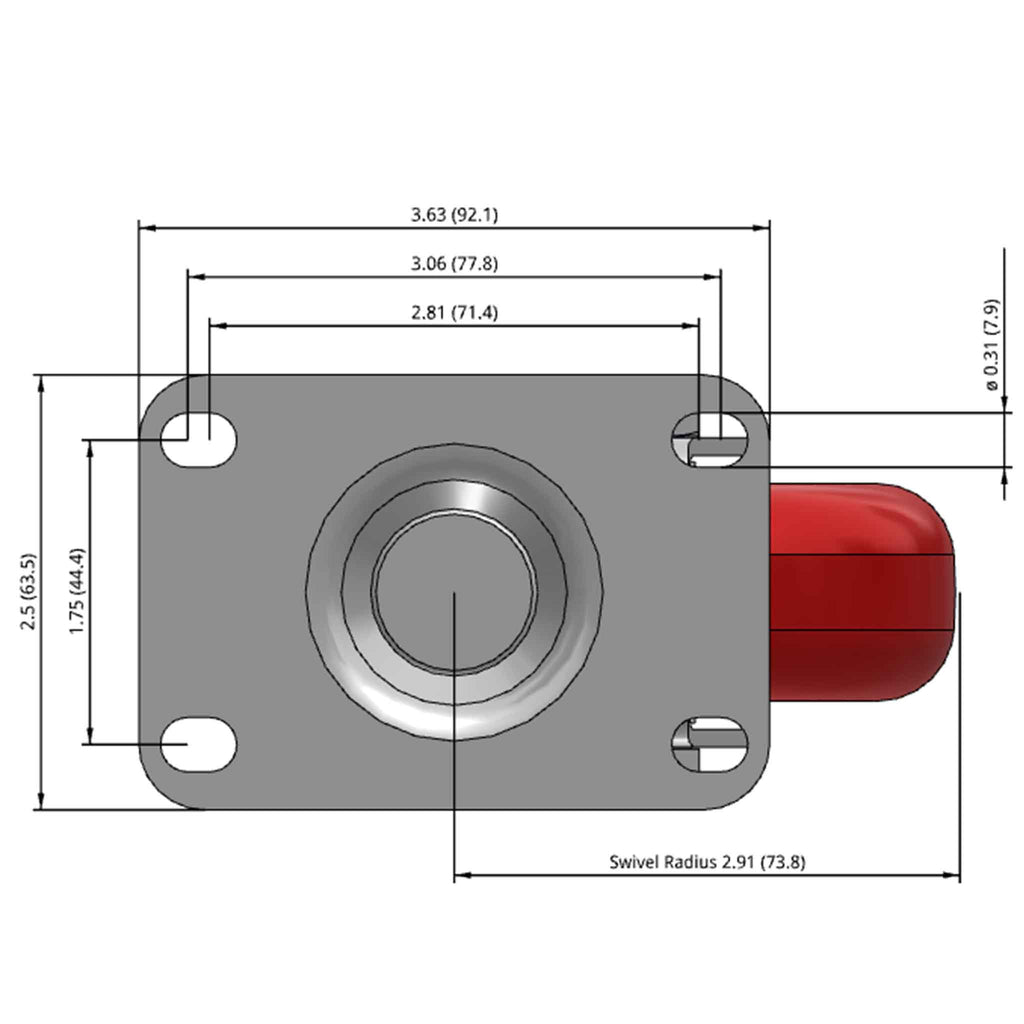

Fastening: 2-1/2" x 3-5/8" top plate
Bolt Hole Pattern: 1-3/4" x 2-13/16" to 3-1/16"
Bolt Size Recommended: 5/16"

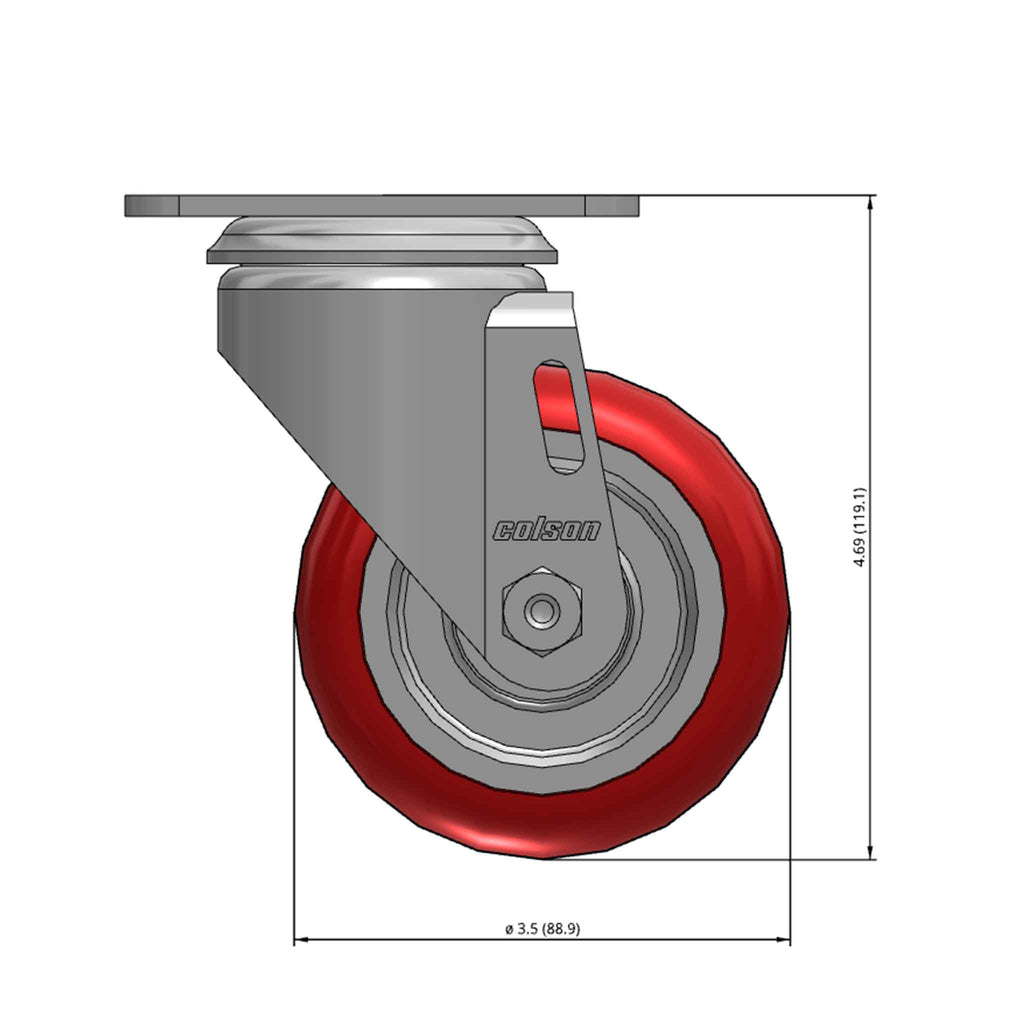

Mounting Height: 4.69 in
Swivel Radius: 2.91 in
Operating Temperature Range: -45F° to +180F°
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
