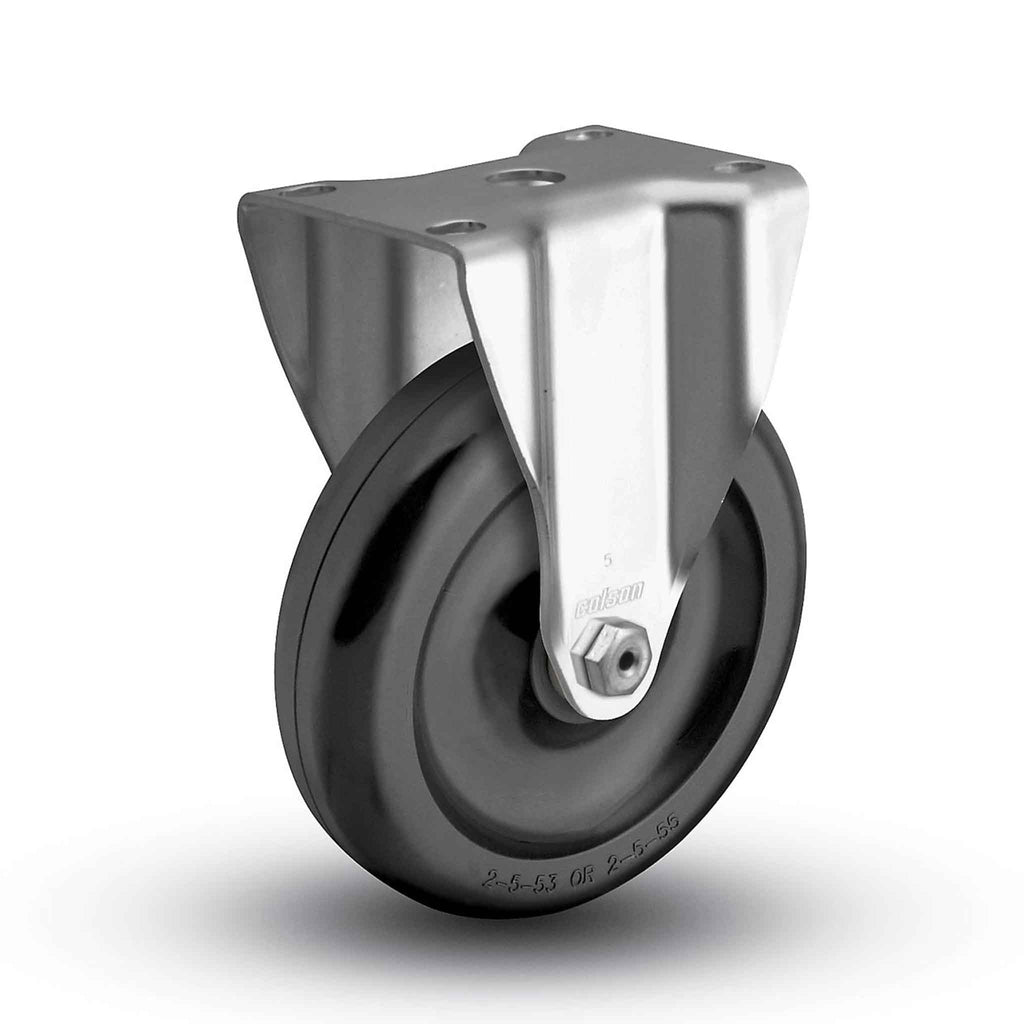

Main view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

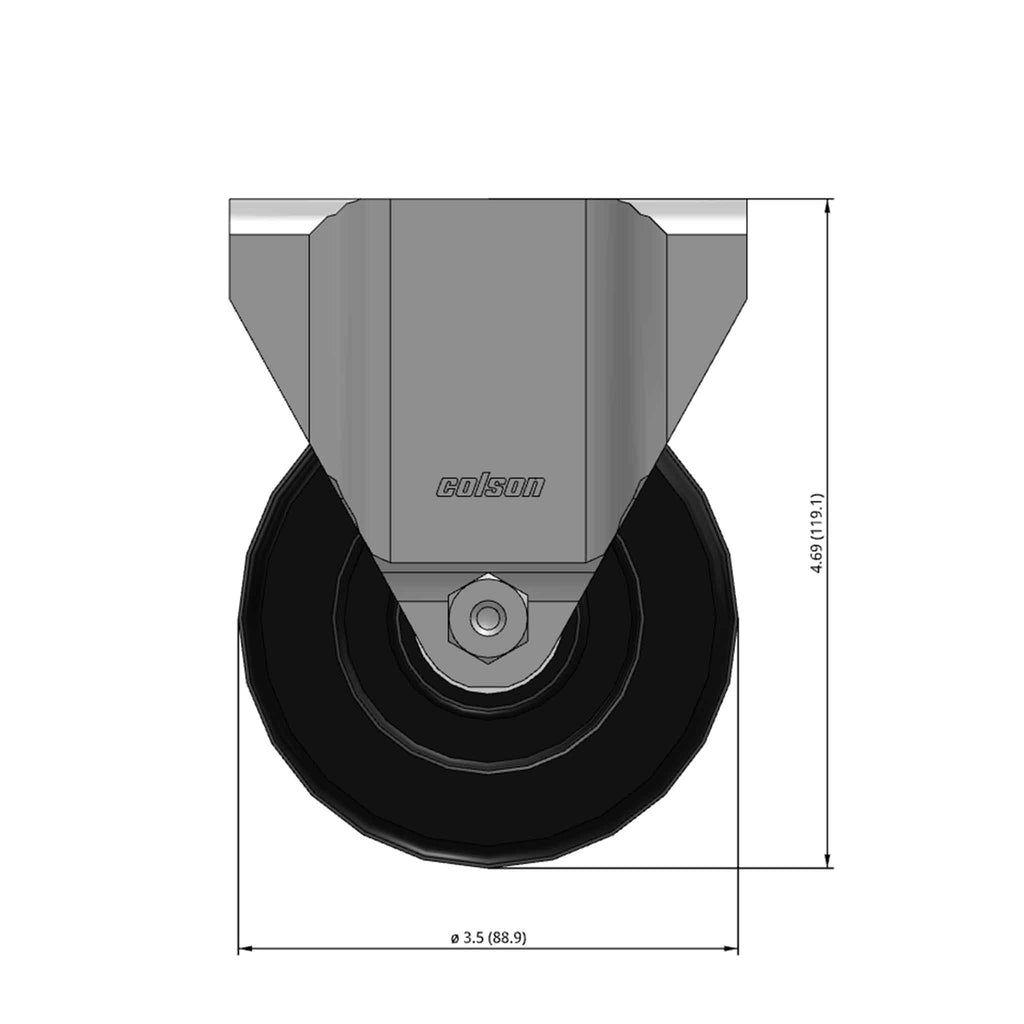

Front dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

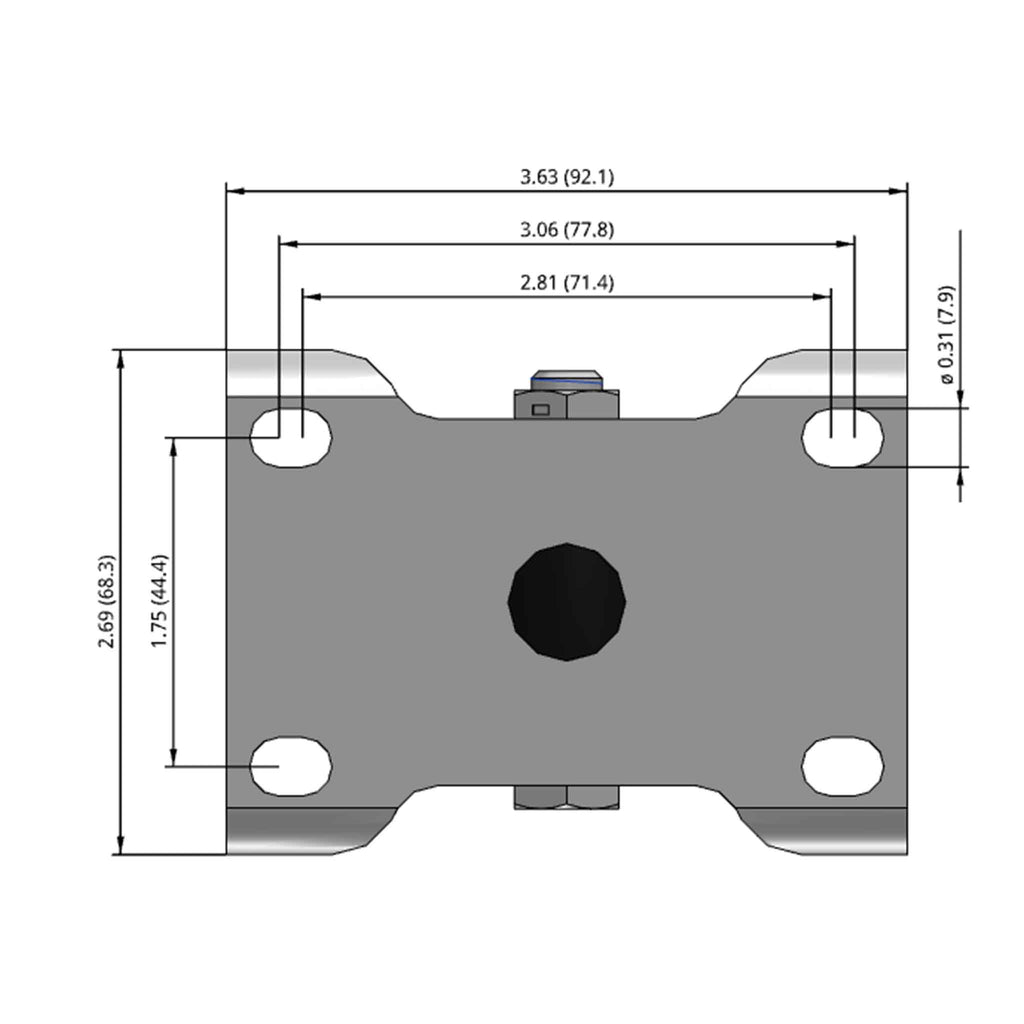

Top dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

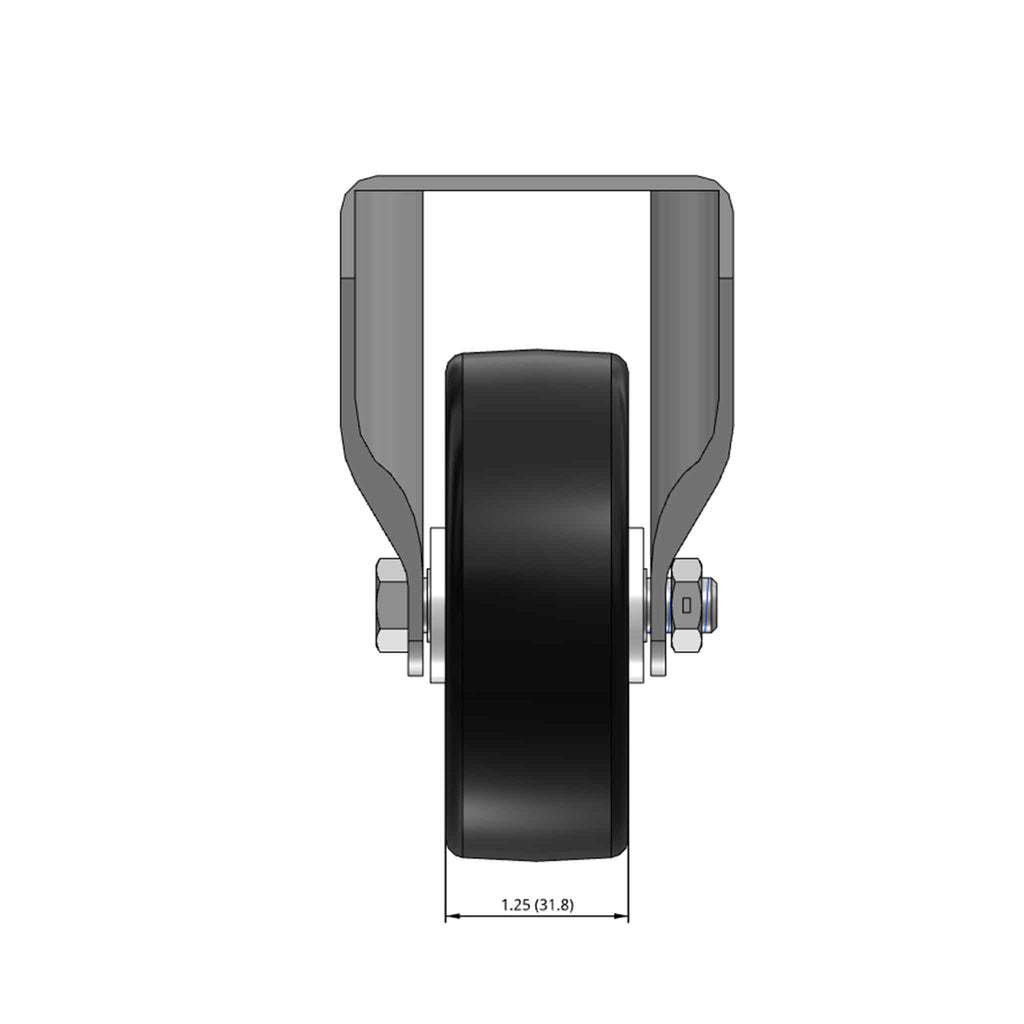

Side dimensioned CAD view of a Colson Casters 3.5" x 1.25" wide wheel Rigid caster with 2-11/16" x 3-5/8" top plate, without a brake, Polyolefin wheel and 230 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

3.5"x1.25" Rigid Plate Caster with Polyolefin Delrin Bearing Wheel

Name: 3.5"x1.25" Rigid Plate Caster with Polyolefin Delrin Bearing Wheel
Brand: Colson Casters
SKU: 2.03208.53
Price: 9.34 USD
Availability: InStock

Colson Casters SKU: 2.03208.53
Fastening: 2-11/16" x 3-5/8" top plate | Load Capacity: 230 lb
Mount Height: 4.69 in
See "Product Details" and below CAD model for full specs.

Ships In: 1-3 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:

$9.34 $13.34

Quantity:

Share this product

This 3-1/2" x 1-1/4" polypropylene premium standard duty rigid plate caster is ideal for wash-down and wet environments. Polypropylene is non-reactive and non-marking.The 34 Series premium plate casters feature high quality, durable and quiet wheels and optional brakes. Total lock brakes provide positive braking of both the wheel and the swivel section.

Part Number:	34POD35R
Load Capacity:	230 lb
Mounting Height:	4.69 in
Wheel Diameter:	3.5 in
Wheel Tread Width:	1.25 in
Wheel Description:	Polyolefin
Wheel Color:	Black
Wheel Bearing:	Delrin
Wheel Profile:	Round Tread
Wheel Hardness:	70(+/-5) Shore D
Wheel Thread Guards:	None
Fastening:	2-11/16" x 3-5/8" top plate
Bolt Hole Pattern:	1-3/4" x 2-13/16" to 3-1/16"
Plate Bolt Size Recommended:	5/16"
Raceway Type:	Rigid Construction
Brake:	None
Finish:	Zinc Plated
Axle Size:	3/8" diameter
Operating Temperature Range:	-45F° to +180F°
Mfg:	2.03208.53
Warranty:	3 year
SKU	2.03208.53
Series:	34 Series (to 325 lb/ea)
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

3.5"x1.25" Rigid Plate Caster with Polyolefin Delrin Bearing Wheel

Description

Product Details

Part Number:

34POD35R

Load Capacity:

230 lb

Mounting Height:

4.69 in

Wheel Diameter:

3.5 in

Wheel Tread Width:

1.25 in

Wheel Description:

Polyolefin

Wheel Color:

Black

Wheel Bearing:

Delrin

Wheel Profile:

Round Tread

Wheel Hardness:

70(+/-5) Shore D

Wheel Thread Guards:

None

Fastening:

2-11/16" x 3-5/8" top plate

Bolt Hole Pattern:

1-3/4" x 2-13/16" to 3-1/16"

Plate Bolt Size Recommended:

5/16"

Raceway Type:

Rigid Construction

Brake:

None

Finish:

Zinc Plated

Axle Size:

3/8" diameter

Operating Temperature Range:

-45F° to +180F°

Mfg:

2.03208.53

Warranty:

3 year

SKU

2.03208.53

Series:

34 Series (to 325 lb/ea)

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
