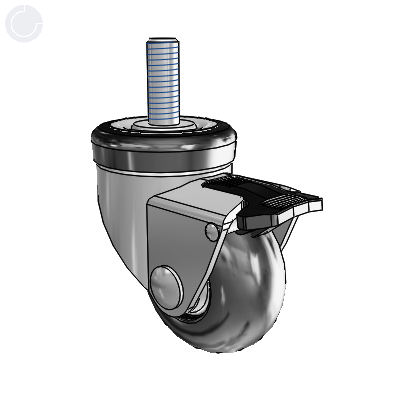

The MedCaster CN-02NRP-100-TL-TS06 swivel caster with Top Total Lock brake features a 2" x 1.0" wide wheel and a 3/8"-16NC x 1" Threaded Stem, capable of a 125 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. A very popular chrome caster for IV stands, light-duty medical stands and equipment, and medical chairs (a major upgrade from loud plastic casters). The metal dust cap acts as a shield to protect unwanted debris and fluids from entering the raceway for cleaning and sanitation benefits. The performance neoprene wheel, featuring precision ball bearings, is non-marking, quiet, and easy to roll.
• Bright chrome finish
• Matching chrome thread guards for wheels
• Non-marking soft Neoprene Rubber wheels
• Dual ball swivel raceways for added performance
• Total Lock Brake models lock both swivel and wheel
• Precision ball bearings in wheels for easier, quieter, and smoother rollability
• Durable coated metal dust shield protects raceways from debris
SKU
|
CN-02NRP-100-TL-TS06
|
Part Number
|
CN18NPB20S-TLB-T616
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual ball bearing raceways for performance and easy swiveling
|
Brake
|
Top Total Lock
|
Load Capacity
|
125 lb
|
Wheel Tread Width
|
1 in
|
Wheel Description
|
Neoprene
|
Wheel Color
|
Black
|
Wheel Bearing
|
Precision Ball
|
Wheel Thread Guards
|
Full
|
Fastening
|
3/8"-16NC x 1" Threaded Stem
|
Mounting Height
|
2.69 in
|
Swivel Radius
|
2 in
|
Warranty
|
1 year
|
Manufacturing Number
|
CN-02NRP-100-TL-TS06
|
