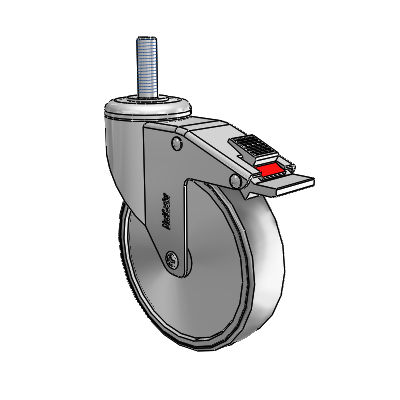

The MedCaster CH-05TPP-125-TL-TS03 swivel caster with Top Total Lock brake features a 5" x 1.25" wide wheel and a 1/2"-13NC x 1-1/2" Threaded Stem, capable of a 260 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. This chrome 1-1/4” wide wheel medical caster series is ideal to provide smooth and quiet mobility to a variety of medical-related products and carts. From crash carts and case carts to seating, the chrome finish provides protection from corrosion and allows for easier cleaning. Available in swivel, rigid, total lock (locks both swivel section and wheel), and direction lock (locks swivel only to allow for easier steering) models to solve any mobility requirement for your products or replacement medical caster needs.
• Durable chrome-plated finish
• Dual Ball Swivel Raceways for added strength and swivel performance
• Total Lock Brake models lock both swivel and wheel
• Directional lock models lock swivel only (helps with steering)
• Precision ball bearings in wheels for smooth, quiet, and easier rollability
• Wheels have full thread guards for added protection from entangling debris
SKU
|
CH-05TPP-125-TL-TS03
|
Caster Type
|
Swivel
|
Raceway Type
|
Dual Ball Swivel Raceways for added strength and swivel performance
|
Brake
|
Top Total Lock
|
Load Capacity
|
260 lb
|
Wheel Tread Width
|
1.25 in
|
Wheel Description
|
Thermoplastic Rubber
|
Wheel Color
|
Grey
|
Wheel Bearing
|
Precision Ball
|
Wheel Thread Guards
|
Full
|
Fastening
|
1/2"-13NC x 1-1/2" Threaded Stem
|
Mounting Height
|
6.31 in
|
Swivel Radius
|
4.86 in
|
Warranty
|
1 year
|
Manufacturing Number
|
CH-05TPP-125-TL-TS03
|
