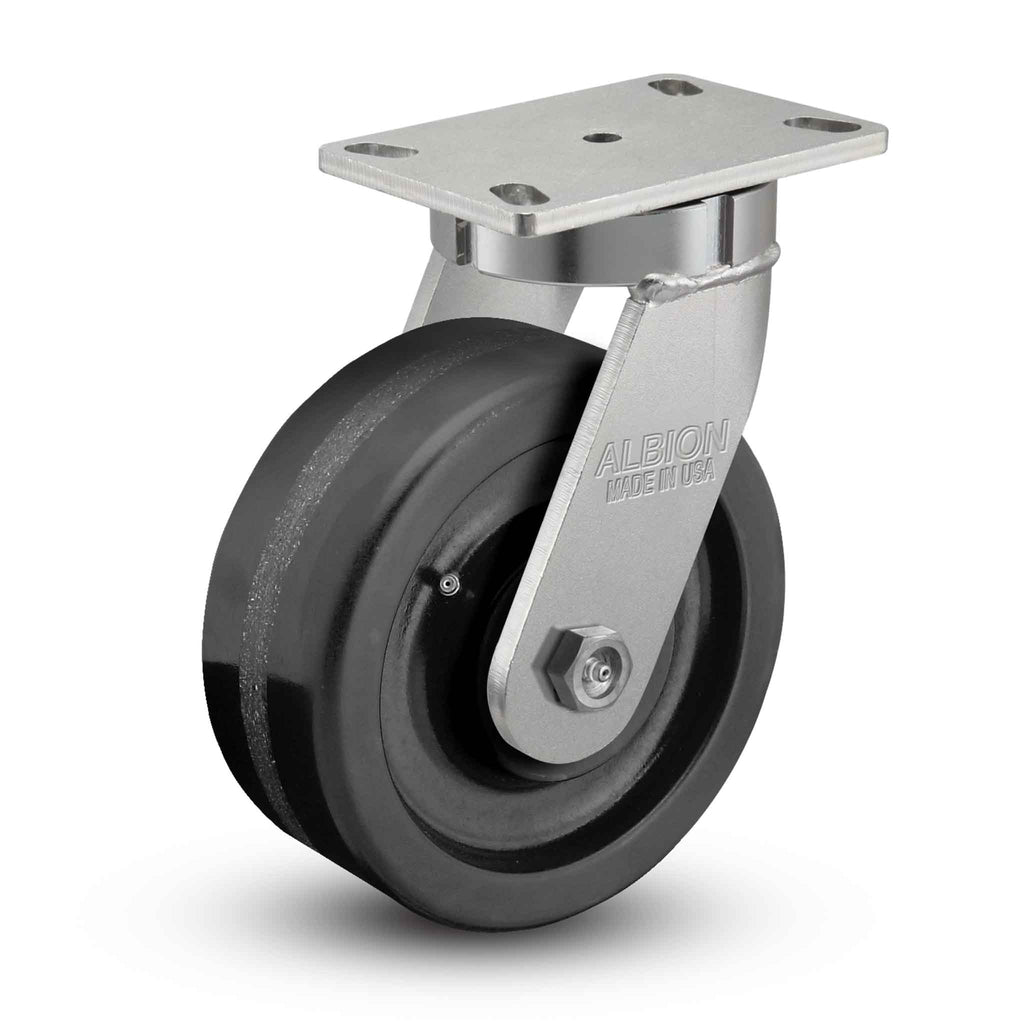

USA-Made and durable with an economical heavy-duty wheel, this 8" x 3" phenolic wheel swivel caster is high capacity and floor protective, but is not meant for use in wet or moist application.Our 75 Series casters are constructed from high quality heat-treated AISI 1045 laser-cut steel. A precision machined raceway combined with fully welded legs (inside and outside) and kingpinless design delivers superior strength in rugged applications. Kingpinless casters eliminate kingpin failure ? the leading cause of caster failure.
Series: 75 Series - Kingpinless (to 4100 lb/ea)
Mfg. SKU: 310TM08501S
Caster Type: Swivel
Raceway Type: Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk
Load Capacity: 2500 lb
Wheel Diameter: 8 in

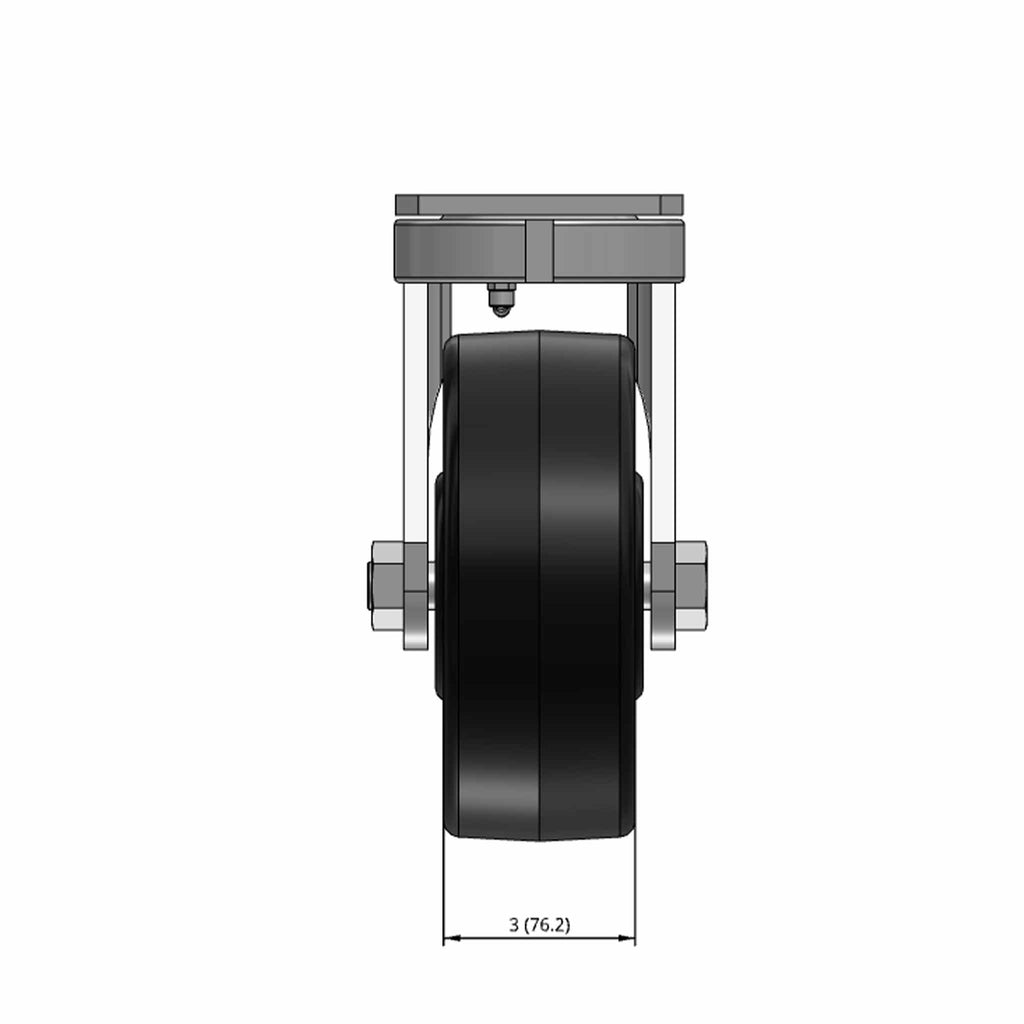

Wheel Tread Width: 3 in
Wheel Description: TM - Phenolic
Wheel Color: Black Phenolic Resin
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: Rockwell 102 E
Wheel Thread Guards: None
Fastening: 6-1/4'' x 4-1/2'' top plate

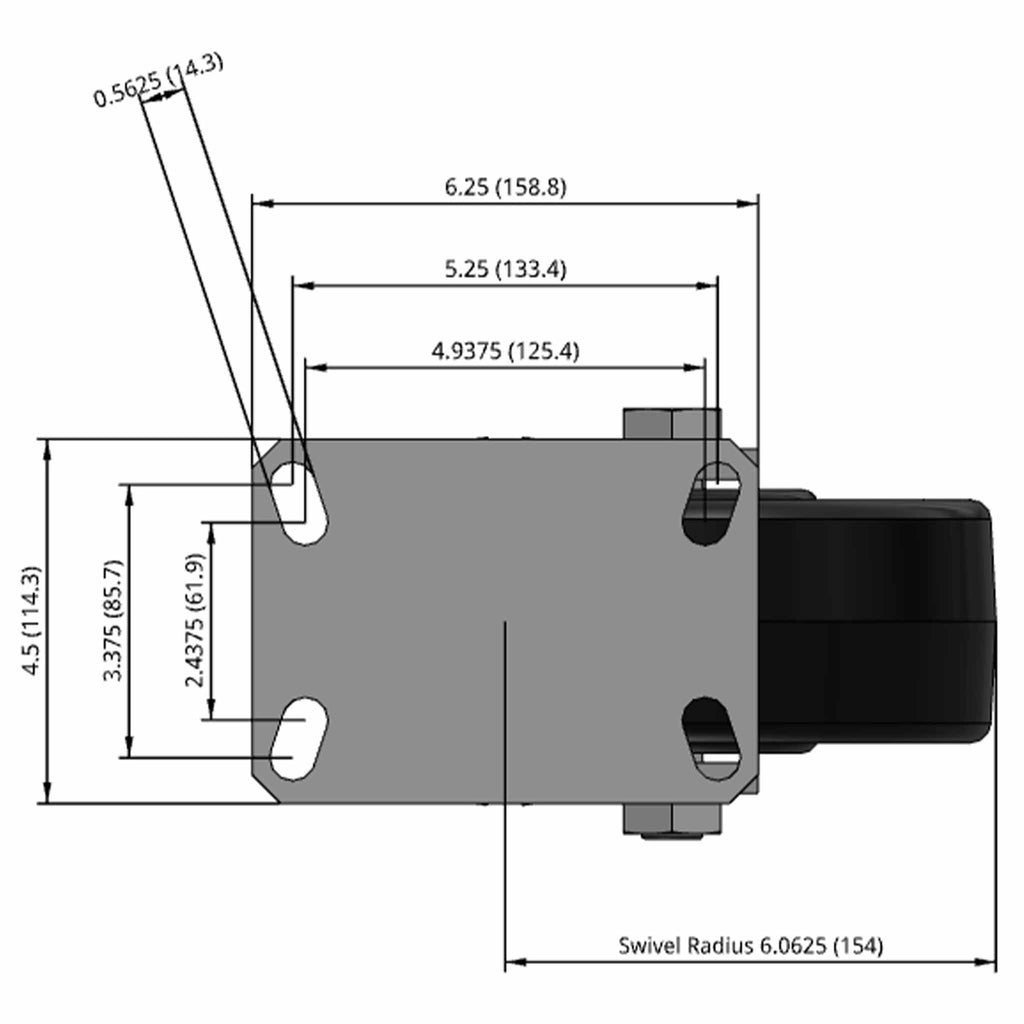

Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Size Recommended: 1/2"

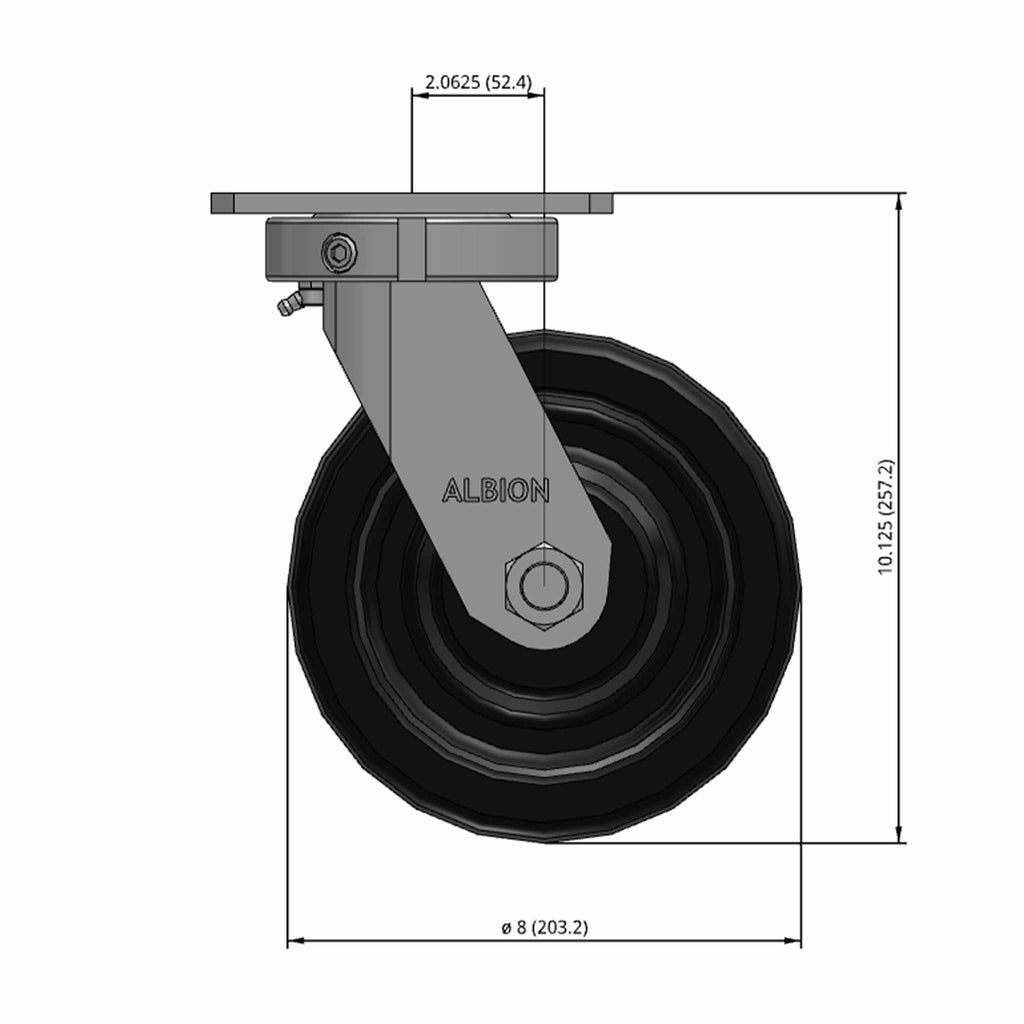

Mounting Height: 10.13 in
Swivel Radius: 6.06 in
Operating Temperature Range: -65°F to +250°F (+300°F intermittent)
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
