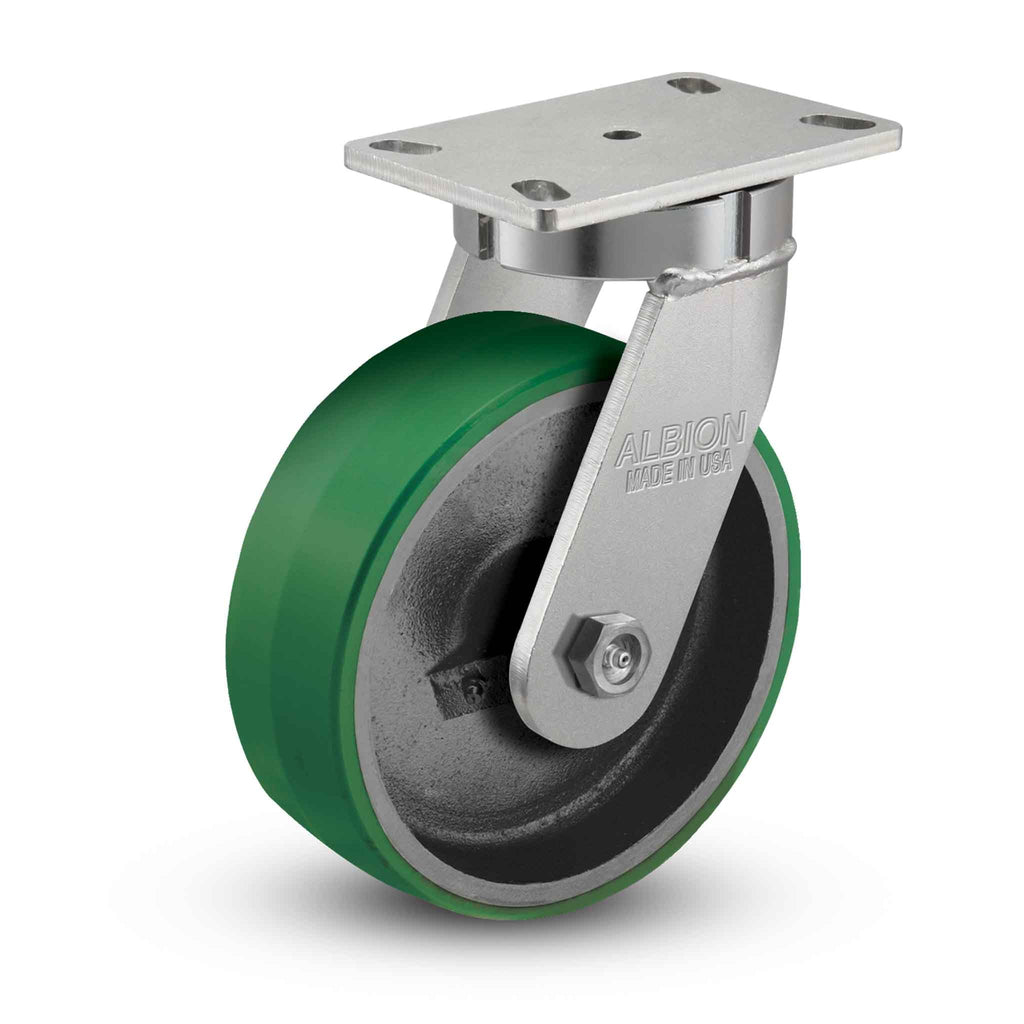

Main view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, PY - Polyurethane (Cast Iron Core) wheel and 3000 lb. capacity part

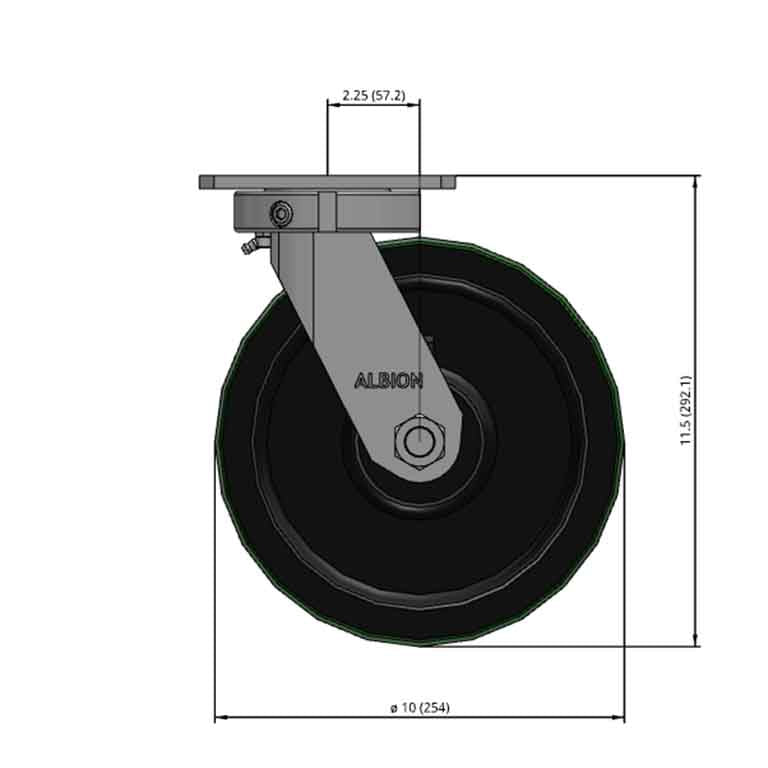

Front dimensioned CAD view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, PY - Polyurethane (Cast Iron Core) wheel and 3000 lb. capacity part

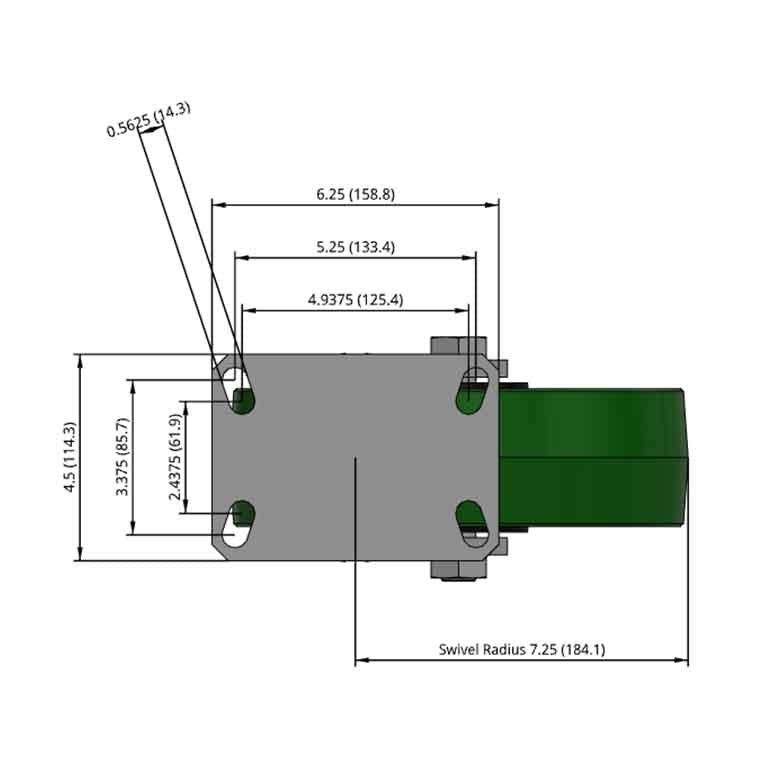

Top dimensioned CAD view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, PY - Polyurethane (Cast Iron Core) wheel and 3000 lb. capacity part

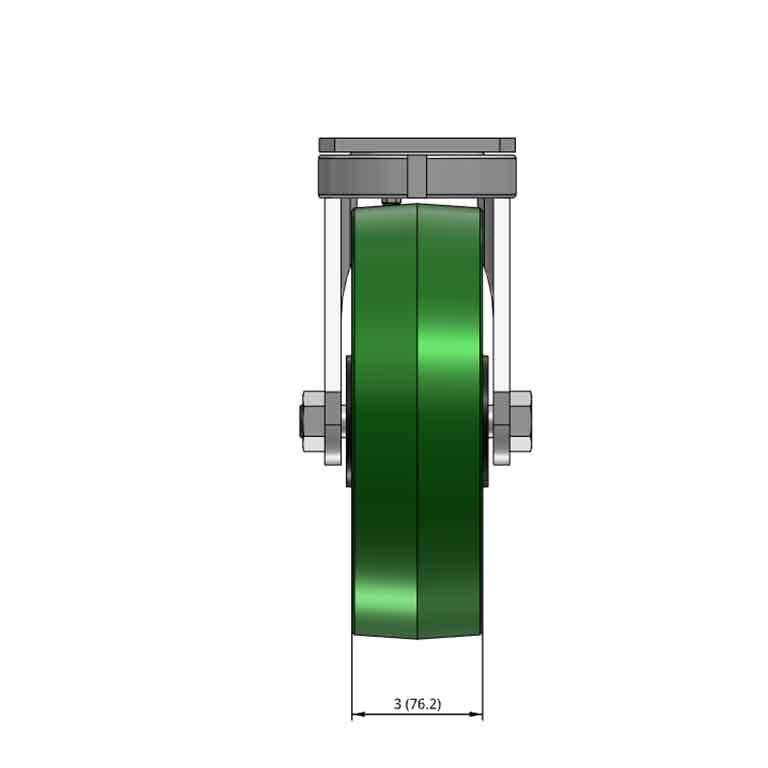

Side dimensioned CAD view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, PY - Polyurethane (Cast Iron Core) wheel and 3000 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

10"x3" USA-Made Kingpinless Swivel Polyurethane-on-Iron Wheel Caster

Name: 10"x3" USA-Made Kingpinless Swivel Polyurethane-on-Iron Wheel Caster
Brand: Albion Casters
SKU: 310PY10501S
Price: 266.71 USD
Availability: InStock

Kingpinless

Albion Casters SKU: 310PY10501S
Fastening: 6-1/4'' x 4-1/2'' top plate | Load Capacity: 3000 lb
Mount Height: 11.5 in | Swivel Radius: 7.25 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$266.71 $296.34

Quantity:

Share this product

This 10" x 3" polyurethane on cast iron wheel swivel caster is a durable, high capacity wheel that fits almost any budget. Polyurethane tread is floor protective and non-scuffing.Our 75 Series casters are constructed from high quality heat-treated AISI 1045 laser-cut steel. A precision machined raceway combined with fully welded legs (inside and outside) and kingpinless design delivers superior strength in rugged applications. Kingpinless casters eliminate kingpin failure the leading cause of caster failure.

Part Number:	75PIR1030S
SKU	310PY10501S
Series:	75 Series - Kingpinless (to 4100 lb/ea)
Raceway Type:	Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk
Brake:	None
Load Capacity:	3000 lb
Mounting Height:	11.5 in
Wheel Diameter:	10 in
Wheel Tread Width:	3 in
Wheel Description:	PY - Polyurethane (Cast Iron Core)
Wheel Color:	Green Tread on Black Cast Iron Core
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	95 Shore A
Wheel Thread Guards:	None
Fastening:	6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern:	2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Plate Bolt Size Recommended:	1/2"
Swivel Radius:	7.25 in
Swivel Lead:	2.25 in
Finish:	Zinc Plated
Axle Size:	3/4" diameter with zerk fitting
Operating Temperature Range:	-40°F to +180°F
Mfg:	310PY10501S
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

10"x3" USA-Made Kingpinless Swivel Polyurethane-on-Iron Wheel Caster

Description

Product Details

Part Number:

75PIR1030S

SKU

310PY10501S

Series:

75 Series - Kingpinless (to 4100 lb/ea)

Raceway Type:

Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk

Brake:

None

Load Capacity:

3000 lb

Mounting Height:

11.5 in

Wheel Diameter:

10 in

Wheel Tread Width:

3 in

Wheel Description:

PY - Polyurethane (Cast Iron Core)

Wheel Color:

Green Tread on Black Cast Iron Core

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

95 Shore A

Wheel Thread Guards:

None

Fastening:

6-1/4'' x 4-1/2'' top plate

Bolt Hole Pattern:

2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

Plate Bolt Size Recommended:

1/2"

Swivel Radius:

7.25 in

Swivel Lead:

2.25 in

Finish:

Zinc Plated

Axle Size:

3/4" diameter with zerk fitting

Operating Temperature Range:

-40°F to +180°F

Mfg:

310PY10501S

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
