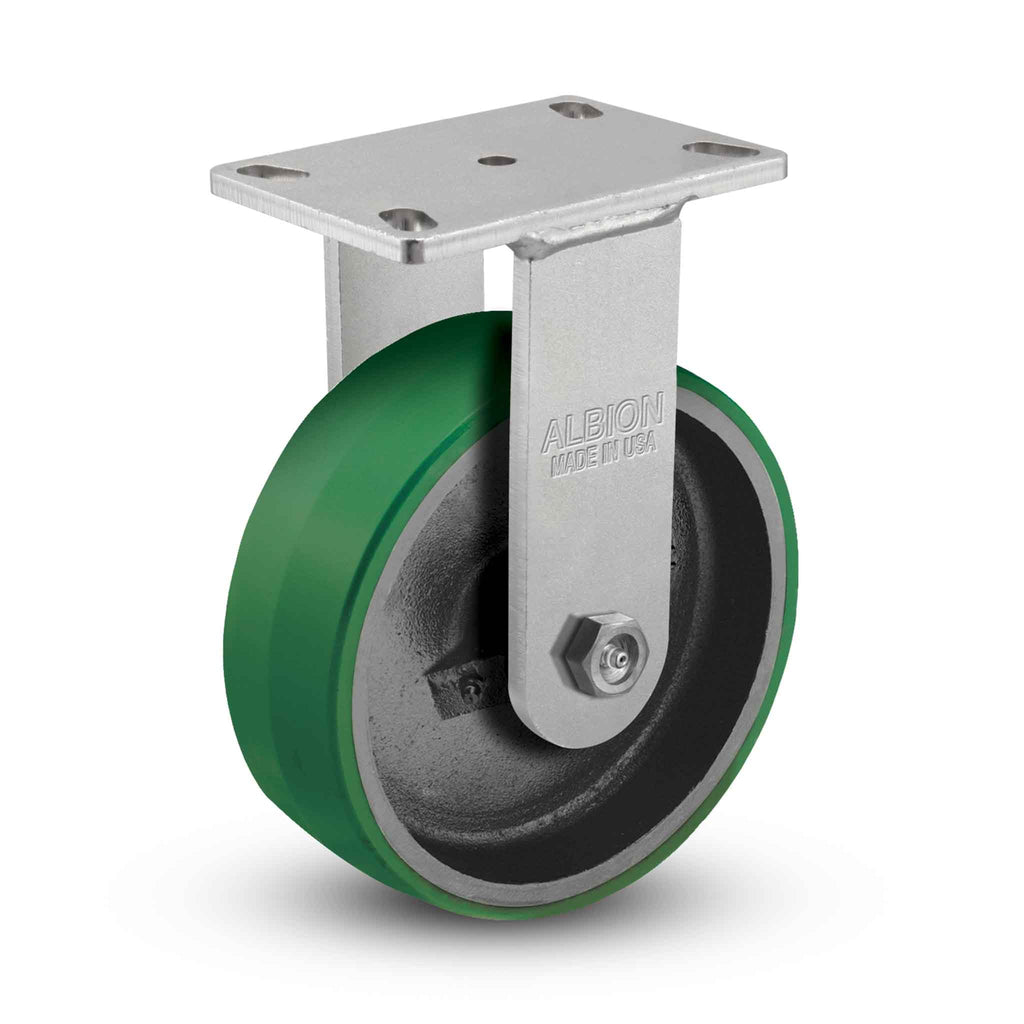

This 8" x 3" polyurethane on cast iron wheel rigid caster is a durable, high capacity wheel that fits almost any budget. Polyurethane tread is floor protective and non-scuffing.Our 75 Series casters are constructed from high quality heat-treated AISI 1045 laser-cut steel. A precision machined raceway combined with fully welded legs (inside and outside) and kingpinless design delivers superior strength in rugged applications. Kingpinless casters eliminate kingpin failure ? the leading cause of caster failure.
Series: 75 Series - Kingpinless (to 4100 lb/ea)
Mfg. SKU: 310PY08501R
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 2500 lb

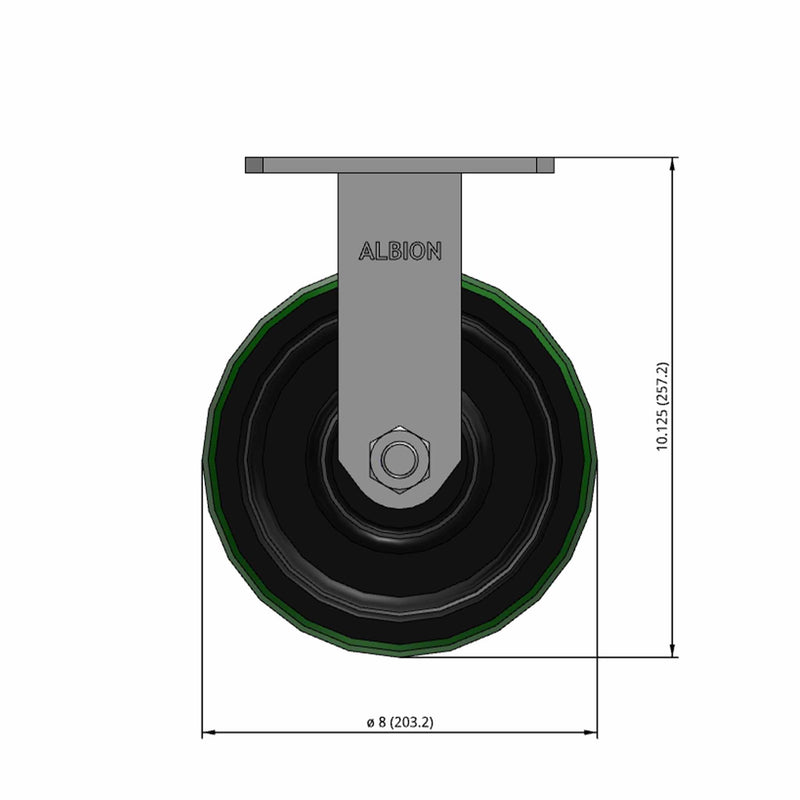

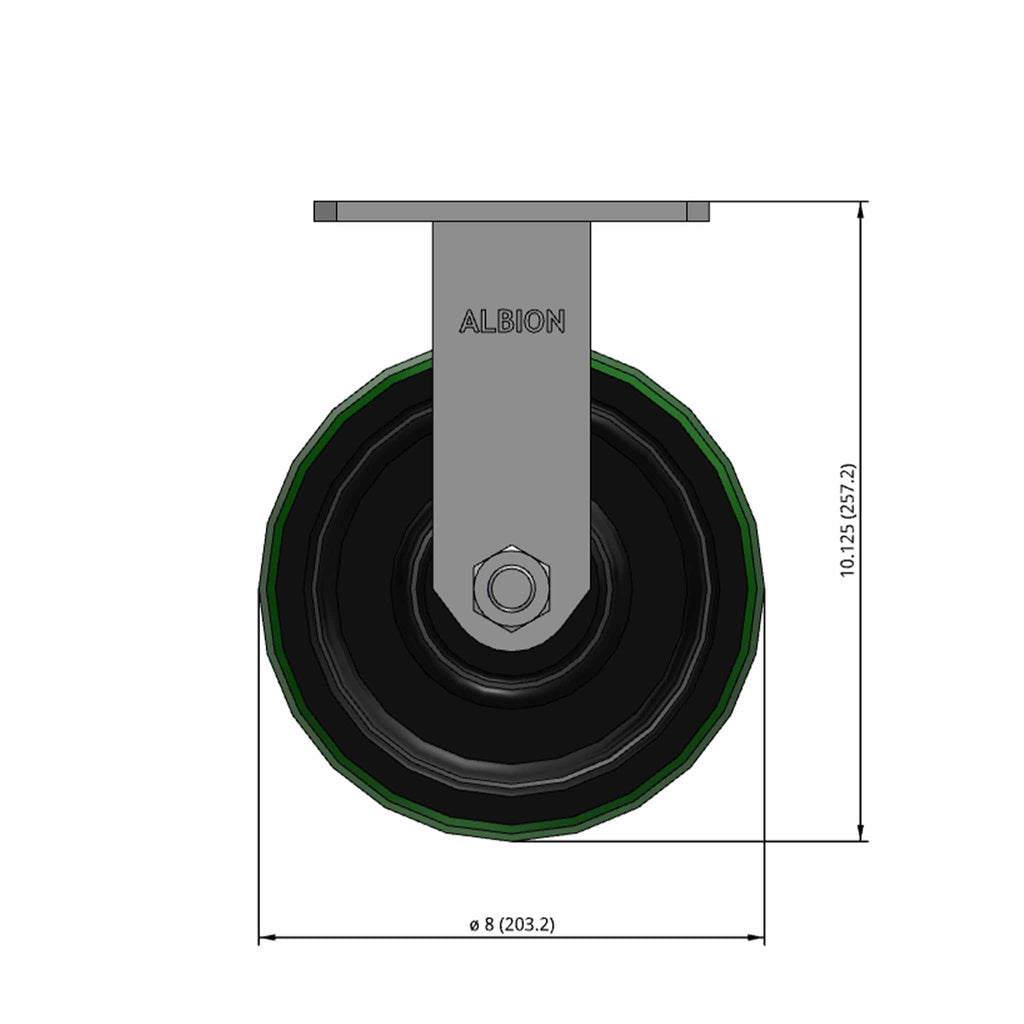

Wheel Diameter: 8 in

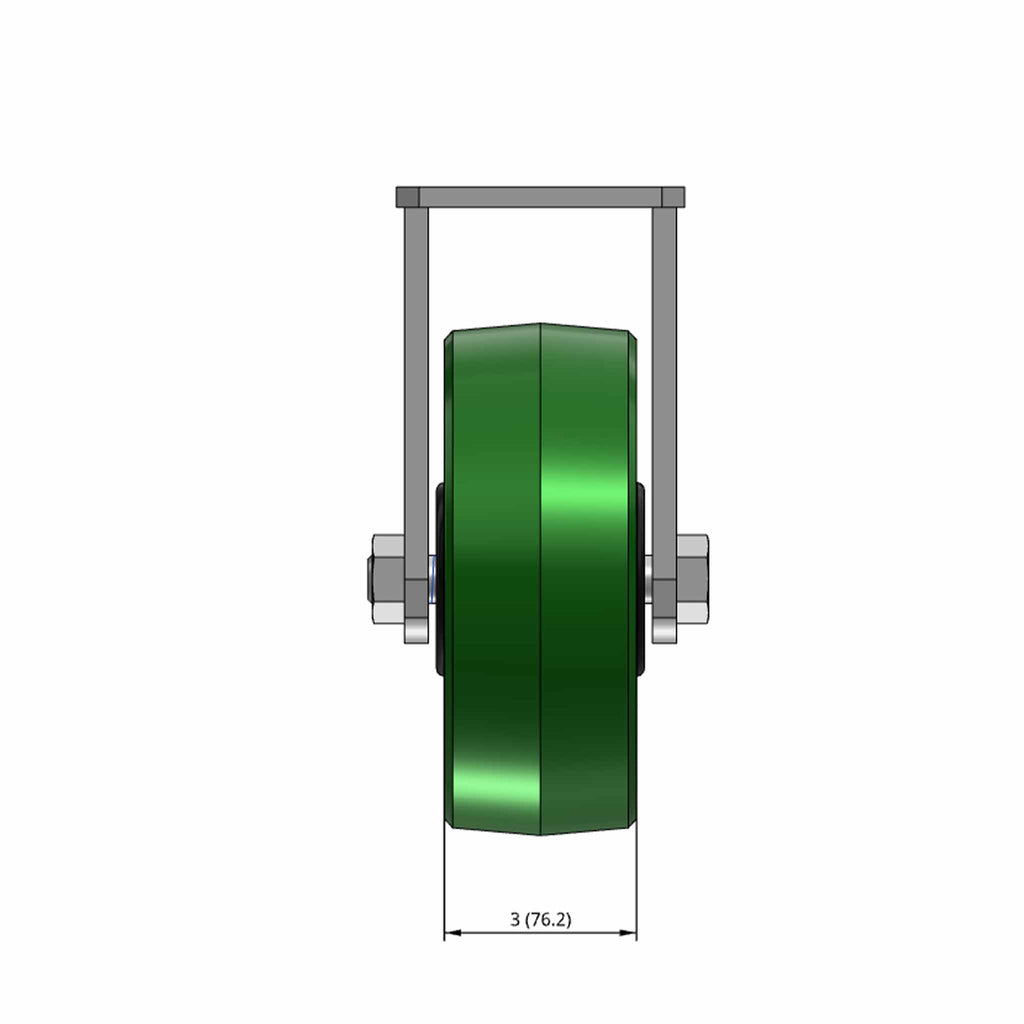

Wheel Tread Width: 3 in
Wheel Description: PY - Polyurethane (Cast Iron Core)
Wheel Color: Green Tread on Black Cast Iron Core
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: 95 Shore A
Wheel Thread Guards: None
Fastening: 6-1/4'' x 4-1/2'' top plate

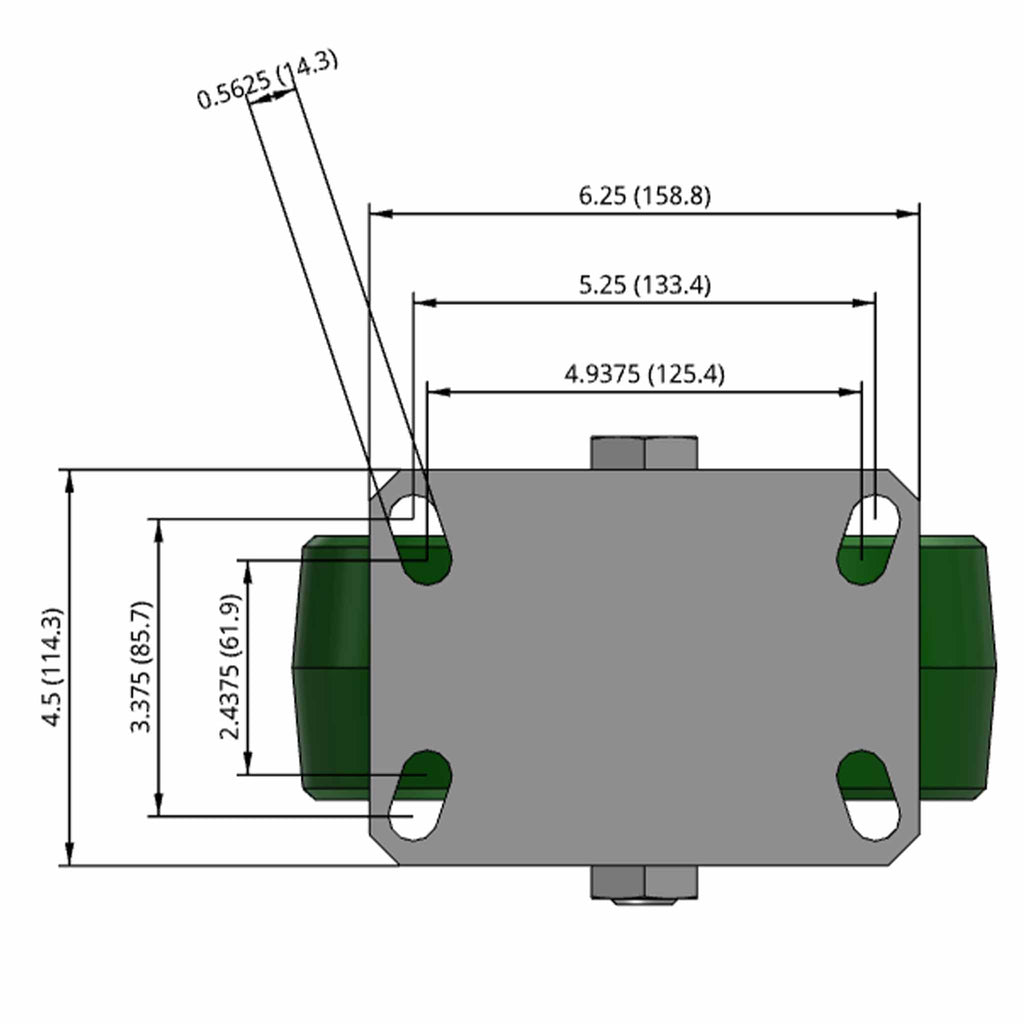

Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Size Recommended: 1/2"
Mounting Height: 10.13 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
