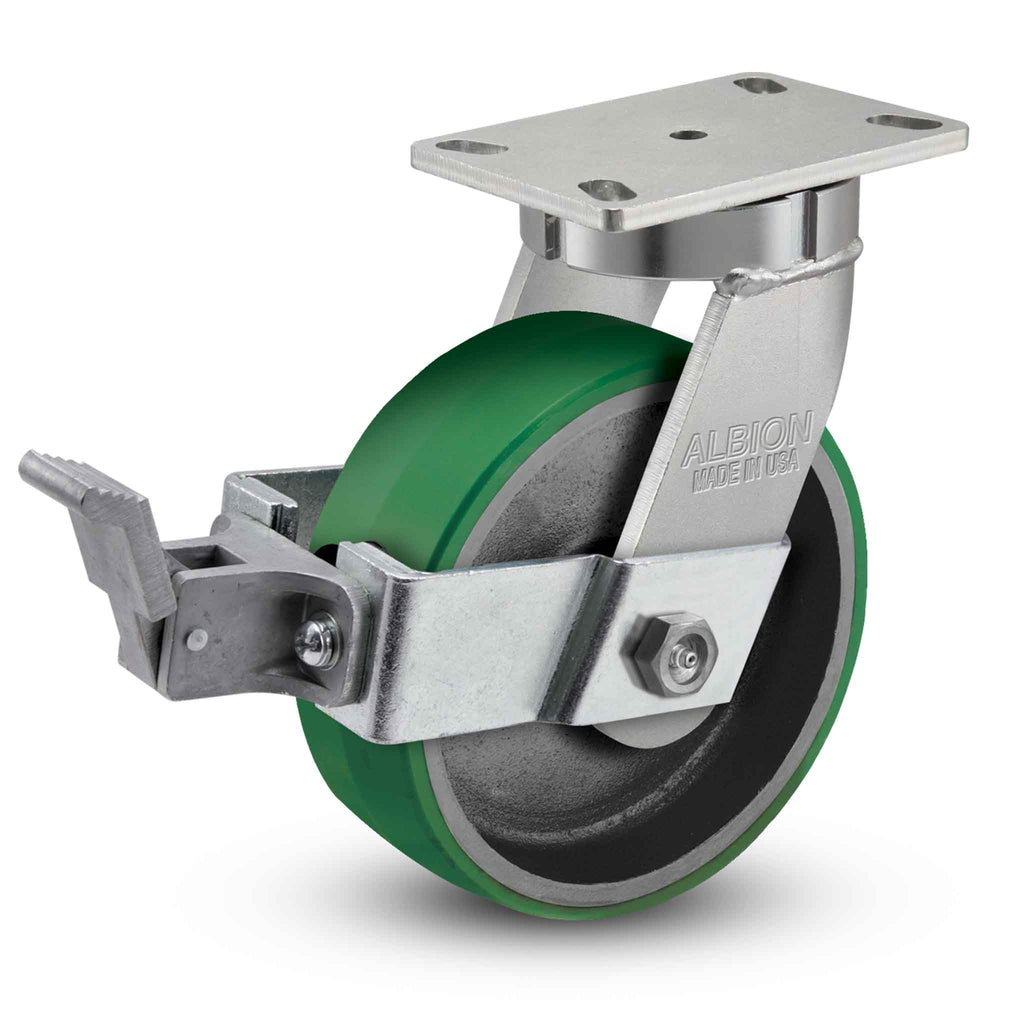

This 6" x 3" polyurethane on cast iron wheel swivel caster with face brake is a durable, high capacity wheel that fits almost any budget. Polyurethane tread is floor protective and non-scuffing.Our 75 Series casters are constructed from high quality heat-treated AISI 1045 laser-cut steel. A precision machined raceway combined with fully welded legs (inside and outside) and kingpinless design delivers superior strength in rugged applications. Kingpinless casters eliminate kingpin failure ? the leading cause of caster failure.
Series: 75 Series - Kingpinless (to 4100 lb/ea)
Caster Type: Swivel
Raceway Type: Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk
Brake: Face Contact Brake (FBB)
Load Capacity: 2000 lb
Wheel Diameter: 6 in
Wheel Tread Width: 3 in
Wheel Description: PY - Polyurethane (Cast Iron Core)
Wheel Color: Green Tread on Black Cast Iron Core
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: 95 Shore A
Wheel Thread Guards: None
Fastening: 6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Size Recommended: 1/2"
Mounting Height: 7.5 in
Swivel Radius: 8.5 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
