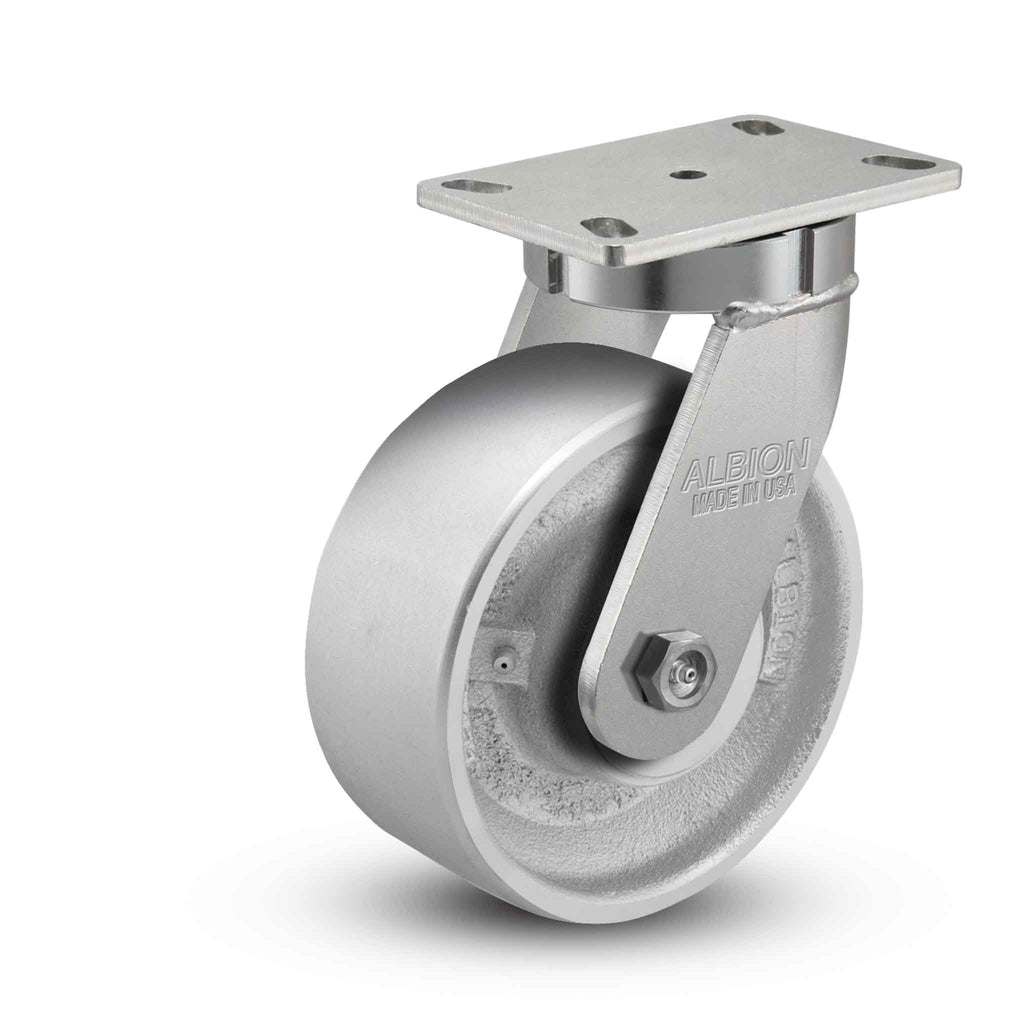

Main view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, CA - Cast Iron wheel and 2800 lb. capacity part

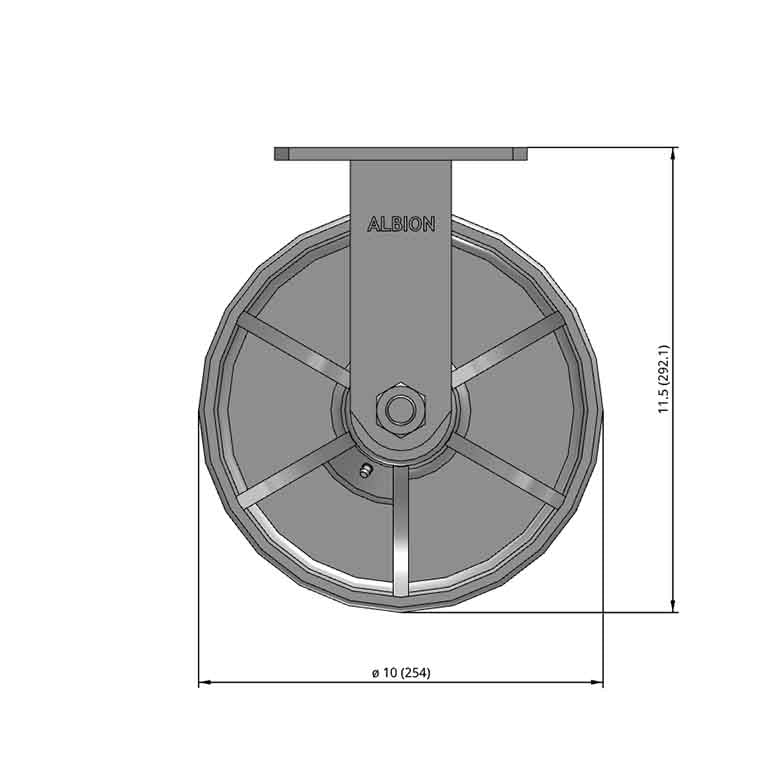

Front dimensioned CAD view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, CA - Cast Iron wheel and 2800 lb. capacity part

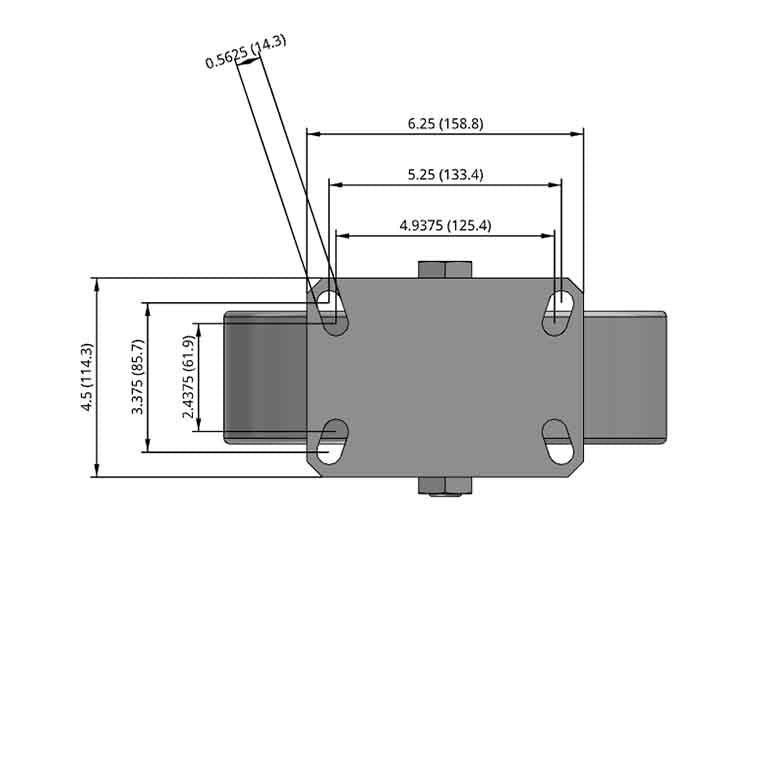

Top dimensioned CAD view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, CA - Cast Iron wheel and 2800 lb. capacity part

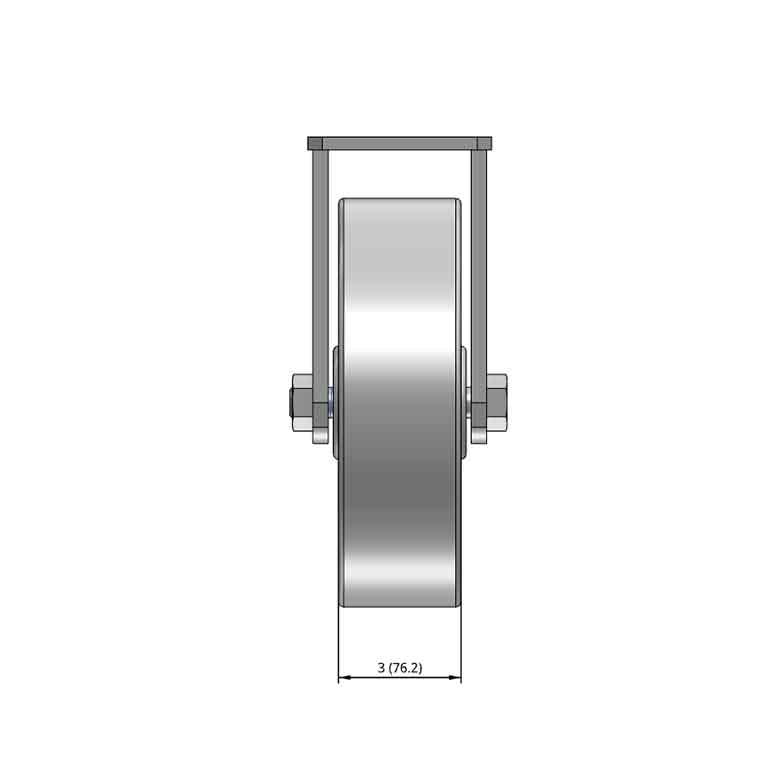

Side dimensioned CAD view of an Albion Casters 10" x 3" wide wheel Swivel caster with 6-1/4'' x 4-1/2'' top plate, without a brake, CA - Cast Iron wheel and 2800 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

10"x3" Heavy-Duty Kingpinless Swivel Caster with Cast Iron Wheel

Name: 10"x3" Heavy-Duty Kingpinless Swivel Caster with Cast Iron Wheel
Brand: Albion Casters
SKU: 310CA10501S
Price: 255.11 USD
Availability: InStock

Kingpinless

Albion Casters SKU: 310CA10501S
Fastening: 6-1/4'' x 4-1/2'' top plate | Load Capacity: 2800 lb
Mount Height: 11.5 in | Swivel Radius: 7.25 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$255.11 $283.45

Quantity:

Share this product

This 10" x 3" cast iron wheel swivel caster offers high capacity at a lower cost, making it ideal for heavy loads in industrial environments.Our 75 Series casters are constructed from high quality heat-treated AISI 1045 laser-cut steel. A precision machined raceway combined with fully welded legs (inside and outside) and kingpinless design delivers superior strength in rugged applications. Kingpinless casters eliminate kingpin failure ? the leading cause of caster failure.

Part Number:	75CIR1030S
SKU	310CA10501S
Series:	75 Series - Kingpinless (to 4100 lb/ea)
Raceway Type:	Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk
Brake:	None
Load Capacity:	2800 lb
Mounting Height:	11.5 in
Wheel Diameter:	10 in
Wheel Tread Width:	3 in
Wheel Description:	CA - Cast Iron
Wheel Color:	Grey Enamel
Wheel Bearing:	Roller
Wheel Profile:	Flat with Rounded Edges
Wheel Hardness:	Brinell 145
Wheel Thread Guards:	None
Fastening:	6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern:	2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Plate Bolt Size Recommended:	1/2"
Swivel Radius:	7.25 in
Swivel Lead:	2.25 in
Finish:	Zinc Plated
Axle Size:	3/4" diameter with zerk fitting
Operating Temperature Range:	Up to +800°F; special grease required for high-temp applications; contact us for details
Mfg:	310CA10501S
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

10"x3" Heavy-Duty Kingpinless Swivel Caster with Cast Iron Wheel

Description

Product Details

Part Number:

75CIR1030S

SKU

310CA10501S

Series:

75 Series - Kingpinless (to 4100 lb/ea)

Raceway Type:

Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk

Brake:

None

Load Capacity:

2800 lb

Mounting Height:

11.5 in

Wheel Diameter:

10 in

Wheel Tread Width:

3 in

Wheel Description:

CA - Cast Iron

Wheel Color:

Grey Enamel

Wheel Bearing:

Roller

Wheel Profile:

Flat with Rounded Edges

Wheel Hardness:

Brinell 145

Wheel Thread Guards:

None

Fastening:

6-1/4'' x 4-1/2'' top plate

Bolt Hole Pattern:

2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

Plate Bolt Size Recommended:

1/2"

Swivel Radius:

7.25 in

Swivel Lead:

2.25 in

Finish:

Zinc Plated

Axle Size:

3/4" diameter with zerk fitting

Operating Temperature Range:

Up to +800°F; special grease required for high-temp applications; contact us for details

Mfg:

310CA10501S

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
