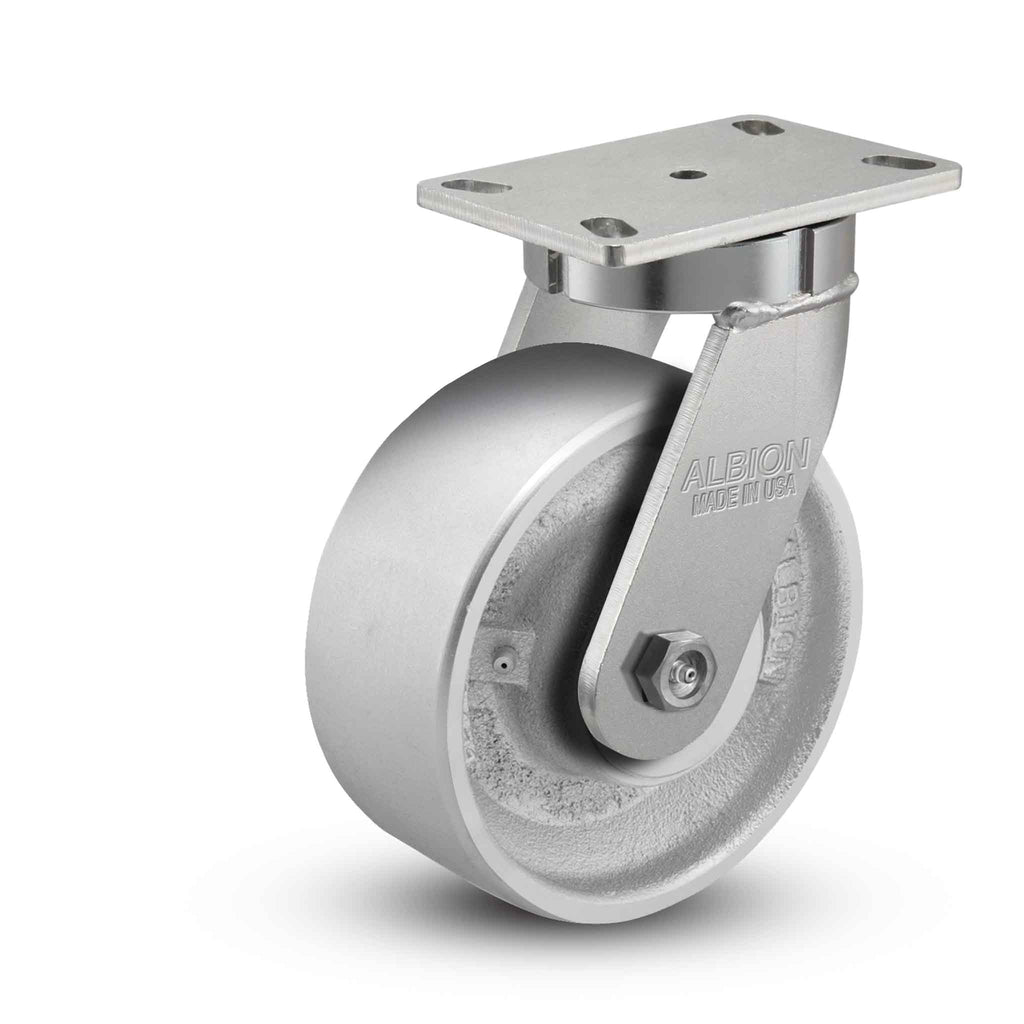

This 8" x 3" cast iron wheel swivel caster offers high capacity at a lower cost, making it ideal for heavy loads in industrial environments.Our 75 Series casters are constructed from high quality heat-treated AISI 1045 laser-cut steel. A precision machined raceway combined with fully welded legs (inside and outside) and kingpinless design delivers superior strength in rugged applications. Kingpinless casters eliminate kingpin failure ? the leading cause of caster failure.
Series: 75 Series - Kingpinless (to 4100 lb/ea)
Mfg. SKU: 310CA08501S
Caster Type: Swivel
Raceway Type: Kingpinless Heat Treated 1/2" Ball Bearing Raceway with Zerk
Load Capacity: 2800 lb
Wheel Diameter: 8 in

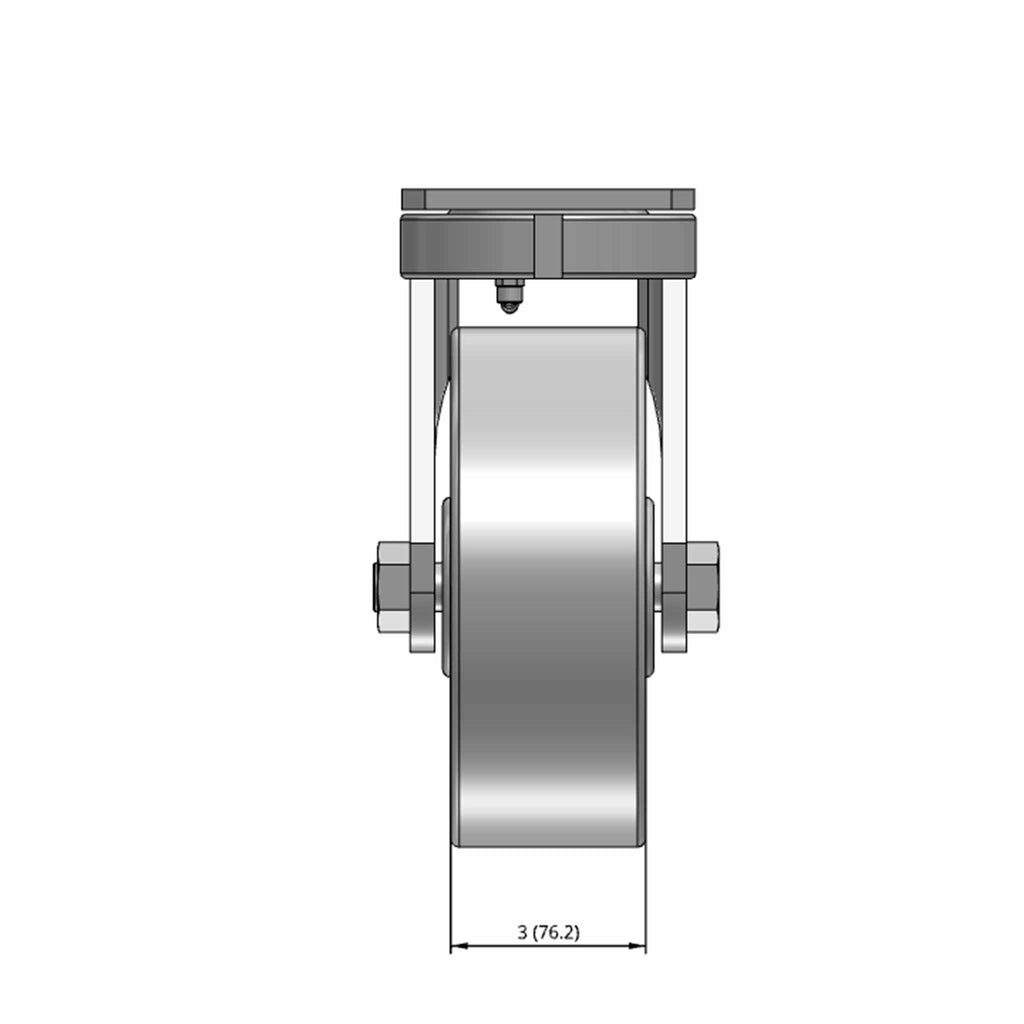

Wheel Tread Width: 3 in
Wheel Description: CA - Cast Iron
Wheel Color: Grey Enamel
Wheel Bearing: Roller
Wheel Profile: Flat with Rounded Edges
Wheel Hardness: Brinell 145
Wheel Thread Guards: None

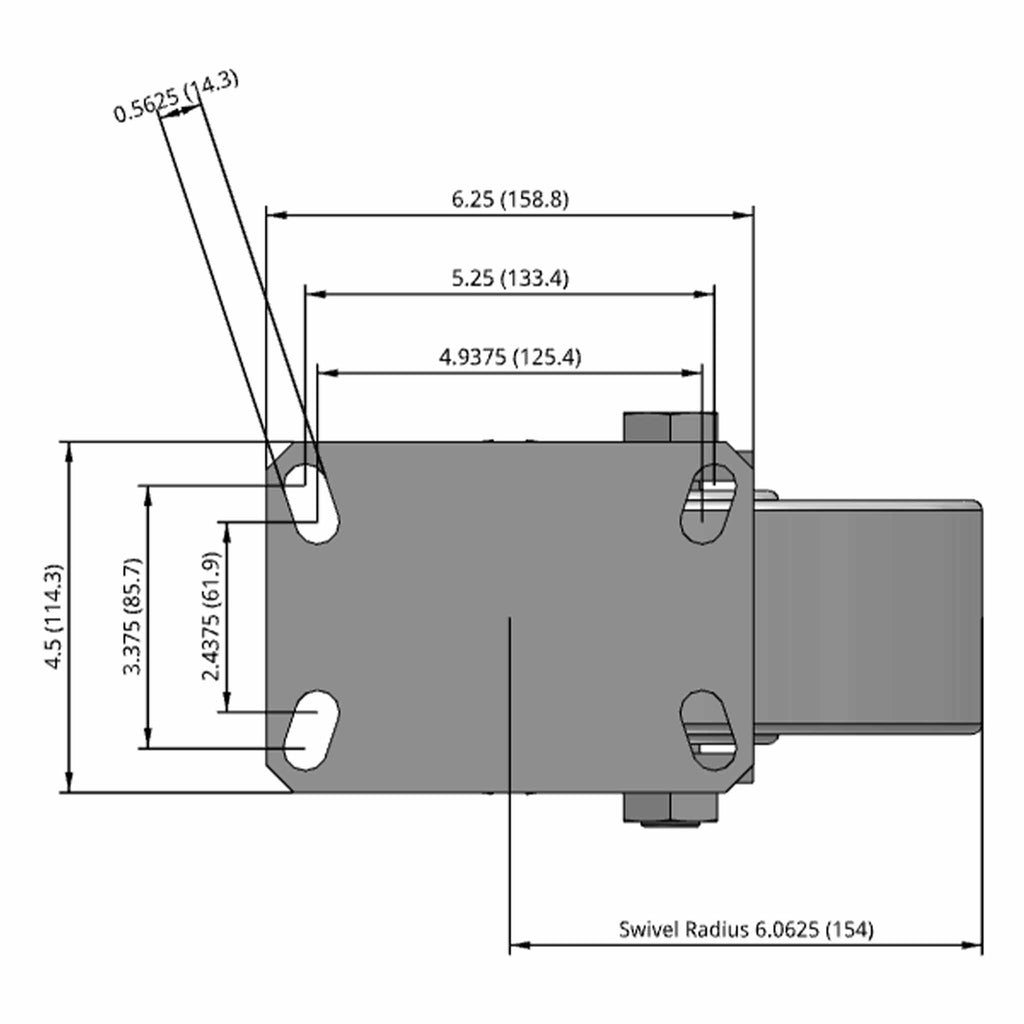

Fastening: 6-1/4'' x 4-1/2'' top plate
Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Bolt Size Recommended: 1/2"

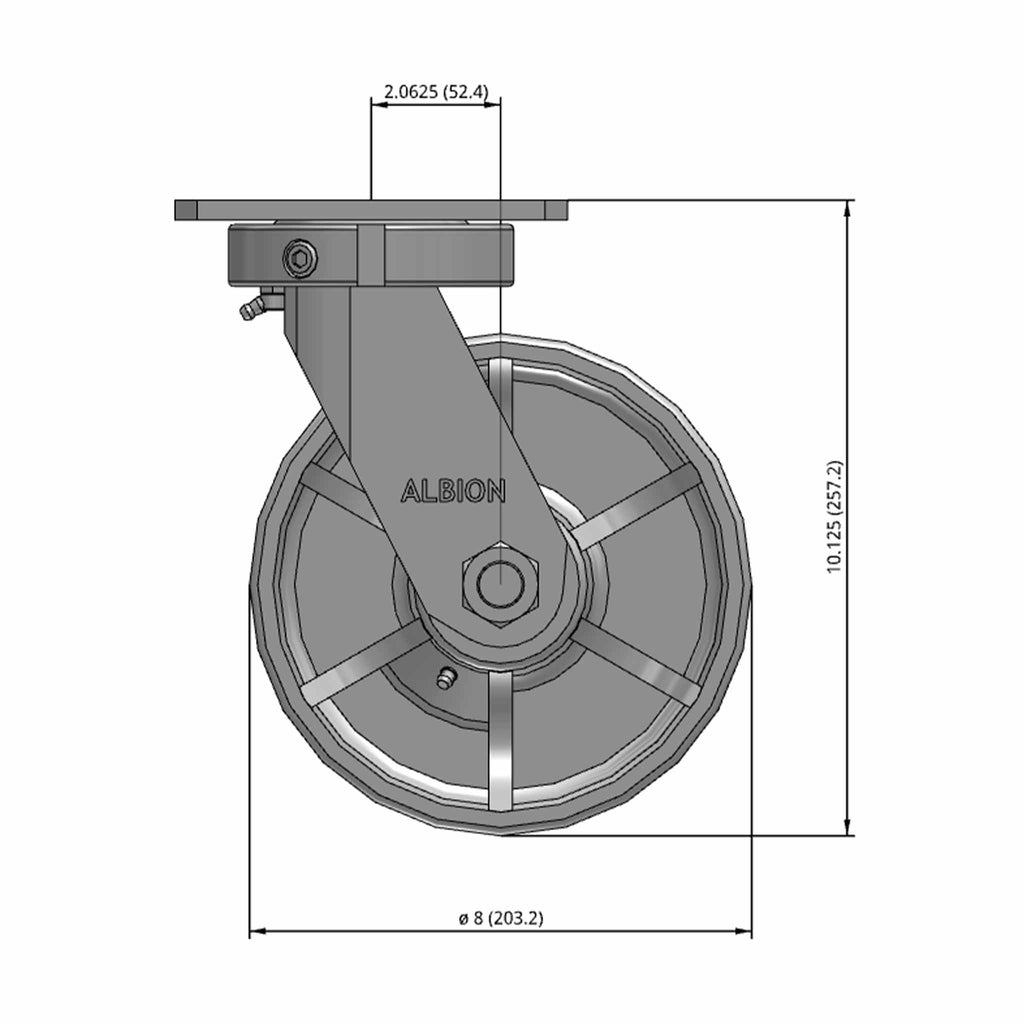

Mounting Height: 10.13 in
Swivel Radius: 6.06 in
Operating Temperature Range: Up to +800°F; special grease required for high-temp applications; contact us for details
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
