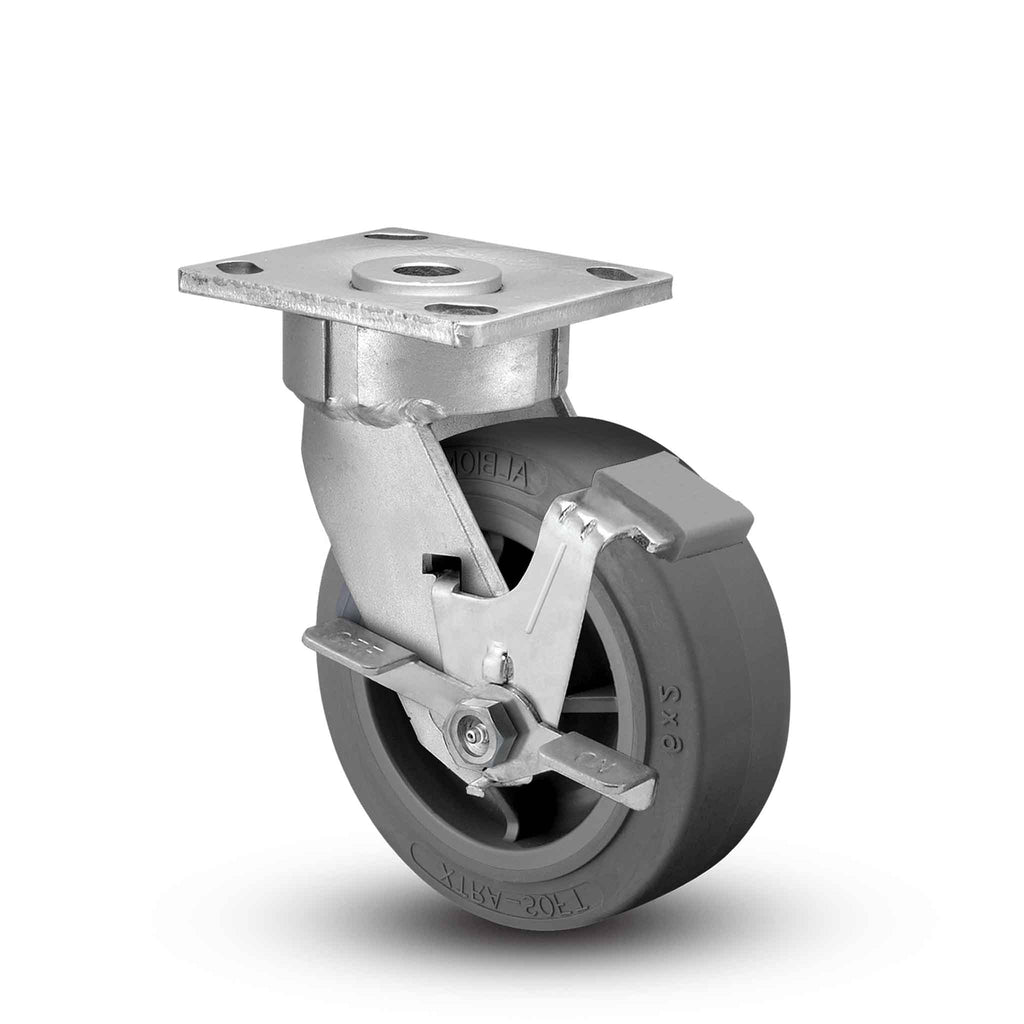

Main view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XS - X-tra Soft Rubber (Flat) wheel and 350 lb. capacity part

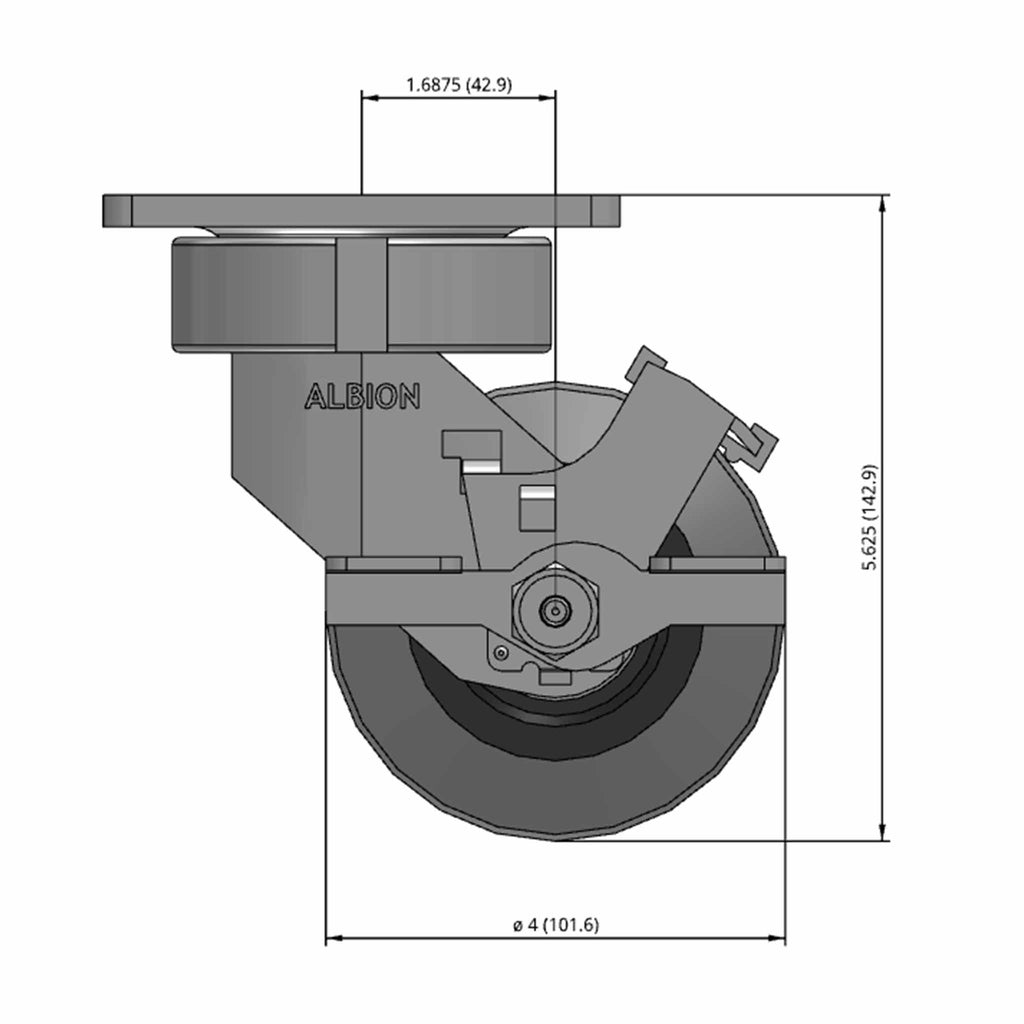

Front dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XS - X-tra Soft Rubber (Flat) wheel and 350 lb. capacity part

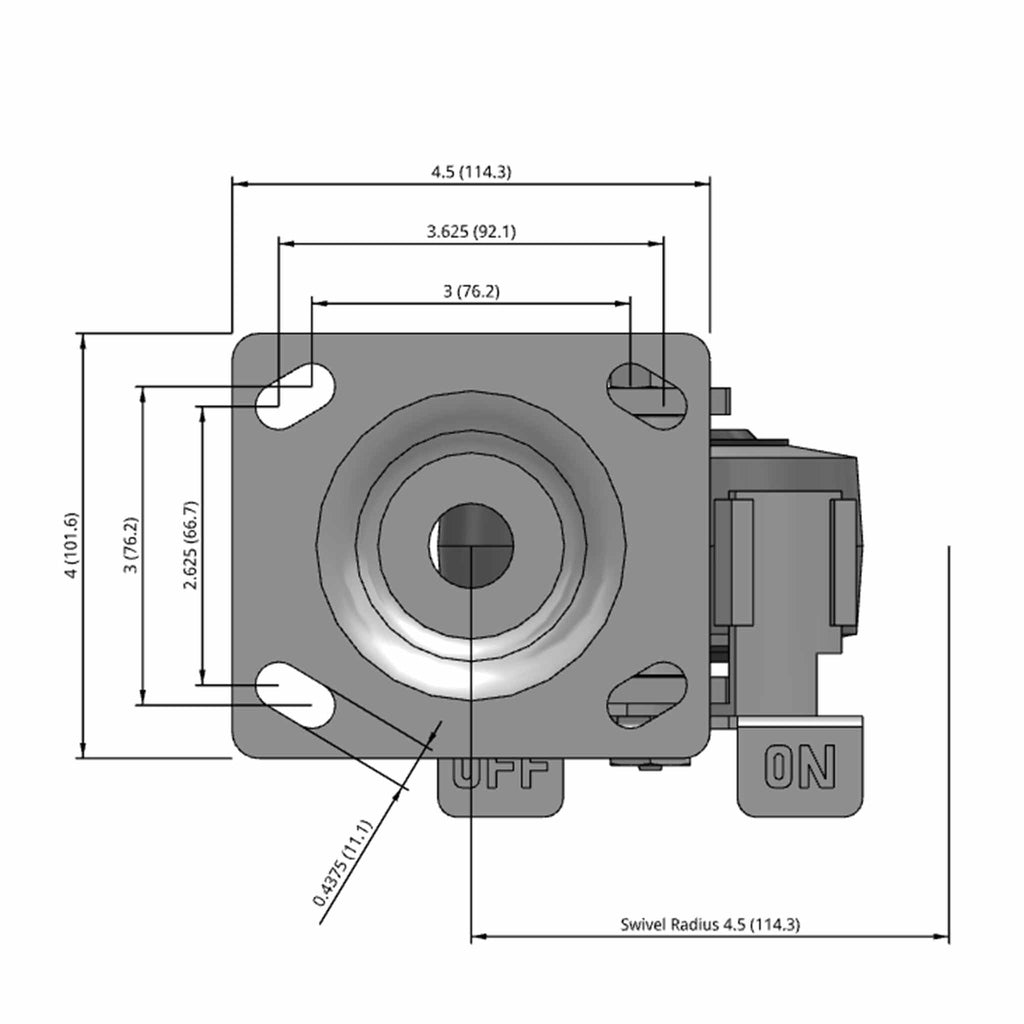

Top dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XS - X-tra Soft Rubber (Flat) wheel and 350 lb. capacity part

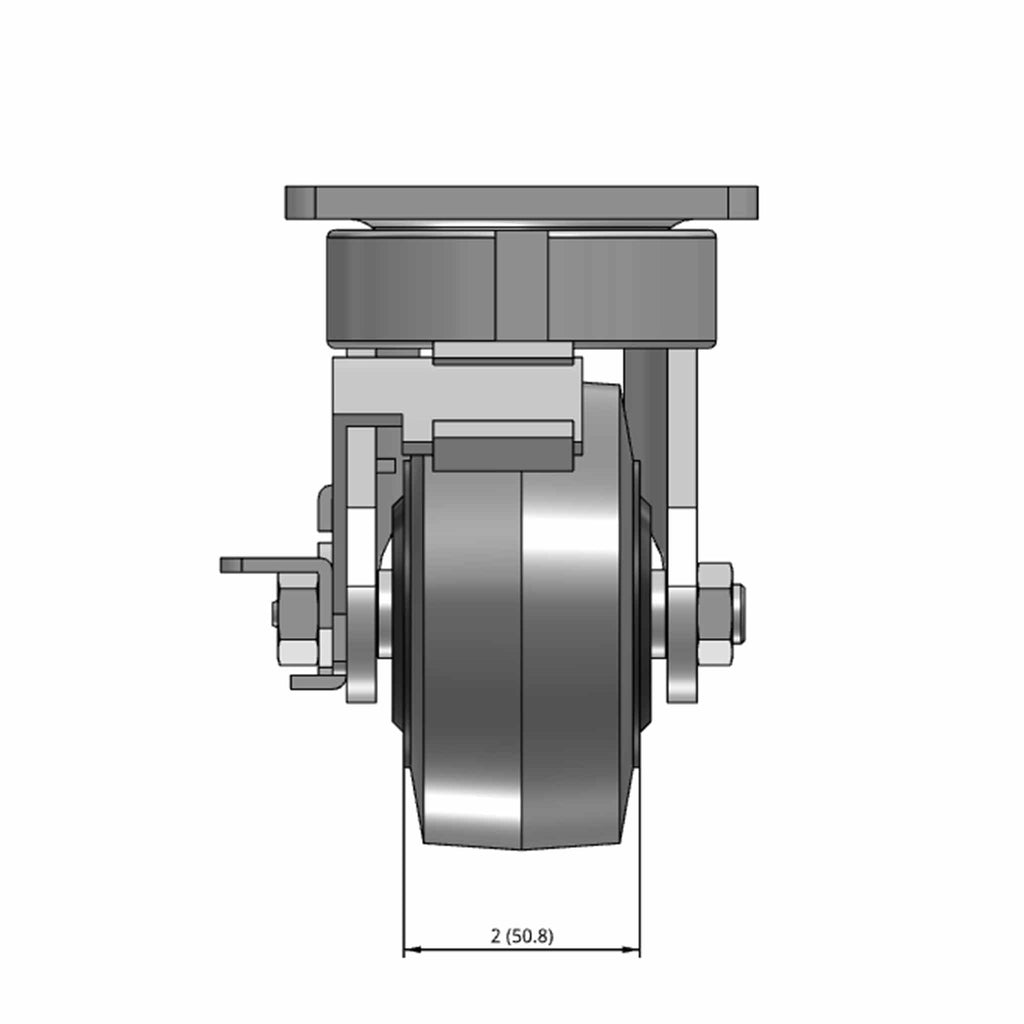

Side dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XS - X-tra Soft Rubber (Flat) wheel and 350 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" Maintenance-Free Side Lock Flat Performance-Rubber Wheel Caster

Name: 4"x2" Maintenance-Free Side Lock Flat Performance-Rubber Wheel Caster
Brand: Albion Casters
SKU: 18XS04228SFBC
Price: 76.65 USD
Availability: InStock

Ergonomics & Shock Mitigation

Albion Casters SKU: 18XS04228SFBC
Fastening: 4" x 4-1/2" top plate | Load Capacity: 350 lb
Mount Height: 5.63 in | Swivel Radius: 4.5 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$76.65 $90.18

Quantity:

Share this product

This 4" x 2" thermoplastic rubber (TPR) heavy duty ergonomic swivel caster with flat tread and tread brake provide smooth and quiet operation, and are safe for all floor types. Our 48 Series casters are ergonomically designed for ease of movement and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operations safer while improving efficiency. Rig is zinc-plated for an attractive, corrosion-resistant finish.

Part Number:	48TRB42S-TB
SKU	18XS04228SFBC
Series:	48 Series - Ergonomic/Precision (to 1250 lb/ea)
Raceway Type:	Maintenance-Free Sealed Precision Ball Bearing Raceway
Brake:	FBC Face Brake (FBC)
Load Capacity:	350 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	XS - X-tra Soft Rubber (Flat)
Wheel Color:	Grey Tread on Grey Core
Wheel Bearing:	Precision Ball
Wheel Profile:	Crowned Tread
Wheel Hardness:	65-75 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.5 in
Swivel Lead:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter
Operating Temperature Range:	-45°F to +180°F
Mfg:	18XS04228SFBC
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" Maintenance-Free Side Lock Flat Performance-Rubber Wheel Caster

Description

Product Details

Part Number:

48TRB42S-TB

SKU

18XS04228SFBC

Series:

48 Series - Ergonomic/Precision (to 1250 lb/ea)

Raceway Type:

Maintenance-Free Sealed Precision Ball Bearing Raceway

Brake:

FBC Face Brake (FBC)

Load Capacity:

350 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

XS - X-tra Soft Rubber (Flat)

Wheel Color:

Grey Tread on Grey Core

Wheel Bearing:

Precision Ball

Wheel Profile:

Crowned Tread

Wheel Hardness:

65-75 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.5 in

Swivel Lead:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter

Operating Temperature Range:

-45°F to +180°F

Mfg:

18XS04228SFBC

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
