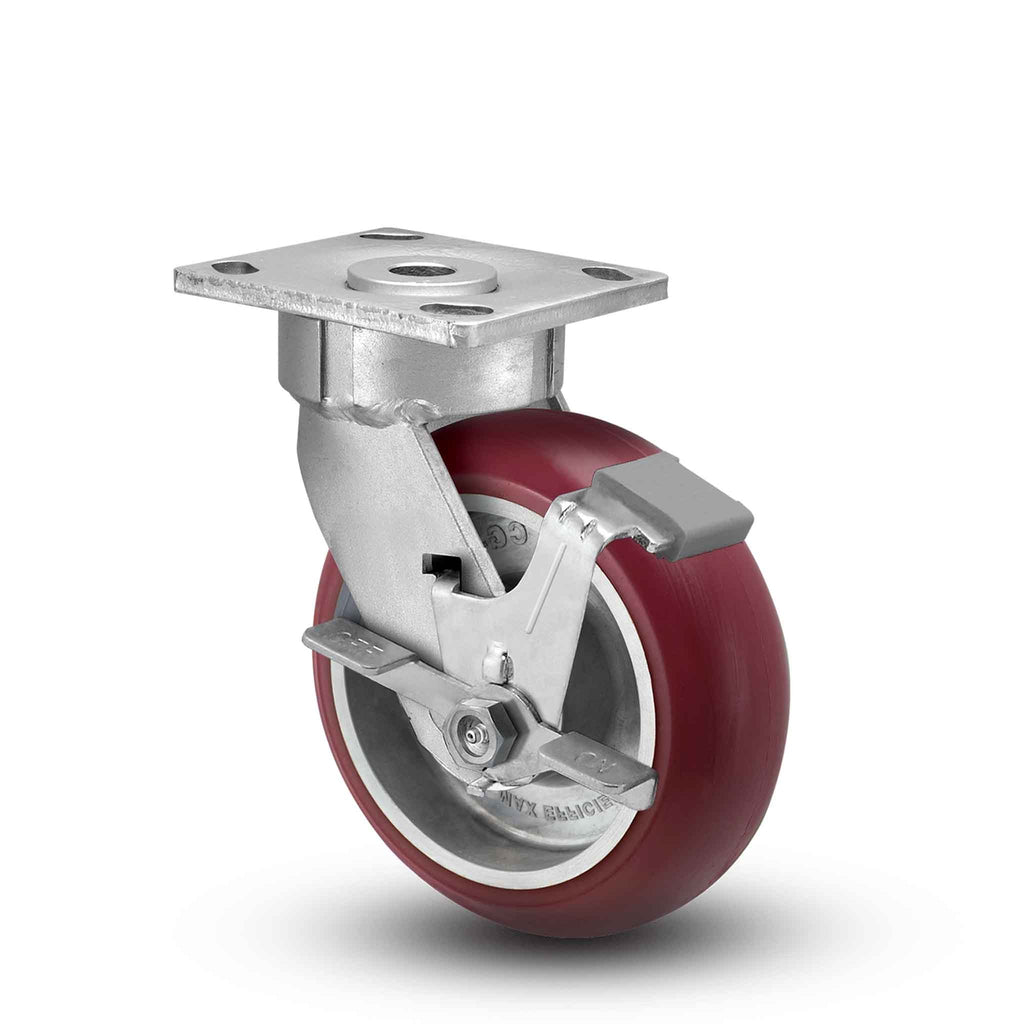

Main view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AX - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

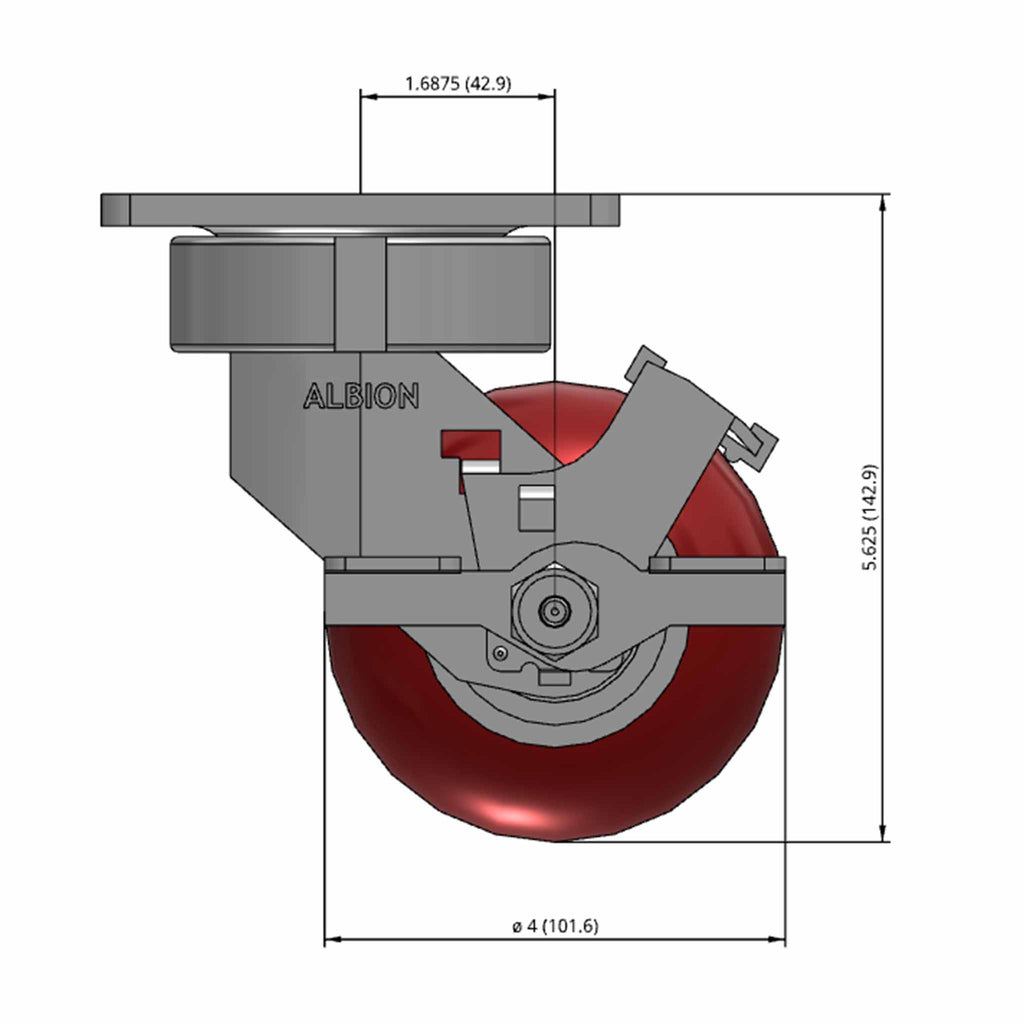

Front dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AX - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

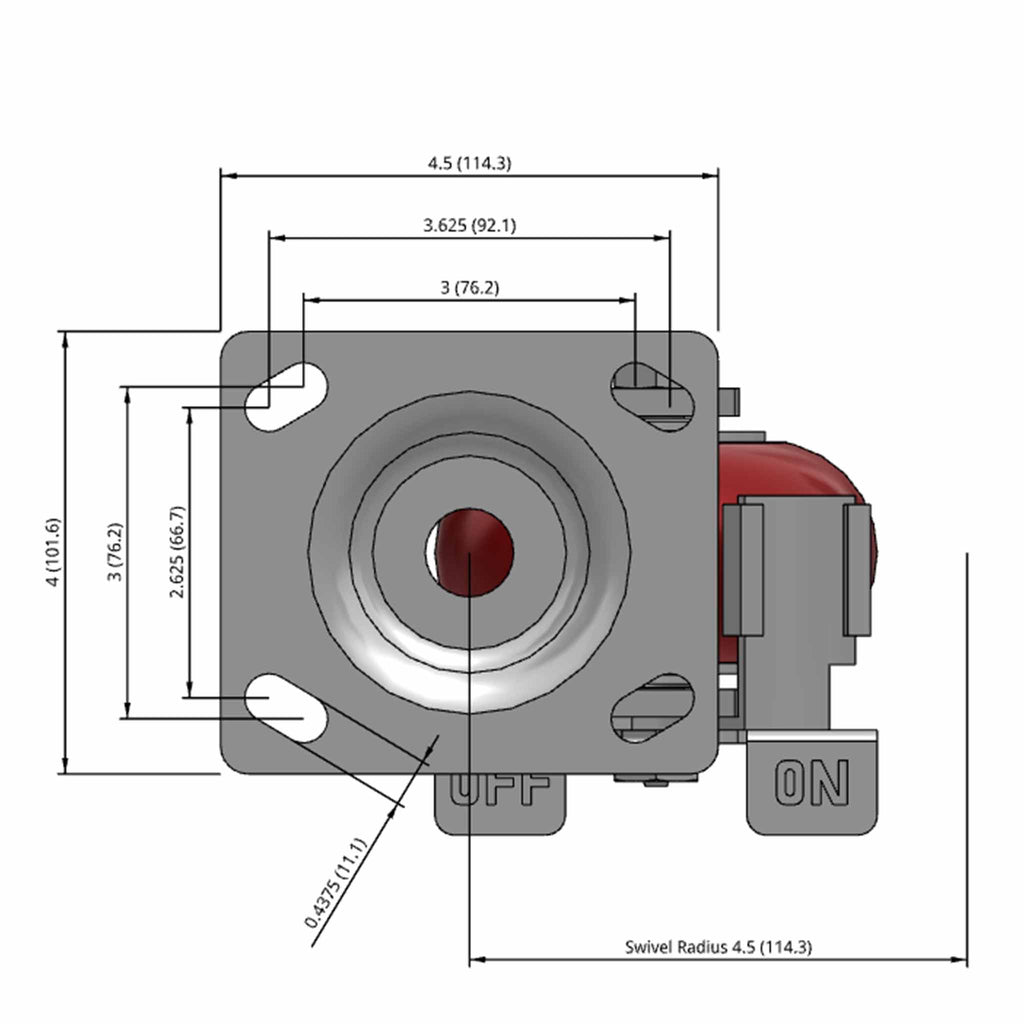

Top dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AX - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

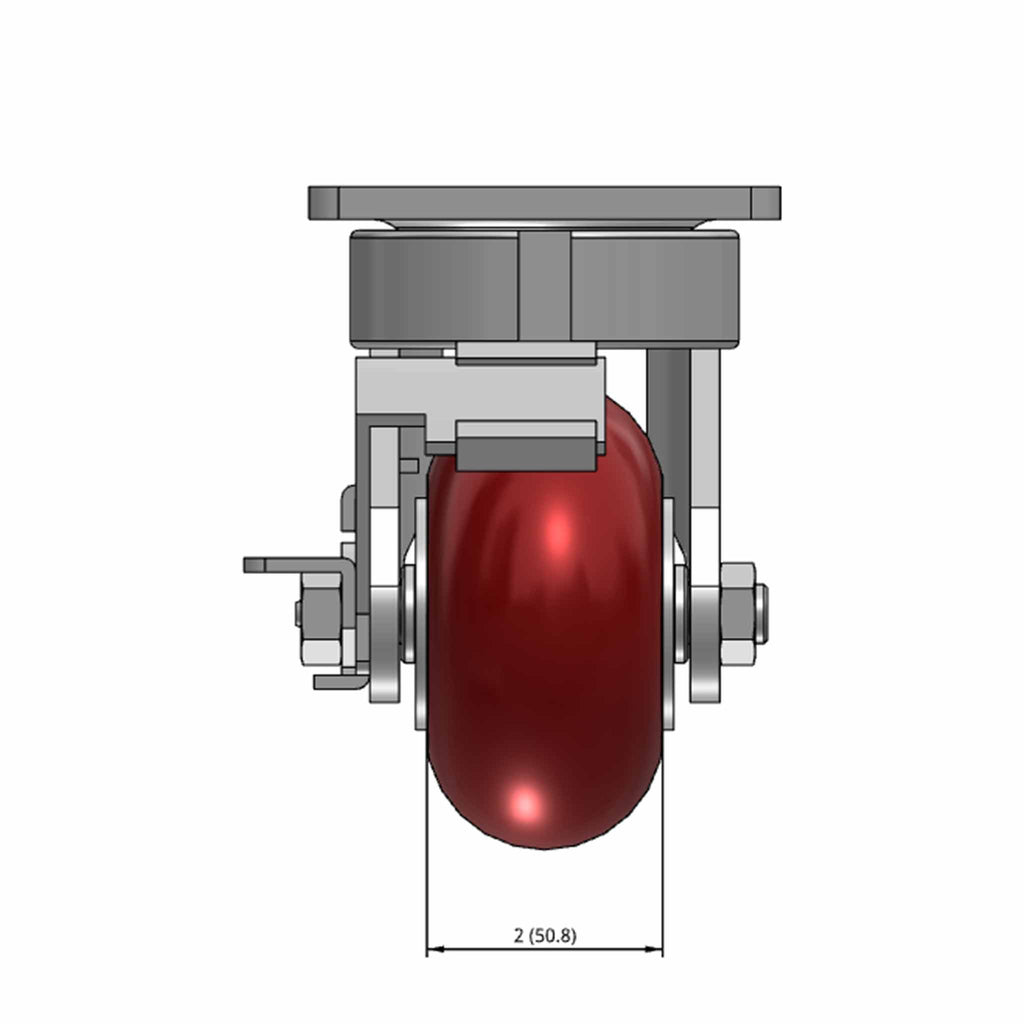

Side dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, AX - Round Polyurethane (Aluminum Core) wheel and 800 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" Maintenance-Free Side Locking MAX-Efficiency Maroon Wheel Caster

Name: 4"x2" Maintenance-Free Side Locking MAX-Efficiency Maroon Wheel Caster
Brand: Albion Casters
SKU: 18AX04228SFBC
Price: 87.14 USD
Availability: InStock

Ultimate in Ergonomics!

Albion Casters SKU: 18AX04228SFBC
Fastening: 4" x 4-1/2" top plate | Load Capacity: 800 lb
Mount Height: 5.63 in | Swivel Radius: 4.5 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$87.14 $102.52

Quantity:

Share this product

This 4" x 2" maroon polyurethane heavy duty ergonomic swivel caster with tread brake is easy to push and rolls effortlessly, making it excellent for manual push and towing applications. Our 48 Series casters are ergonomically designed for ease of movement and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operations safer while improving efficiency. Rig is zinc-plated for an attractive, corrosion-resistant finish.

Part Number:	48XMB42S-TB
SKU	18AX04228SFBC
Series:	48 Series - Ergonomic/Precision (to 1250 lb/ea)
Raceway Type:	Maintenance-Free Sealed Precision Ball Bearing Raceway
Brake:	FBC Face Brake (FBC)
Load Capacity:	800 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	AX - Round Polyurethane (Aluminum Core)
Wheel Color:	Maroon Tread on Aluminum Core
Wheel Bearing:	Precision Ball
Wheel Profile:	Round Tread
Wheel Hardness:	85 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.5 in
Swivel Lead:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter
Operating Temperature Range:	-40°F to +180°F
Mfg:	18AX04228SFBC
Warranty:	1 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" Maintenance-Free Side Locking MAX-Efficiency Maroon Wheel Caster

Description

Product Details

Part Number:

48XMB42S-TB

SKU

18AX04228SFBC

Series:

48 Series - Ergonomic/Precision (to 1250 lb/ea)

Raceway Type:

Maintenance-Free Sealed Precision Ball Bearing Raceway

Brake:

FBC Face Brake (FBC)

Load Capacity:

800 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

AX - Round Polyurethane (Aluminum Core)

Wheel Color:

Maroon Tread on Aluminum Core

Wheel Bearing:

Precision Ball

Wheel Profile:

Round Tread

Wheel Hardness:

85 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.5 in

Swivel Lead:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter

Operating Temperature Range:

-40°F to +180°F

Mfg:

18AX04228SFBC

Warranty:

1 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
