Main view of an Albion Casters 6" x 2" wide wheel Rigid caster with 4" x 4-1/2" top plate, without a brake, XS - X-tra Soft Rubber (Flat) wheel and 600 lb. capacity part

6"x2" USA 7.5" High Rigid Performance-Rubber Ball Bearing Wheel Caster

Roll over to zoom; image may be representative for size Click on image to zoom

6"x2" USA 7.5" High Rigid Performance-Rubber Ball Bearing Wheel Caster

Name: 6"x2" USA 7.5" High Rigid Performance-Rubber Ball Bearing Wheel Caster
Brand: Albion Casters
SKU: 16XS06228RHR60
Price: 31.28 USD
Availability: InStock

Industry's Best Soft Wheel

Albion Casters SKU: 16XS06228RHR60
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 7.5 in

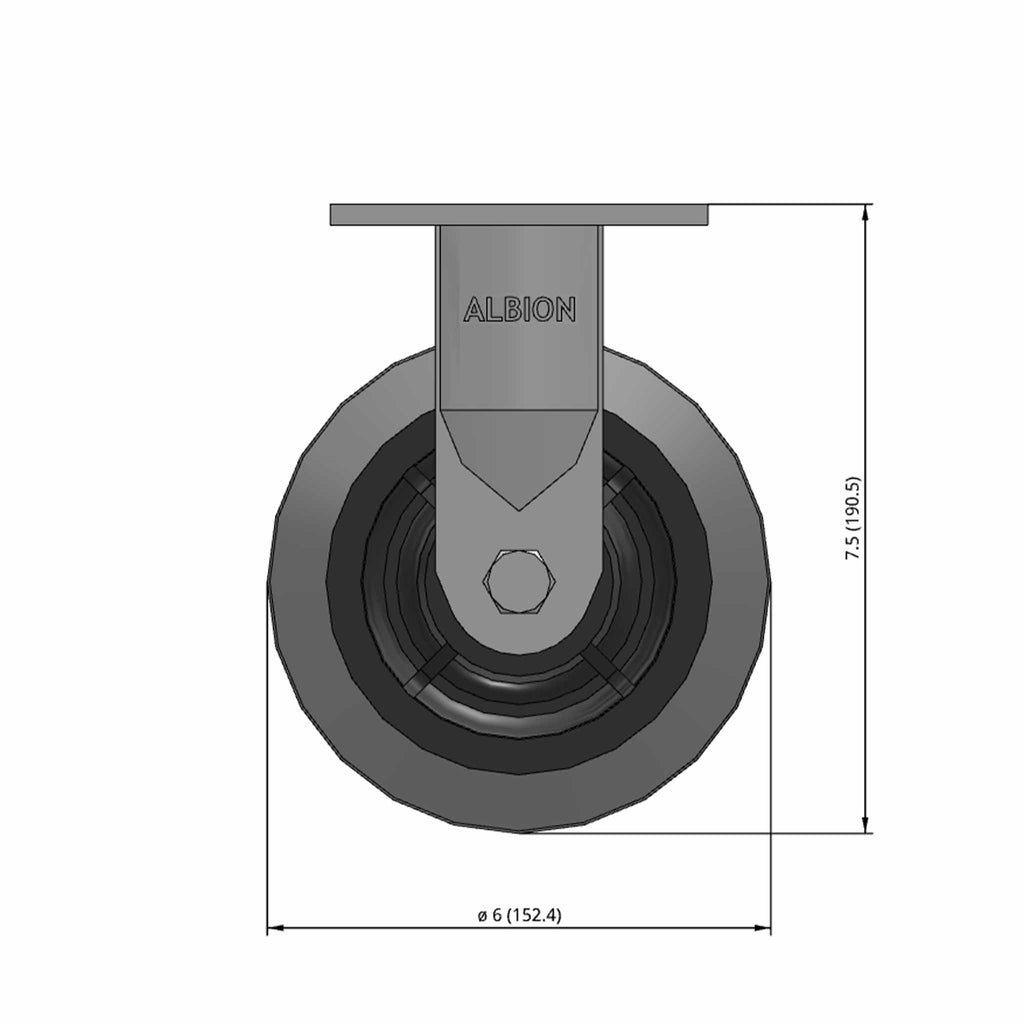

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$31.28 $36.80

Quantity:

Share this product

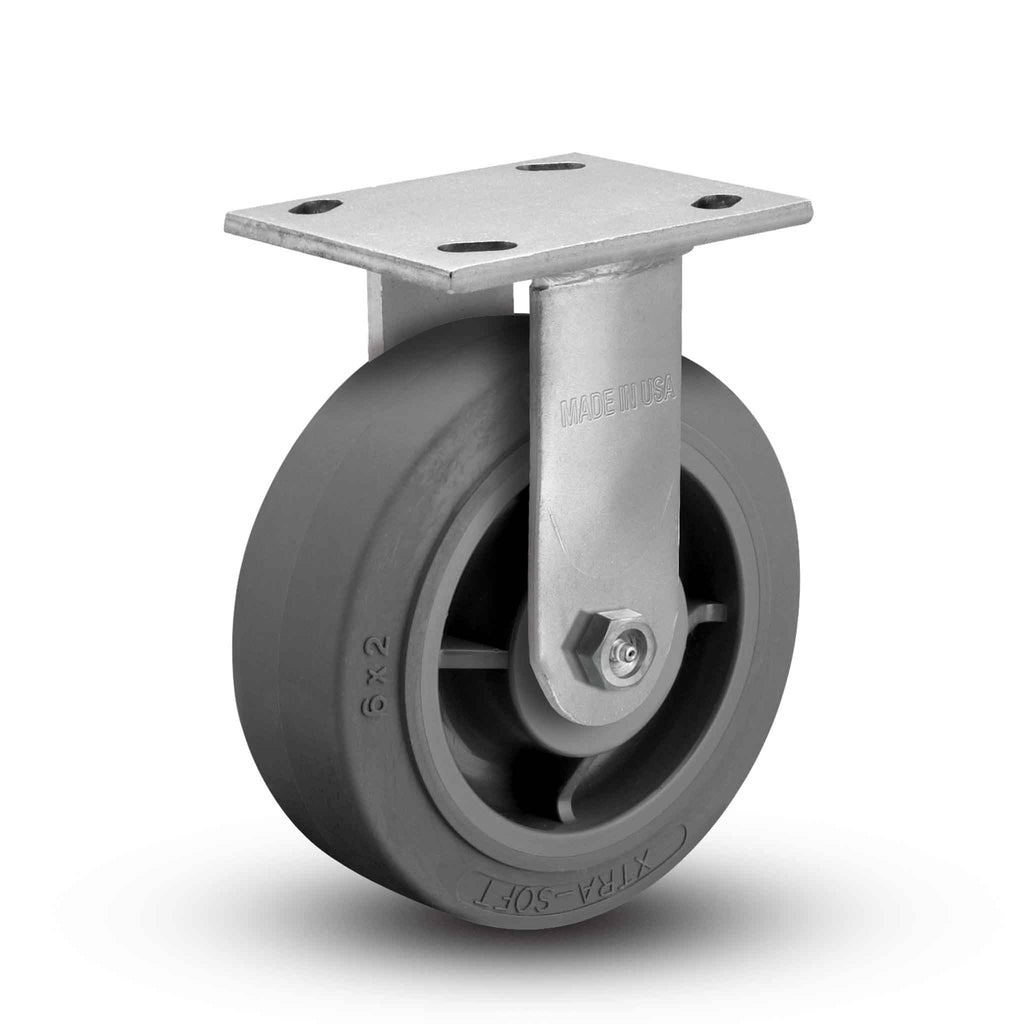

This 6" x 2" flat tread thermoplastic rubber premium heavy duty rigid caster provides smooth and quiet operation. They are safe to use on all floors.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44TRB62R-712
SKU	16XS06228RHR60
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	Rigid Construction
Brake:	None
Load Capacity:	600 lb
Mounting Height:	7.5 in
Wheel Diameter:	6 in

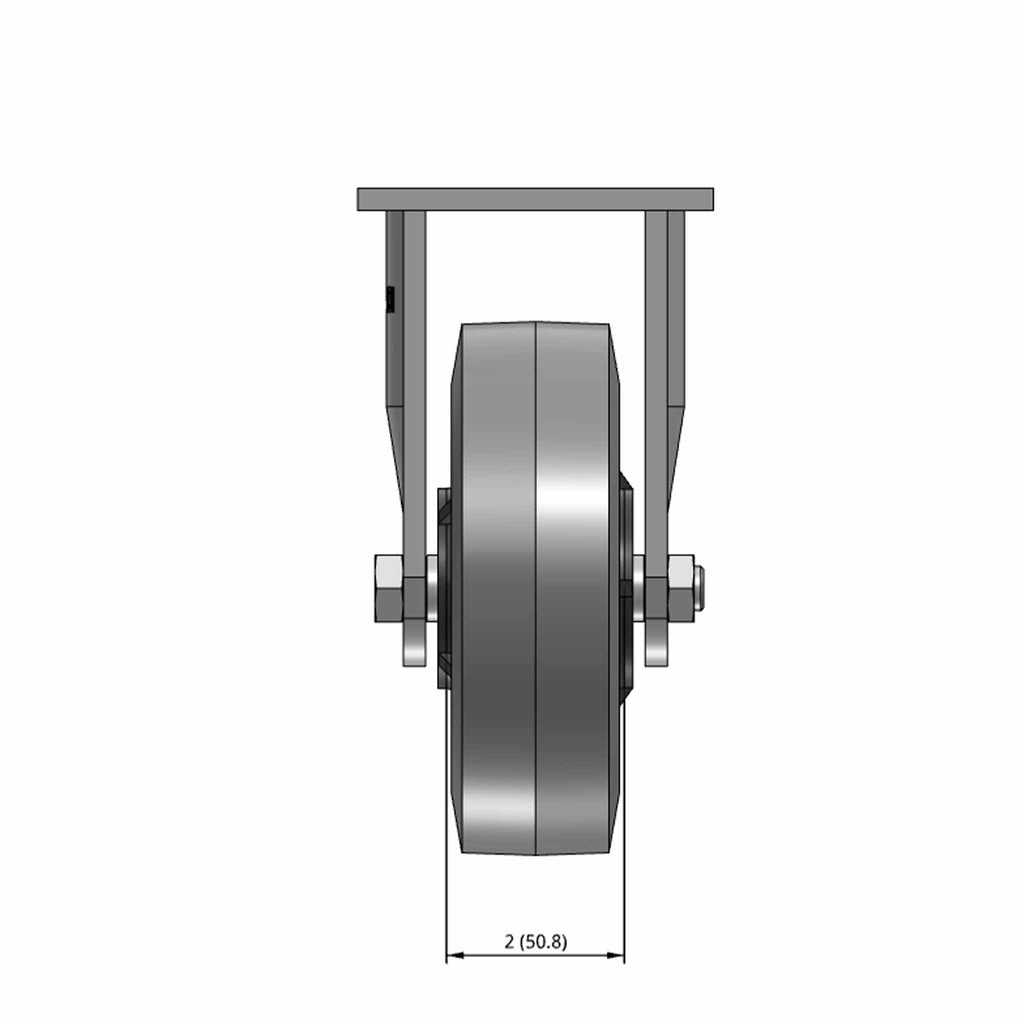

Wheel Tread Width:	2 in
Wheel Description:	XS - X-tra Soft Rubber (Flat)
Wheel Color:	Grey Tread on Grey Core
Wheel Bearing:	Precision Ball
Wheel Profile:	Crowned Tread
Wheel Hardness:	65-75 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate

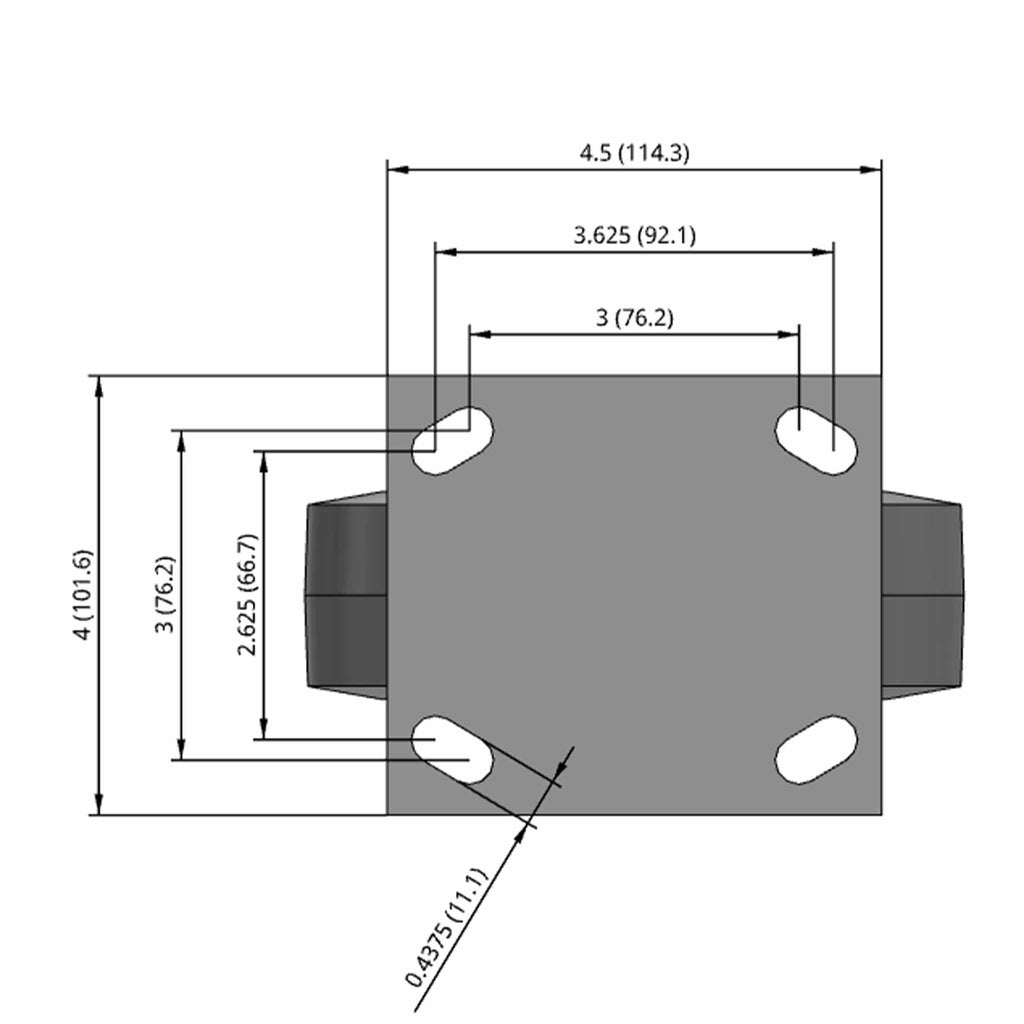

Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Finish:	Zinc Plated
Axle Size:	1/2" diameter
Operating Temperature Range:	-45°F to +180°F
Mfg:	16XS06228RHR60
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

6"x2" USA 7.5" High Rigid Performance-Rubber Ball Bearing Wheel Caster

Description

Product Details

Part Number:

44TRB62R-712

SKU

16XS06228RHR60

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

Rigid Construction

Brake:

None

Load Capacity:

600 lb

Mounting Height:

7.5 in

Wheel Diameter:

6 in

Wheel Tread Width:

2 in

Wheel Description:

XS - X-tra Soft Rubber (Flat)

Wheel Color:

Grey Tread on Grey Core

Wheel Bearing:

Precision Ball

Wheel Profile:

Crowned Tread

Wheel Hardness:

65-75 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Finish:

Zinc Plated

Axle Size:

1/2" diameter

Operating Temperature Range:

-45°F to +180°F

Mfg:

16XS06228RHR60

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
