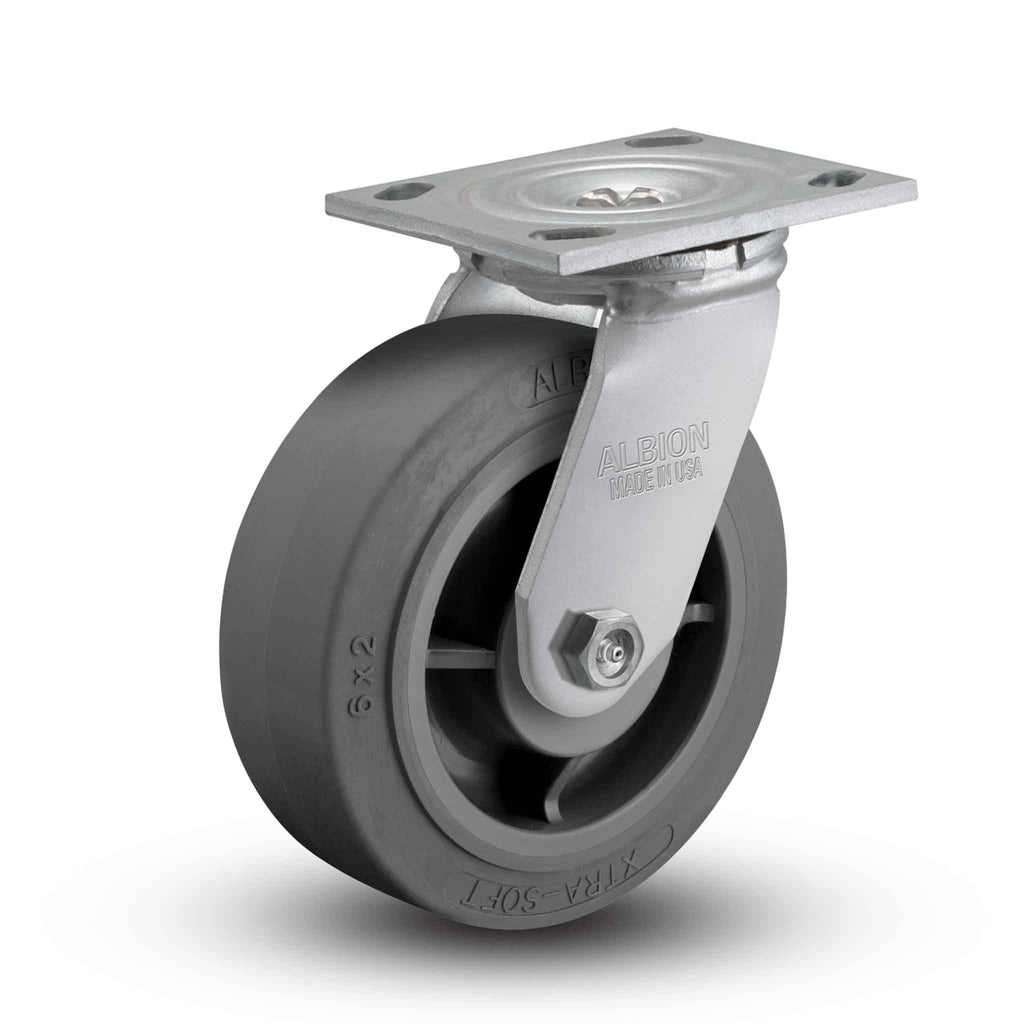

Main view of an Albion Casters 6" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, without a brake, XS - X-tra Soft Rubber (Flat) wheel and 600 lb. capacity part

6"x2" USA 7.5" High Swivel Caster with Flat Performance-Rubber Wheel

Roll over to zoom; image may be representative for size Click on image to zoom

6"x2" USA 7.5" High Swivel Caster with Flat Performance-Rubber Wheel

Name: 6"x2" USA 7.5" High Swivel Caster with Flat Performance-Rubber Wheel
Brand: Albion Casters
SKU: 16XS06201SHS60
Price: 40.66 USD
Availability: InStock

Industry's Best Soft Wheel

Albion Casters SKU: 16XS06201SHS60
Fastening: 4" x 4-1/2" top plate | Load Capacity: 600 lb
Mount Height: 7.5 in | Swivel Radius: 4.88 in

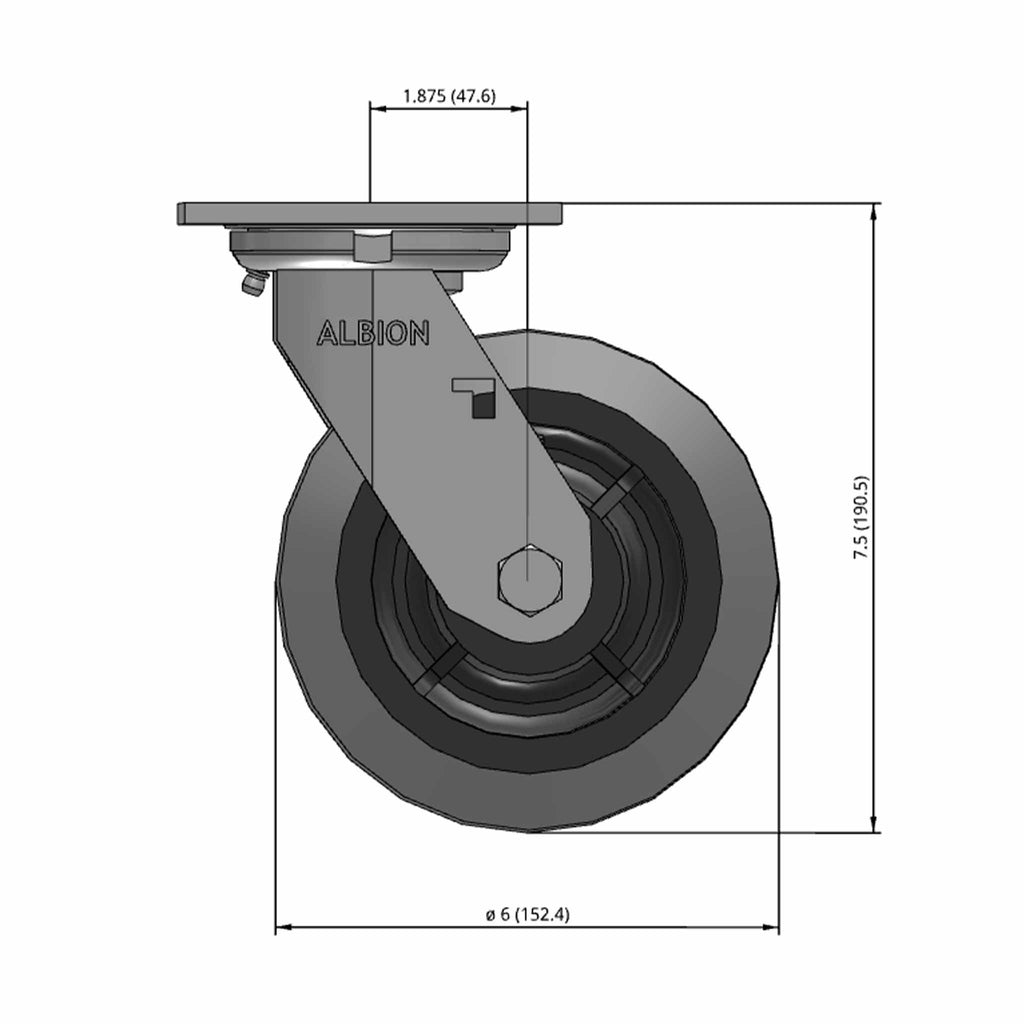

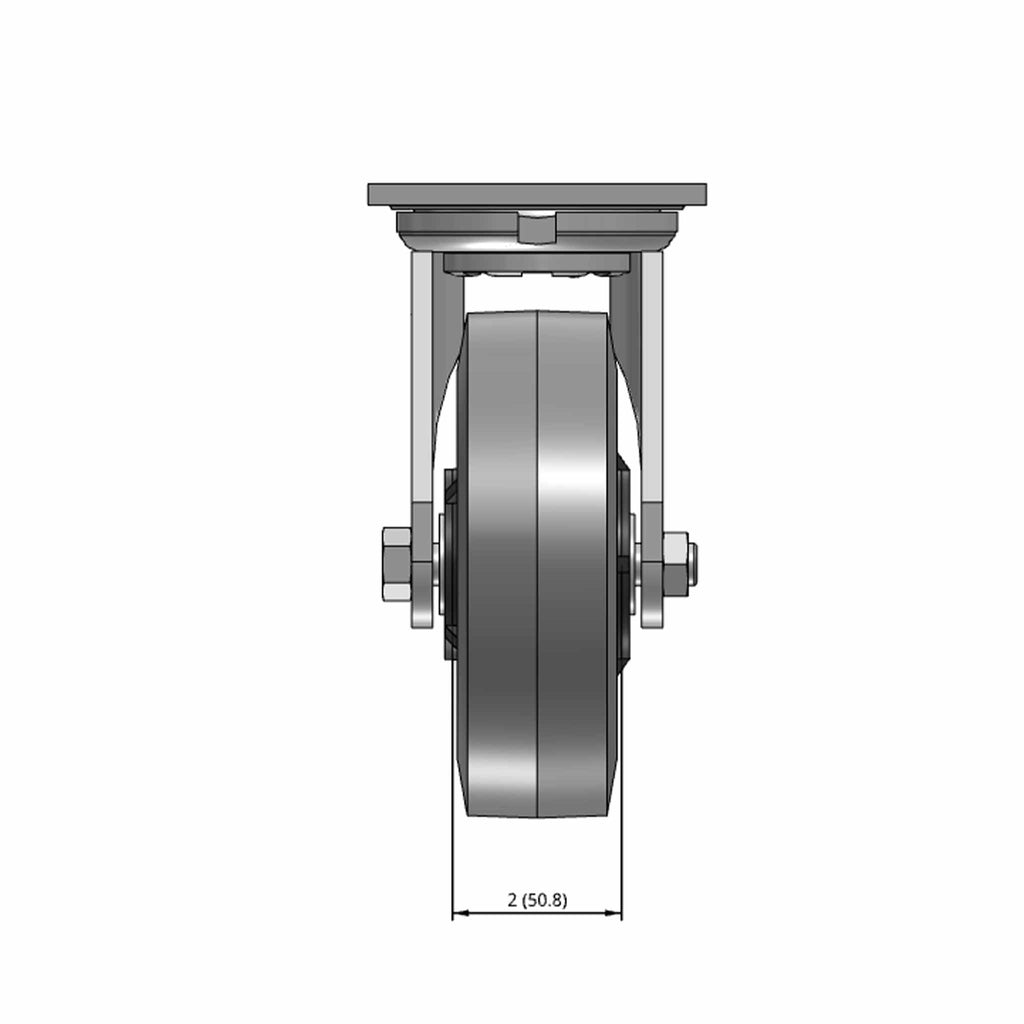

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

🏷️ Volume discounts automatically applied in cart

Price:

$40.66

Quantity:

Share this product

This 6" x 2" flat tread thermoplastic rubber premium heavy duty swivel caster provides smooth and quiet operation. They are safe to use on all floors.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44TRR62S-712
SKU	16XS06201SHS60
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	None
Load Capacity:	600 lb
Mounting Height:	7.5 in
Wheel Diameter:	6 in
Wheel Tread Width:	2 in
Wheel Description:	XS - X-tra Soft Rubber (Flat)
Wheel Color:	Grey Tread on Grey Core
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	65-75 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate

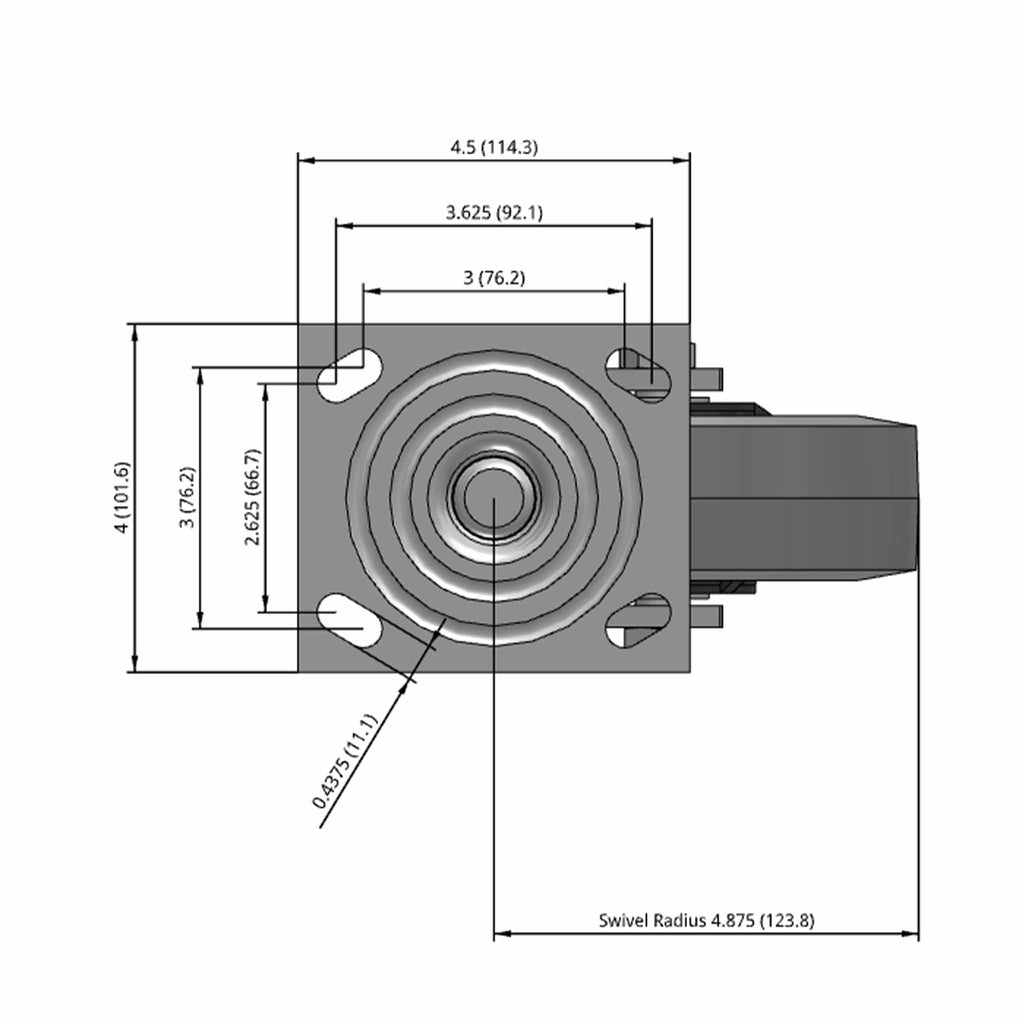

Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.88 in
Swivel Lead:	1.88 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-45°F to +180°F
Mfg:	16XS06201SHS60
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

6"x2" USA 7.5" High Swivel Caster with Flat Performance-Rubber Wheel

Description

Product Details

Part Number:

44TRR62S-712

SKU

16XS06201SHS60

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

None

Load Capacity:

600 lb

Mounting Height:

7.5 in

Wheel Diameter:

6 in

Wheel Tread Width:

2 in

Wheel Description:

XS - X-tra Soft Rubber (Flat)

Wheel Color:

Grey Tread on Grey Core

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

65-75 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.88 in

Swivel Lead:

1.88 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-45°F to +180°F

Mfg:

16XS06201SHS60

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
