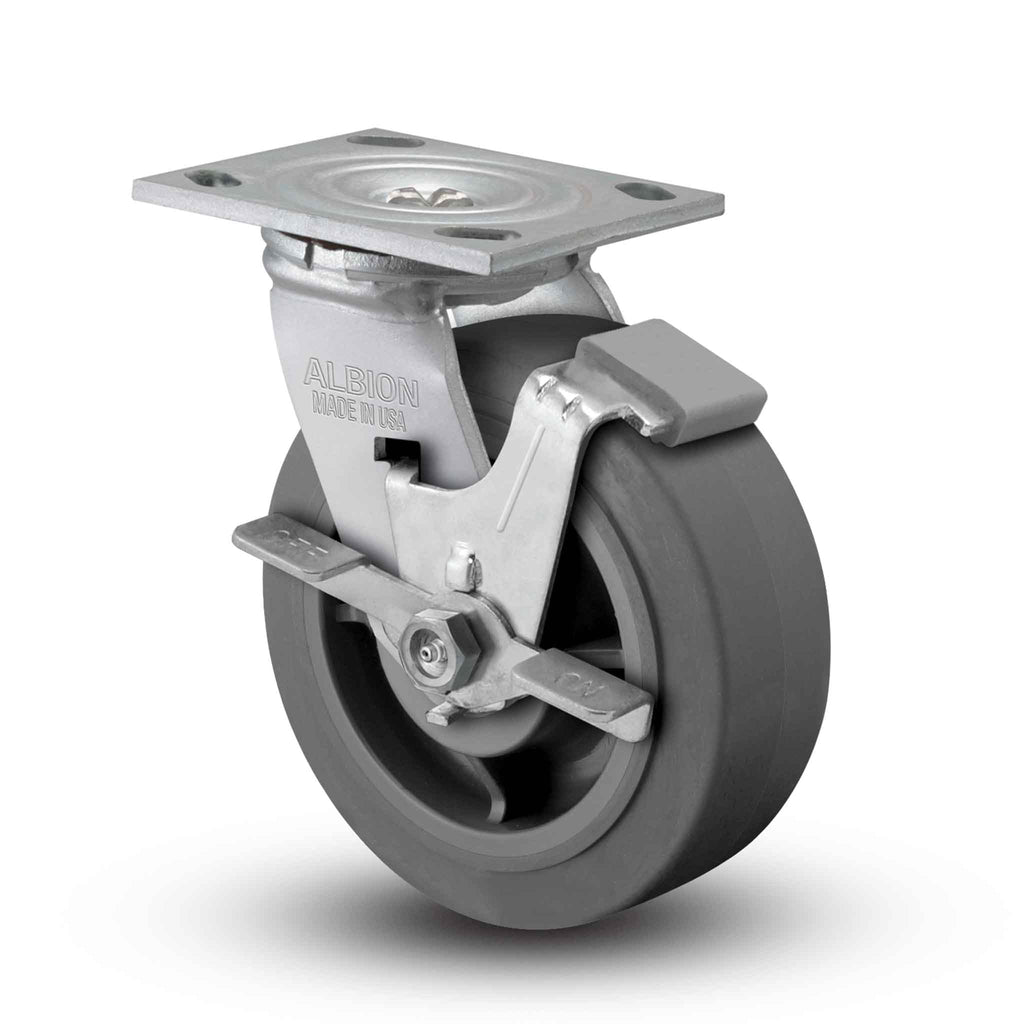

Main view of an Albion Casters 5" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XS - X-tra Soft Rubber (Flat) wheel and 375 lb. capacity part

5"x2" USA Side Locking Performance-Rubber Ball Bearing Wheel Caster

Roll over to zoom; image may be representative for size Click on image to zoom

5"x2" USA Side Locking Performance-Rubber Ball Bearing Wheel Caster

Name: 5"x2" USA Side Locking Performance-Rubber Ball Bearing Wheel Caster
Brand: Albion Casters
SKU: 16XS05228SFBA
Price: 41.13 USD
Availability: InStock

Industry's Best Soft Wheel

Albion Casters SKU: 16XS05228SFBA
Fastening: 4" x 4-1/2" top plate | Load Capacity: 375 lb
Mount Height: 6.5 in | Swivel Radius: 4.13 in

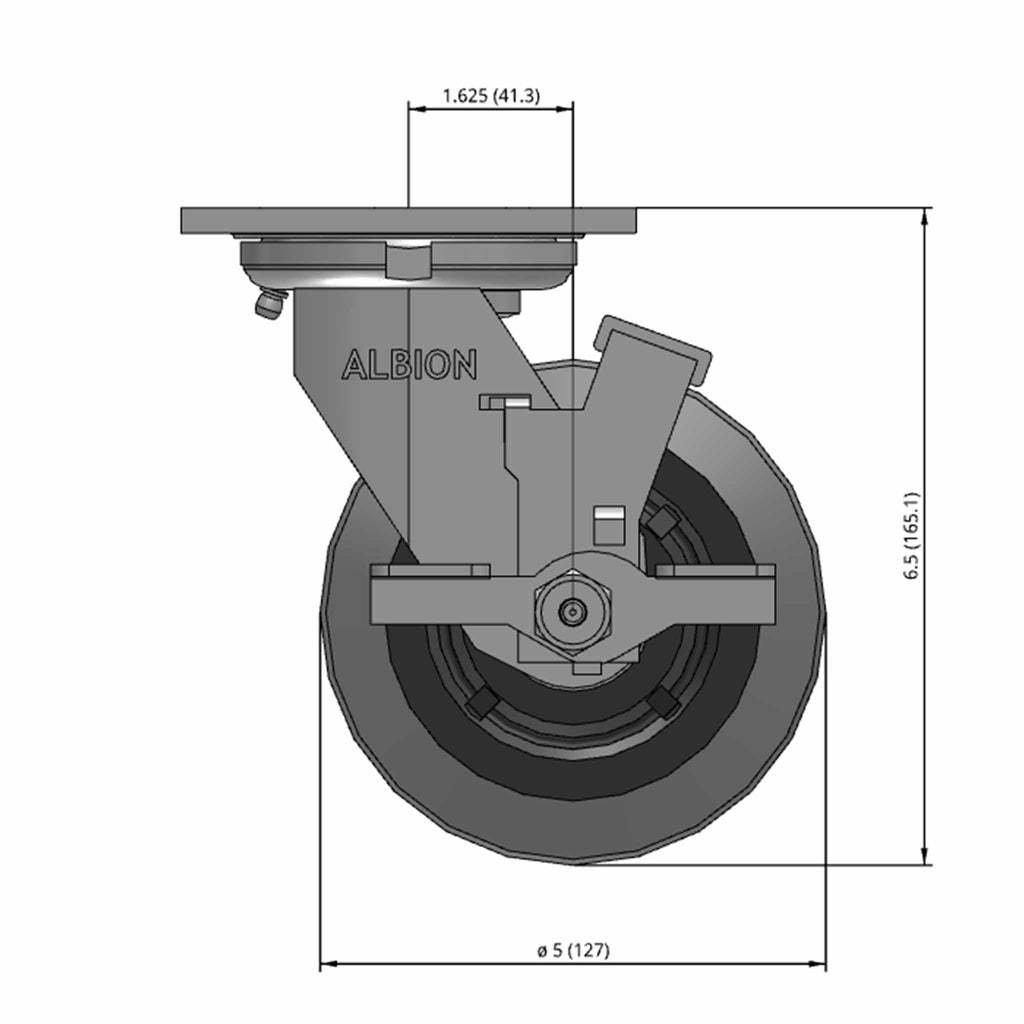

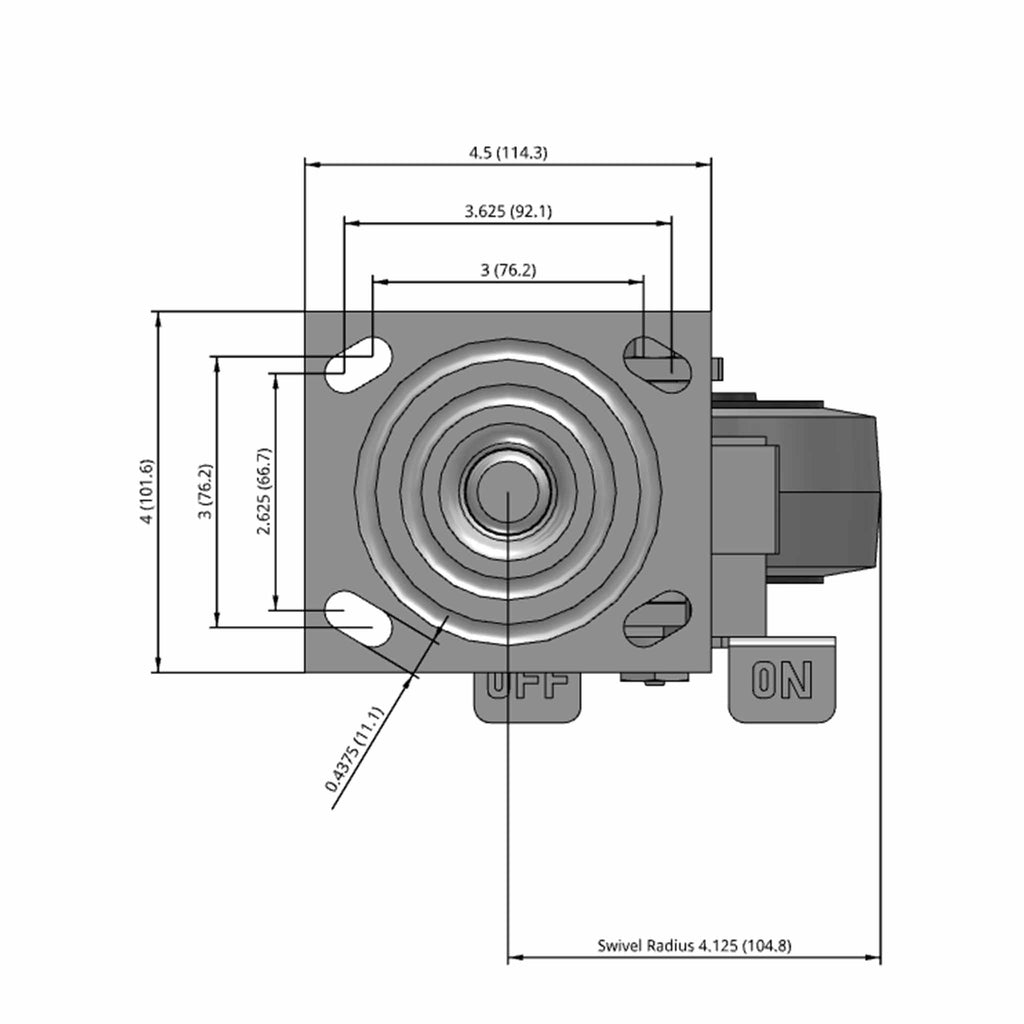

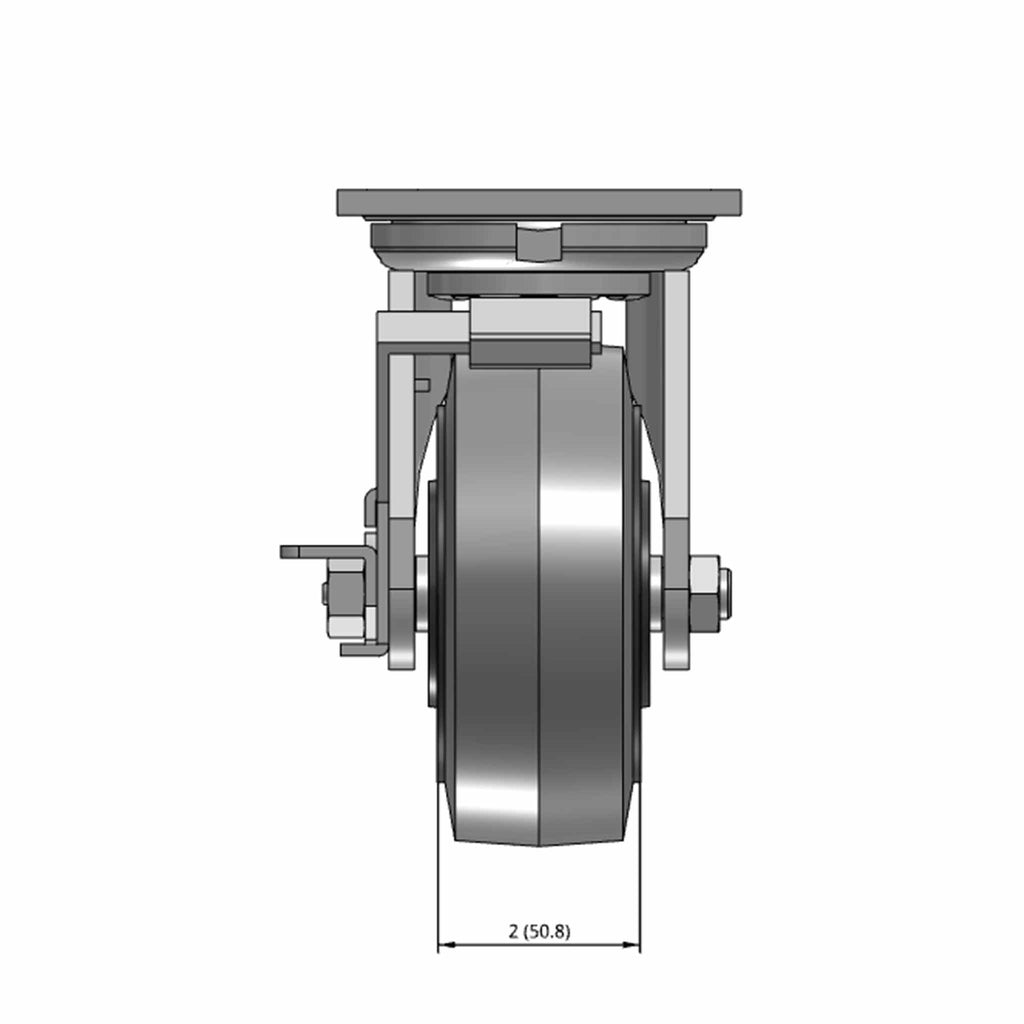

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$41.13 $48.39

Quantity:

Share this product

This 5" x 2" flat tread thermoplastic rubber premium heavy duty swivel caster with tread brake provides smooth and quiet operation. They are safe to use on all floors.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44TRB52S-TB
SKU	16XS05228SFBA
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	FBA Face Brake (FBA)
Load Capacity:	375 lb
Mounting Height:	6.5 in
Wheel Diameter:	5 in
Wheel Tread Width:	2 in
Wheel Description:	XS - X-tra Soft Rubber (Flat)
Wheel Color:	Grey Tread on Grey Core
Wheel Bearing:	Precision Ball
Wheel Profile:	Crowned Tread
Wheel Hardness:	65-75 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.13 in
Swivel Lead:	1.63 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter
Operating Temperature Range:	-45°F to +180°F
Mfg:	16XS05228SFBA
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

5"x2" USA Side Locking Performance-Rubber Ball Bearing Wheel Caster

Description

Product Details

Part Number:

44TRB52S-TB

SKU

16XS05228SFBA

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

FBA Face Brake (FBA)

Load Capacity:

375 lb

Mounting Height:

6.5 in

Wheel Diameter:

5 in

Wheel Tread Width:

2 in

Wheel Description:

XS - X-tra Soft Rubber (Flat)

Wheel Color:

Grey Tread on Grey Core

Wheel Bearing:

Precision Ball

Wheel Profile:

Crowned Tread

Wheel Hardness:

65-75 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.13 in

Swivel Lead:

1.63 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter

Operating Temperature Range:

-45°F to +180°F

Mfg:

16XS05228SFBA

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
