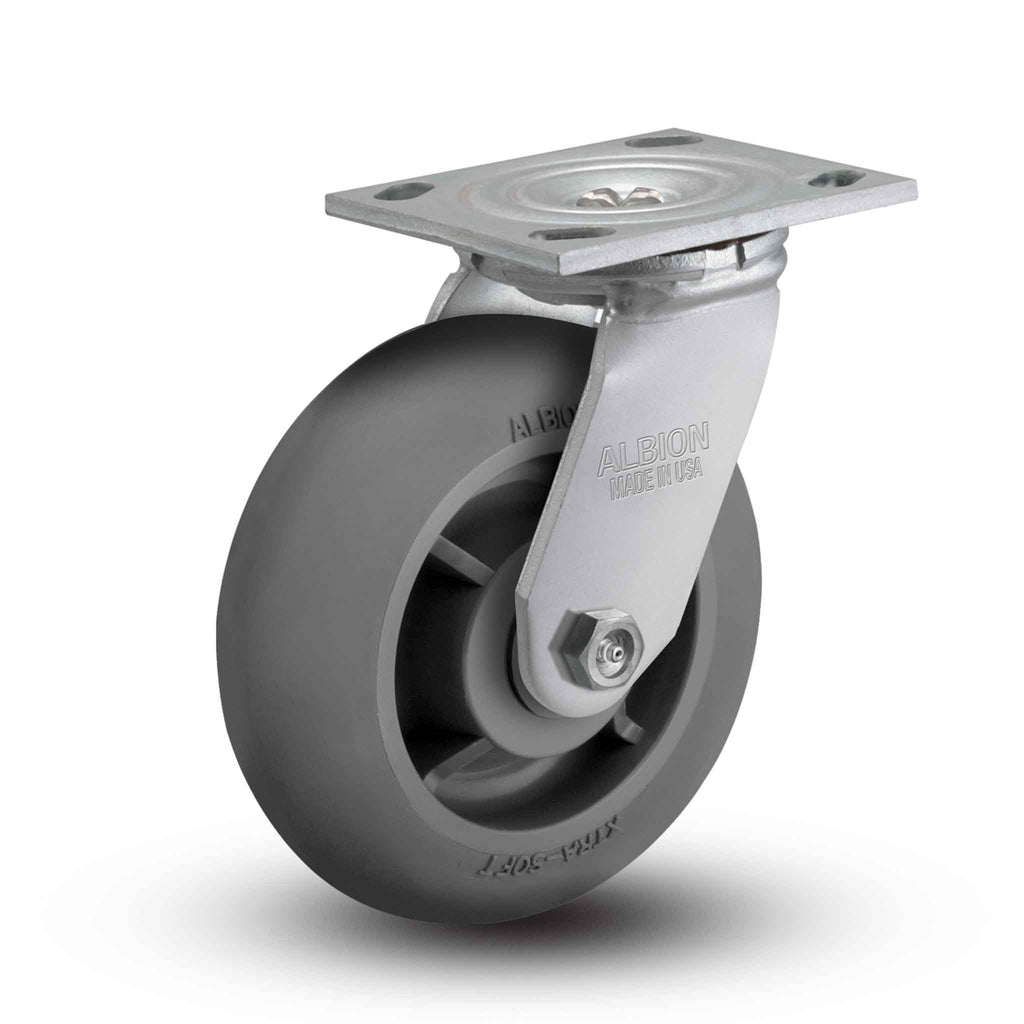

Main view of an Albion Casters 6" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, without a brake, XR - X-tra Soft Rubber (Round) wheel and 450 lb. capacity part

6"x2" USA-Made Swivel Round Performance-Rubber Ball Brg. Wheel Caster

Roll over to zoom; image may be representative for size Click on image to zoom

6"x2" USA-Made Swivel Round Performance-Rubber Ball Brg. Wheel Caster

Name: 6"x2" USA-Made Swivel Round Performance-Rubber Ball Brg. Wheel Caster
Brand: Albion Casters
SKU: 16XR06228S
Price: 35.48 USD
Availability: InStock

Industry's Best Soft Wheel

Albion Casters SKU: 16XR06228S
Fastening: 4" x 4-1/2" top plate | Load Capacity: 450 lb
Mount Height: 7.25 in | Swivel Radius: 4.75 in

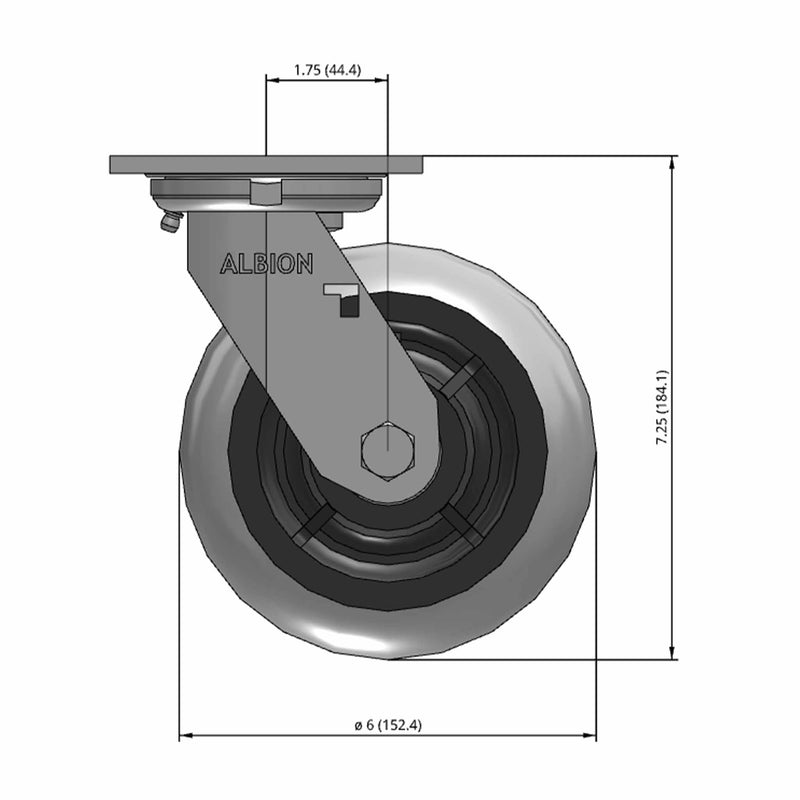

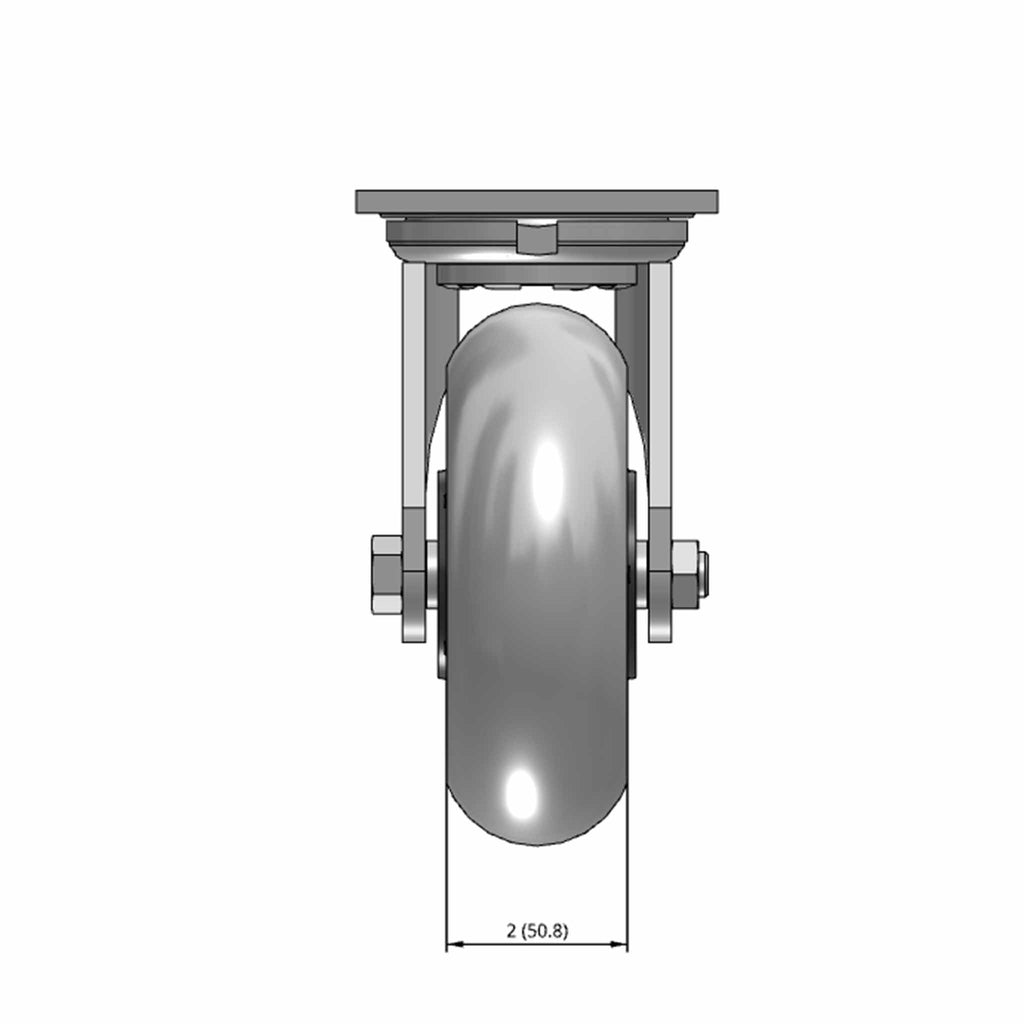

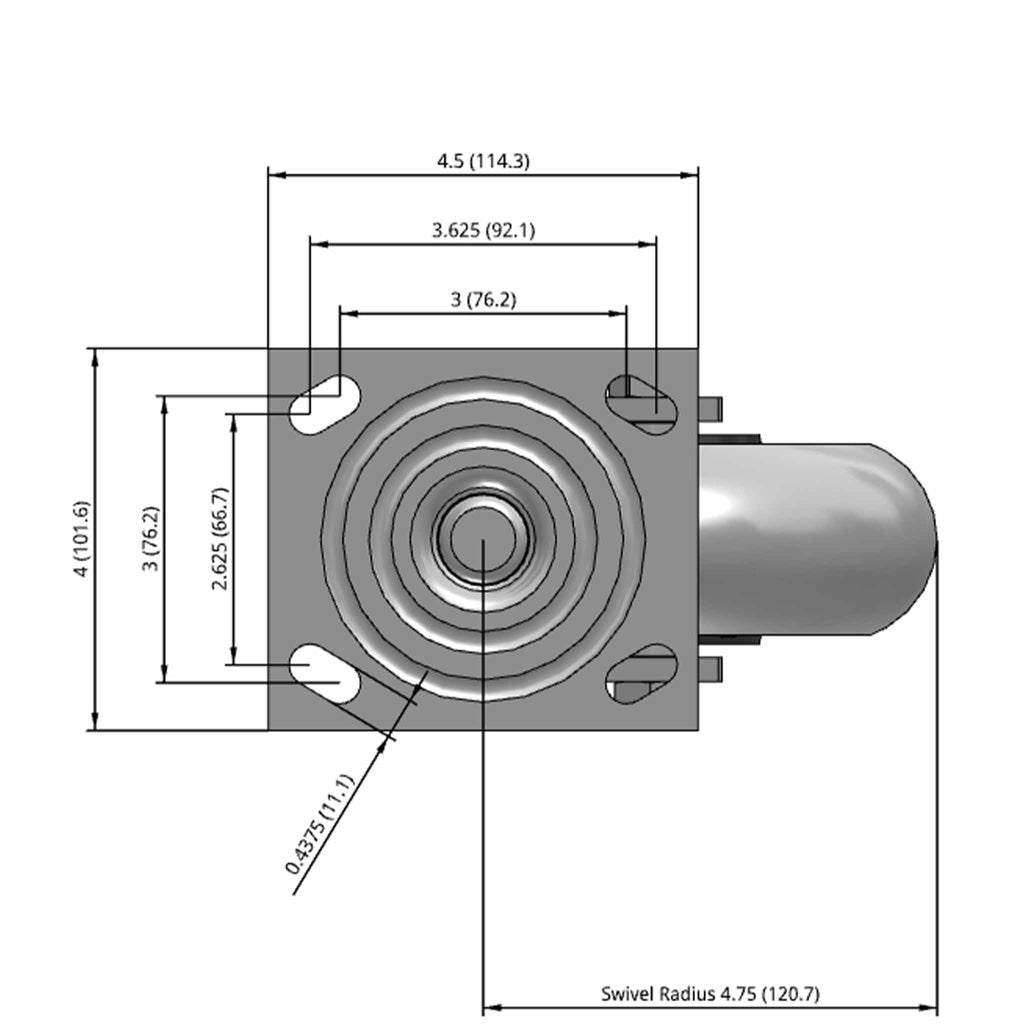

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$35.48 $41.74

Quantity:

Share this product

This 6" x 2" round tread thermoplastic rubber premium heavy duty swivel caster provides smooth and quiet operation. The crowned tread provides provides easy starts and steering.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44TDB62S
SKU	16XR06228S
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	None
Load Capacity:	450 lb
Mounting Height:	7.25 in
Wheel Diameter:	6 in
Wheel Tread Width:	2 in
Wheel Description:	XR - X-tra Soft Rubber (Round)
Wheel Color:	Grey Tread on Grey Core
Wheel Bearing:	Precision Ball
Wheel Profile:	Rounded Tread
Wheel Hardness:	65-75 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.75 in
Swivel Lead:	1.75 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter
Operating Temperature Range:	-45°F to +180°F
Mfg:	16XR06228S
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

6"x2" USA-Made Swivel Round Performance-Rubber Ball Brg. Wheel Caster

Description

Product Details

Part Number:

44TDB62S

SKU

16XR06228S

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

None

Load Capacity:

450 lb

Mounting Height:

7.25 in

Wheel Diameter:

6 in

Wheel Tread Width:

2 in

Wheel Description:

XR - X-tra Soft Rubber (Round)

Wheel Color:

Grey Tread on Grey Core

Wheel Bearing:

Precision Ball

Wheel Profile:

Rounded Tread

Wheel Hardness:

65-75 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.75 in

Swivel Lead:

1.75 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter

Operating Temperature Range:

-45°F to +180°F

Mfg:

16XR06228S

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
