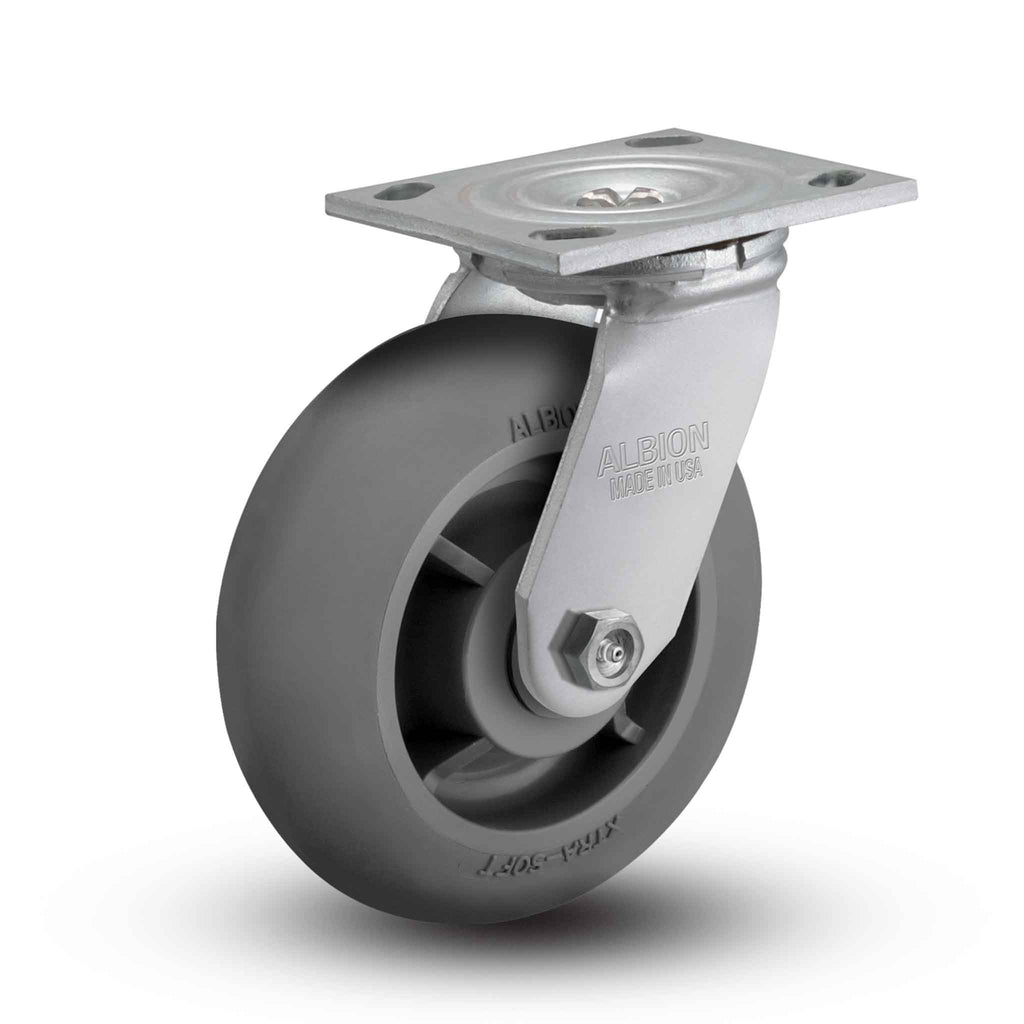

This 6" x 2" round tread thermoplastic rubber premium heavy duty swivel caster provides smooth and quiet operation. The crowned tread provides provides easy starts and steering.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16XR06201S
Caster Type: Swivel
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
Load Capacity: 450 lb
Wheel Diameter: 6 in

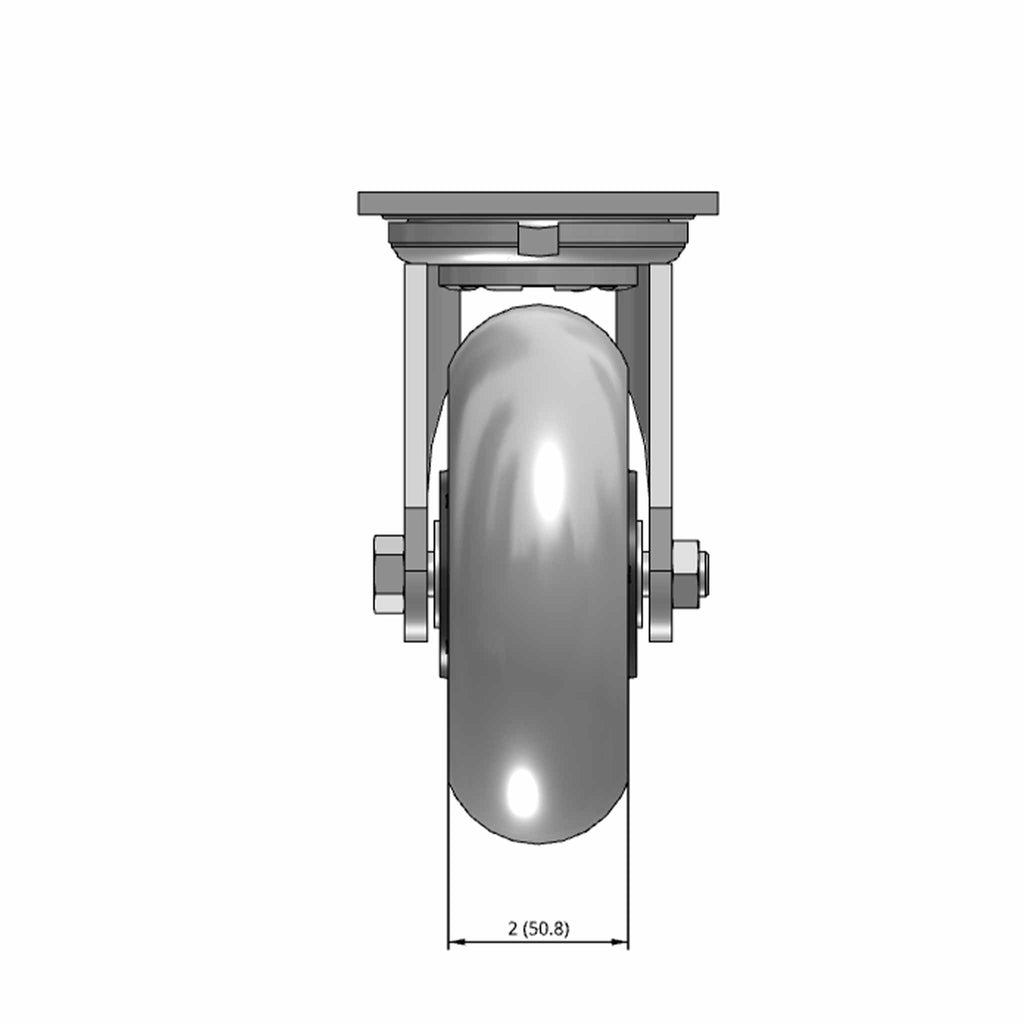

Wheel Tread Width: 2 in
Wheel Description: XR - X-tra Soft Rubber (Round)
Wheel Color: Grey Tread on Grey Core
Wheel Bearing: Roller
Wheel Profile: Rounded Tread
Wheel Hardness: 65-75 Shore A
Wheel Thread Guards: None

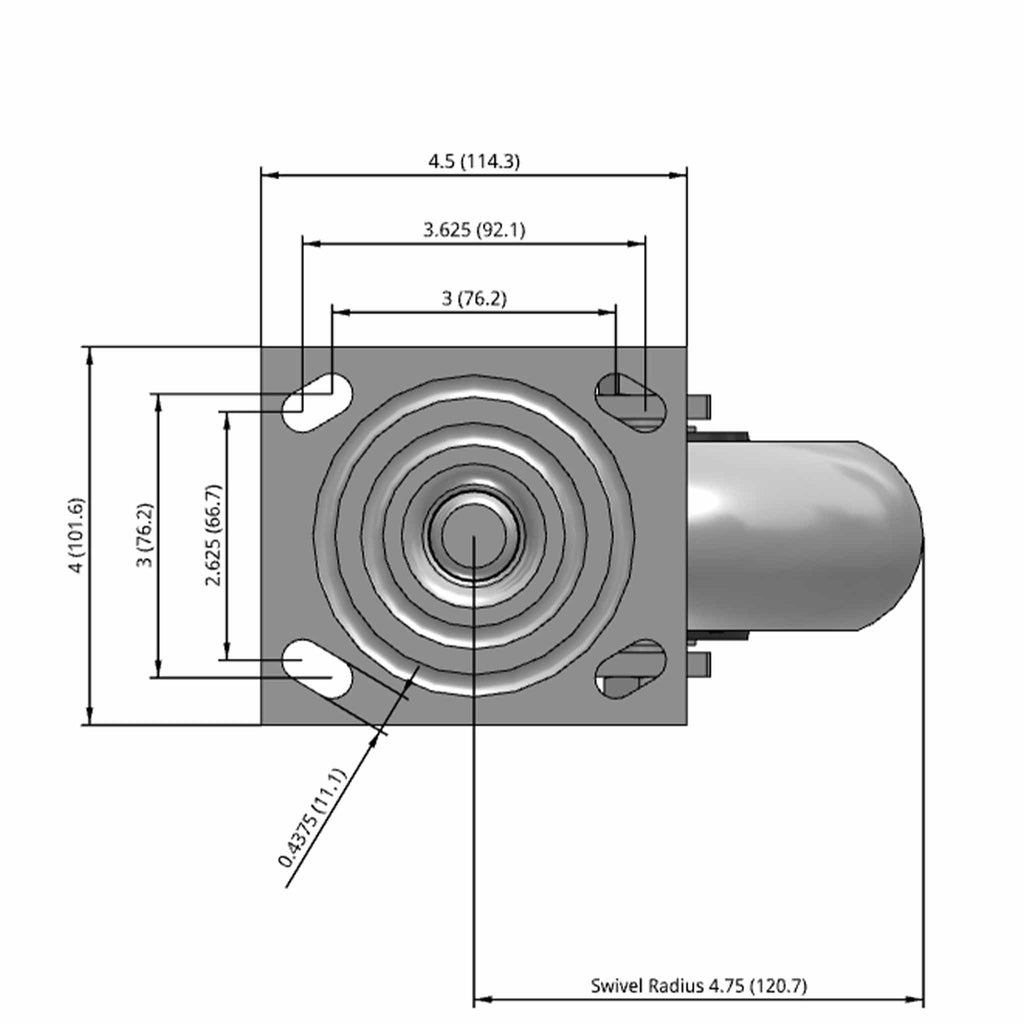

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

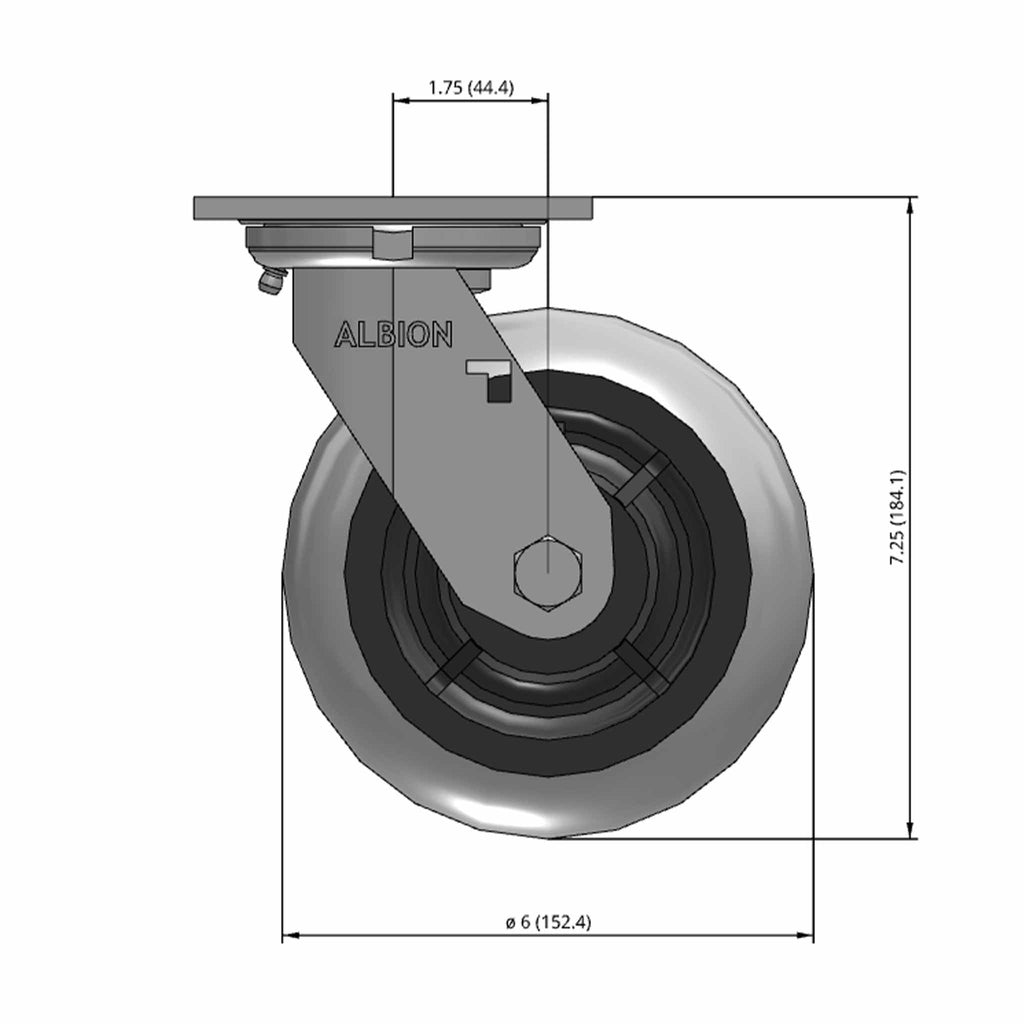

Mounting Height: 7.25 in
Swivel Radius: 4.75 in
Operating Temperature Range: -45°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
