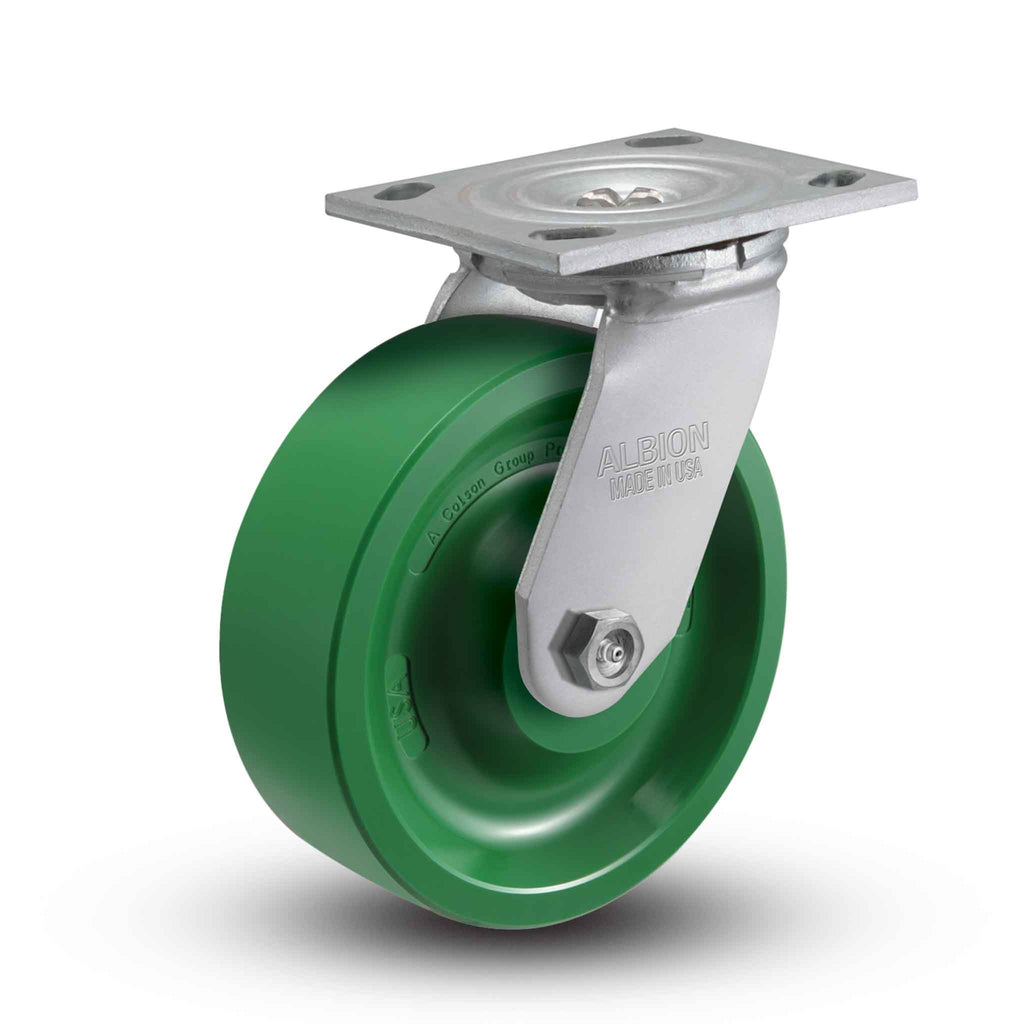

This 6" x 2" solid polyurethane premium heavy duty swivel caster is easy to roll and high capacity. Solid urethane wheels are also floor protective and relatively quiet.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16XI06202S
Caster Type: Swivel
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
Load Capacity: 1000 lb
Wheel Diameter: 6 in

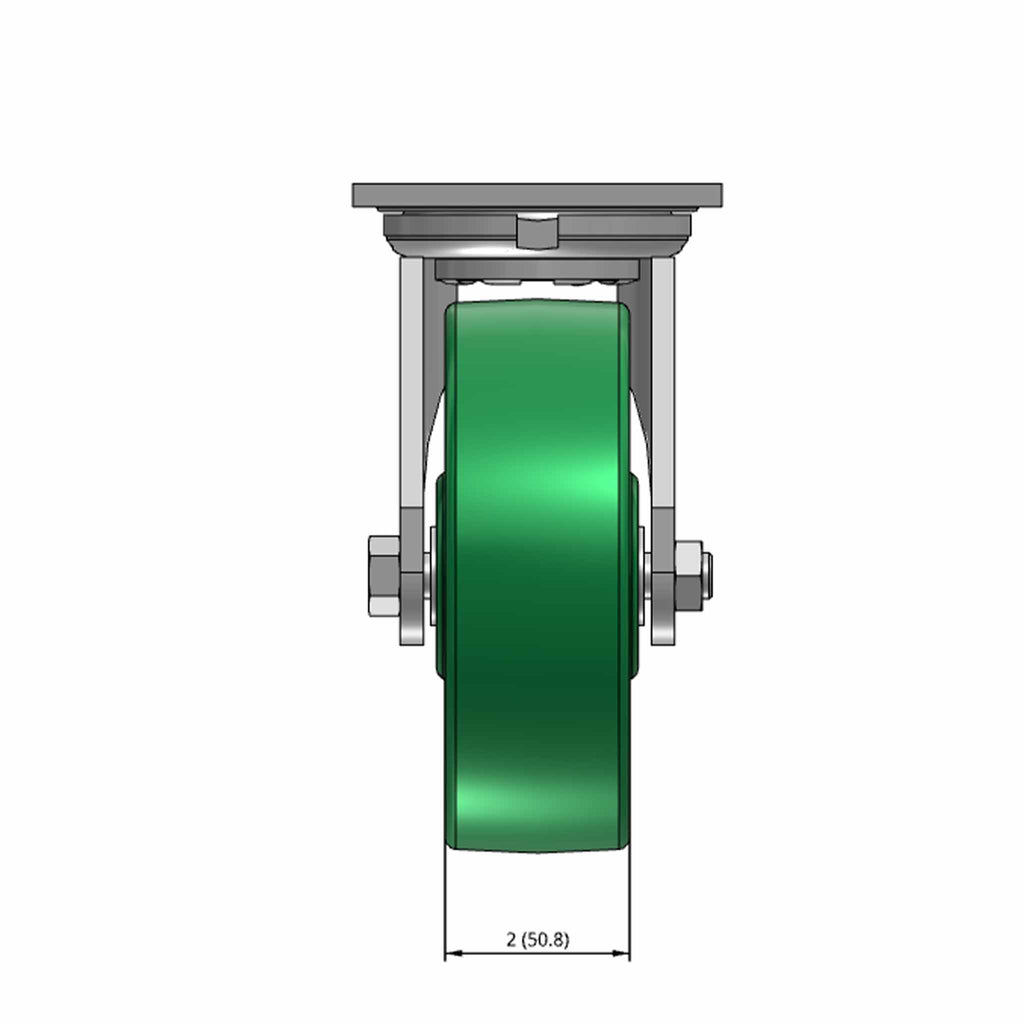

Wheel Tread Width: 2 in
Wheel Description: XI - X-treme Solid Polyurethane
Wheel Color: Green Polyurethane
Wheel Bearing: Drawn Cup Roller
Wheel Profile: Crowned Tread
Wheel Hardness: 70 Shore D
Wheel Thread Guards: None

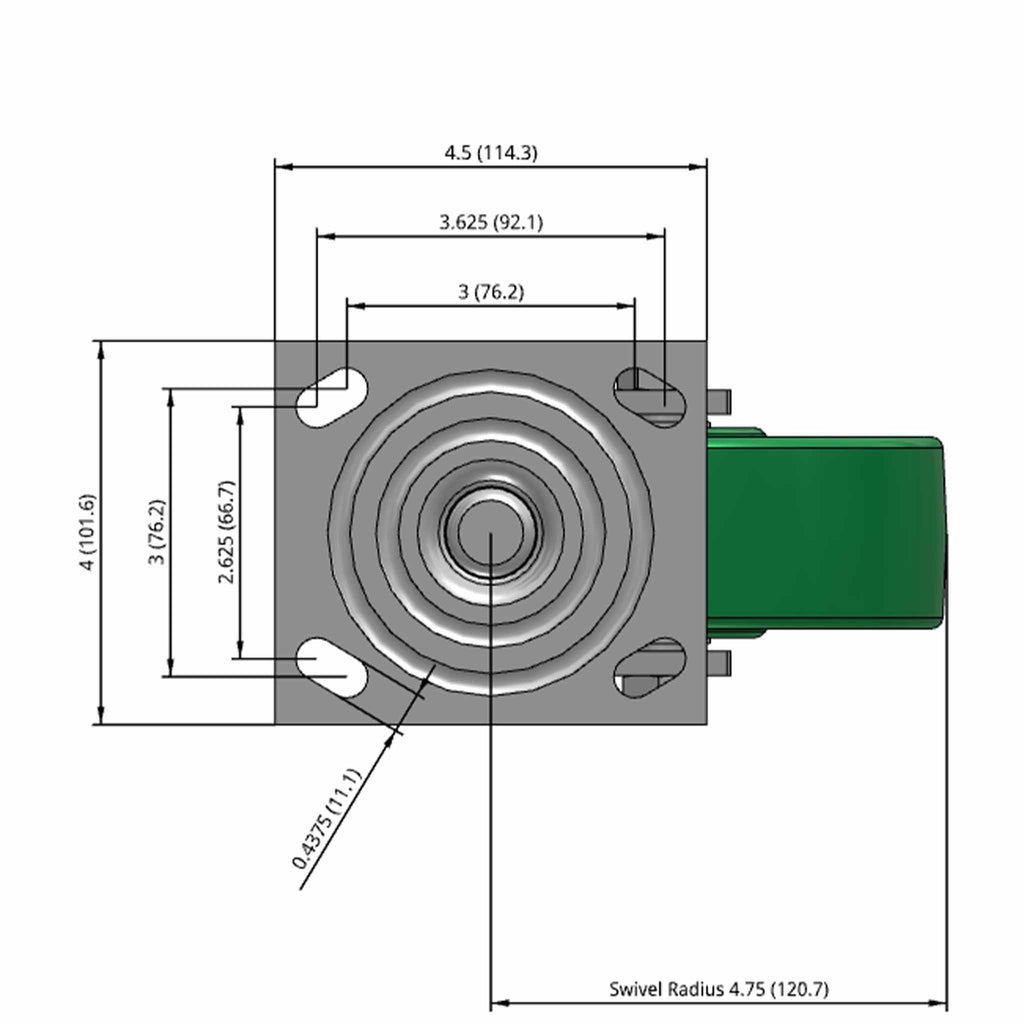

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

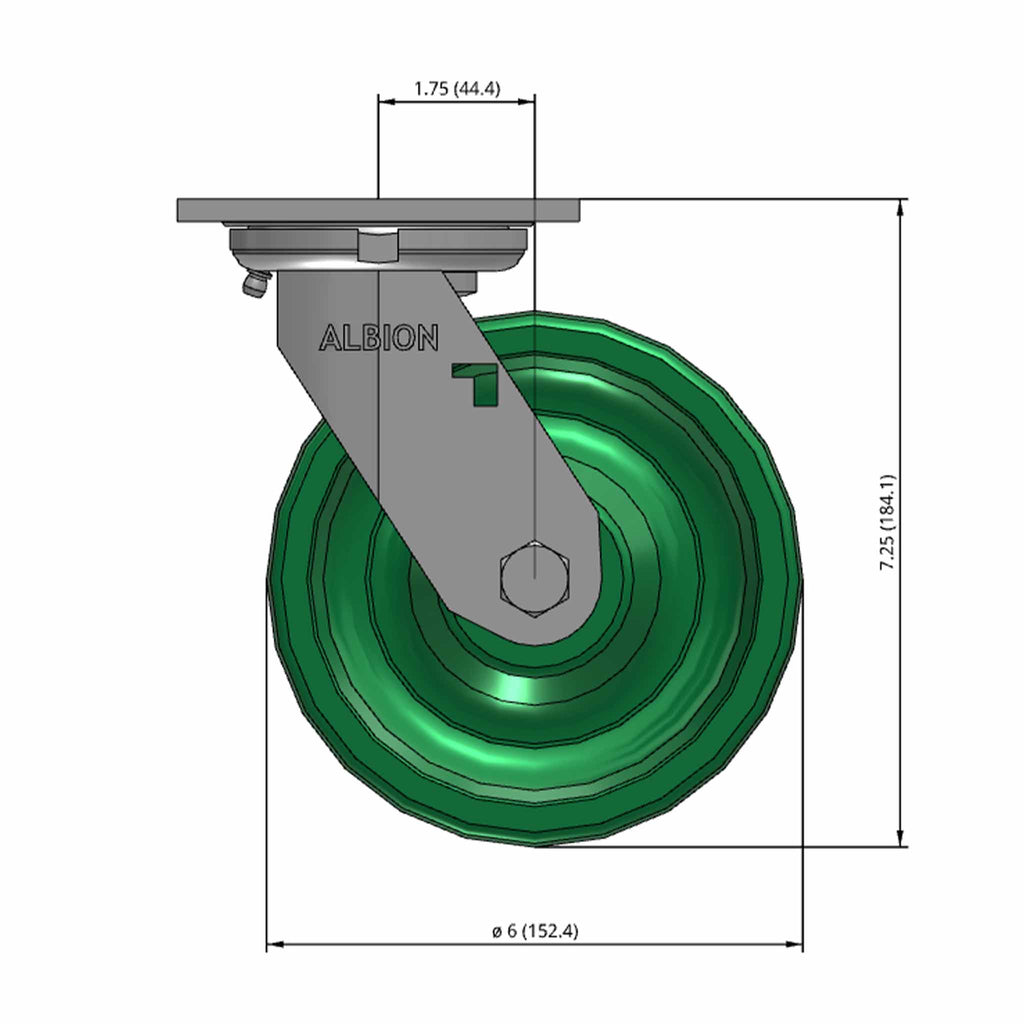

Mounting Height: 7.25 in
Swivel Radius: 4.75 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
