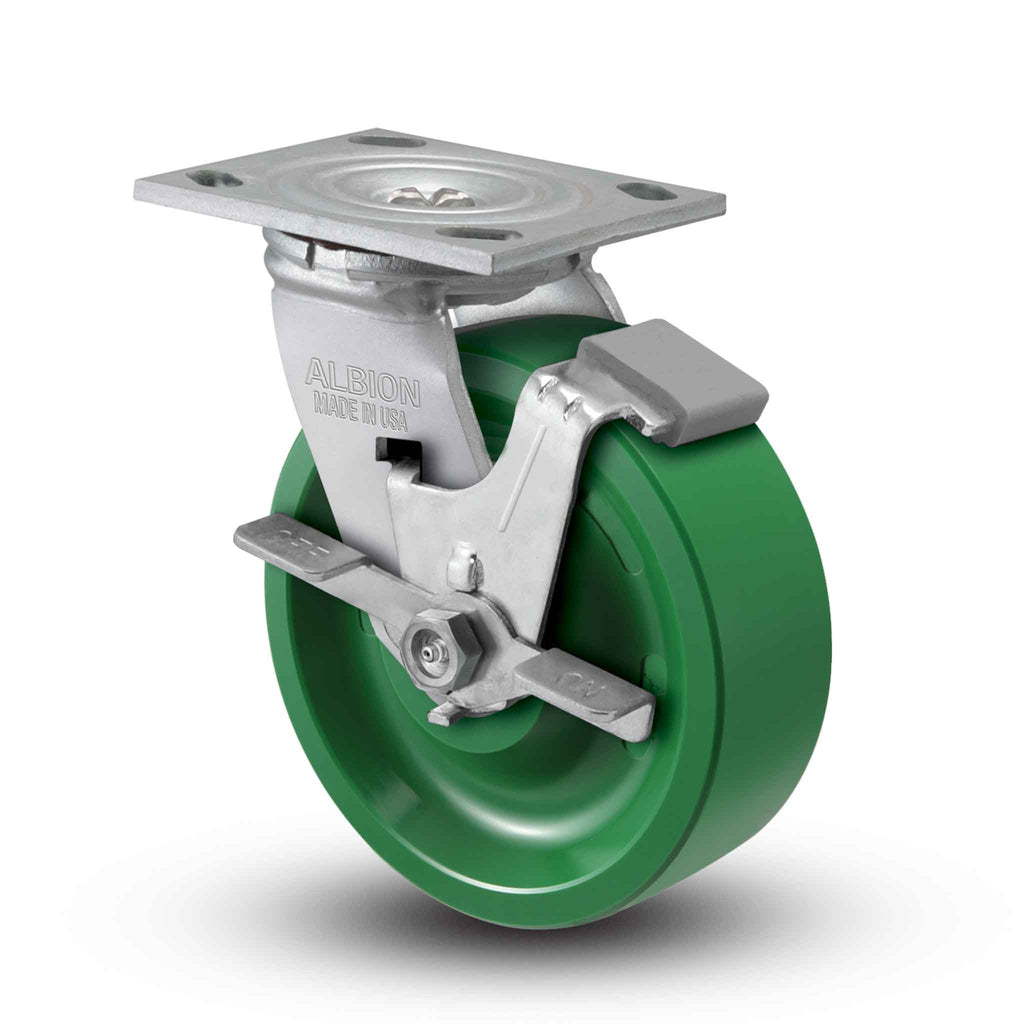

Main view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XI - X-treme Solid Polyurethane wheel and 1000 lb. capacity part

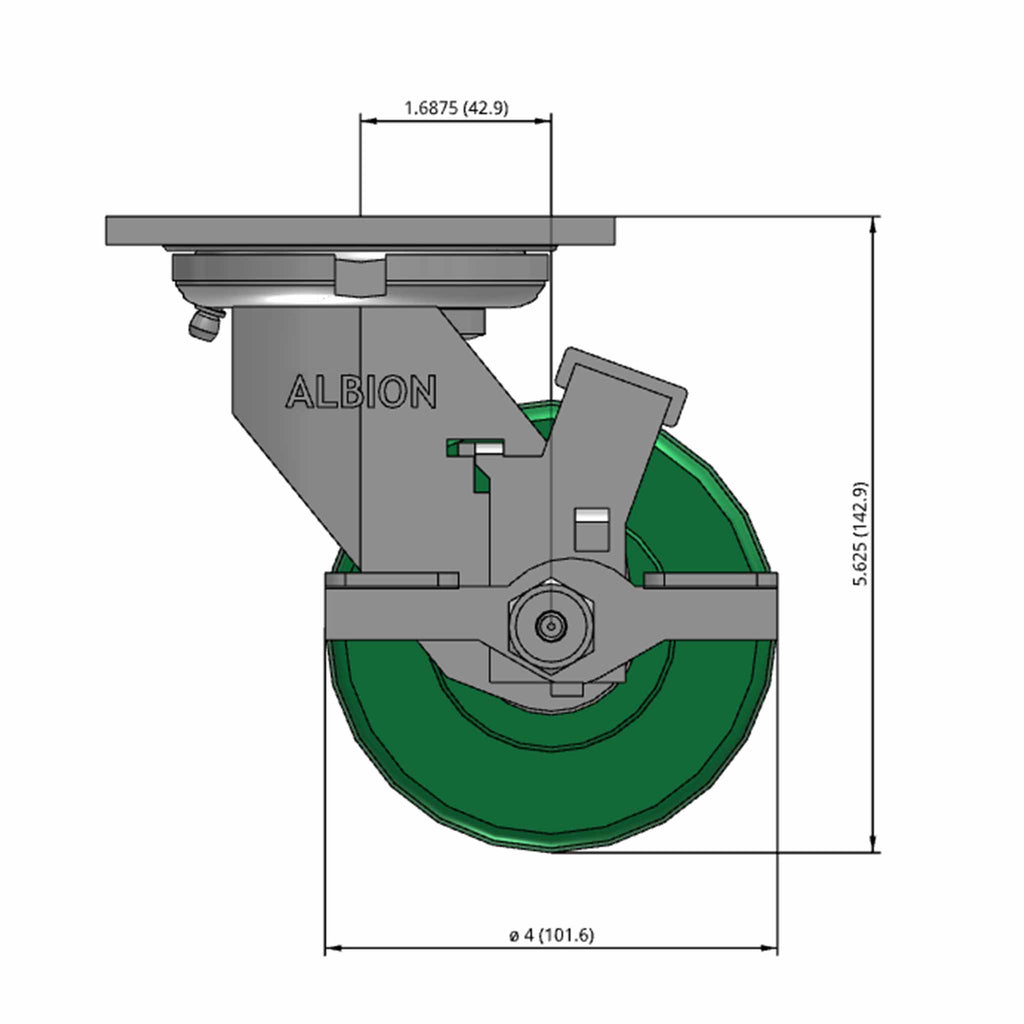

Front dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XI - X-treme Solid Polyurethane wheel and 1000 lb. capacity part

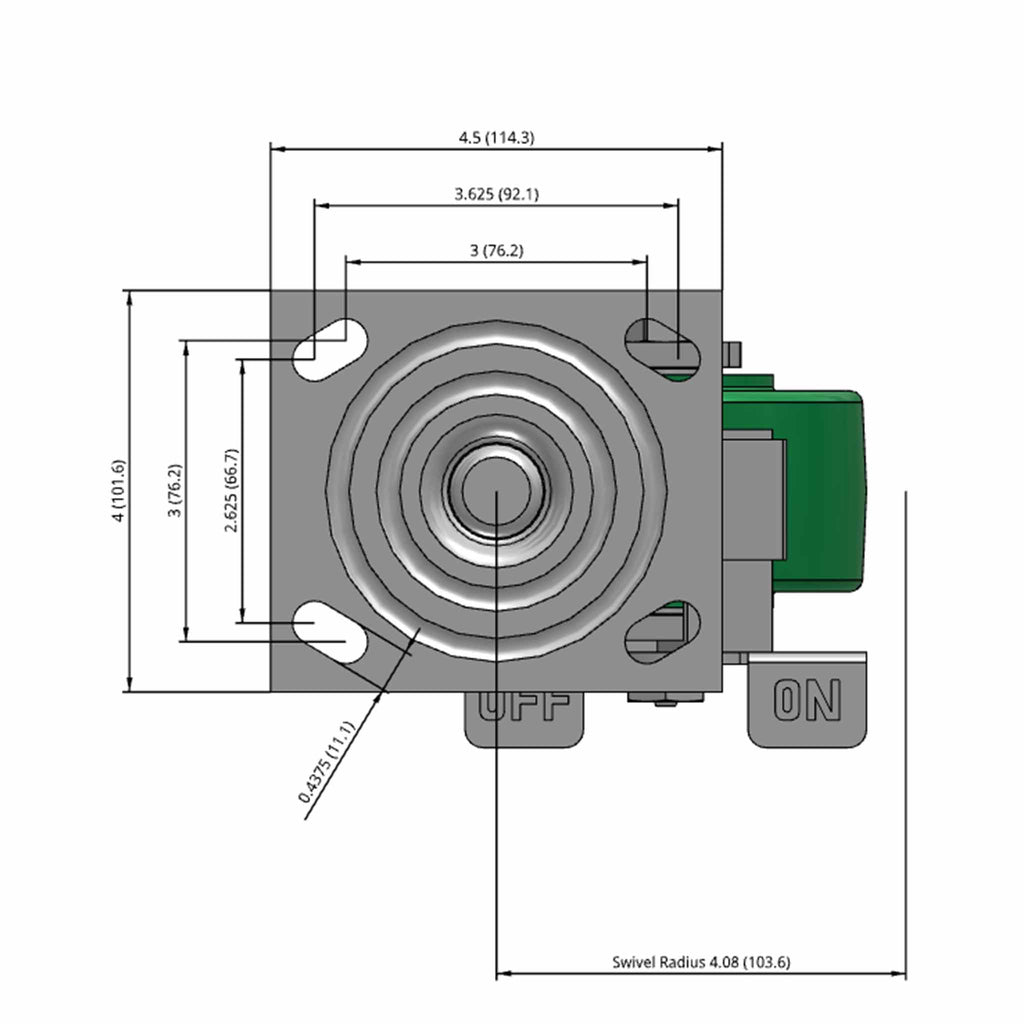

Top dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XI - X-treme Solid Polyurethane wheel and 1000 lb. capacity part

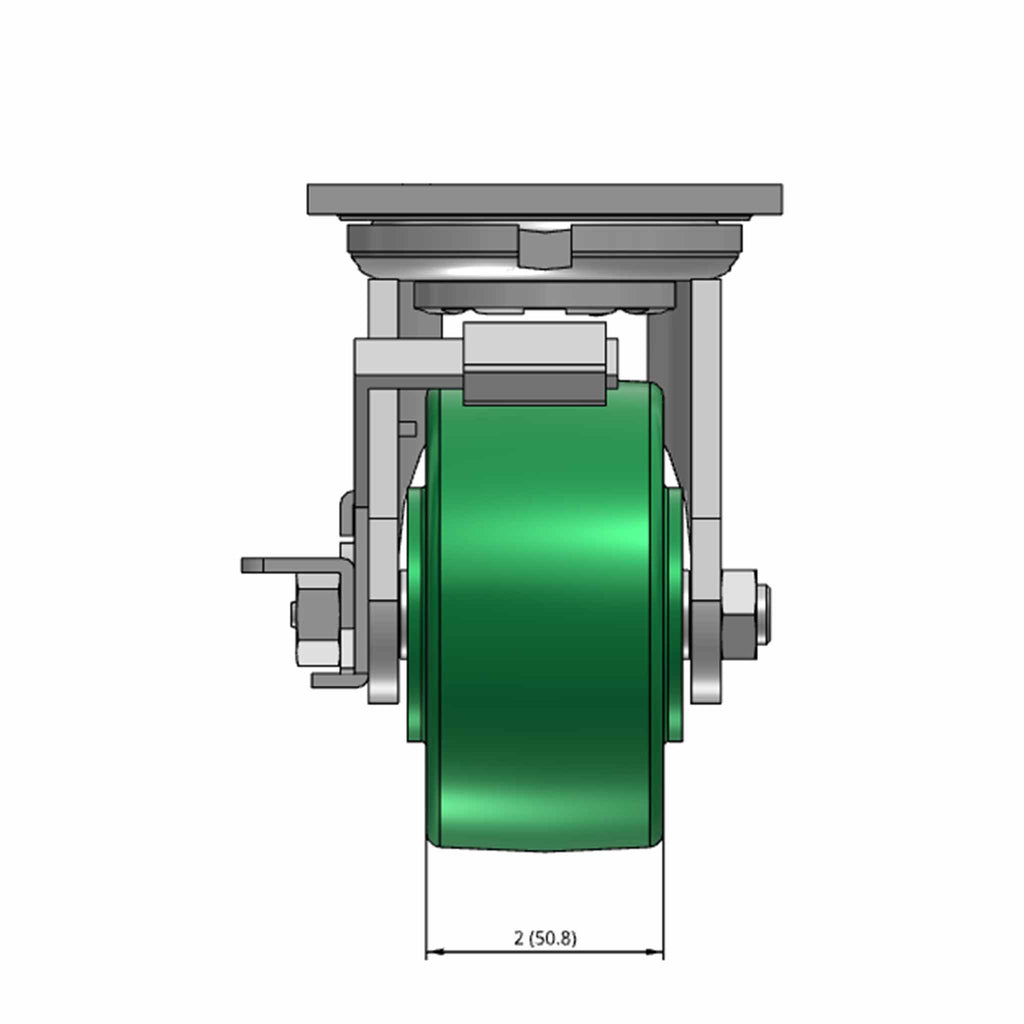

Side dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a side locking brake, XI - X-treme Solid Polyurethane wheel and 1000 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" USA-Made Side Locking Caster with Ergonomic Polyurethane Wheel

Name: 4"x2" USA-Made Side Locking Caster with Ergonomic Polyurethane Wheel
Brand: Albion Casters
SKU: 16XI04229SFBA
Price: 45.78 USD
Availability: InStock

No Tread Separation

Albion Casters SKU: 16XI04229SFBA
Fastening: 4" x 4-1/2" top plate | Load Capacity: 1000 lb
Mount Height: 5.63 in | Swivel Radius: 4.08 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$45.78 $53.86

Quantity:

Share this product

This 4" x 2" solid polyurethane premium heavy duty swivel caster with tread brake is easy to roll and high capacity. Solid urethane wheels are also floor protective and relatively quiet.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44SUB42S-TB
SKU	16XI04229SFBA
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	FBA Face Brake (FBA)
Load Capacity:	1000 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	XI - X-treme Solid Polyurethane
Wheel Color:	Green Polyurethane
Wheel Bearing:	Pedestal Precision Ball
Wheel Profile:	Crowned Tread
Wheel Hardness:	70 Shore D
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	4.08 in
Swivel Lead:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter
Operating Temperature Range:	-40°F to +180°F
Mfg:	16XI04229SFBA
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" USA-Made Side Locking Caster with Ergonomic Polyurethane Wheel

Description

Product Details

Part Number:

44SUB42S-TB

SKU

16XI04229SFBA

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

FBA Face Brake (FBA)

Load Capacity:

1000 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

XI - X-treme Solid Polyurethane

Wheel Color:

Green Polyurethane

Wheel Bearing:

Pedestal Precision Ball

Wheel Profile:

Crowned Tread

Wheel Hardness:

70 Shore D

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

4.08 in

Swivel Lead:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter

Operating Temperature Range:

-40°F to +180°F

Mfg:

16XI04229SFBA

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
