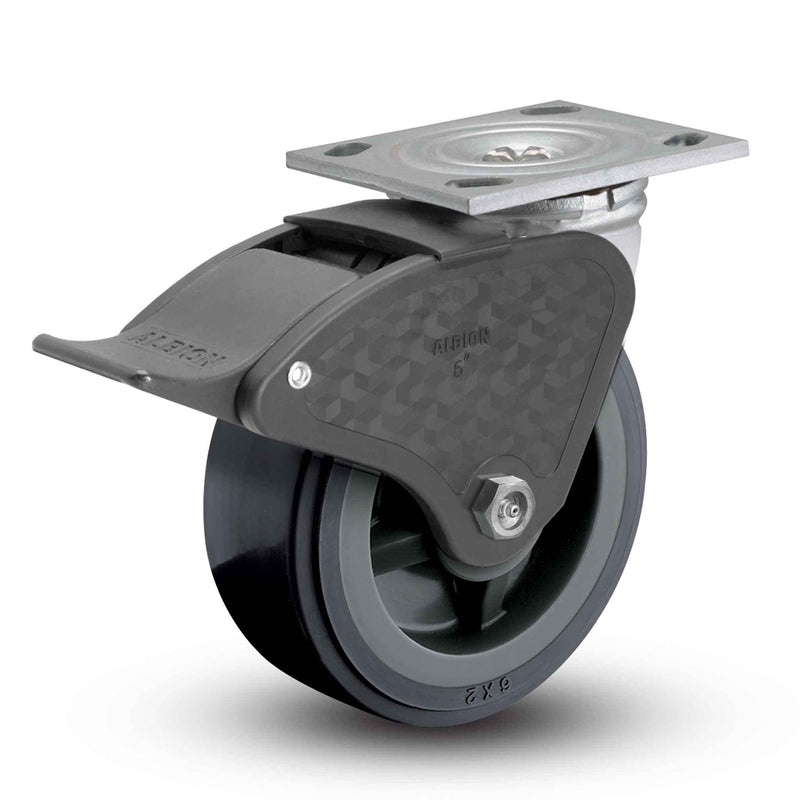

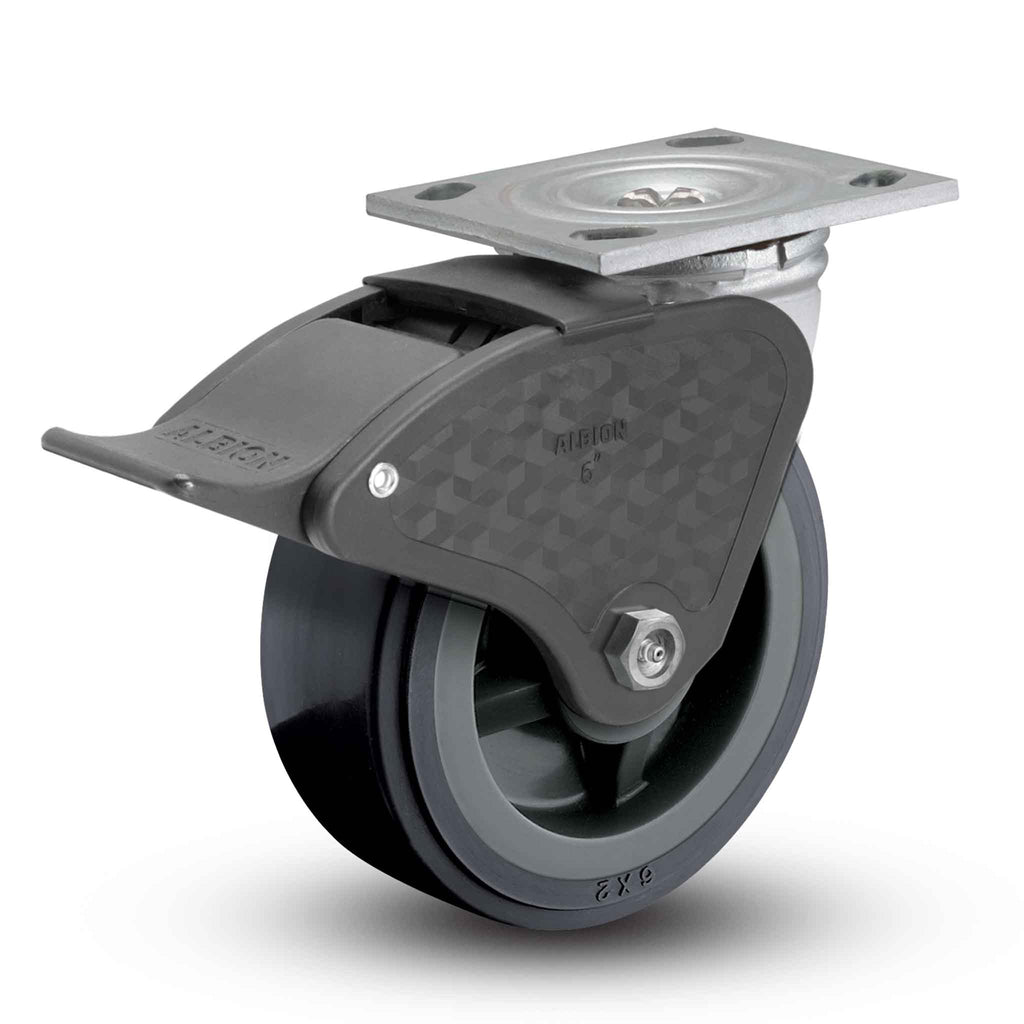

This 8" x 2" polyurethane on plastic premium heavy duty swivel caster with tread brake is a great all around wheel - it's floor protective, chemically resistant and high capacity.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16XA08201ST
Caster Type: Swivel
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake: Total Lock Brake (T)
Load Capacity: 1000 lb

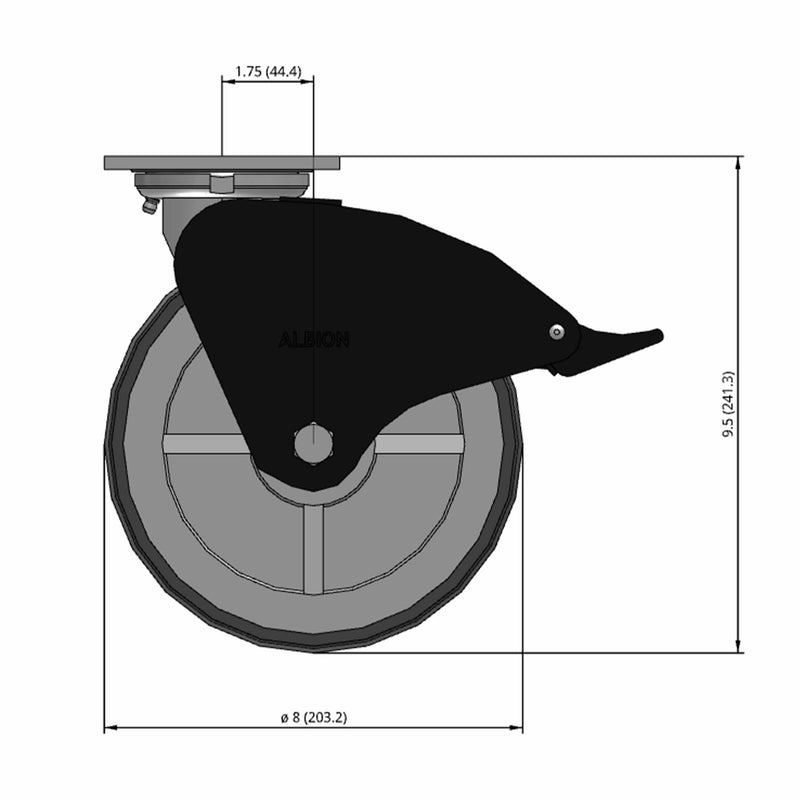

Wheel Diameter: 8 in

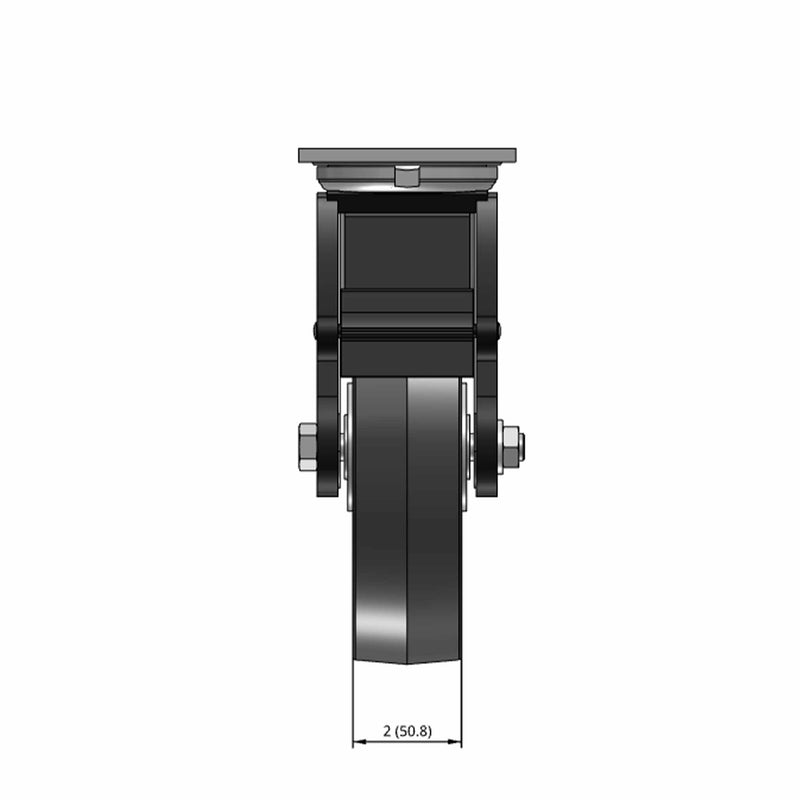

Wheel Tread Width: 2 in
Wheel Description: XA - Polyurethane (Polypropylene Core)
Wheel Color: Grey Tread on Grey Polypropylene Core
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: 63(±5) Shore D
Wheel Thread Guards: None
Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 9.5 in
Swivel Radius: 8.63 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
