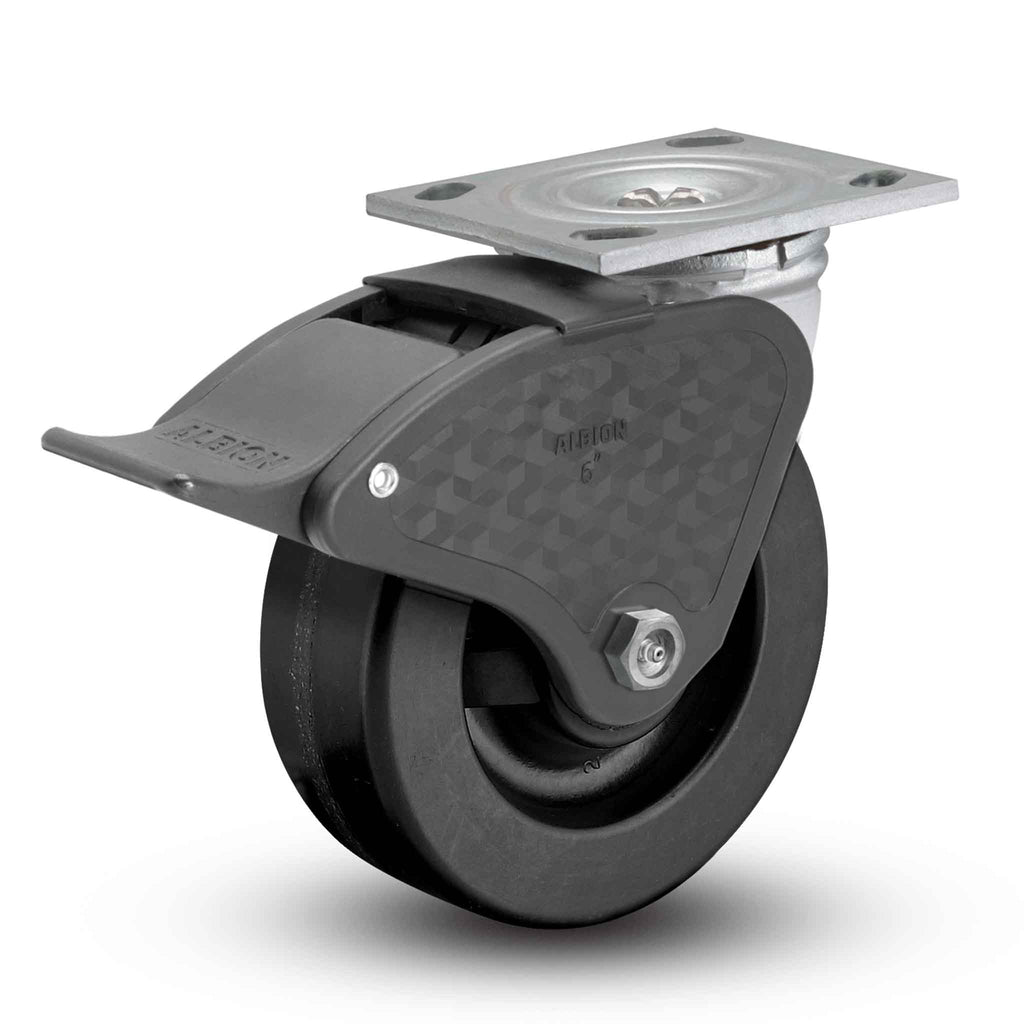

Main view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a top total locking brake, TM - Phenolic wheel and 800 lb. capacity part

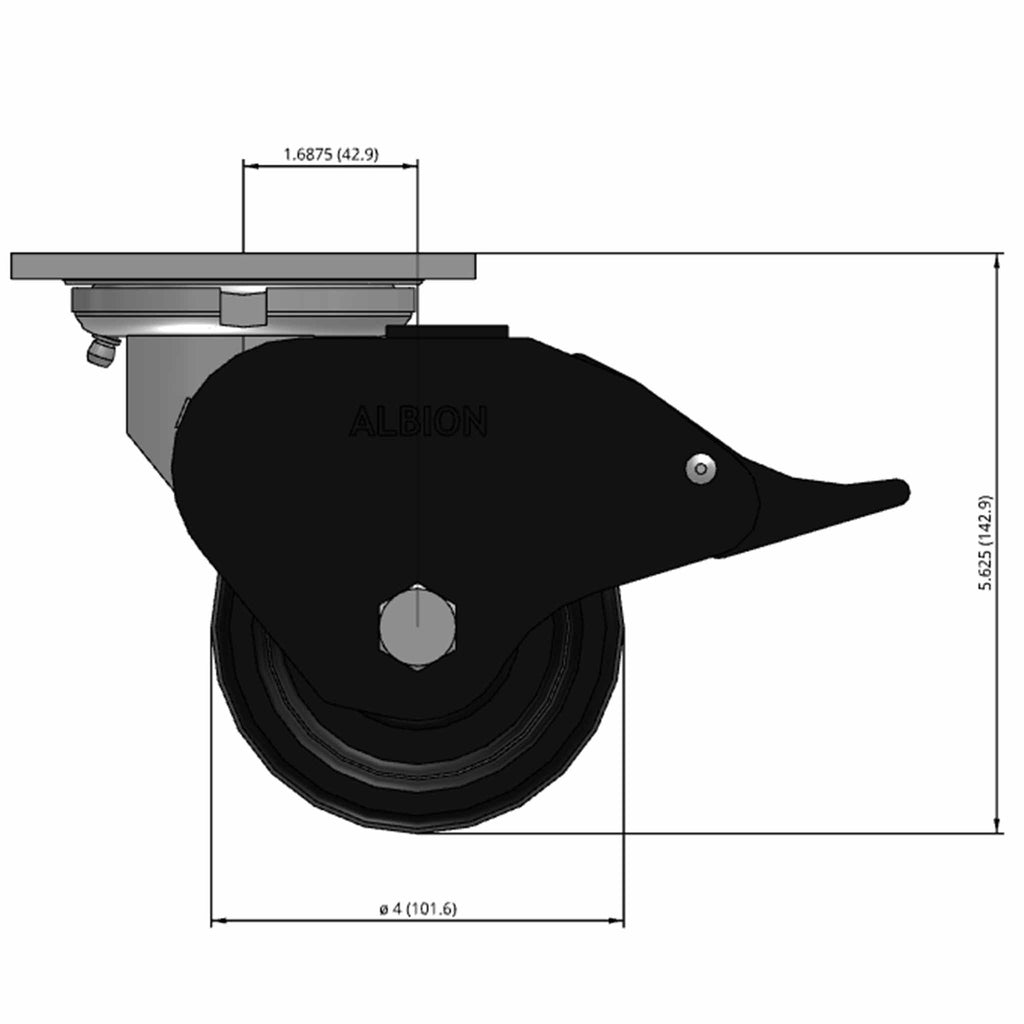

Front dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a top total locking brake, TM - Phenolic wheel and 800 lb. capacity part

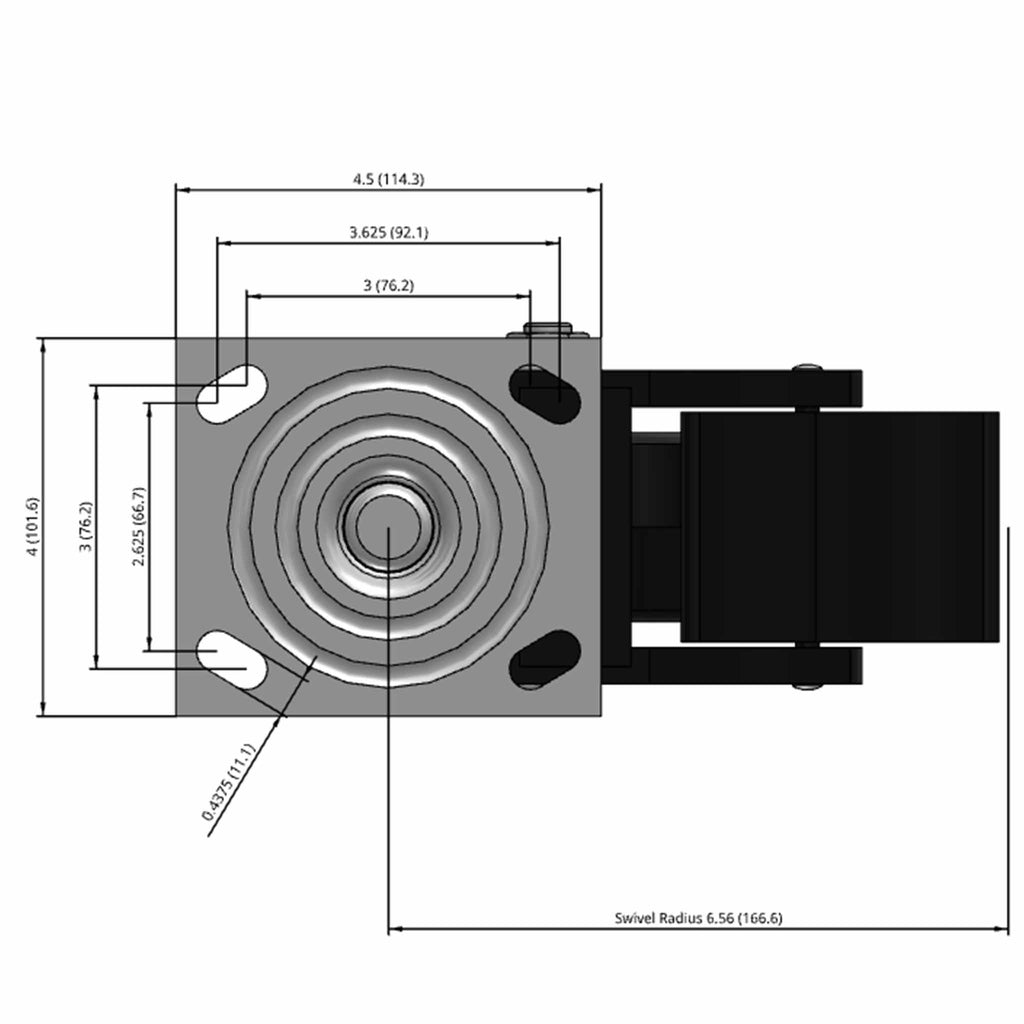

Top dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a top total locking brake, TM - Phenolic wheel and 800 lb. capacity part

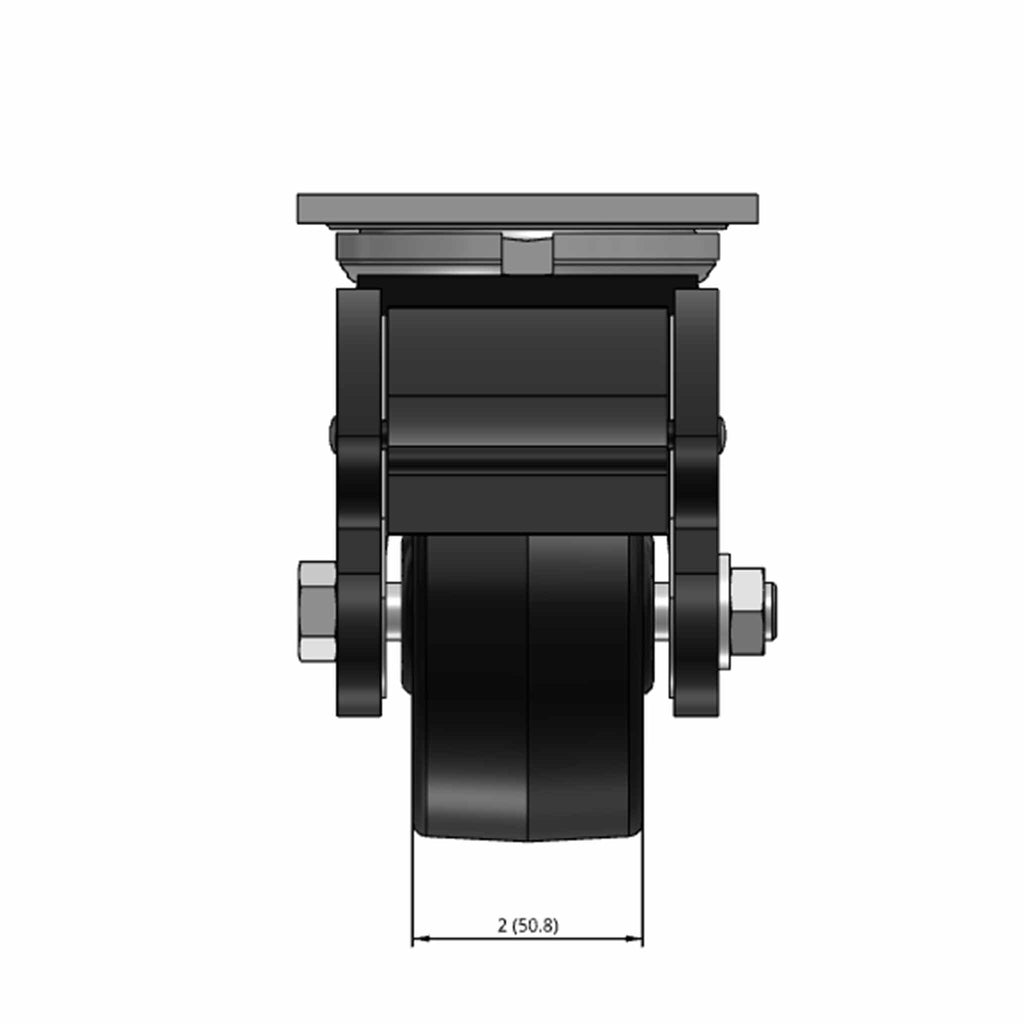

Side dimensioned CAD view of an Albion Casters 4" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a top total locking brake, TM - Phenolic wheel and 800 lb. capacity part

Roll over to zoom; image may be representative for size Click on image to zoom

4"x2" USA-Made Top Total Lock Caster with Phenolic Wheel

Name: 4"x2" USA-Made Top Total Lock Caster with Phenolic Wheel
Brand: Albion Casters
SKU: 16TM04201ST
Price: 48.36 USD
Availability: InStock

Albion Casters SKU: 16TM04201ST
Fastening: 4" x 4-1/2" top plate | Load Capacity: 800 lb
Mount Height: 5.63 in | Swivel Radius: 6.56 in
See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$48.36 $56.89

Quantity:

Share this product

Inexpensive and durable, this 4" x 2" phenolic premium heavy duty swivel caster with total lock brake is high capacity and floor protective. Phenolic wheels should not be used in wet or moist applications.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44PNR42S-TLB
SKU	16TM04201ST
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	Total Lock Brake (T)
Load Capacity:	800 lb
Mounting Height:	5.63 in
Wheel Diameter:	4 in
Wheel Tread Width:	2 in
Wheel Description:	TM - Phenolic
Wheel Color:	Black Phenolic Resin
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	Rockwell 102 E
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	6.56 in
Swivel Lead:	1.69 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-65°F to +250°F (+300°F intermittent)
Mfg:	16TM04201ST
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

4"x2" USA-Made Top Total Lock Caster with Phenolic Wheel

Description

Product Details

Part Number:

44PNR42S-TLB

SKU

16TM04201ST

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

Total Lock Brake (T)

Load Capacity:

800 lb

Mounting Height:

5.63 in

Wheel Diameter:

4 in

Wheel Tread Width:

2 in

Wheel Description:

TM - Phenolic

Wheel Color:

Black Phenolic Resin

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

Rockwell 102 E

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

6.56 in

Swivel Lead:

1.69 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-65°F to +250°F (+300°F intermittent)

Mfg:

16TM04201ST

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
