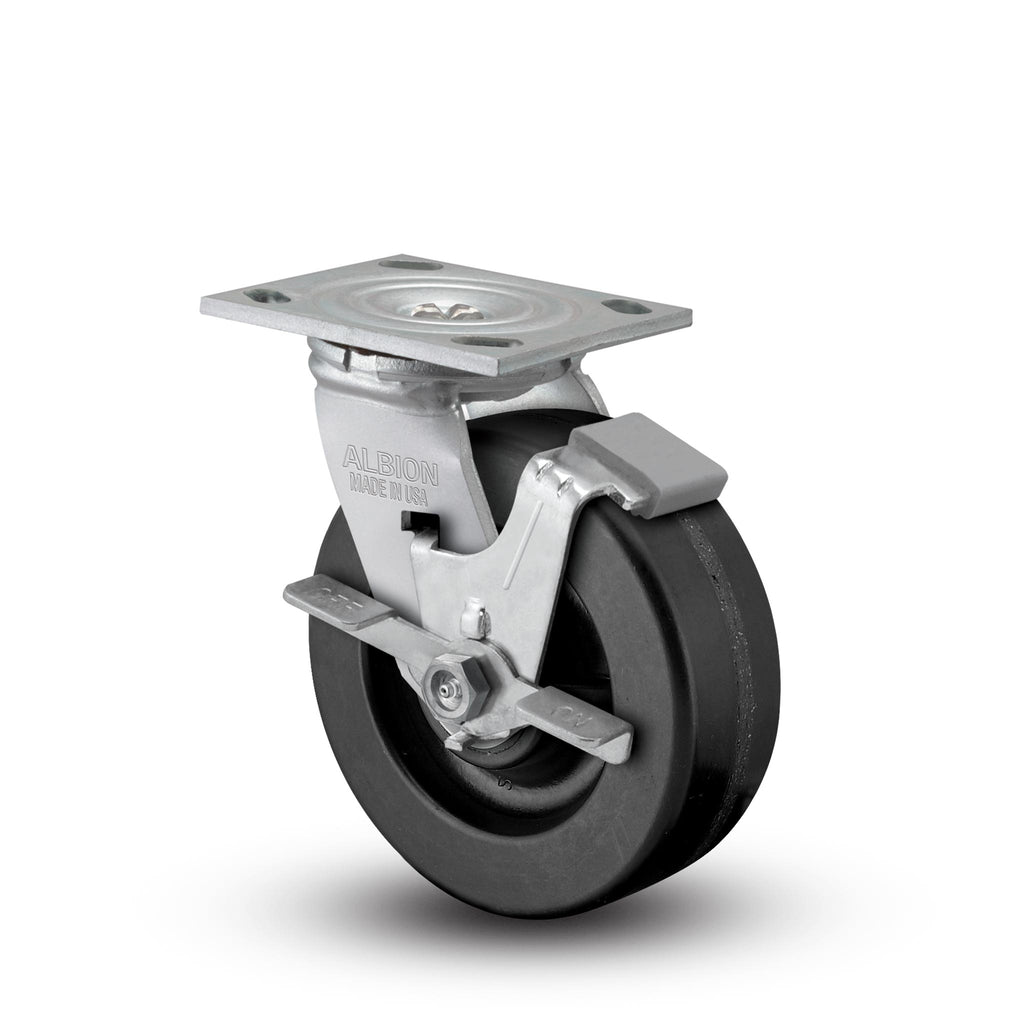

Inexpensive and durable, this 4" x 2" phenolic premium heavy duty swivel caster with tread brake is high capacity and floor protective. Phenolic wheels should not be used in wet or moist applications.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16TM04201SFBA
Caster Type: Swivel
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake: FBA Face Brake (FBA)
Load Capacity: 800 lb
Wheel Diameter: 4 in
Wheel Tread Width: 2 in
Wheel Description: TM - Phenolic
Wheel Color: Black Phenolic Resin
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: Rockwell 102 E
Wheel Thread Guards: None
Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"
Mounting Height: 5.63 in
Swivel Radius: 4.08 in
Operating Temperature Range: -65°F to +250°F (+300°F intermittent)
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
