This 5" x 2" polypropylene premium heavy duty swivel caster has a one piece plastic wheel ideal for use in wet and chemical environments. Polypropylene is non-reactive and non-marking.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16PB05201S
Caster Type: Swivel
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
Load Capacity: 650 lb
Wheel Diameter: 5 in

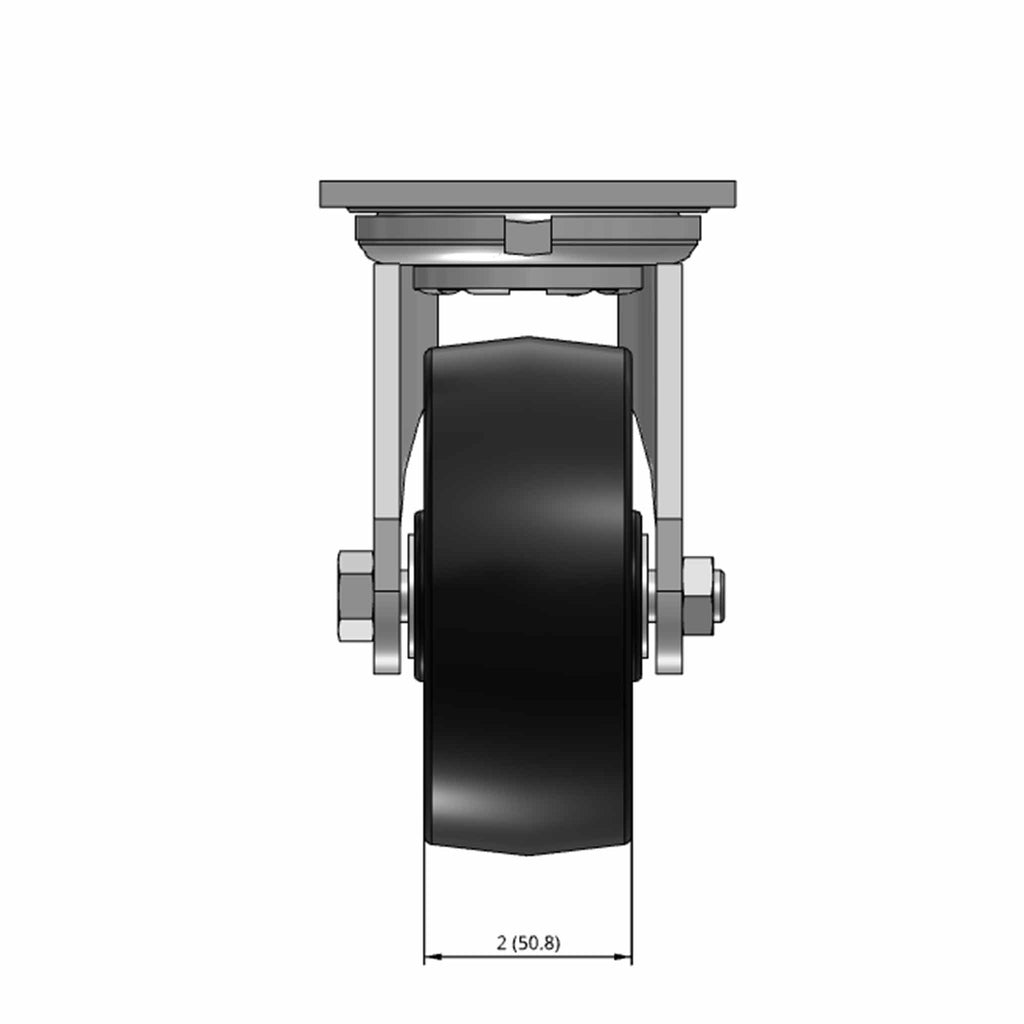

Wheel Tread Width: 2 in
Wheel Description: PB - Polypropylene (Black)
Wheel Color: Black Polypropylene
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: 65 Shore D
Wheel Thread Guards: None

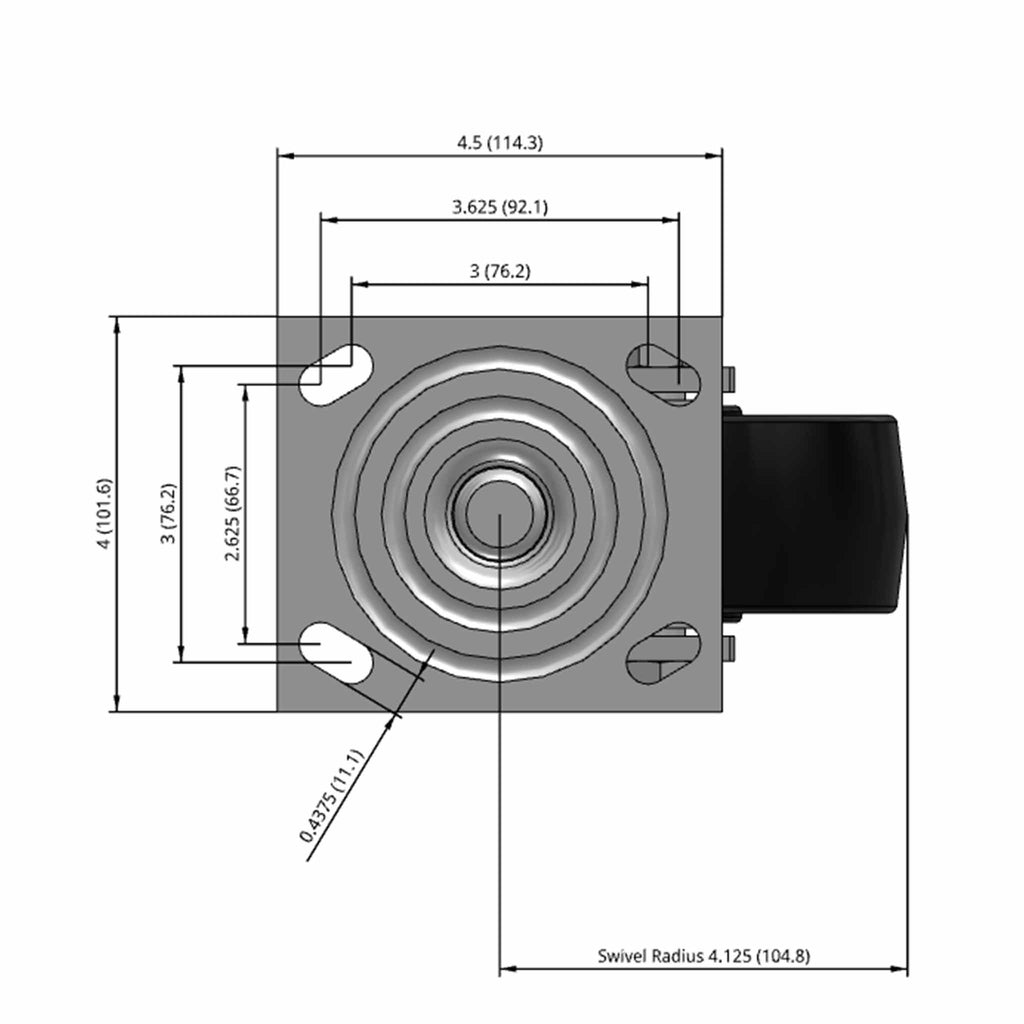

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

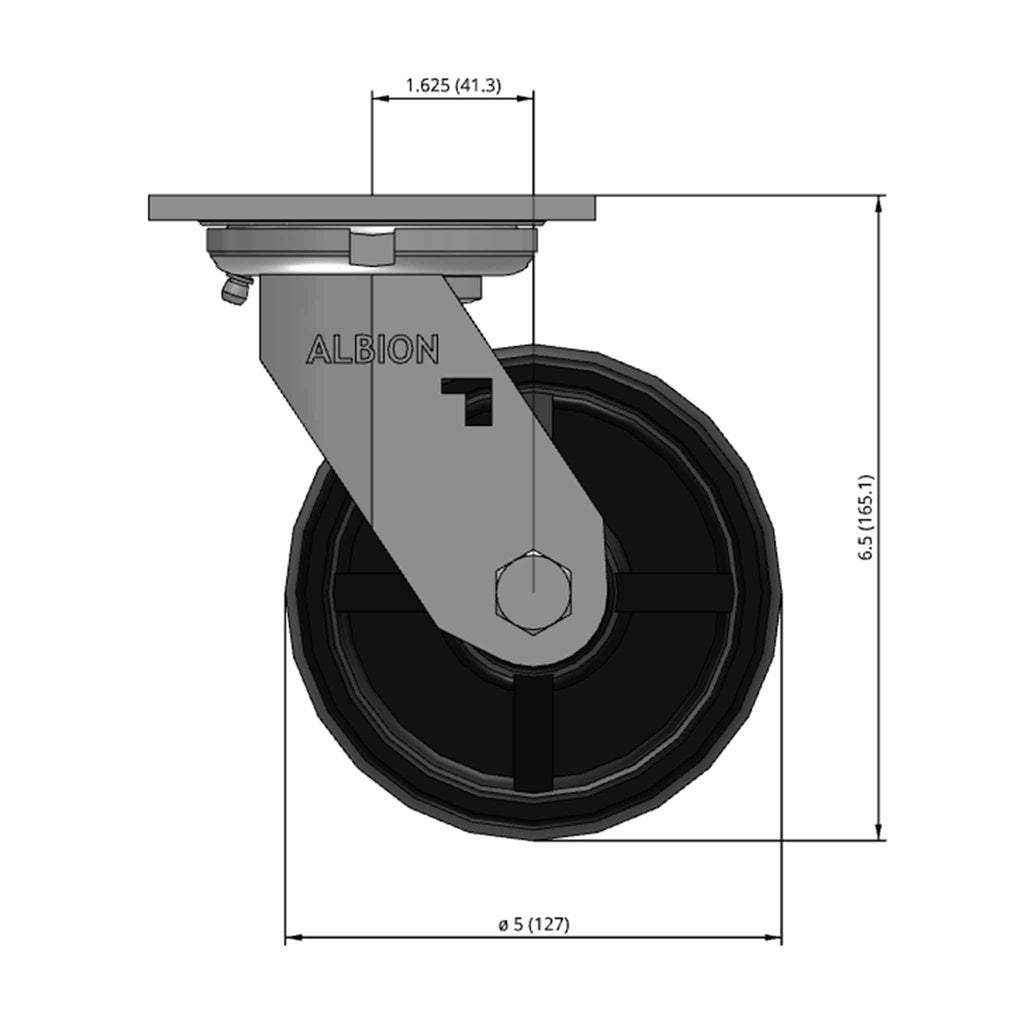

Mounting Height: 6.5 in
Swivel Radius: 4.13 in
Operating Temperature Range: -20°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
