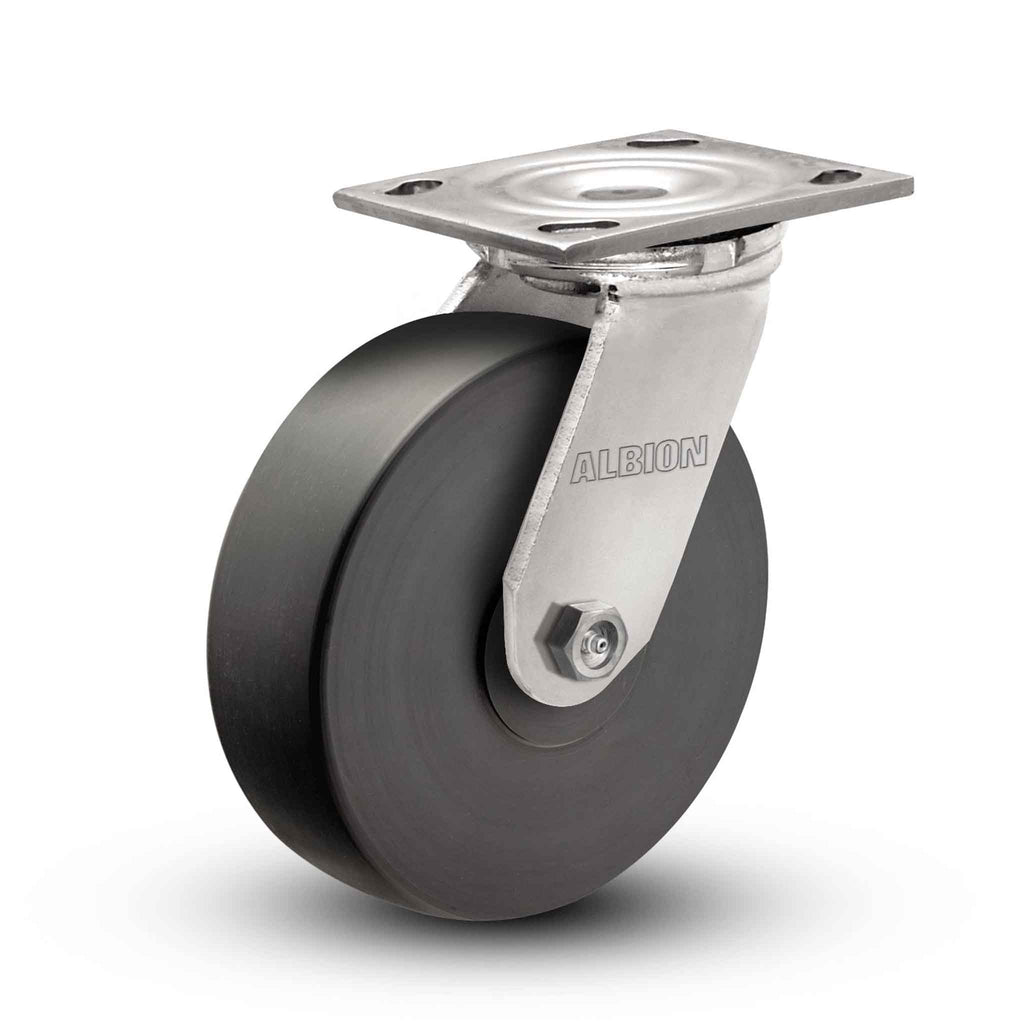

This 8" x 2" solid nylon premium heavy duty swivel caster features a high impact polymer wheel, making it excellent for heavy-duty, abusive applications. Solid nylon wheels are resistant to most chemicals and corrosion.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16NX08228S
Caster Type: Swivel
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
Load Capacity: 1250 lb
Wheel Diameter: 8 in
Wheel Tread Width: 2 in
Wheel Description: NX - Trionix Polymer
Wheel Color: Black Polymer
Wheel Bearing: Precision Ball
Wheel Profile: Crowned Tread
Wheel Hardness: 78-82 Shore D
Wheel Thread Guards: None

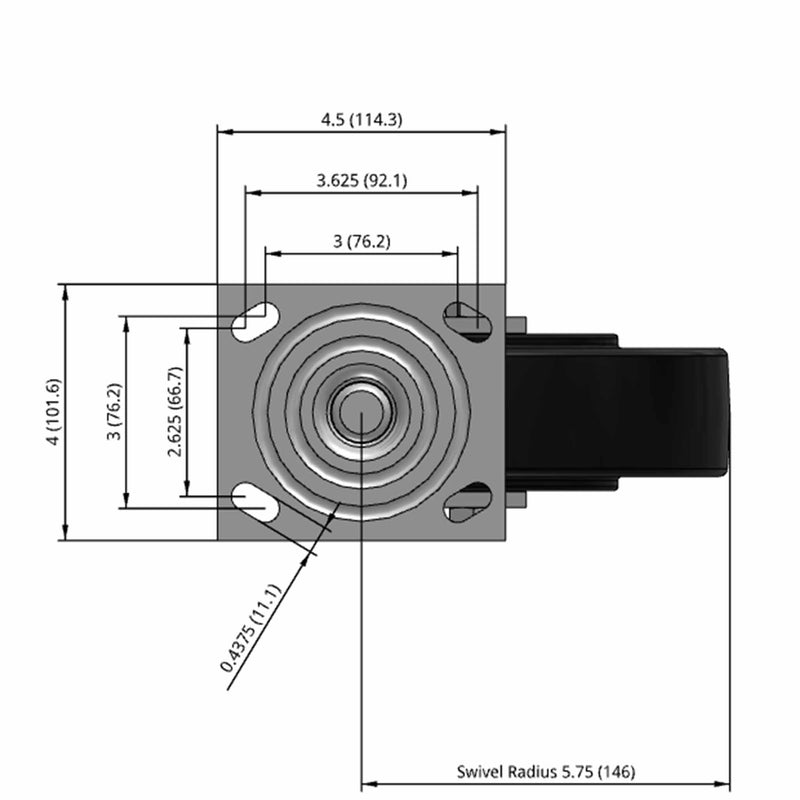

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

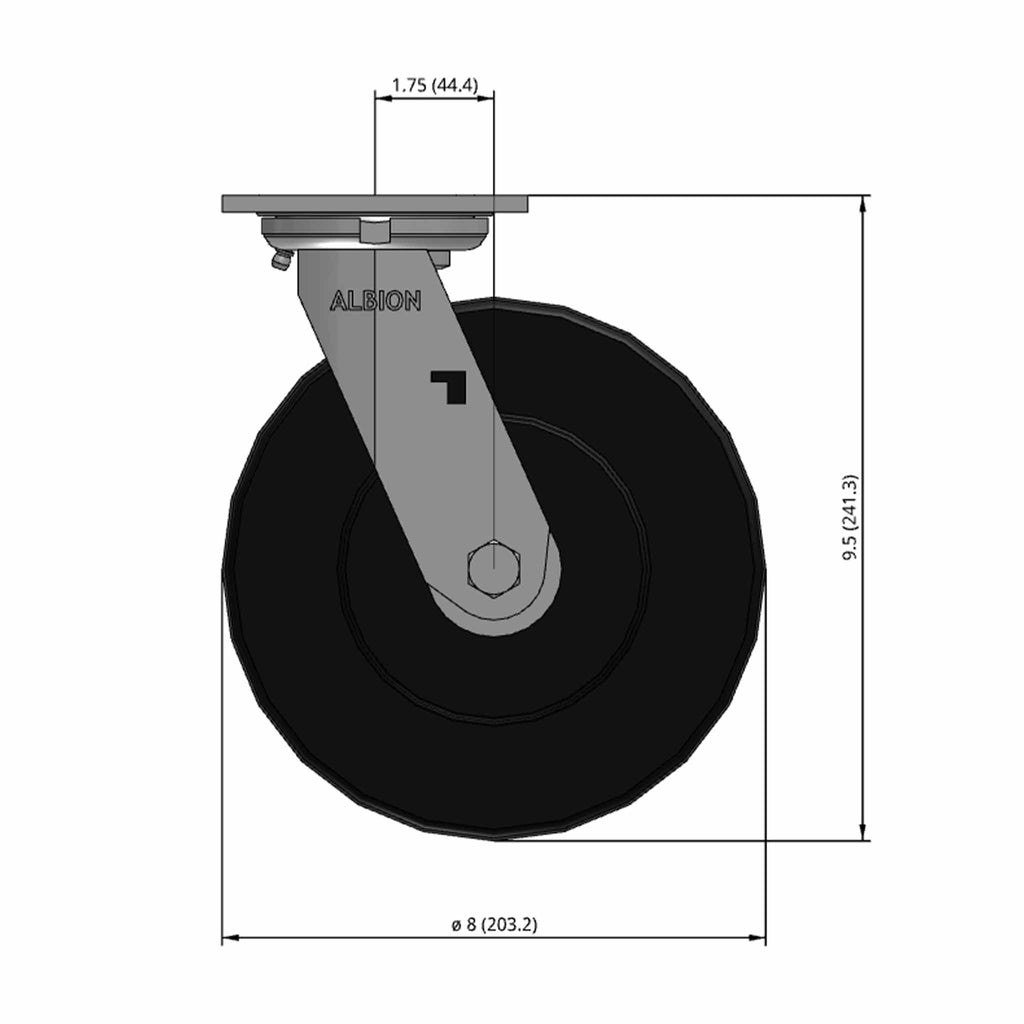

Mounting Height: 9.5 in
Swivel Radius: 5.75 in
Operating Temperature Range: -30°F to +220°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
