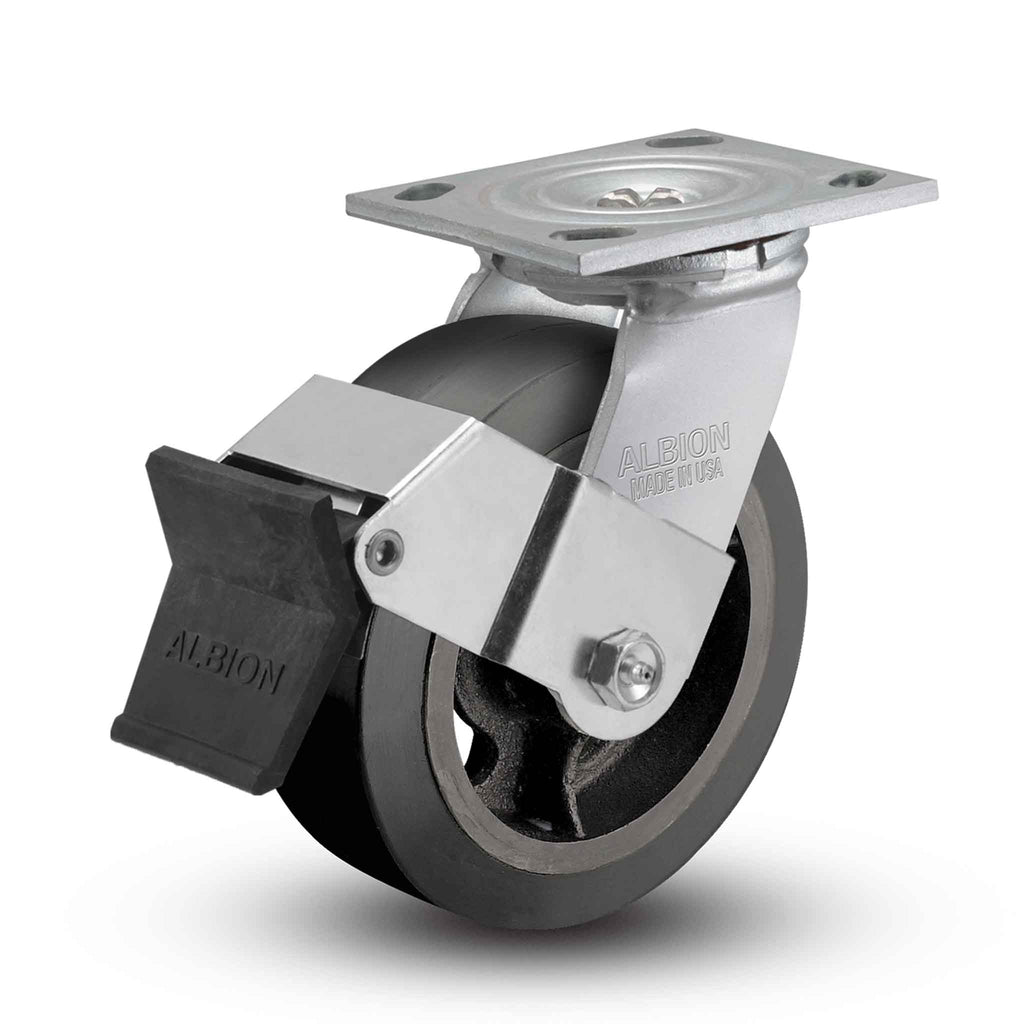

Main view of an Albion Casters 6" x 2" wide wheel Swivel caster with 4" x 4-1/2" top plate, with a top wheel lock brake, MR - Moldon Rubber (Cast Iron Core) wheel and 500 lb. capacity part

6"x2" USA-Rig Top Locking Caster with Black Rubber-on-Iron Wheel

Roll over to zoom; image may be representative for size Click on image to zoom

6"x2" USA-Rig Top Locking Caster with Black Rubber-on-Iron Wheel

Name: 6"x2" USA-Rig Top Locking Caster with Black Rubber-on-Iron Wheel
Brand: Albion Casters
SKU: 16MR06201SFBE
Price: 47.85 USD
Availability: InStock

Albion Casters SKU: 16MR06201SFBE
Fastening: 4" x 4-1/2" top plate | Load Capacity: 500 lb
Mount Height: 7.25 in | Swivel Radius: 7.5 in

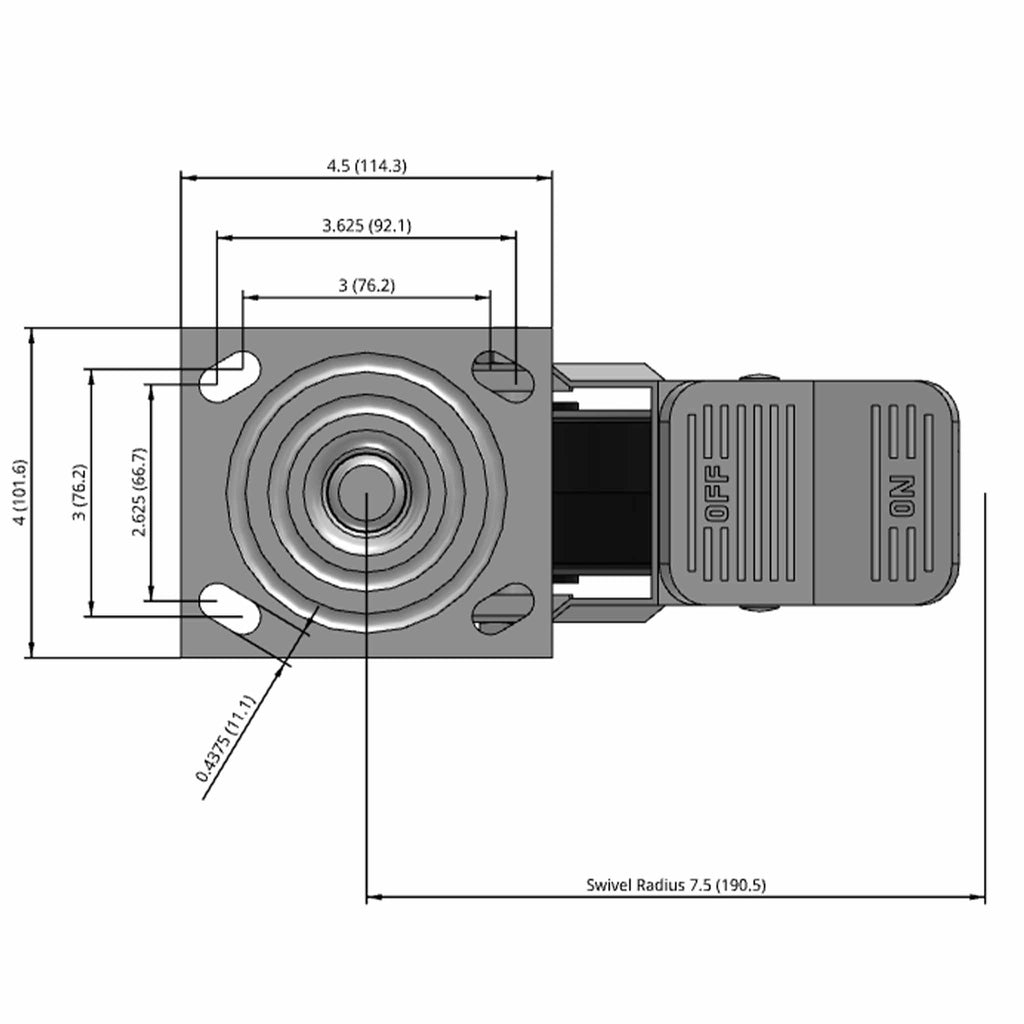

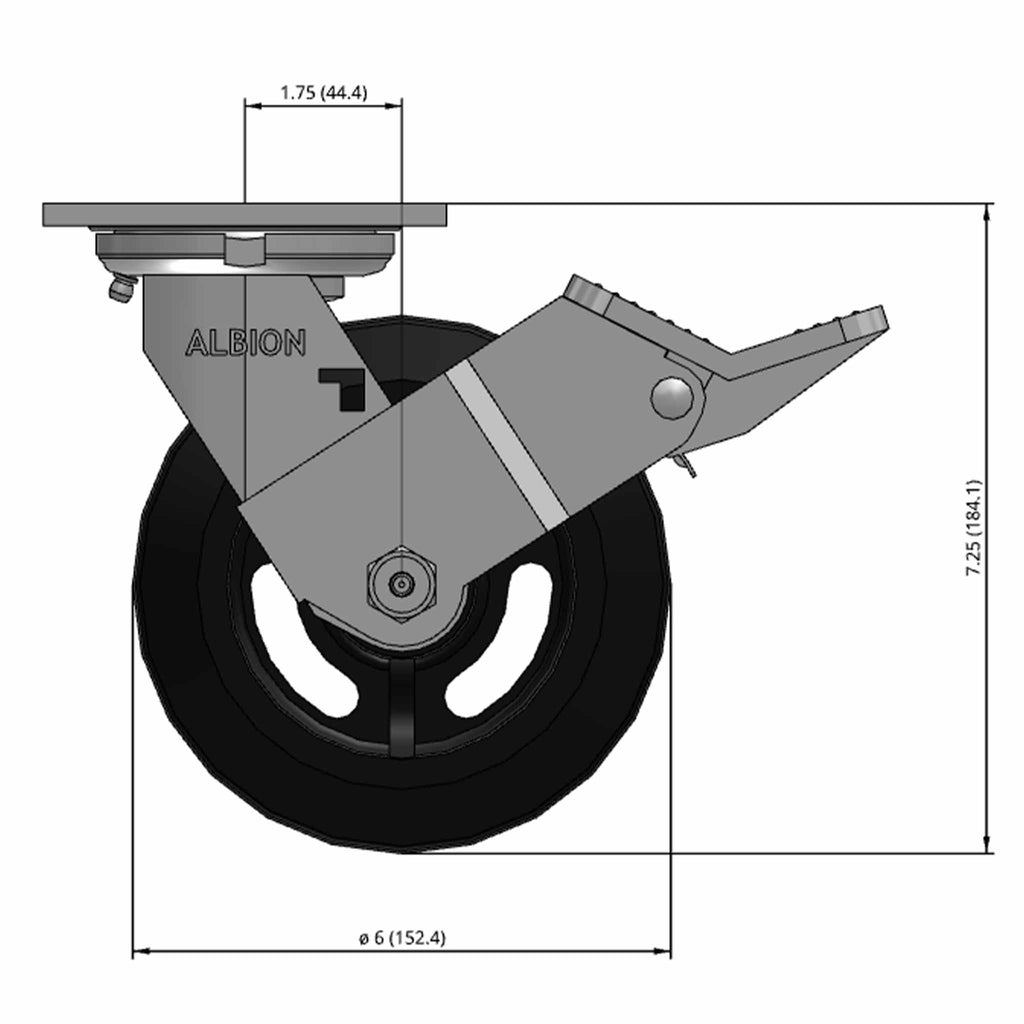

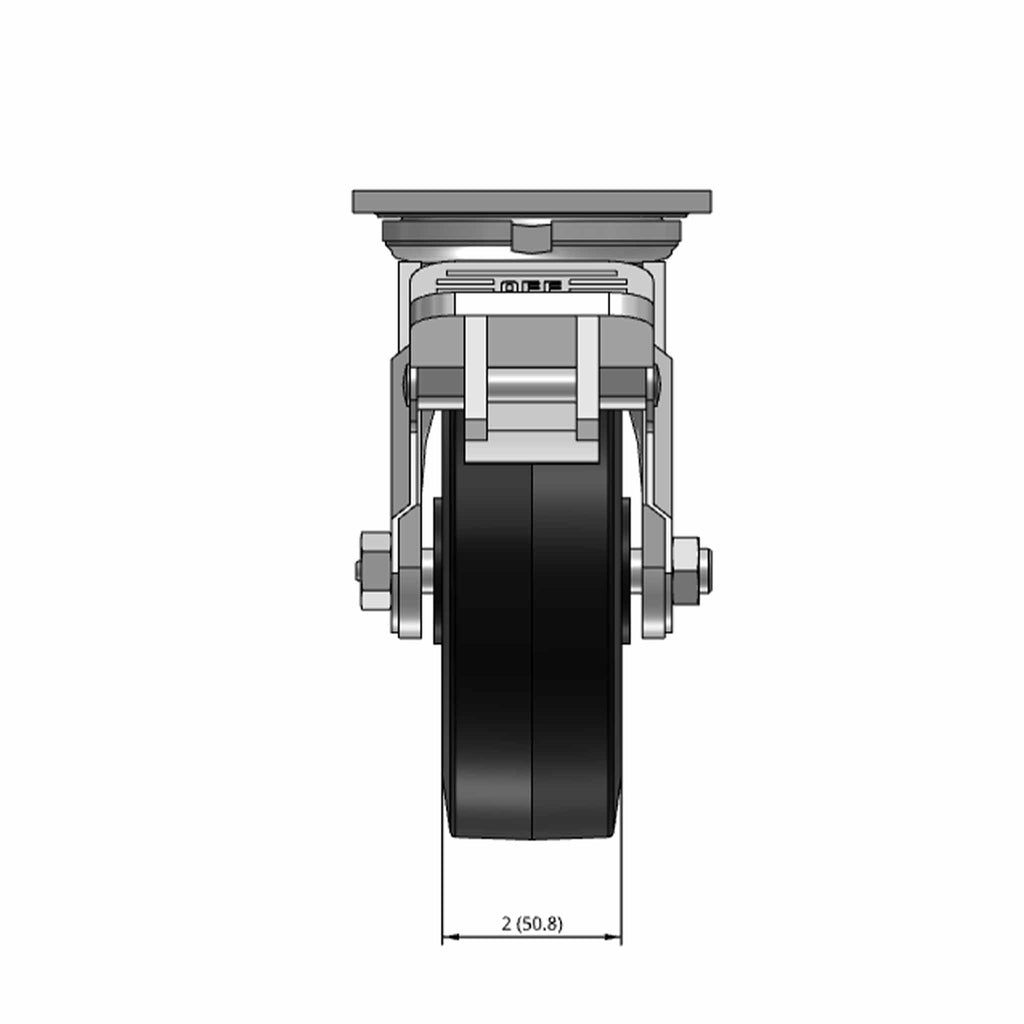

See "Product Details" and below CAD model for full specs.

Ships In: 2-5 days **FREE Shipping on orders over $250**

Price:

$47.85 $56.29

Quantity:

Share this product

This 6" x 2" rubber on cast iron premium heavy duty swivel caster with face brake is an economical, quiet wheel ideal for use on platform trucks or stock dollies.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.

Part Number:	44RIR62S-FB
SKU	16MR06201SFBE
Series:	44 Series - Medium/Heavy (to 1250 lb/ea)
Raceway Type:	3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake:	FBE Face Brake (FBE)
Load Capacity:	500 lb
Mounting Height:	7.25 in
Wheel Diameter:	6 in
Wheel Tread Width:	2 in
Wheel Description:	MR - Moldon Rubber (Cast Iron Core)
Wheel Color:	Black Tread on Black Enamel Core
Wheel Bearing:	Roller
Wheel Profile:	Crowned Tread
Wheel Hardness:	70-85 Shore A
Wheel Thread Guards:	None
Fastening:	4" x 4-1/2" top plate
Bolt Hole Pattern:	2-5/8" x 3-3/8" slotted to 3" x 3"
Plate Bolt Size Recommended:	3/8"
Swivel Radius:	7.5 in
Swivel Lead:	1.75 in
Finish:	Zinc Plated
Axle Size:	1/2" diameter with zerk fitting
Operating Temperature Range:	-40°F to +180°F
Mfg:	16MR06201SFBE
Warranty:	3 year
Conformity:	RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

6"x2" USA-Rig Top Locking Caster with Black Rubber-on-Iron Wheel

Description

Product Details

Part Number:

44RIR62S-FB

SKU

16MR06201SFBE

Series:

44 Series - Medium/Heavy (to 1250 lb/ea)

Raceway Type:

3/4" Kingpin Hardened Dual Ball Bearing Raceway

Brake:

FBE Face Brake (FBE)

Load Capacity:

500 lb

Mounting Height:

7.25 in

Wheel Diameter:

6 in

Wheel Tread Width:

2 in

Wheel Description:

MR - Moldon Rubber (Cast Iron Core)

Wheel Color:

Black Tread on Black Enamel Core

Wheel Bearing:

Roller

Wheel Profile:

Crowned Tread

Wheel Hardness:

70-85 Shore A

Wheel Thread Guards:

None

Fastening:

4" x 4-1/2" top plate

Bolt Hole Pattern:

2-5/8" x 3-3/8" slotted to 3" x 3"

Plate Bolt Size Recommended:

3/8"

Swivel Radius:

7.5 in

Swivel Lead:

1.75 in

Finish:

Zinc Plated

Axle Size:

1/2" diameter with zerk fitting

Operating Temperature Range:

-40°F to +180°F

Mfg:

16MR06201SFBE

Warranty:

3 year

Conformity:

RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
