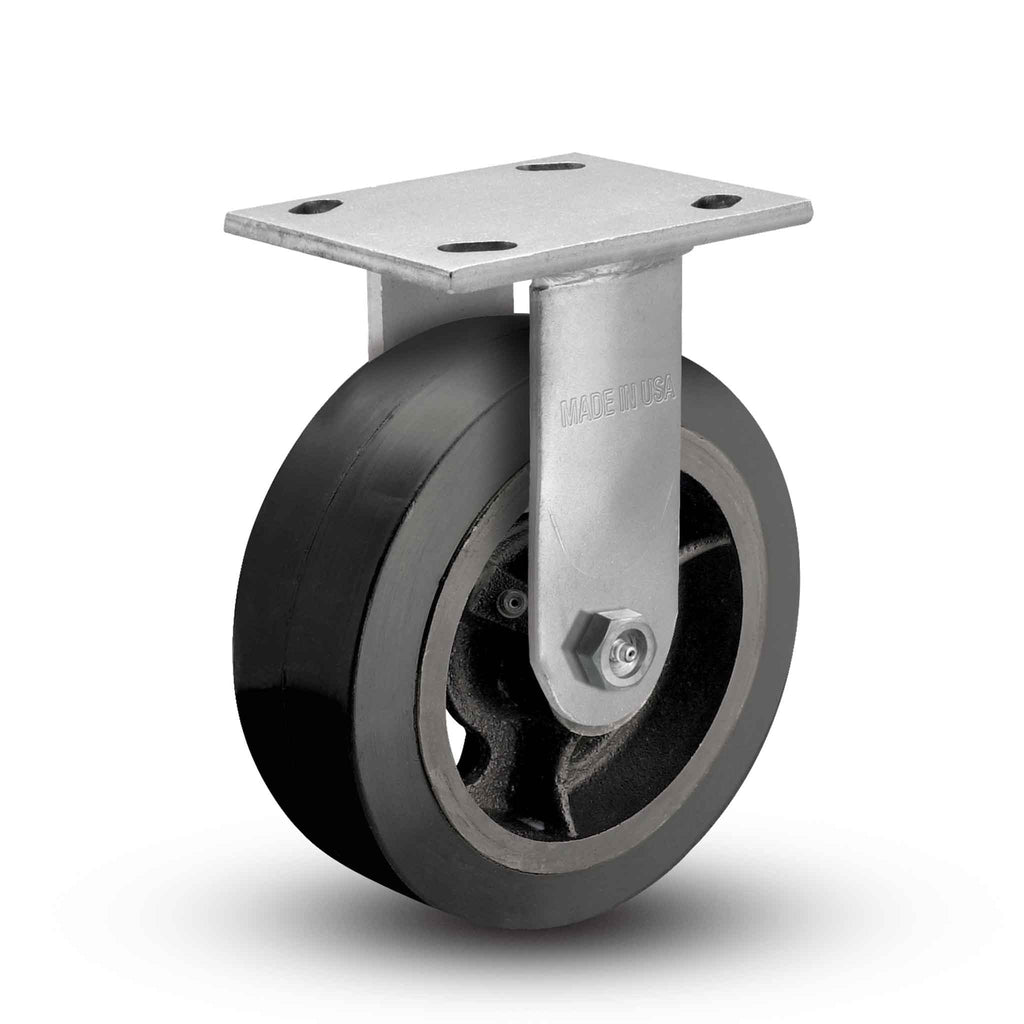

This 5" x 2" rubber on cast iron premium heavy duty rigid caster is an economical, quiet wheel ideal for use on platform trucks or stock dollies.Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16MR05201R
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 450 lb
Wheel Diameter: 5 in

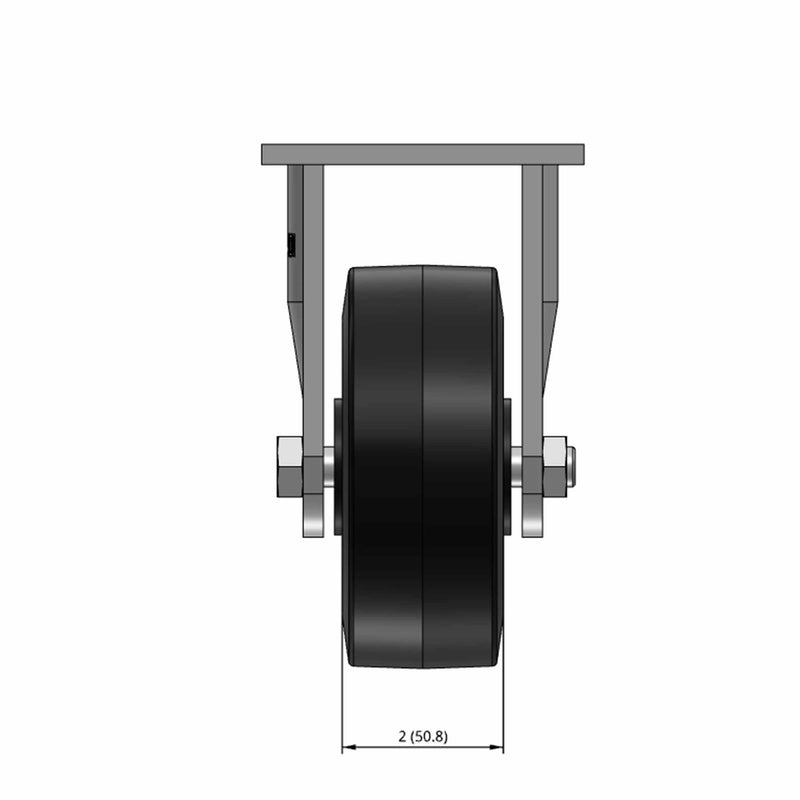

Wheel Tread Width: 2 in
Wheel Description: MR - Moldon Rubber (Cast Iron Core)
Wheel Color: Black Tread on Black Enamel Core
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: 70-85 Shore A
Wheel Thread Guards: None

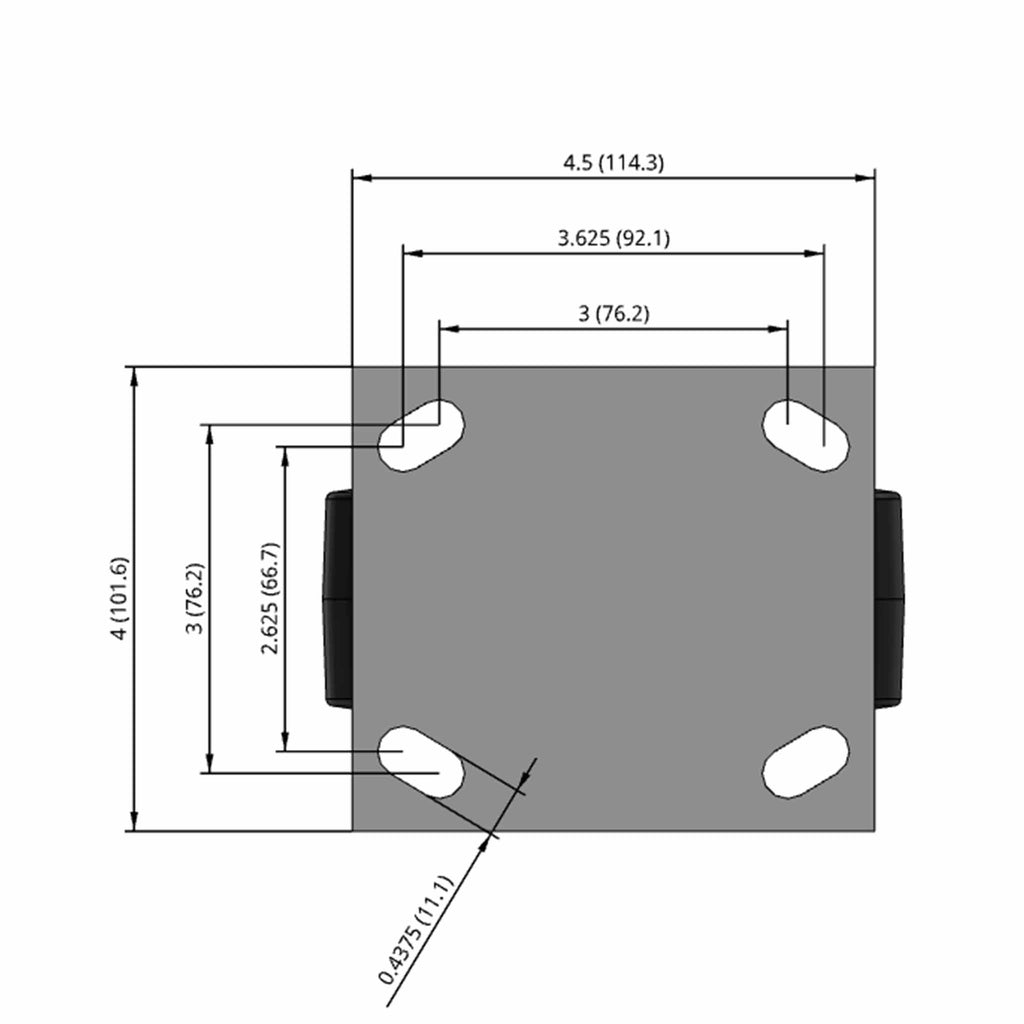

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

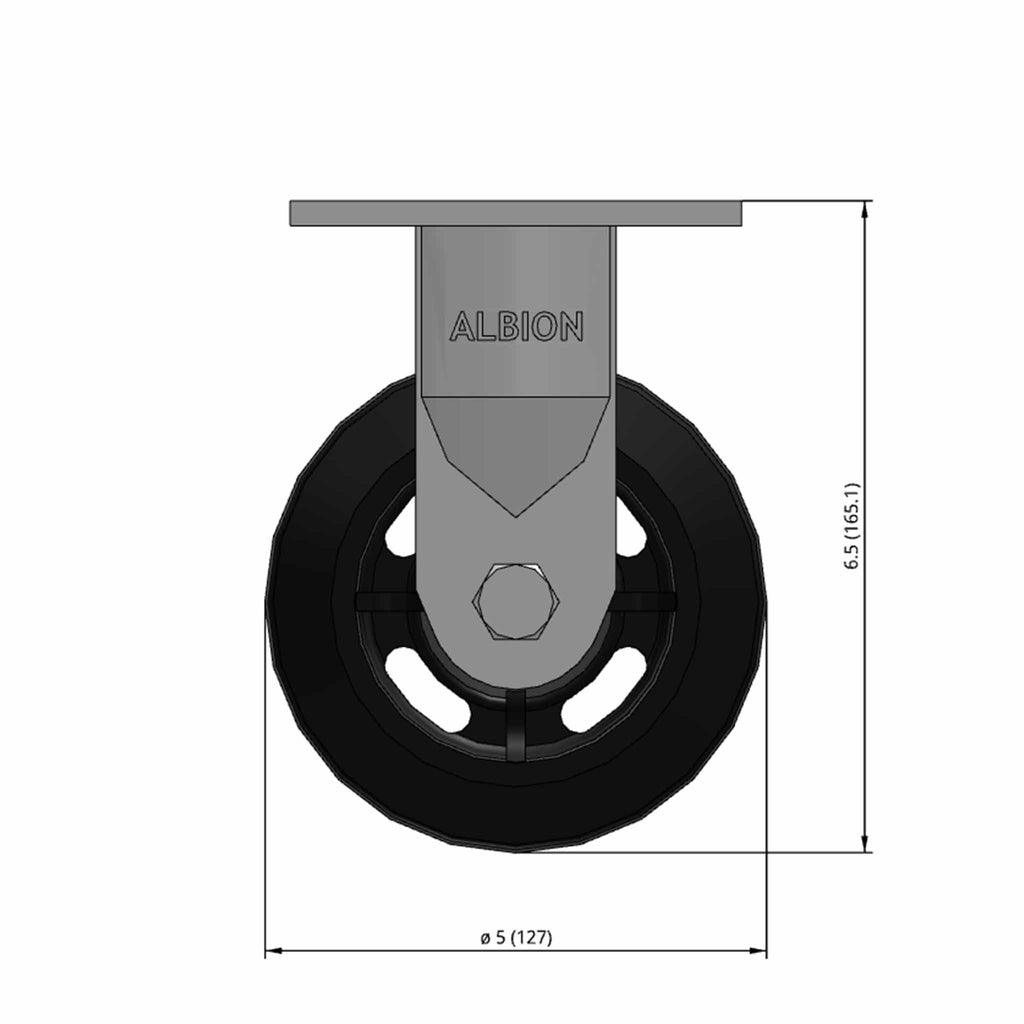

Mounting Height: 6.5 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
