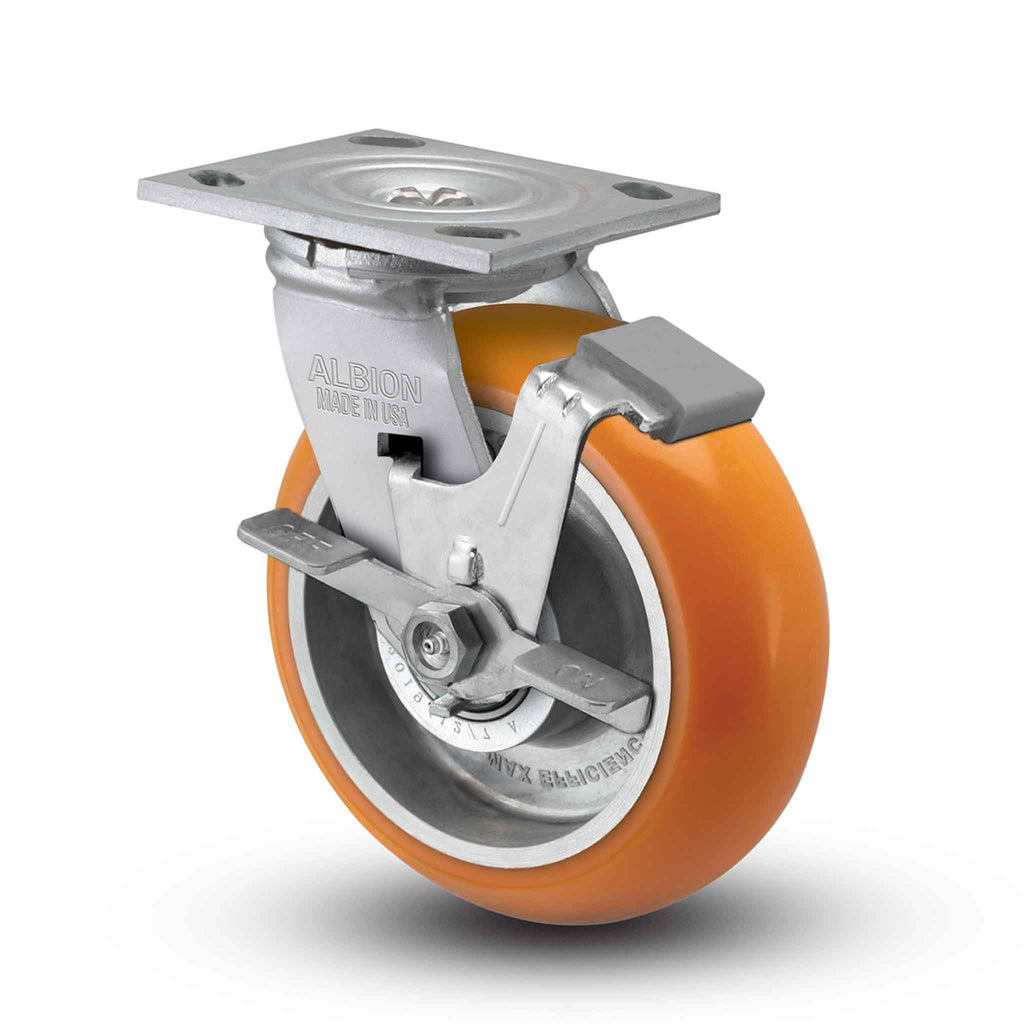

This 5" x 2" orange polyurethane on aluminum core premium heavy duty swivel caster with tread brake rolls effortlessly, making it excellent for manual push and towing applications. Our 44 Series casters are our most popular 2-inch wide industrial mobility solution. 44 Series caster rigs are manufactured in the United States, for expedited shipping and increased quality assurance. Many wheel options are also made in the US. Zinc plating provides an attractive finish which increases corrosion resistance and provides longer caster life.
Series: 44 Series - Medium/Heavy (to 1250 lb/ea)
Mfg. SKU: 16AN05228SFBA
Caster Type: Swivel
Raceway Type: 3/4" Kingpin Hardened Dual Ball Bearing Raceway
Brake: FBA Face Brake (FBA)
Load Capacity: 1000 lb
Wheel Diameter: 5 in

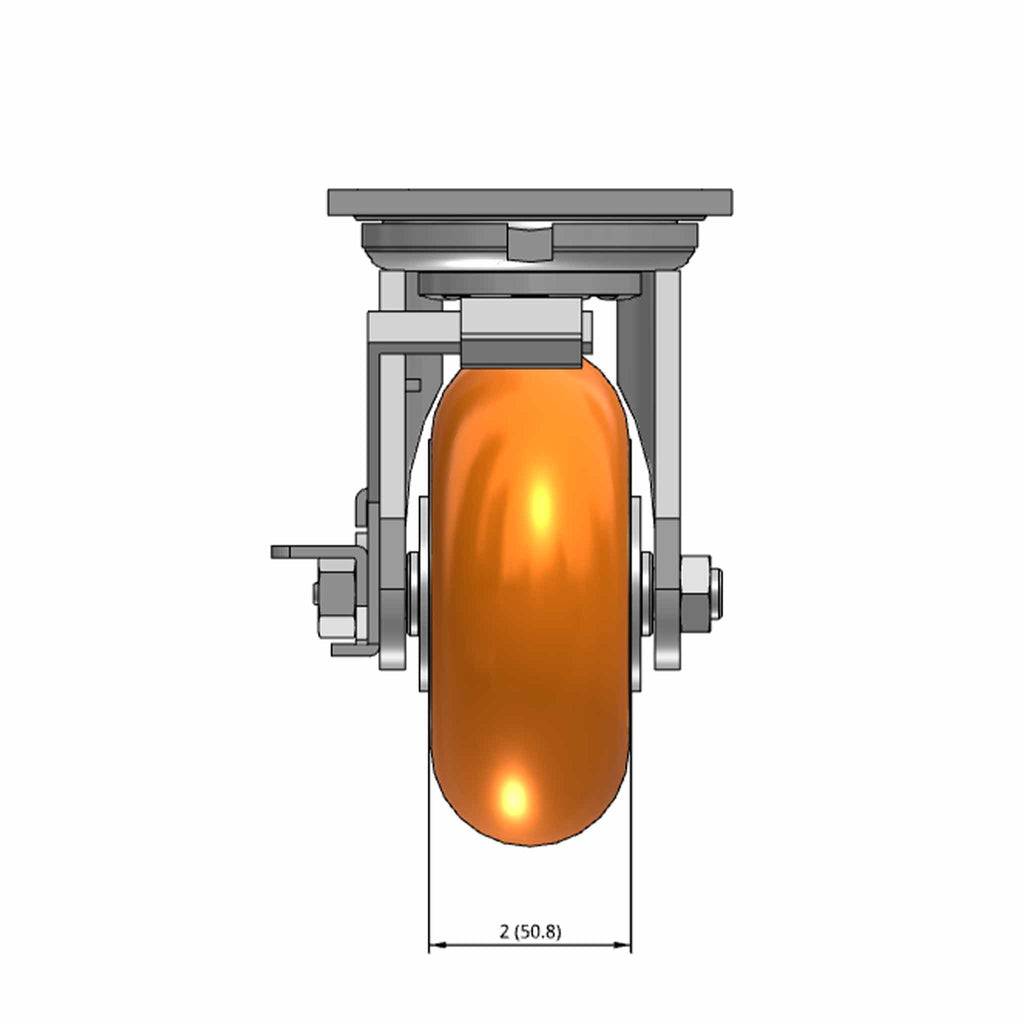

Wheel Tread Width: 2 in
Wheel Description: AN - Round Polyurethane (Aluminum Core)
Wheel Color: Orange Tread on Aluminum Core
Wheel Bearing: Precision Ball
Wheel Profile: Radius Tread
Wheel Hardness: 85 Shore A
Wheel Thread Guards: None

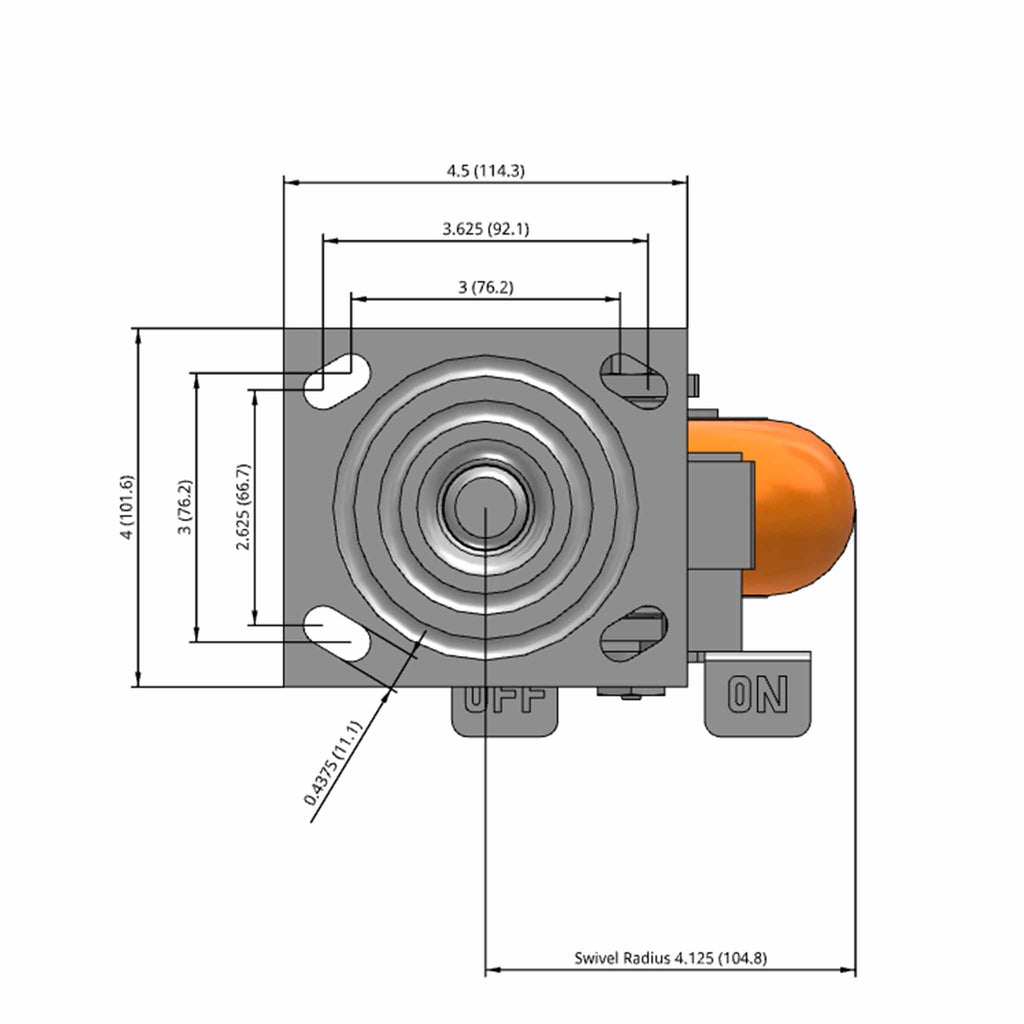

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

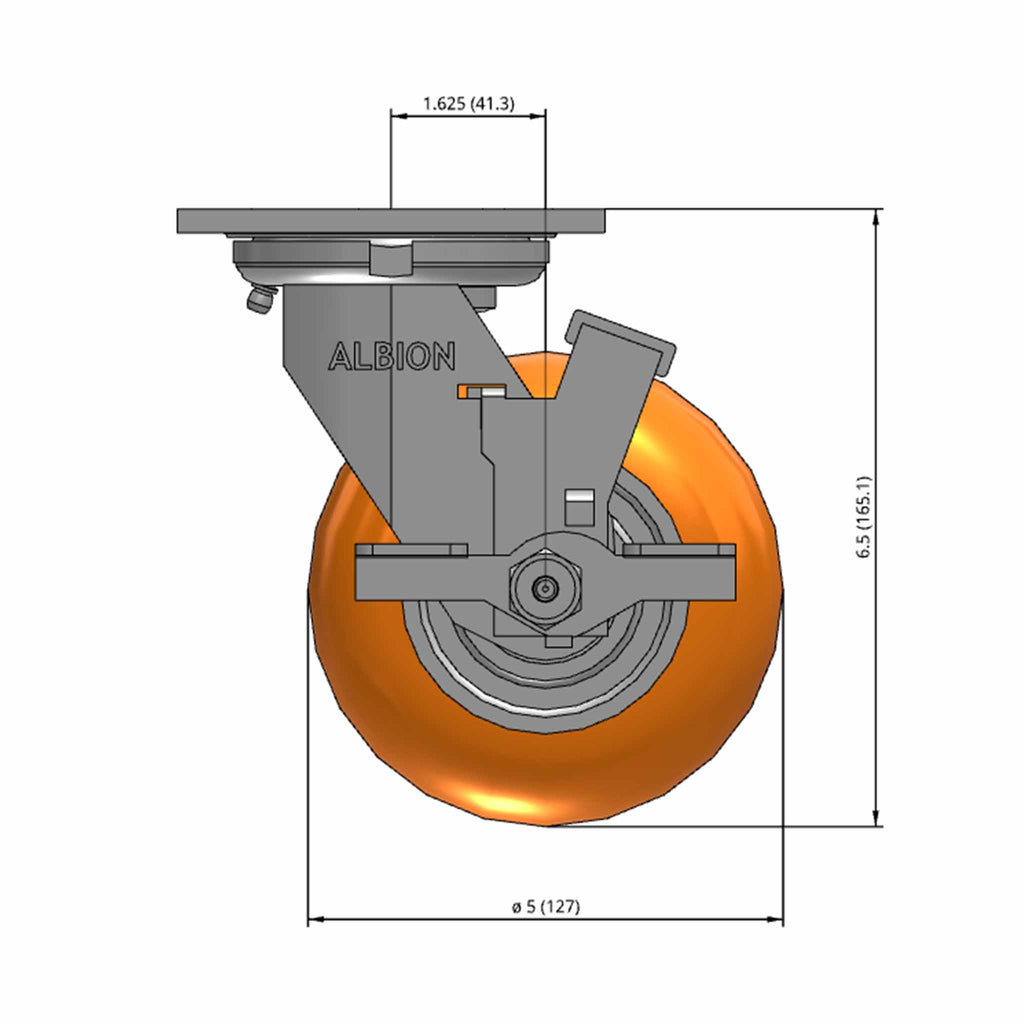

Mounting Height: 6.5 in
Swivel Radius: 4.13 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
