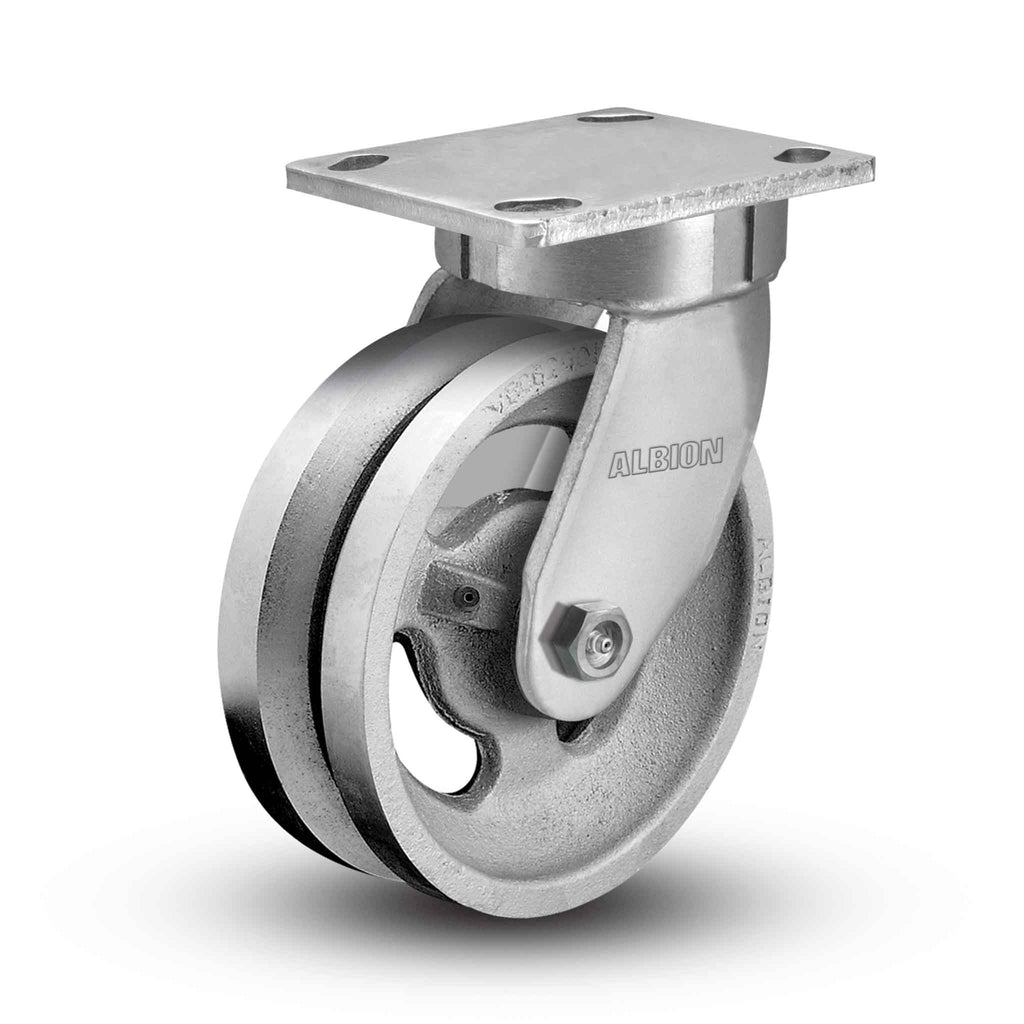

Designed to ride on inverted angle-iron track, this 6" x 2" v-groove cast iron heavy duty kingpinless swivel caster is ideal for transfer carts, shuttle conveyors and other process equipment. Precision raceways and fully heat-treated construction make our 71 Series the ideal solutions for applications exposed to rugged conditions or high amounts of impact and shock. 71 Series are more durable than competitors case or induction-hardened construction, and longer lasting than conventional kingpin designs. These kingpinless casters eliminate kingpin failure, the leading cause of caster failure. Zinc plating provides an attractive, protective finish.
Series: 71 Series - Kingpinless (to 2000 lb/ea)
Mfg. SKU: 110VG06201S
Caster Type: Swivel
Raceway Type: Kingpinless Heat Treated 3/8" Ball Bearing Raceway with Zerk
Load Capacity: 1000 lb
Wheel Diameter: 6 in
Wheel Tread Width: 2 in
Wheel Description: VG - Cast Iron V-Groove
Wheel Color: Silver Enamel Paint
Wheel Bearing: Roller
Wheel Profile: V-Groove
Wheel Hardness: Brinell 145
Wheel Thread Guards: None

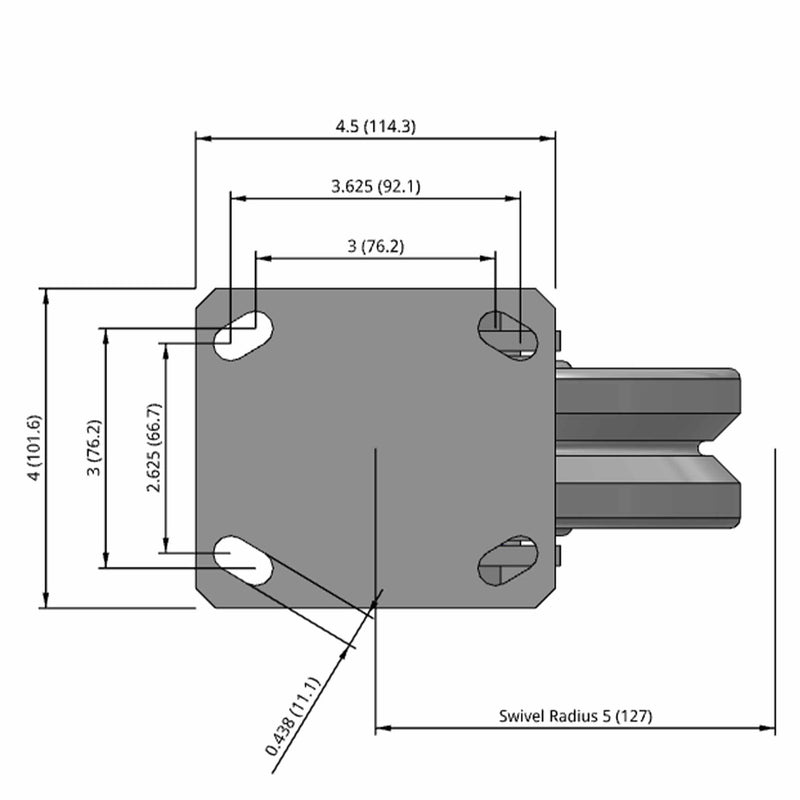

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

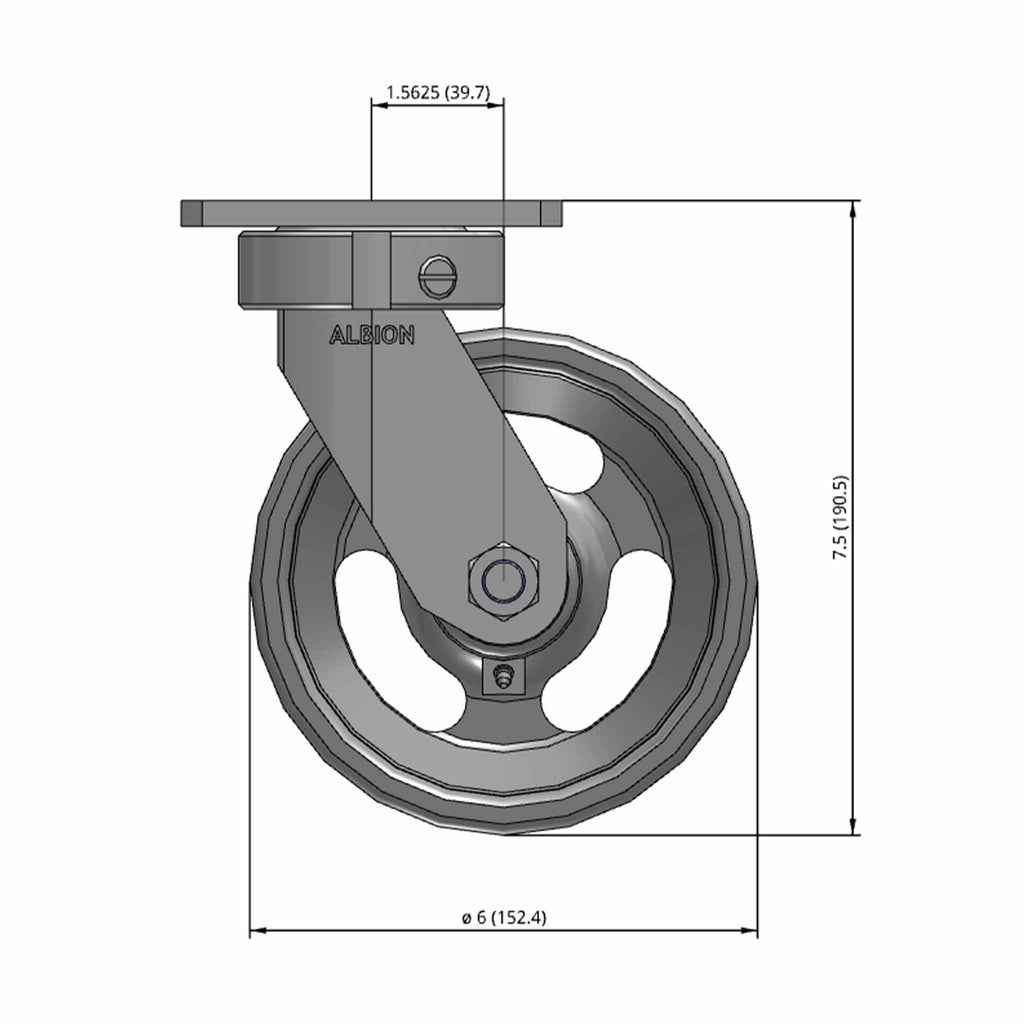

Mounting Height: 7.5 in
Swivel Radius: 4.56 in
Operating Temperature Range: Up to +350°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
