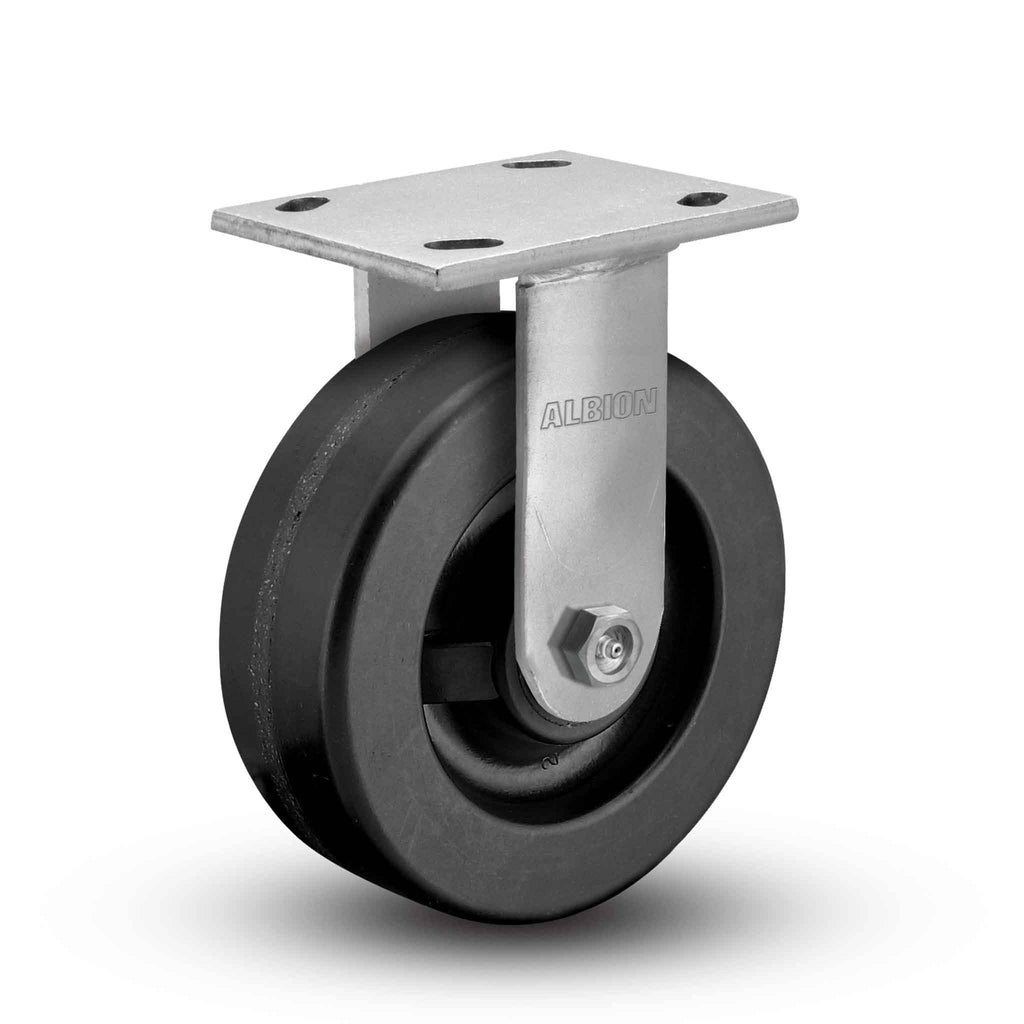

Inexpensive and durable, this 5" x 2" phenolic heavy duty kingpinless rigid caster is high capacity and floor protective. Phenolic wheels should not be used in wet or moist applications.Precision raceways and fully heat-treated construction make our 71 Series the ideal solutions for applications exposed to rugged conditions or high amounts of impact and shock. 71 Series are more durable than competitors case or induction-hardened construction, and longer lasting than conventional kingpin designs. These kingpinless casters eliminate kingpin failure, the leading cause of caster failure. Zinc plating provides an attractive, protective finish.
Series: 71 Series - Kingpinless (to 2000 lb/ea)
Mfg. SKU: 110TM05201R
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 1000 lb
Wheel Diameter: 5 in

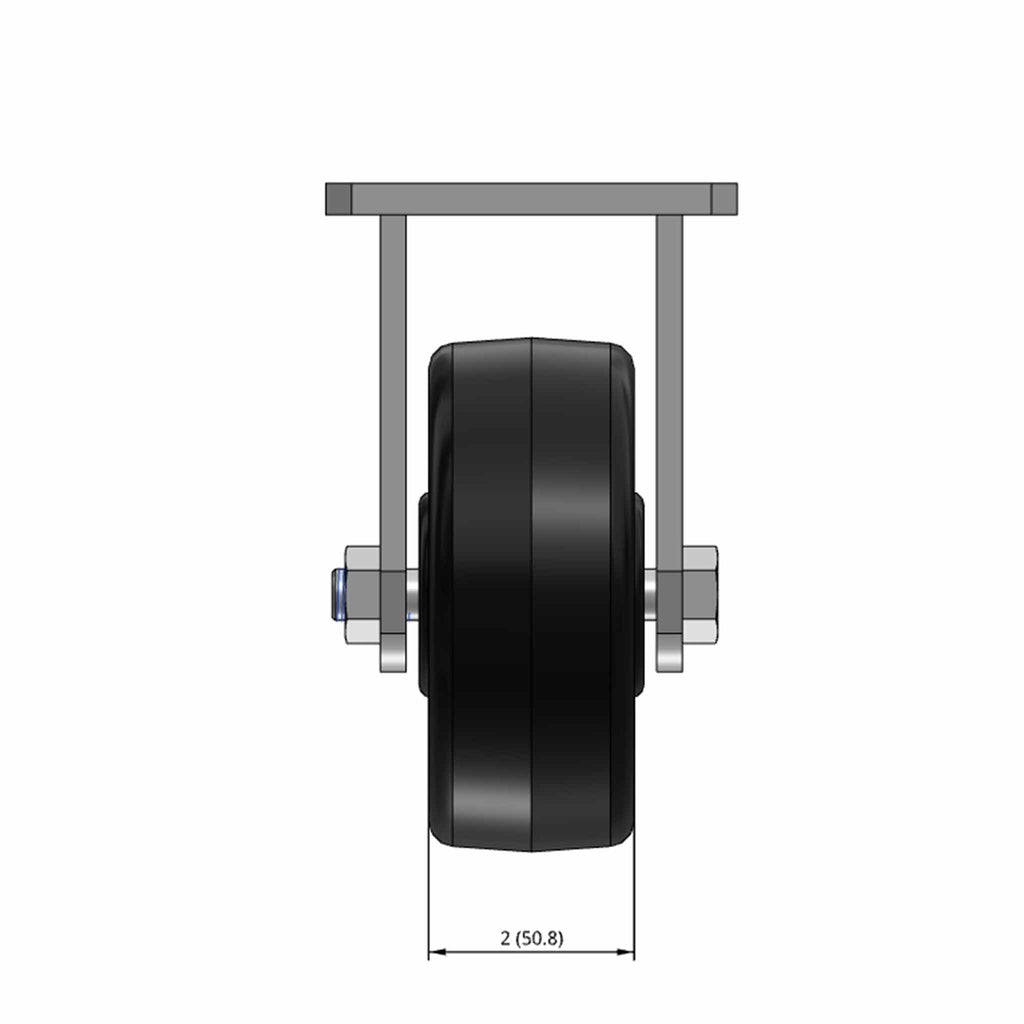

Wheel Tread Width: 2 in
Wheel Description: TM - Phenolic
Wheel Color: Black Phenolic Resin
Wheel Bearing: Roller
Wheel Profile: Crowned Tread
Wheel Hardness: Rockwell 102 E
Wheel Thread Guards: None

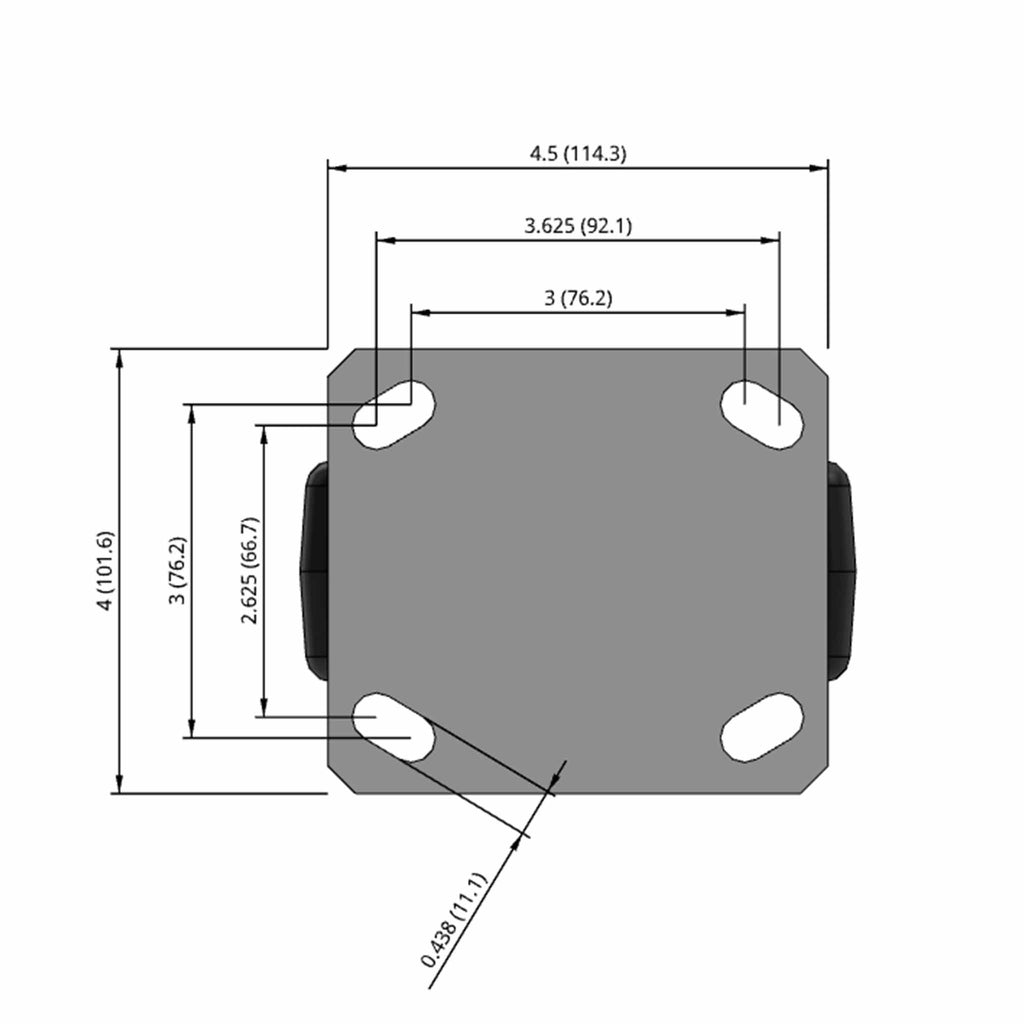

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

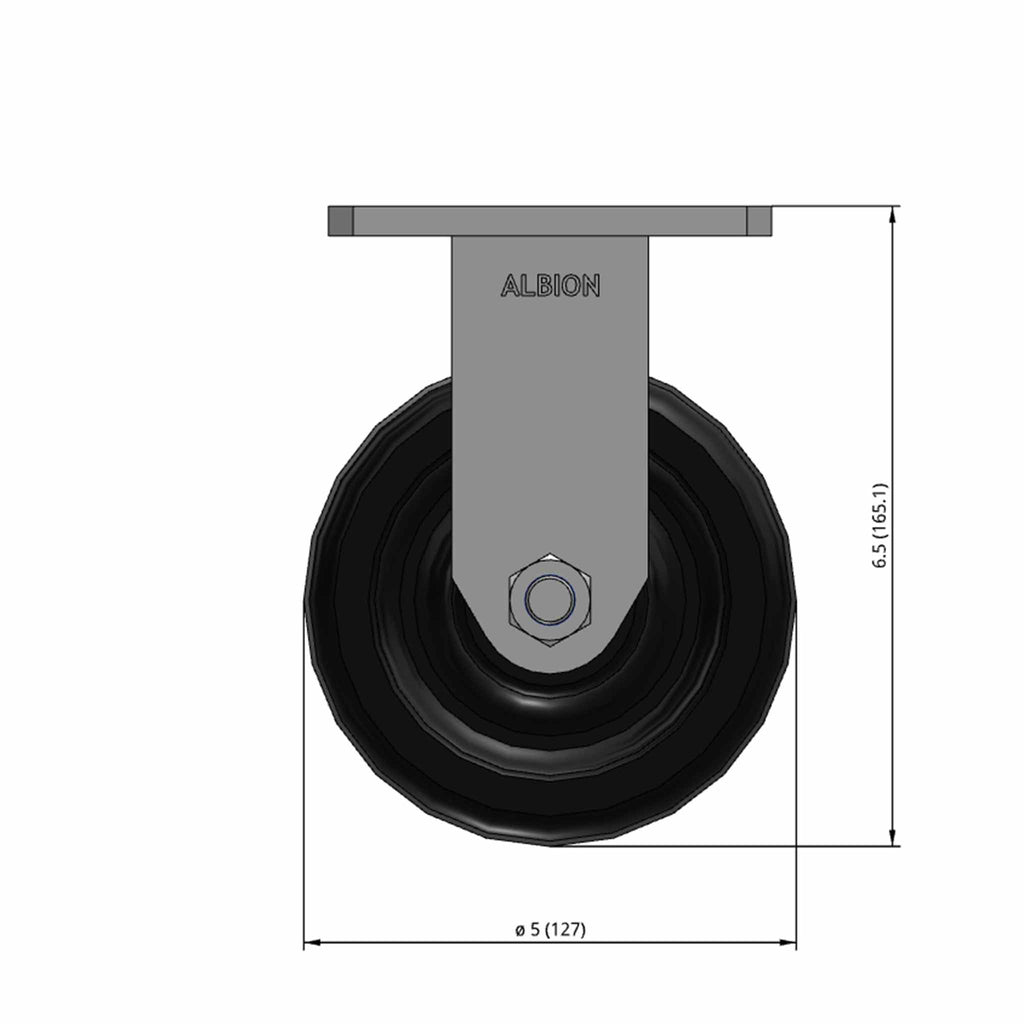

Mounting Height: 6.5 in
Operating Temperature Range: -65°F to +250°F (+300°F intermittent)
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
