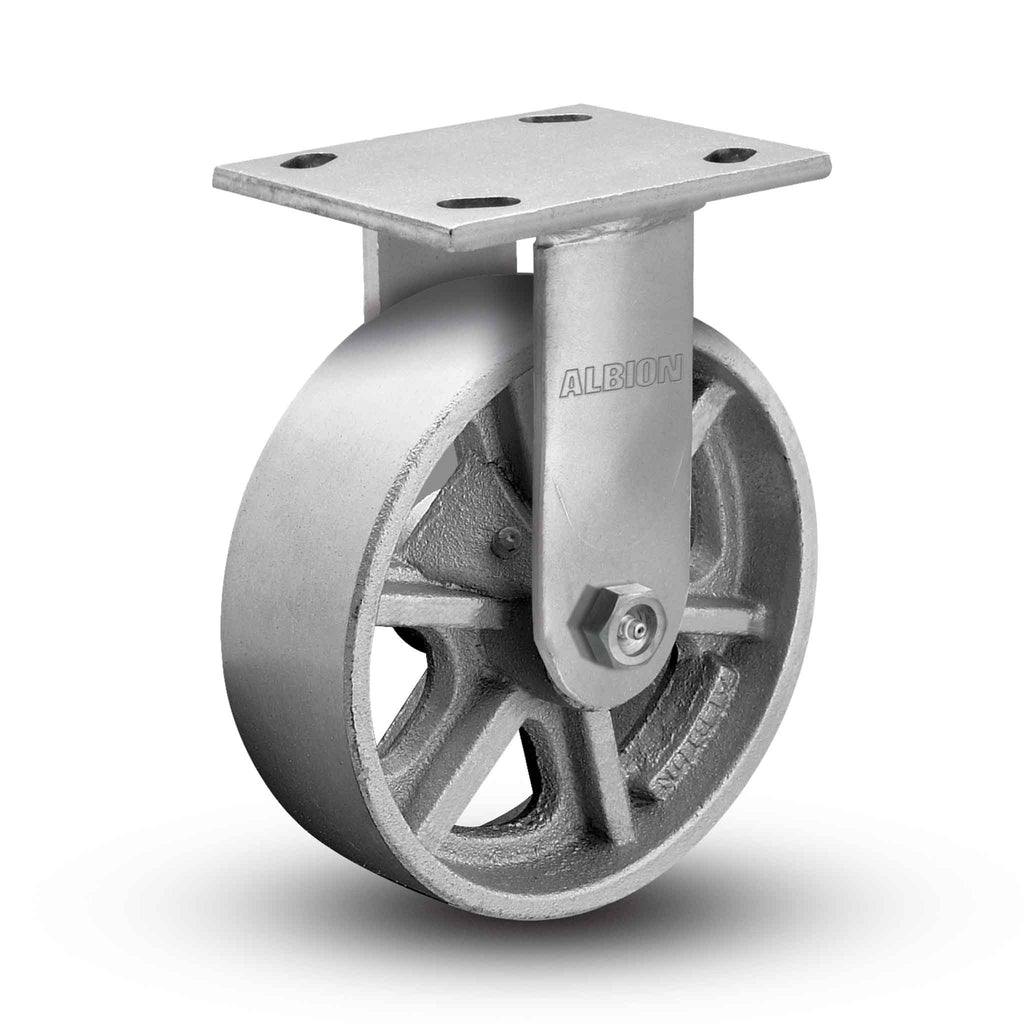

This 4" x 2" cast iron heavy duty kingpinless rigid caster offers high capacity at a lower price. Cast iron wheels are ideal for heavy loads in industrial environments.Precision raceways and fully heat-treated construction make our 71 Series the ideal solutions for applications exposed to rugged conditions or high amounts of impact and shock. 71 Series are more durable than competitors case or induction-hardened construction, and longer lasting than conventional kingpin designs. These kingpinless casters eliminate kingpin failure, the leading cause of caster failure. Zinc plating provides an attractive, protective finish.
Series: 71 Series - Kingpinless (to 2000 lb/ea)
Caster Type: Rigid
Raceway Type: Rigid Construction
Load Capacity: 1000 lb
Wheel Diameter: 4 in

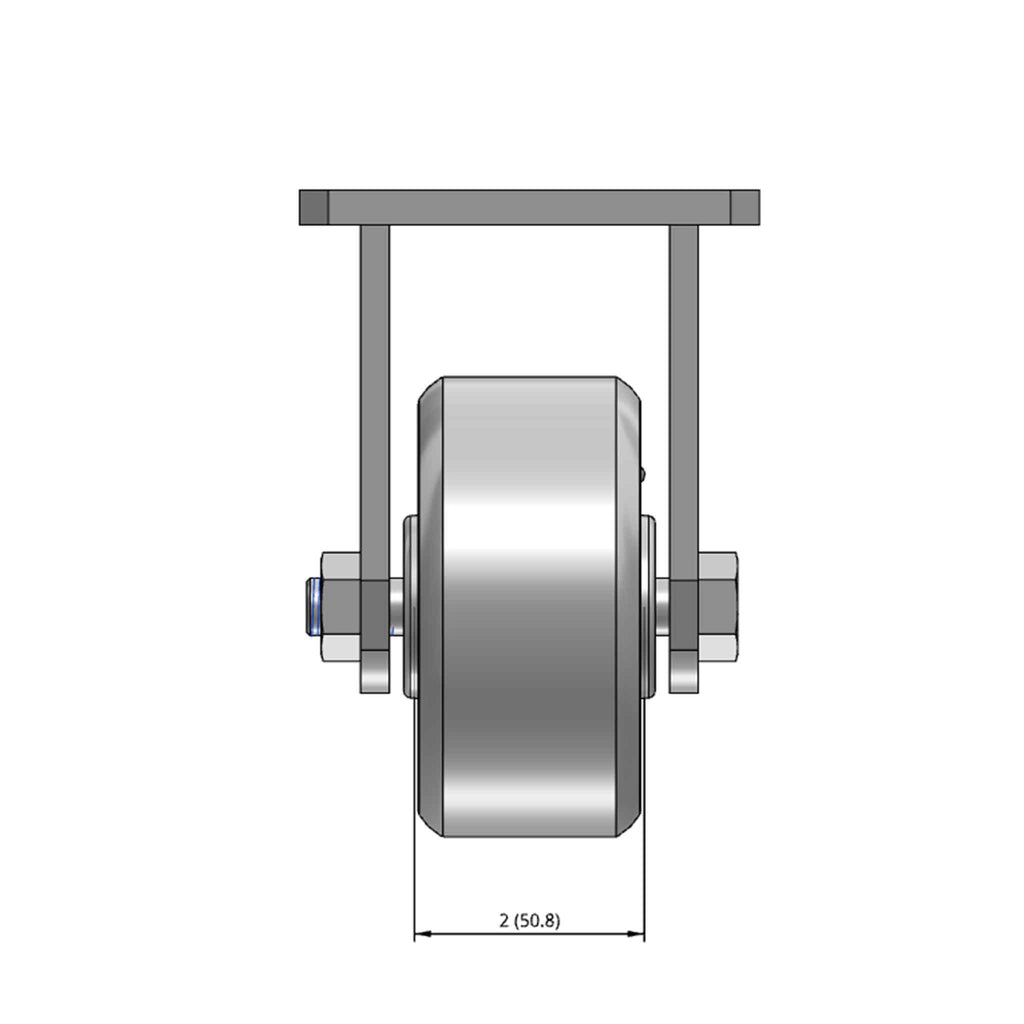

Wheel Tread Width: 2 in
Wheel Description: CA - Cast Iron
Wheel Color: Grey Enamel
Wheel Bearing: Roller
Wheel Profile: Flat with Rounded Edges
Wheel Hardness: Brinell 145
Wheel Thread Guards: None
Fastening: 4" x 4-1/2" top plate

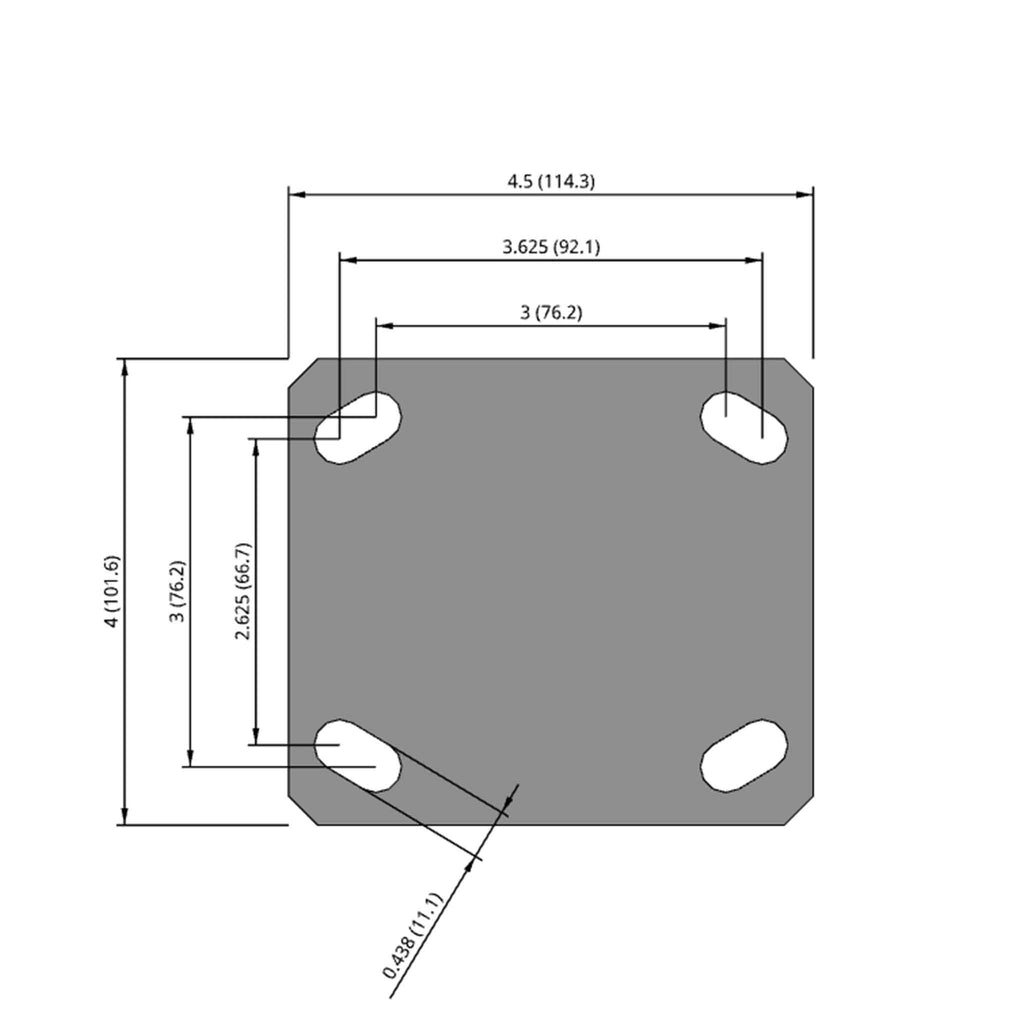

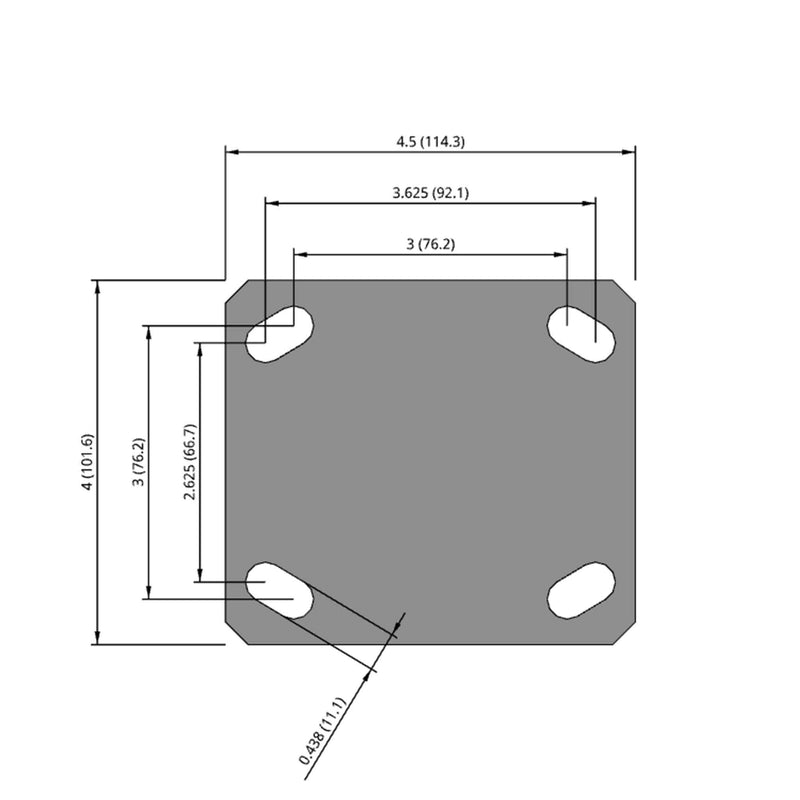

Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

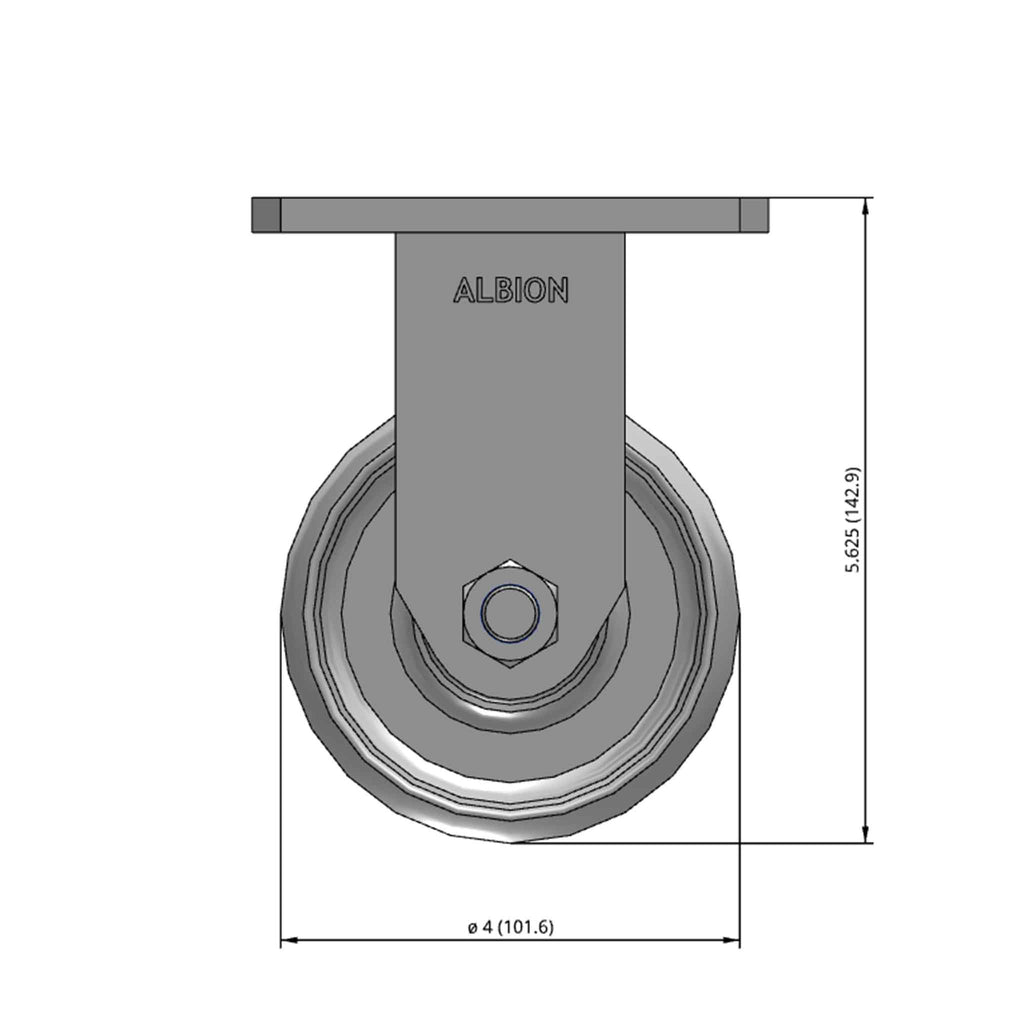

Mounting Height: 5.63 in
Operating Temperature Range: Up to +800°F; special grease required for high-temp applications; contact us for details
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
