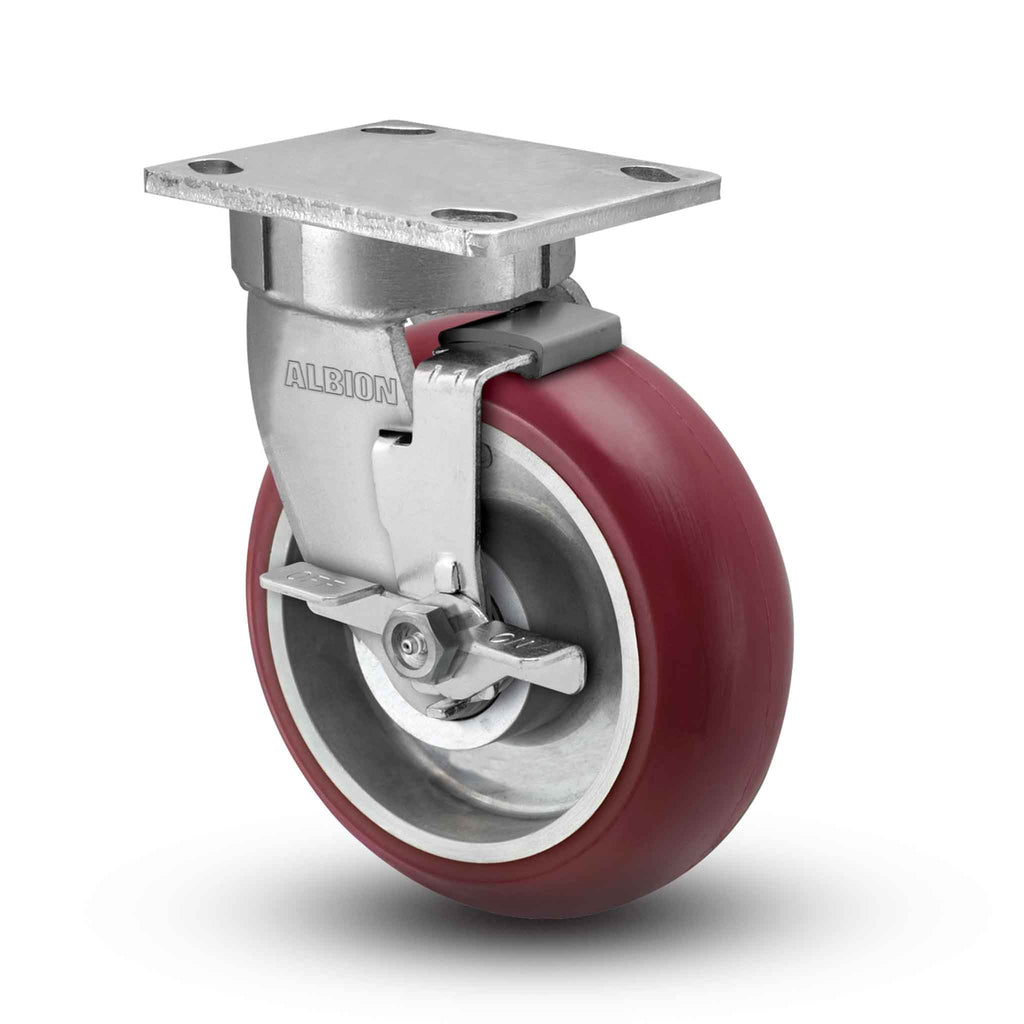

This 6" x 2" maroon polyurethane on aluminum heavy duty kingpinless swivel caster with tread brakeis designed to handle impact and shock, and are ideal for more ergonomic hand-pushed requirements or power-towed applications. The precision-machined raceway enhances ergonomics and safety while eliminating kingpin failure.Precision raceways and fully heat-treated construction make our 71 Series the ideal solutions for applications exposed to rugged conditions or high amounts of impact and shock. 71 Series are more durable than competitors case or induction-hardened construction, and longer lasting than conventional kingpin designs. These kingpinless casters eliminate kingpin failure, the leading cause of caster failure. Zinc plating provides an attractive, protective finish.
Series: 71 Series - Kingpinless (to 2000 lb/ea)
Mfg. SKU: 110AX06228SFBC
Caster Type: Swivel
Raceway Type: Kingpinless Heat Treated 3/8" Ball Bearing Raceway with Zerk
Brake: FBC Face Brake (FBC)
Load Capacity: 1250 lb
Wheel Diameter: 6 in

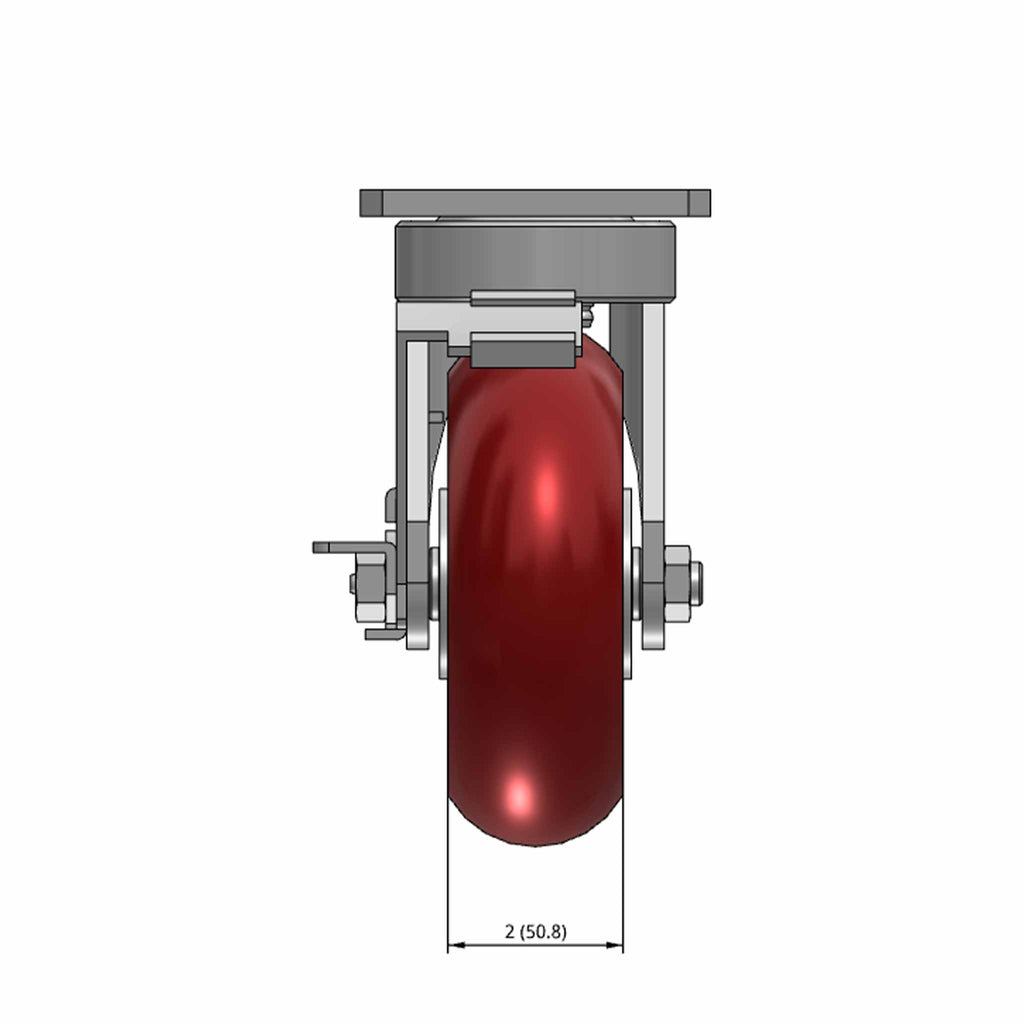

Wheel Tread Width: 2 in
Wheel Description: AX - Round Polyurethane (Aluminum Core)
Wheel Color: Maroon Tread on Aluminum Core
Wheel Bearing: Precision Ball
Wheel Profile: Round Tread
Wheel Hardness: 85 Shore A
Wheel Thread Guards: None

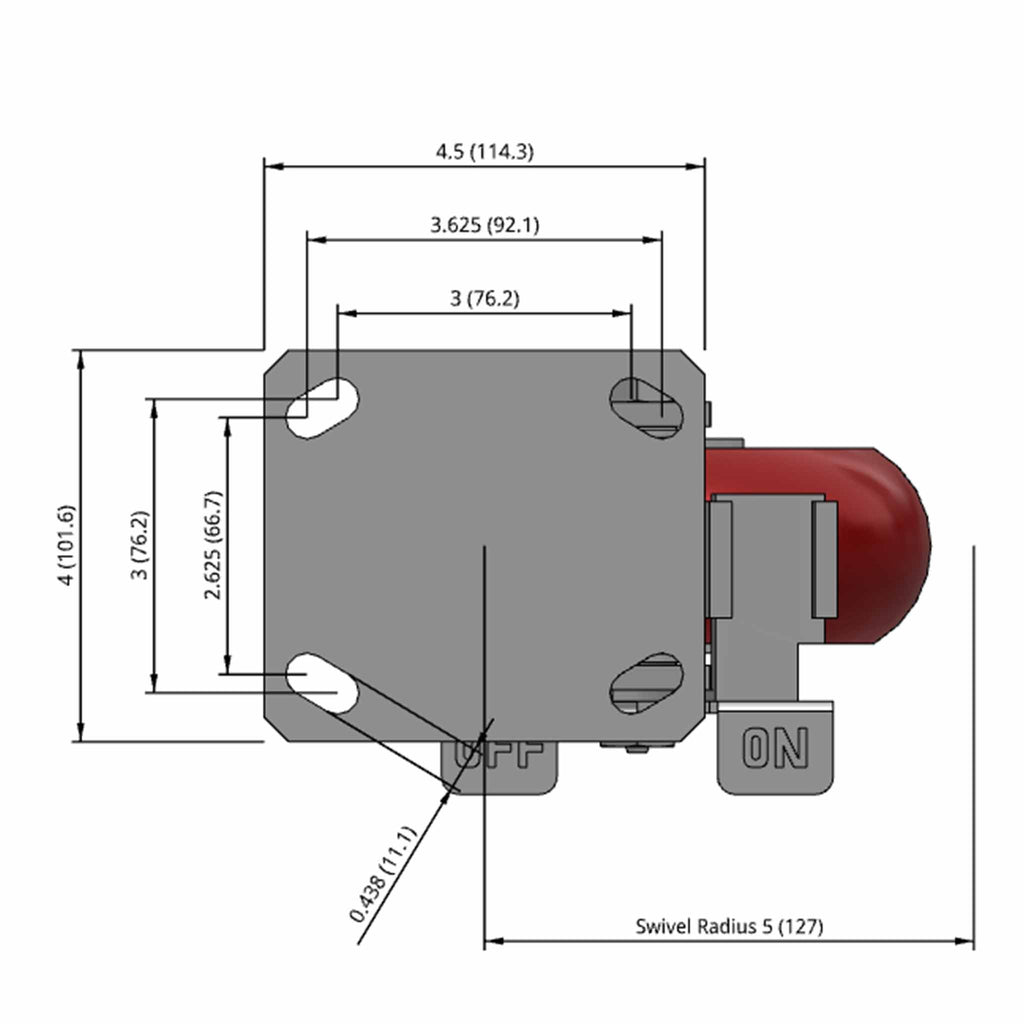

Fastening: 4" x 4-1/2" top plate
Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
Bolt Size Recommended: 3/8"

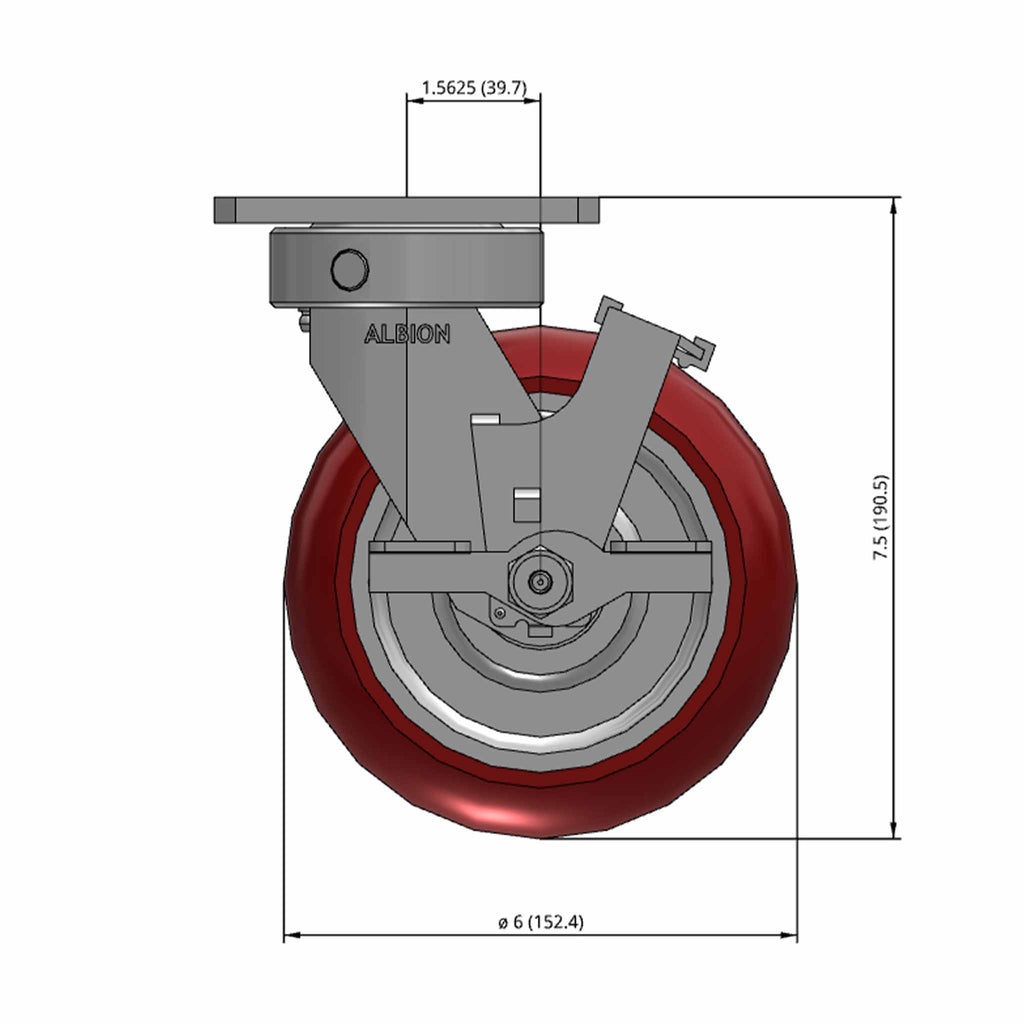

Mounting Height: 7.5 in
Swivel Radius: 4.56 in
Operating Temperature Range: -40°F to +180°F
Warranty: 3 year
Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
