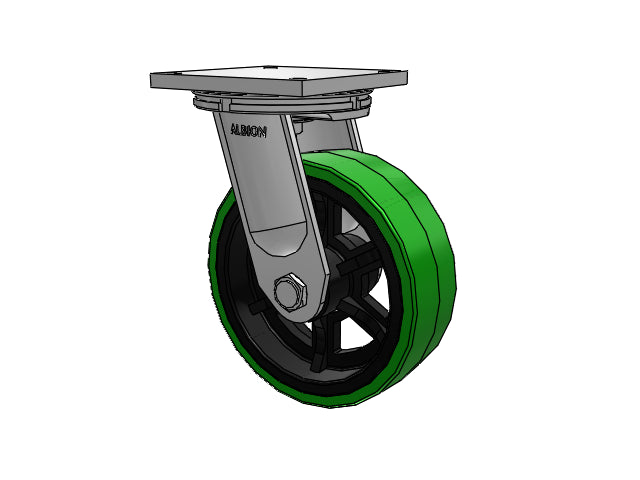

The Albion 95PX12709STRL swivel caster features a 12" x 4" wide wheel and a 8 1/2" x 8 1/2" top plate, capable of a 5280 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Featuring swivel casters with a precision machined roller bearing load and thrust swivel section (thrust swivel section = “TRL”) this series provides longer life and greater capacity than the 95 BBL models for those very rugged applications. Made from thick AISI 1045 drop forged steel and designed to be towed, please contact us prior to ordering for towed applications to ensure your selection meets your towing requirements. Popular solution for towed trailers, die carts, and equipment and carts utilized in automotive plants.
• Top Plate and Yoke Base: 5/8” thick AISI 1045 drop-forged steel precision machined for bearings
• Swivel Load Bearings: 7” diameter machined raceway with a precision tapered roller bearing which is protected by a forged labyrinth skirt
• Component Thrust Bearing: 1-1/4” tapered roller bearing
• Legs: 1/2” steel plate formed for greater strength and welded to yoke base both inside and outside
• King Bolt: 1-1/4” integrally forged with top plate machined and threaded
• Axle: 1-1/4” solid axle and lock nut
• Alternate or custom caster configurations available
