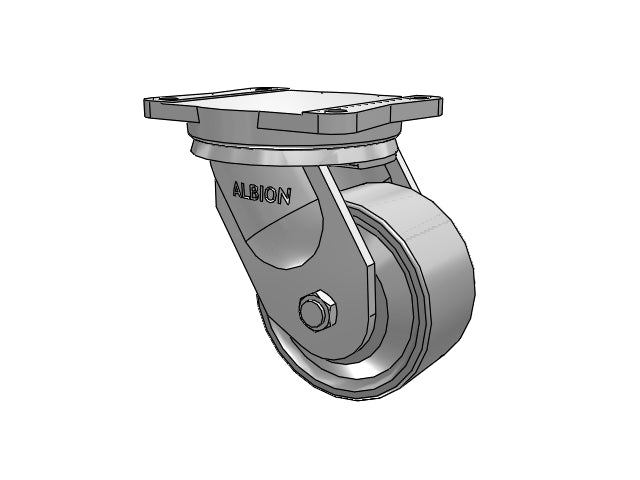

The Albion 94FS06509STRL swivel caster features a 6" x 3" wide wheel and a 7 1/2" x 6 1/2" top plate, capable of a 10000 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Featuring swivel casters with a precision machined roller bearing load and thrust swivel section (thrust swivel section = “TRL”) this series provides longer life and greater capacity than the 94 BBL models for those very rugged applications. Made from thick AISI 1045 drop forged steel and designed to be towed, please contact us prior to ordering for towed applications to ensure your selection meets your towing requirements.
• Top Plate and Yoke Base: 1/2” thick AISI 1045 drop forged steel
• Swivel Load Race: Precision tapered roller bearing which has 5” outside diameter for increased capacity
• Thrust Bearing: 1-1/4” tapered roller bearing
• Legs: 3/8” formed steel plate welded inside and outside for additional strength
• King Bolt: 1-1/4” diameter integrally forged with top plate for maximum strength
• Axle: 1” solid axle with lock nut
• Lubrication: Zerk fitting in yoke base and wheel hubs for ease of lubrication
• Alternate or custom caster configurations available
SKU
|
94FS06509STRL
|
Caster Type
|
Swivel
|
Raceway Type
|
Swivel load race features precision tapered roller bearing with a 5” outside diameter for increased capacity; thrust bearing is a 1-1/4” tapered roller bearing
|
Brake
|
None
|
Load Capacity
|
10000 lb
|
Wheel Tread Width
|
3 in
|
Wheel Description
|
FS - Drop-Forged Steel
|
Wheel Color
|
Clear Coat Enamel
|
Wheel Bearing
|
Tapered
|
Wheel Profile
|
Machined flat with rounded edges
|
Wheel Hardness
|
Rockwell 80 B
|
Wheel Thread Guards
|
None
|
Fastening
|
7 1/2" x 6 1/2" top plate
|
Bolt Hole Pattern
|
6" x 4 1/2"
|
Bolt Size Recommended
|
1/2"
|
Mounting Height
|
8.5 in
|
Swivel Radius
|
5.5 in
|
Operating Temperature Range
|
Up to +800°F
|
Warranty
|
1 year
|
Manufacturing Number
|
94FS06509STRL
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
