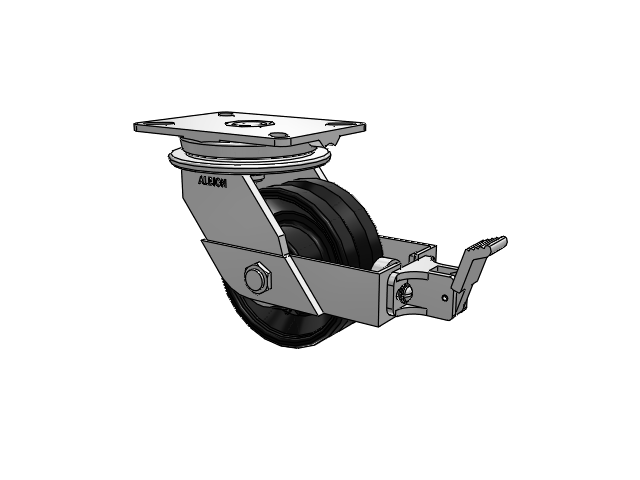

Albion 90VM06428SFBB caster is a heavy duty caster that provides trusted mobility and a premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
90VM06428SFBB
|
Caster Type
|
Swivel
|
Brake
|
Face Contact (FBB)
|
Wheel Description
|
VM - Ductile V-Groove
|
Wheel Color
|
Flat Black Paint
|
Wheel Bearing
|
Precision Ball
|
Wheel Profile
|
V-Groove
|
Wheel Hardness
|
Brinell 131 217
|
Fastening
|
7 1/4" x 5 1/4" top plate
|
Bolt Hole Pattern
|
5 1/4" x 3 3/8" slotted to 6 1/8" x 4 1/8"
|
Bolt Size Recommended
|
1/2"
|
Operating Temperature Range
|
Up to +350°F
|
Warranty
|
1 year
|
Manufacturing Number
|
90VM06428SFBB
|
