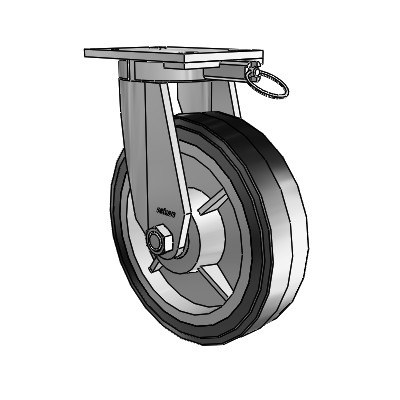

Colson 8.10689.459.2 MTG62 LH12.5 caster is a kingpinless heavy duty caster built to handle shock, impact, and tough terrains featuring a three-year premium The precision CNC'd single large raceway provides smooth swiveling and eliminates the failure point of the kingpin, so it continues to perform in the toughest conditions. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
8.10689.459.2 MTG62 LH12.5
|
Caster Type
|
Swivel
|
Raceway Type
|
Kingpinless construction for high impact, shock loading, and rough terrain eliminates kingpin failure, a common failure point in traditional casters
|
Brake
|
None
|
Wheel Description
|
Performa
|
Wheel Color
|
Black on Grey
|
Wheel Bearing
|
Roller
|
Wheel Profile
|
Flat Tread
|
Wheel Hardness
|
65(+/-5) Shore A
|
Fastening
|
4-1/2" x 6-1/4" Top Plate
|
Bolt Hole Pattern
|
2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
|
Bolt Size Recommended
|
1/2"
|
Operating Temperature Range
|
-45F to +180F
|
Warranty
|
3 year
|
Manufacturing Number
|
8.10689.459.2 MTG62 LH12.5
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
