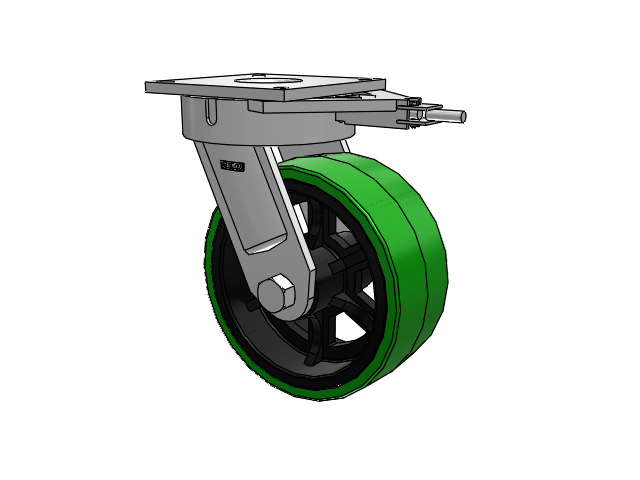

The Albion 700PX12809SL swivel caster features a 12" x 5" wide wheel and a 8 1/2" x 8 1/2" top plate, capable of a 6600 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Need pure reliability in your heavy-duty application? These super-duty casters are built specifically for that potentially punishing application where reliability is essential. This one-piece forging is precision machined and carefully constructed to deliver the utmost durability in handling shock and impact. Typical applications include: aircraft engine stands, ground support equipment, aerospace A-frame skin, dollies, portable jigs, tooling fixtures, die carts, and large work platforms.
• Top Plate: 1/2" thick AISI 1045 steel one-piece forging precision machined and for long life
• Swivel Section: 3/4" ball bearings mounted in a 7" diameter precision machined raceway; zerk in swivel section
• Legs: 1/2" thick steel welded to yoke base using 100,000 psi weld filler
• Axle: 1-1/4” diameter
• Alternate or custom caster configurations available
