Reliable Heavy-Duty Mobility with Ergonomic Safety

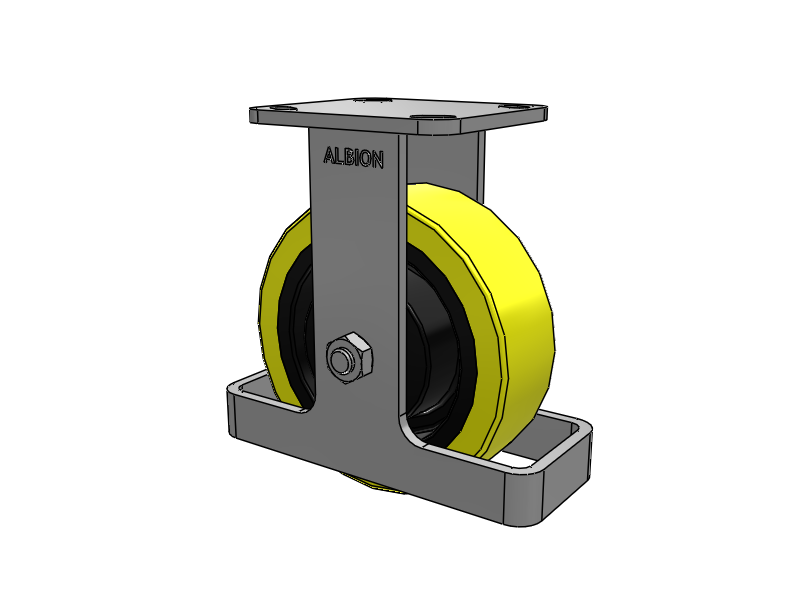

The Albion 28PF06228RTO rigid plate caster delivers long-lasting ergonomic performance, floor protection, and operator safety for demanding industrial environments. Designed for heavy-duty use, the USA-made rigid rig features a 4"x4-1/2" industry-standard top plate, 1/4" steel legs fully welded inside and out, and an integrated toe guard to help prevent operator injuries and keep debris out of the wheel path.
Key Safety & Performance Advantages
-
USA-Made Rigid Rig – Built from precision-formed steel with full welds for superior strength and reliability.
-
Toe Guard Protection – Shields feet from accidental contact while keeping rolling paths clear.
-
Heavy-Duty Build – Fully welded legs and robust plate construction support high load demands.
Premium Heavy-Duty Polyurethane-on-Iron Wheel
-
Material – High-performance polyurethane tread (95 Shore A hardness) bonded to a precision-machined cast iron core.
-
Ergonomic Design – Reduces push/pull forces for easier movement and improved operator comfort.
-
Floor-Safe & Quiet – Protects floors while providing smooth, quiet operation in manual and towed applications.
-
Bond Quality – Chemically bonded tread resists separation under heavy loads and torque.
-
Chemical & Moisture Resistance – Withstands exposure to water, oils, greases, and most common chemicals.
-
Temperature Range – Performs in environments from -40°F to 180°F.
Specifications
-
Wheel Size: 6" diameter x 2" wide polyurethane-on-iron (radius tread)
-
Capacity: 1,500 lbs dynamic load per caster
-
Top Plate Size: 4" x 4-1/2" (industry standard for 2" wide wheels)
-
Rig Type: Rigid with integrated toe guard
-
Finish: Zinc plated for corrosion resistance
-
Bearings: Sealed precision ball bearings in wheel
-
Warranty: 3 years
-
Testing: ANSI ICWM tested for safety and performance
Ideal Applications
-
Warehouse carts and material handling trucks
-
Assembly line and production equipment
-
Towed or manually moved industrial carts
-
Applications requiring quiet rolling, floor protection, and high load capacity
Need a swivel or brake-equipped version?
The Albion 28 Series is available in multiple configurations—contact us for options and volume pricing.
