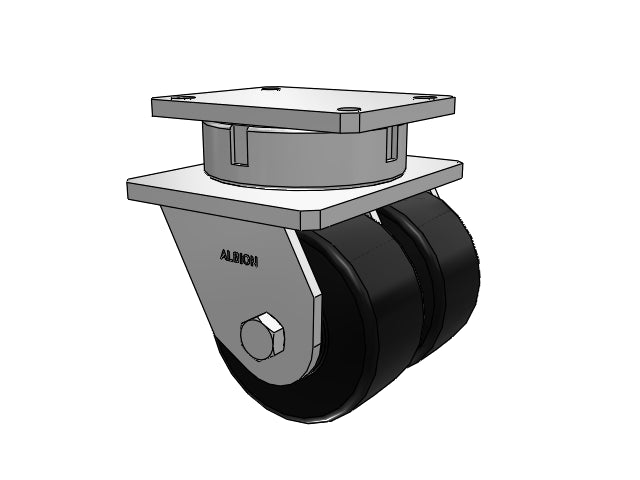

The Albion 615NX06528S swivel caster features a 6" x 3" wide dual wheels and a 7-1/2'' x 6-1/4'' top plate, capable of a 7200 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. Dual wheel construction with added third leg allows this caster to provide higher load ratings in a low overall height, while gaining better product stability for safer operation compared to a single wheel configuration. The dual wheel 615 Series is built to take the punishment of constant swiveling or for service where shock or impact loads would damage less rugged casters. The 610 Series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• Top Plate: 1/2" thick AISI 1045 steel precision machined and through-hardened for long life
• Swivel Section: 3/4" ball bearings mounted in a 4-3/8" precision machined raceway; zerk in swivel section
• Legs: 3/8" thick steel welded to yoke base using 100,000 psi weld filler
• Axle: 2-1/2" and 3" tread width wheels feature a 3/4" axle, 3-1/2" and 4" tread width wheels feature a 1" axle• Alternate or custom caster configurations available
