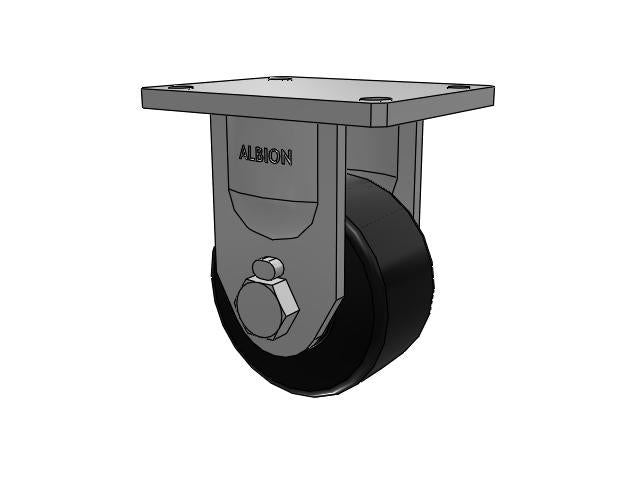

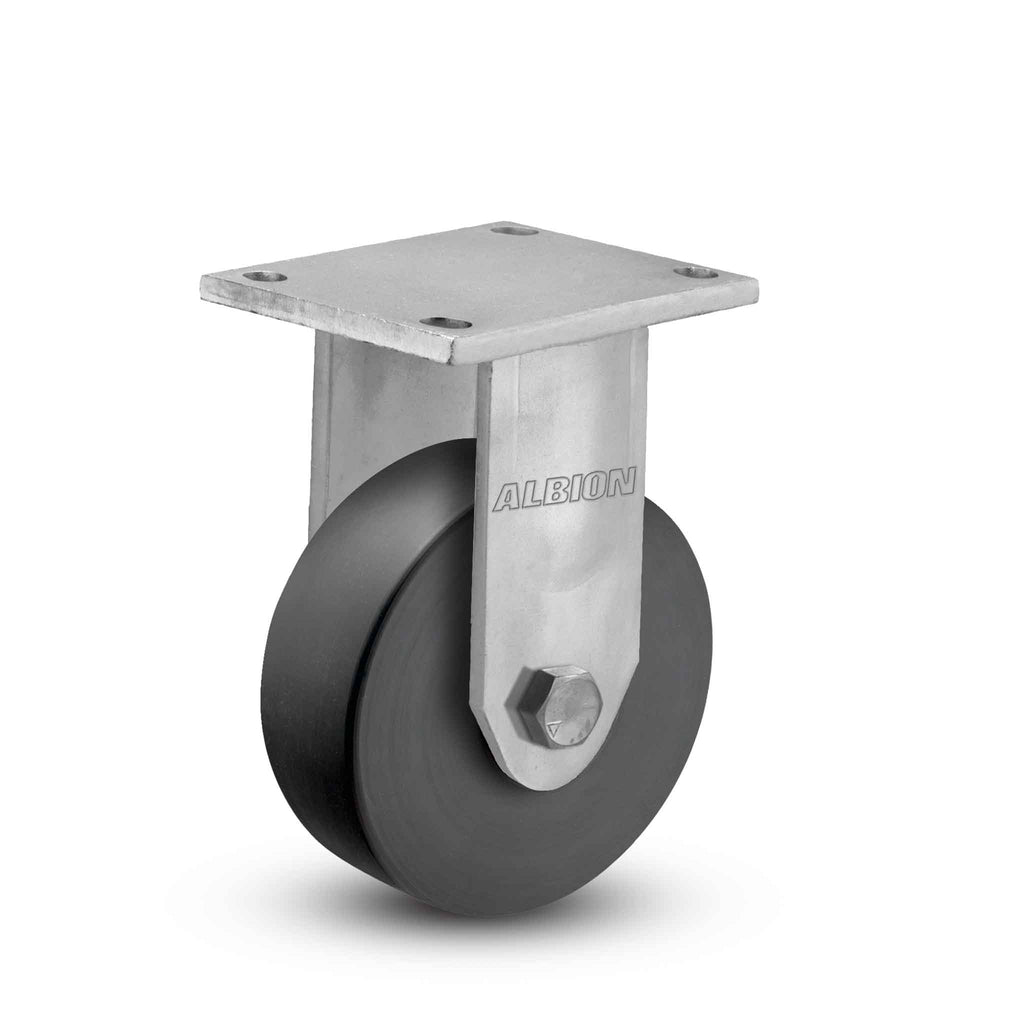

The Albion 610NX06528R rigid caster features a 6" x 3" wide Trionix wheel and a 7 1/2" x 6 1/4" top plate, capable of a 7200 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The 610 Series is built to take the punishment of constant swiveling or for service where shock or impact loads would damage less rugged casters. Highly recommended for automotive and aerospace industries. See our 600 Series and 700 Series for enhanced solutions featuring one-piece forgings. The 610 Series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
-
Top Plate: 1/2" thick AISI 1045 steel precision machined and through-hardened for long life
-
Legs: 3/8" thick steel welded to yoke base using 100,000 psi weld filler
- ANSI ICWM tested to 7,200 lb. dynamic load capacity per caster
-
Wheel: CNC machined Trionix wheels are as strong as steel wheels but are also floor protective (unlike steel) and will significantly help quiet your operation and improve your ergonomics, featuring four precision ball bearings per wheel; the wheel has a tensile strength of 11,000 PSI and a hardness of 78-82 Shore D; they are resistant to corrosion and chemicals and have a temperature range from -30°F to 220°F
-
Axle: 2-1/2" and 3" tread width wheels feature a 3/4" axle, 3-1/2" and 4" tread width wheels feature a 1" axle
- Alternate or custom caster configurations available
