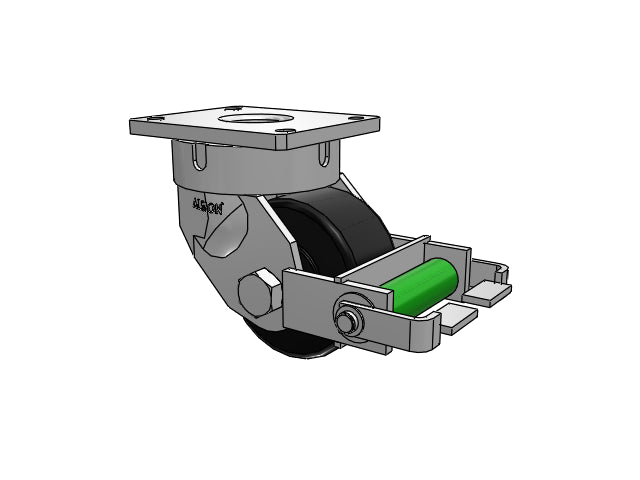

The Albion 600NX06528SP swivel caster with Top Wheel Lock brake features a 6" x 3" wide wheel and a 7-1/4" x 6-1/4" top plate, capable of a 7200 lb. capacity per caster. Complete caster specifications and downloadable CAD model are provided below. The 600 Series features an added enhancement over the 610 Series, constructed of a one-piece forging for ultimate durability and strength. This caster is built to take the punishment of constant swiveling or for service where shock or impact loads would damage less rugged casters. Highly recommended for automotive and aerospace industries. See our 700 Series for the ultimate in caster durability, tackling the most abusive applications. This series also supports towed applications, contact us prior to ordering to ensure your selection meets your towing requirements.
• Top Plate: 1/2" thick AISI 1045 steel one-piece forging precision machined and for long life
• Swivel Section: 3/4" ball bearings mounted in a 4-1/2" precision machined raceway; zerk in swivel section
• Legs: 3/8" thick steel welded to yoke base using 100,000 psi weld filler
• Axle: 1” diameter
SKU
|
600NX06528SP
|
Caster Type
|
Swivel
|
Raceway Type
|
Kingpinless construction with large 3/4" ball bearings mounted in a 4-1/2" precision machined heat-treated raceway with zerk
|
Brake
|
Poly Cam (P)
|
Load Capacity
|
7200 lb
|
Wheel Tread Width
|
3 in
|
Wheel Description
|
NX - Trionix Polymer
|
Wheel Color
|
Black Polymer
|
Wheel Bearing
|
Precision Ball
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
78-82 Shore D
|
Wheel Thread Guards
|
None
|
Fastening
|
7-1/4" x 6-1/4" top plate
|
Bolt Hole Pattern
|
4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
|
Bolt Size Recommended
|
1/2"
|
Mounting Height
|
8.5 in
|
Swivel Radius
|
5.5 in
|
Operating Temperature Range
|
-30°F to +220°F
|
Warranty
|
1 year
|
Manufacturing Number
|
600NX06528SP
|
Conformity
|
RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability
|
