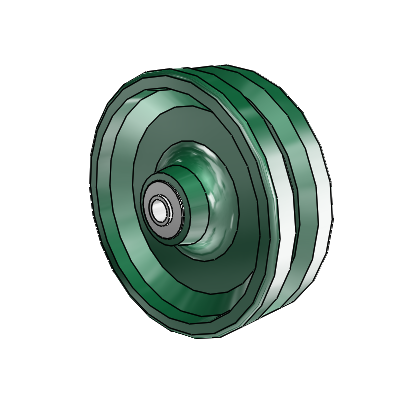

Colson Casters V-Groove 6" x 2" Grooved Tread Green tread on Green core Wheel
Colson V-Groove Cast Iron Wheels – Heavy-Duty Track & Floor Operation Colson V-Groove Cast Iron Wheels are built for demanding industrial environments where equipment must run smoothly on inverted angle iron track or directly on floors. These rugged wheels are machined for precision, with both the V-groove and wheel face finished to ensure accurate tracking and consistent performance.
-
Bearings: Pedestal Precision Ball for smooth, low‑maintenance rolling.
-
Tread Profile: Grooved Tread for predictable tracking.
-
Temperature Range: -45°F to +180°F
-
Hardness: Brinell 145
-
Size: 6" x 2" tread.
-
Color: Green tread on Green core
Specifications
-
Dynamic Load Capacity: 1200.0 lb
-
Bearing ID: 0.5000"
-
Wheel Bore: 1.1875"
-
Hub Length: 2.1875"
-
Wheel Diameter: 6"
-
Tread Width: 2"
-
Temperature Range: -45°F to +180°F
-
Hardness: Brinell 145
-
Part Number: 5.00006.735
Tested to ANSI ICWM standards for lasting safety and performance.
