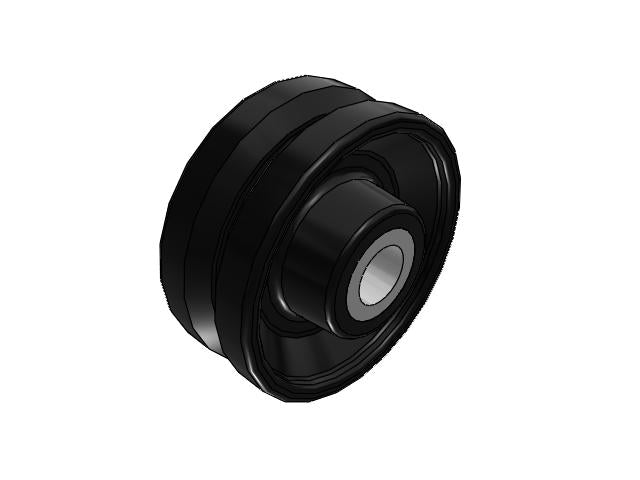

Albion Casters VM Ductile Iron V-Groove 6" x 2.5" Black Wheel
Albion VM Ductile V-Groove Wheels – Heavy-Duty Strength with Precision Tracking The Albion VM Series Wheels are the premium V-groove solution for applications requiring higher capacities than standard cast iron V-groove wheels. Made from ductile iron (ASTM A536 grade 65-45-12), these wheels combine exceptional strength, impact resistance, and long service life with the precise guidance of a machined V-groove tread.
-
Bearings: Straight Roller for smooth, low‑maintenance rolling.
-
Temperature Range: Up to +350°F
-
Hardness: Brinell 131 – 217 (mechanical properties ASTM A536 grade 65-45-12)
-
Size: 6" x 2.5" tread.
-
Color: Black
Specifications
-
Dynamic Load Capacity: 3500.0 lb
-
Bearing ID: 1-1/4"
-
Wheel Bore: 1-15/16"
-
Hub Length: 3-1/4"
-
Wheel Diameter: 6"
-
Tread Width: 2.5"
-
Temperature Range: Up to +350°F
-
Hardness: Brinell 131 – 217 (mechanical properties ASTM A536 grade 65-45-12)
-
Part Number: VM0640120
Tested to ANSI ICWM standards for lasting safety and performance.
