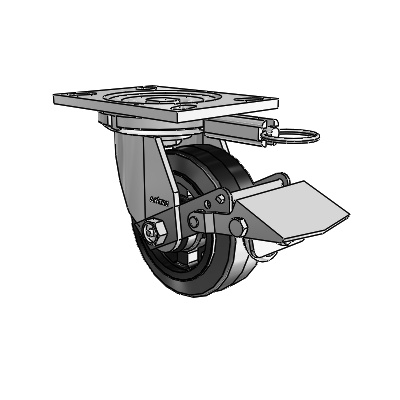

Colson 6.05209.645.7 BRK1 MTG52 caster is a heavy duty caster featuring a three-year premium warranty. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
6.05209.645.7 BRK1 MTG52
|
Caster Type
|
Swivel
|
Raceway Type
|
Full double ball hardened raceways for better performance and durability with multi-temp grease for extreme hot and cold temperatures
|
Brake
|
Tread Lock Brake (BRK1)
|
Wheel Description
|
Moldon Rubber
|
Wheel Color
|
Black on Black
|
Wheel Bearing
|
Pedestal Precision Ball
|
Wheel Profile
|
Crowned Tread
|
Wheel Hardness
|
70(+/-5) Shore A
|
Fastening
|
4-1/2" x 6-1/4" Top Plate
|
Bolt Hole Pattern
|
2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
|
Bolt Size Recommended
|
1/2"
|
Operating Temperature Range
|
-45F to +160F
|
Warranty
|
3 year
|
Manufacturing Number
|
6.05209.645.7 BRK1 MTG52
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
