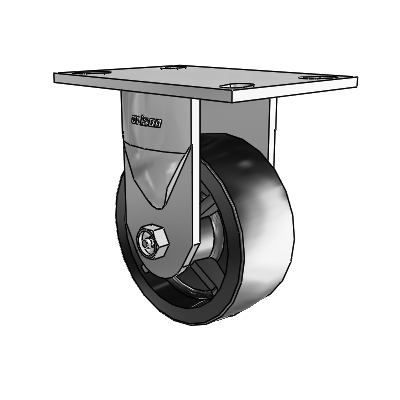

Colson 6.05208.835 caster is a kingpinless heavy duty caster built to handle shock, impact, and tough terrains featuring a three-year premium The precision CNC'd single large raceway provides smooth swiveling and eliminates the failure point of the kingpin, so it continues to perform in the toughest conditions. Please see the provided CAD model and specifications for part detail information. You can also download the CAD model or datasheet right from the top right corner of the CAD model viewer for free knowing that you are specifying a trusted and viable caster that meets or exceed ANSI/ICWM standards for safety and performance.
SKU
|
6.05208.835
|
Caster Type
|
Rigid
|
Brake
|
None
|
Wheel Description
|
Polyolefin
|
Wheel Bearing
|
Pedestal Precision Ball
|
Fastening
|
6 1/4''x 4 1/2'' Top Plate
|
Bolt Hole Pattern
|
2-7/16" to 3-3/8" x 4-15/16" to 5-1/4"
|
Bolt Size Recommended
|
1/2"
|
Warranty
|
3 year
|
Manufacturing Number
|
6.05208.835
|
Conformity
|
RoHS compliant; NSF component (less thread guards)
|
