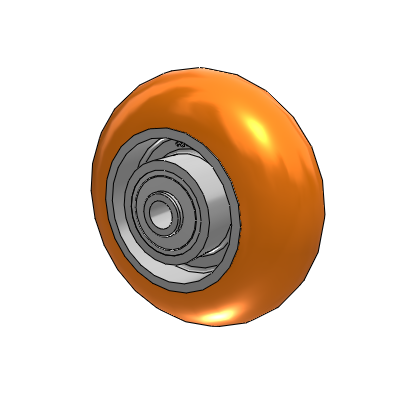

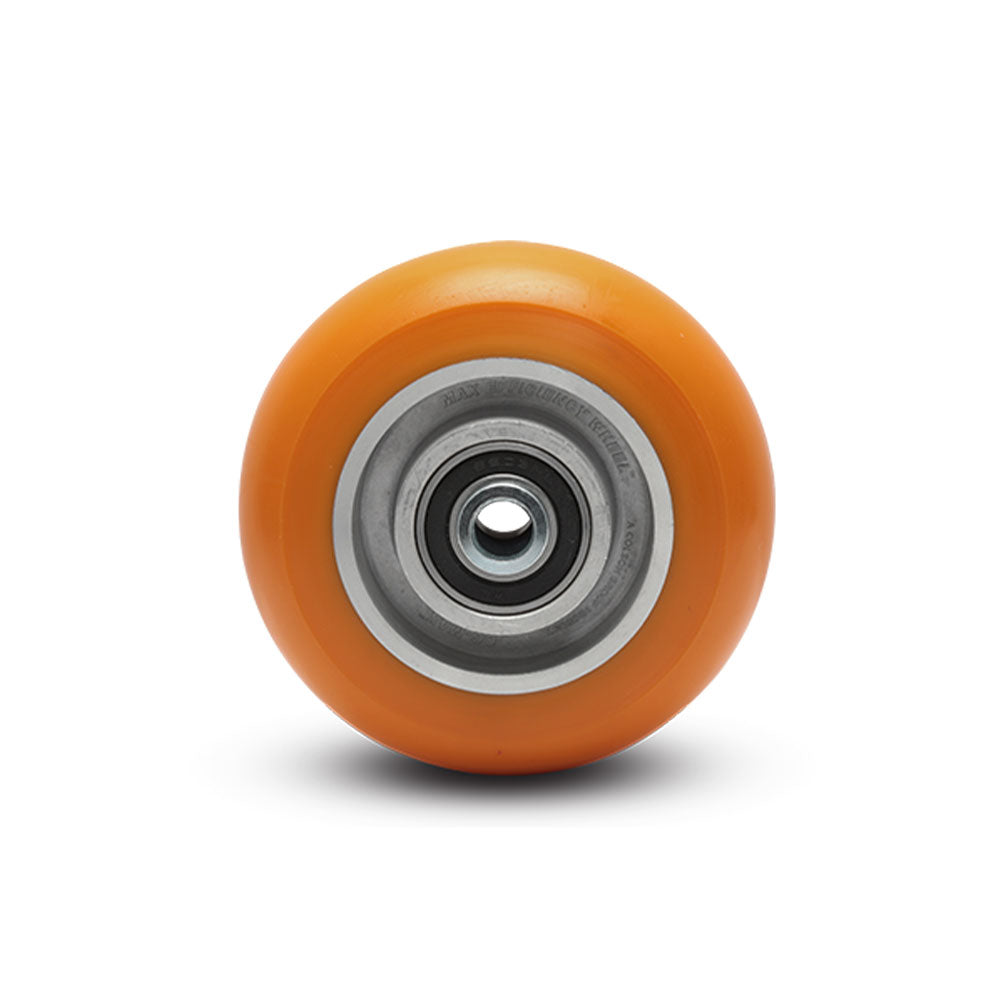

Albion Casters CG-MAX Orange 5" x 2" Donut Tread Orange tread on Aluminum core Wheel
The MAX-Efficiency Wheel is built to outperform, outlast, and maximize workplace efficiency in demanding material handling environments. Designed for best-in-class ergonomics and durability, these wheels reduce strain on employees, improve mobility, and create safer, more productive operations.
Featuring a proprietary polyurethane tread that’s chemically and mechanically bonded to a precision aluminum core, MAX-Efficiency Wheels deliver smooth, quiet, and floor-protective mobility. The tread resists debris, chemicals, and moisture while maintaining excellent rollability in both manual and towed applications.

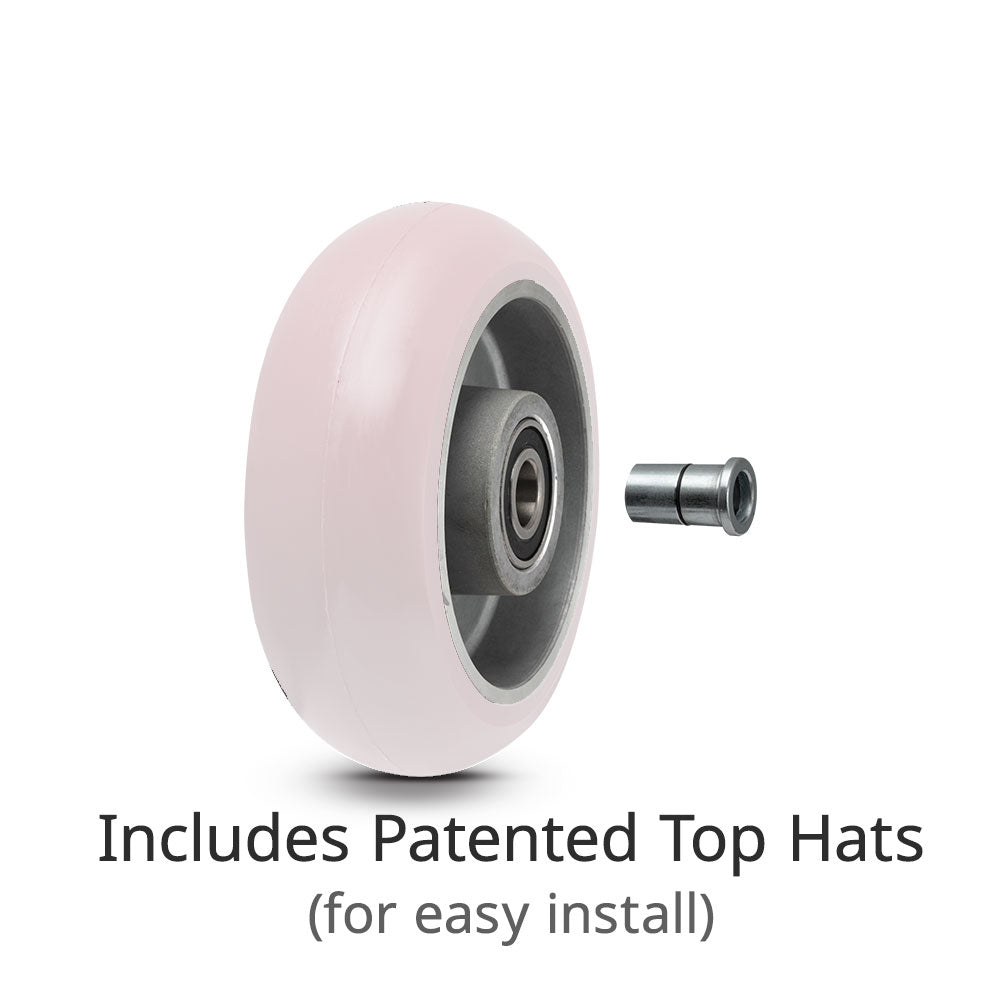

These wheels are also an excellent replacement or upgrade for existing 2" wide caster wheels with a ½" axle and the same diameter—ideal for upgrading from cheap rubber or hard, noisy roller-bearing wheels to these smoother, quieter, and easier-rolling precision ball bearing wheels. Wheels include bearings, patented top hats and spacers for easy installation (axles not included).
Key Features
-
Best-in-Class Ergonomics – 26% easier rolling initiation reduces push/pull forces and operator fatigue.
-
Proven Durability – Lasts up to 2× longer than competitive polyurethane wheels in testing.
-
ANSI ICWM Tested – for reliable performance and safety under industrial loads.
-
Advanced Polyurethane Formulation – Chemically and mechanically bonded to an aluminum core.
-
Quiet, Floor-Protective Mobility – Smooth operation that protects finished floors.
-
Debris & Chemical Resistant – Handles tough environments without pickup or damage.
-
Eco-Friendly Design – Patent-pending self-retaining top hats reduce waste.
Specifications
-
Wheel Diameter: 5"
-
Tread Width: 2"
-
Bore ID: 1.5625"
-
Hub Length: 2.4375"
-
Dynamic Load Capacity: 1,000 lb.
-
Bearings: Sealed Precision Ball
-
Tread Profile: Donut Tread
-
Tread/Core Color: Maroon tread on Aluminum core
-
Temperature Range: -40°F to 180°F
-
Hardness: 85A
-
Warranty: 1 year
Need a different bore, bearing, or size? Contact us—we have many available solutions.
