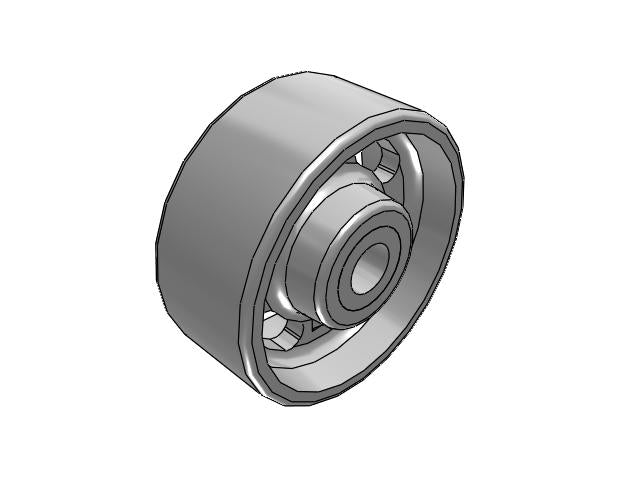

Albion Casters CA Cast Iron Wheels 5" x 2.125" Grey Wheel
Albion CA Cast Iron Wheels – Heavy-Duty Strength for High-Capacity Applications Albion’s CA Series cast iron wheels—sometimes referred to as semi-steel—are trusted across industries for their exceptional strength, durability, and cost efficiency. With a tensile strength of 30,000 psi, these premium wheels are among the strongest in the industry, making them a reliable solution for high-capacity applications where performance and long service life are critical.
- Heavy-duty carts and equipment
-
Bearings: Straight Roller for smooth, low‑maintenance rolling.
-
Temperature Range: Up to +800°F
-
Hardness: Brinell 145
-
Size: 5" x 2.125" tread.
-
Color: Grey
Specifications
-
Dynamic Load Capacity: 1500.0 lb
-
Bearing ID: 7/8"
-
Wheel Bore: 1-7/16"
-
Hub Length: 2-3/16"
-
Wheel Diameter: 5"
-
Tread Width: 2.125"
-
Temperature Range: Up to +800°F
-
Hardness: Brinell 145
-
Part Number: CA0530114
Tested to ANSI ICWM standards for lasting safety and performance.
